Cda-45854-p1a Pressure Injectable Arrowg+ard Blue Plus Four-lumen Cvc Instructions

CDA-45854-P1A Pressure Injectable Arrowg+ard Blue Plus Four-Lumen CVC

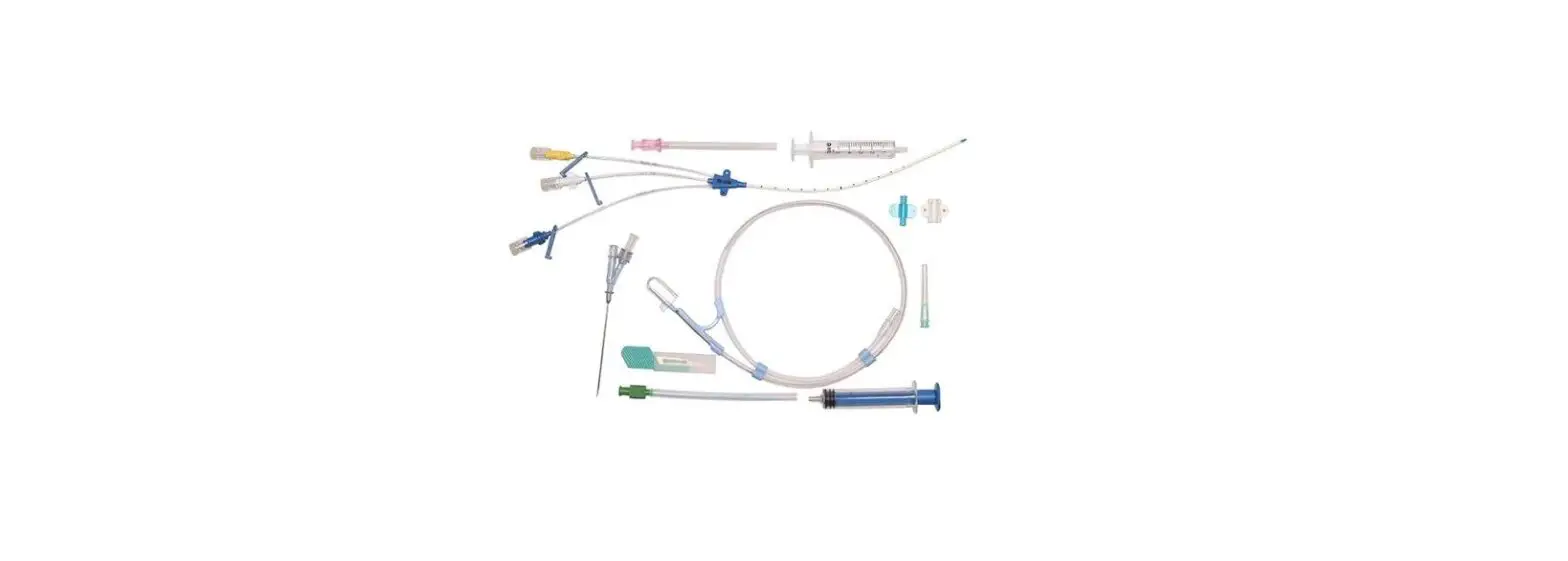

Features

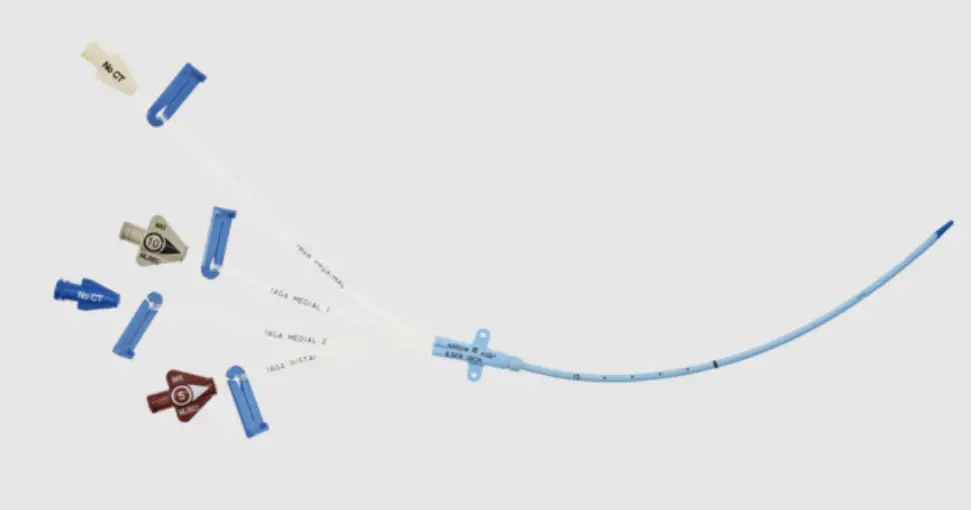

• 1: Arrowg+ard Blue Plus®1 Four-Lumen Catheter: 8.5 Fr. (3.0 mm OD) x 20 cm, Pressure Injectable
• 1: Spring-Wire Guide, Marked: .032″ (0.81 mm) dia. x 23-5/8″ (60 cm) (Straight Soft Tip on One End – “J” Tip on Other) with Arrow Advancer
• 1: Catheter: 18 Ga. x 2-1/2″ (6.35 cm) Radiopaque over 20 Ga. RW Introducer

Needle

• 1: Pressure Transduction Probe
• 1: Introducer Needle: Echogenic 18 Ga. x 2-1/2″ (6.35 cm) XTW and 5 mL Arrow®

Raulerson Spring-Wire Introduction Syringe
1: Injection Needle: Eclipse™2 22 Ga. x 1-1/2″ (3.81 cm) RW and 5 mL Luer-Slip

Syringe
1: Injection Needle: Eclipse™2 25 Ga. x 1″ (2.54 cm) RW and 3 mL Luer-Lock

Syringe

• 1: Syringe: 10 mL Luer-Lock
• 1: Tissue Dilator: 10 Fr. (3.5 mm) x 10.2 cm
• 1: SecondSite™ Adjustable Hub: Fastener
• 1: SecondSite™ Adjustable Hub: Catheter Clamp
• 1: SharpsAway® Disposal Cup
• 1: SharpsAway® II Locking Disposal Cup
• 1: Maximal Barrier Drape™ with 4″ fenestration
• 1: Towel
• 1: Needle Holder
• 1: Forceps
• 1: Safety Scalpel: #11
• 1: Checklist/CLIP Sheet
• 1: Sterile Procedure Sign
• 2: Gauze Pad: 2″ x 2″ (5 cm x 5 cm)
• 5: Gauze Pad: 4″ x 4″ (10 cm x 10 cm)
• 1: Dressing: Tegaderm®3 10 cm x 12 cm
• 1: Surgical Apparel: Impervious Gown
• 1: Surgical Apparel: Bouffant Cap
• 1: Surgical Apparel: Mask with Eye Shield
• 1: Suture: 3-0 Silk with Curved Needle
• 1: HemoHopper® Fluid Receptacle
• 1Licensed under US Patent No. 7,329,412.
• 2A trademark of Becton, Dickinson and Company.
• 3A registered trademark of 3M Company.

Not made with natural rubber latex.
Store below 25°C (77°F). Avoid excessive heat above 40°C (104°F).
Contraindications: The Arrowg+ard Blue Plus antimicrobial catheter is contraindicated for patients with known hypersensitivity to chlorhexidine, silver sulfadiazine and/or sulfa drugs.

• * Priming volumes are approximate and are done without accessories.
• † Flow rate values are approximate and are determined using deionized water at 100 cm head height.
• ** Pressure injection flow rates are determined using media of 11.8 centipoise (cP) viscosity, with 152 cm administration set tubing
