GV-VS2400 4CH H.264 TVI 1080p Video Server
| • H.264 • 4-channel TVI 1080p / 720p and analog 960H / D1 real-time video • 12V DC • Tampering Alarm • USB HDD Storage • UMTS / 3G / 3.5G / 4G | • Automatic switch between WiFi and 3G • Supports over 50 PTZ models • 29 languages on Web interface • HD-TVI (1.0 / 2.0 standard) • ONVIF (Profile S) conformant |

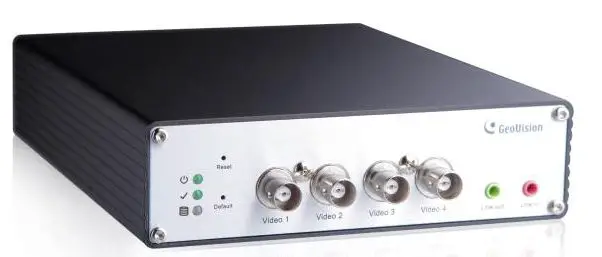

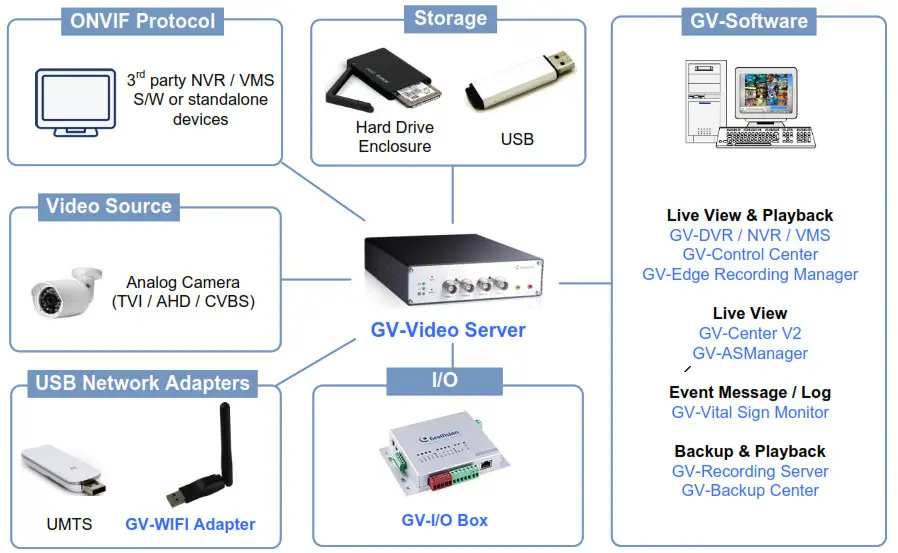

GV-VS2400 is a powerful H.264 Video Server with compact size and supports 4-channel TVI 1080p / 720p and analog 960H / D1 real-time video. It can be fully integrated with GV-DVR / NVR / VMS to form a powerful IP surveillance solution. GV-VS2400 converts analog signals into high-resolution digitized images up to 2 megapixels and supports over 50 PTZ models to fulfill various project demands. It can record videos to a local USB storage, performing as a compact video recorder. It is also able to trigger Tampering Alarm alerts when cameras are tampered with, which can prevent criminal activities.
Specifications
| Video | ||||||
| Video Standard | NTSC, PAL | |||||
| Video-Input | 4 channels | |||||
| Compression | H.264 | |||||
| Signal Type | TVI / CVBS | |||||
| Frame Rate | NTSC | 30 fps per channel; 120 fps in total for 4 channels | ||||
| PAL | 25 fps per channel; 100 fps in total for 4 channels | |||||
| Resolution | NTSC HD | Main Stream | 1920 x 1080 (Default), 1280 x 720, 640 x 360, 448 x 252 for TVI Signal | |||
| Sub Stream | 640 x 360, 448 x 252 (Default) for TVI Signal | |||||
| NTSC HD | Main Stream | 960 x 480, 720 x 480 (Default), 480 x 240, 360 x 240 for Analog Signal | ||||
| Sub Stream | 480 x 240, 360 x 240 (Default) for Analog Signal | |||||
| PAL HD | Main Stream | 1920 x 1080 (Default), 1280 x 720, 640 x 360, 448 x 252 for TVI Signal | ||||
| Sub Stream | 640 x 360, 448 x 252 (Default) for TVI Signal | |||||
| PAL SD | Main Stream | 960 x 576, 720 x 576 (Default), 480 x 288, 360 x 288 for Analog Signal | ||||
| Sub Stream | 480 x 288, 360 x 288 (Default) for Analog Signal | |||||
| Video Streaming | Configurable frame rate and bandwidth, Constant and variable bitrate | |||||
| Video Adjustment | Brightness, Contrast, Saturation, Hue, Sharpness | |||||
| Dual Streams | Yes | |||||
| Coaxial Cable | Recommended Type | 5C-FB or above | ||||
| Maximum Length | 300 m (984 ft) | |||||
| Audio | ||||||
| Audio Input | 1 channel | |||||
| Compression | G.711 | |||||
| Audio Support | Two-way | |||||
| Management | ||||||
| Event Management | Trigger | Schedule, Sensor Input, Motion Detection | ||||
| Action | • Store Video (AVI format) •Send e-mails with captured images • Upload captured images to FTP Server • Monitor through Center V2 and Vital Sign Monitor • Activate relay outputs to control external devices | |||||
| Firmware Upgrade | Remote upgrade by HTTP, Firmware upgrade utility | |||||
| Storage | USB HDD Storage | |||||
| Client PC Requirements | Microsoft Internet Explorer 8.x or later | |||||
| Security | IP address filtering | |||||
| Language | Bulgarian / Czech / Danish / Dutch / English / French / German / Greek / Hebrew / Hindi / Hungarian / Italian / ndonesian / Japanese / Norwegian / Lithuanian / Persian / Polish / Portuguese / Romanian / Russian / erbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Thai / Traditional Chinese / Turkish | |||||
| Max Number of Live Streams | 16 | |||||
| Max Numbers of RTSP Streams | 25 | |||||
| Network | ||||||
| Interface | 10/100/1000 Base-T Ethernet, 802.11b/g/n Wireless LAN (optional), Mobile broadband: UMTS, EDGE, etc. (optional) | |||||
| Protocol | DHCP, DynDNS, FTP, HTTP, HTTPS, 3GPP/ISMA, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SMTP, SNMP, TCP, UDP, UPnP | |||||
| Security Feature | -No default ID and Password -802.1x authentication -HTTPS with SSL certificate stored within the video server | |||||
| External Interface | ||||||
| Video Input | 4 BNC ports | |||||
| Audio Input | 1 port stereo phone jack, 3.5 mm/0.14’’ | |||||
| Audio Output | 1 port stereo phone jack, 3.5 mm/0.14’’ | |||||
| Sensor Input | 4 inputs | |||||
| Alarm Output | 4 outputs | |||||
| PTZ | RS-485 +/- | |||||
| Ethernet | RJ-45, 10/100/1000 Mbps | |||||
| USB | 2 ports (USB 2.0) | |||||
| Power | Input | DC Jack (DC 12V, 3.0A) | ||||
| Output | 12V, 1.6A, (19.2 W Max.) | |||||
| Environment | ||||||
| Operation Temp. | -20°C ~ 50°C / -4°F ~ 122°F | |||||
| Humidity | 0% ~ 85% RH (non-condensing) | |||||
| Weather Resistance | Indoor use | |||||
Note:
- GV‐Video Server cannot work with microphones that acquire power from the unit. Use microphones that have an external power supply.
- GV-VS2400 supports 1 external hard disk (2.5″ or 3.5″) with up to 14 TB capacities.
- It is not recommended to use the flash USB drive with GV-VS2400 because of its slow read and write speed.
- When transmitting video signals over a long distance, it is highly recommended to use 5C-FB coaxial cables or above to minimize the degradation of image quality. The transmission distance should be within 300 m (984 ft).
- Product design and specifications are subject to change without notice.
Packing List
- GV-VS2400
- AC Power Cord
- Power Adaptor
- Download Guide
- Warranty Card
Options
Optional devices can expand your GV-Video Server’s capabilities and versatility. Contact our dealer for more information.

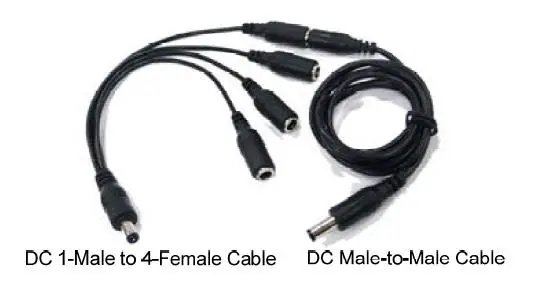

| DC Male-to-Male Cable | DC Male-to-Male Cable and DC 1-Male to 4-Female Cable are both used to power the cameras through the GV-Video Server. For instance, you can purchase four DC Male-to-Male Cables and one DC 1-Male to 4-Female Cable to power four cameras through the GV-Video Server. |
| DC 1-Male to 4-Female Cable |  |
| GV-Relay V2 | Working with a GV-Relay V2, the GV-Video Server is capable of driving loads of relay outputs over 5 volts. |
| GV-WiFi Adaptor V2 | GV-WiFi Adaptor V2 is designed to connect GV IP devices, such as GV-Video Server, to the wireless network. |
| Wall Hook | Wall Hook is used to mounting GV-VS2400 to the wall.  |
| DIN-rail Hook | DIN-rail Hook is used to mounting GV-VS2400 to a 35-mm (1.38-in) DIN rail. |

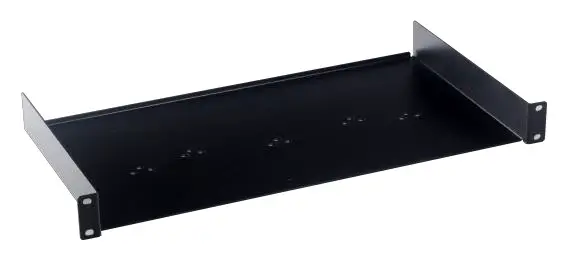

| Rack Mount | Rack Mount is used to mounting up to 3 video servers to a 19-in (482.6-mm) rack. |
Supported Wireless LAN USB Adaptor
| Vendors | Model |
| D-Link | DWA-140 (H/W version B1), DWL-G122 (version C1) |
| EDIMAX | EW-7318Ug, EW-7718Un, EW-7711UAn |
| Linksys | WUSB54GC, WUSB600 (version 1) |
| Pegatron | WL-166N11 |
Note: Linksys WUSB54GC ver. 3 is not supported.
Supported Mobile Broadband Device
| Vendors | Model |
| Bandluxe | C320, C501 |
| D-Link | DWM-222 |
| HUAWEI | E156, E156B, E169, E220, E1692, E1750, E1752, E1756, E1756C, EC169C, EC189 USB Modem(HSDPA/UMTS/EDGE/GPRS/GSM) |
| Novatel | MC950D, MC996D, MC998D (HSDPA/UMTS/EDGE/GPRS/GSM) |
| Onda | MSA523HS |
| Sierra | 250U |
| Verizon | USB727, USB728, USB760 Modem (EVDO) |
| Vodafone | K3565 (Rev 2) |
| ZTE | MF100 |
