 Introduction

This product is a high-performance video image processing workstation that can display multiple dynamic screens on multiple displays to realize the window splicing  function. This product, designed specifically for high-quality multi-screen scenarios, features flexible control of different types of screens with varied resolutions. It can be used in industries such as education and research, government announcements, information publishing, administrative management, military command, exhibition display, security monitoring, and home appliance sales.
This manual describes how to manage the device on a Web browser. The figures in this manual are only for illustration purpose. The parameters, options and values actually  displayed on the Web pages of your device may be different from those in this manual.

Login

Before you start the system, please check following.

•  The device is operating properly.
• The computer is connected to the device.

The computer is installed with Microsoft Internet Explorer (IE) 7.0 or higher, and no proxy server is being used.

Note!

• The default IP address of your device is 192.168.1.14; the default subnet mask is 255.255.255.0; the default gateway is 192.168.1.1.
• Use admin as the username and 123456 as the password for first-time login. Please change the default password under admin to ensure account security.

Follow the steps to log in to the device:

1. Enter the device’s IP address in the address bar and then press Enter.
2. Log in with the correct username and password.

System

Set system settings include Basic information, Time, Serial, Play, Window, Running Mode and Security.
3.1 Basic

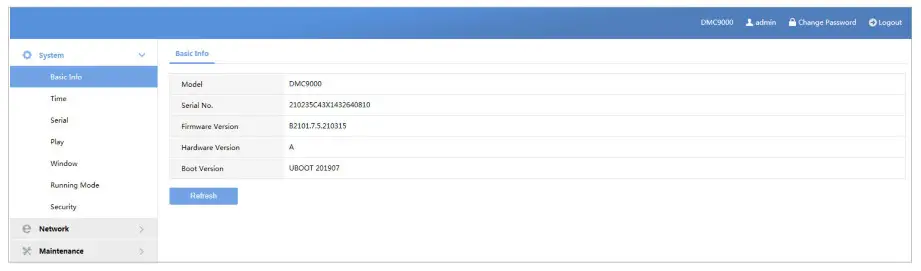

The Basic page lists the basic information including device type, serial number, software version, hardware version and boot version.

1. Click System > Basic.
2. Click Refresh.

3.2 Time
Set system time for your device and how to update time.

1. Click System > Time

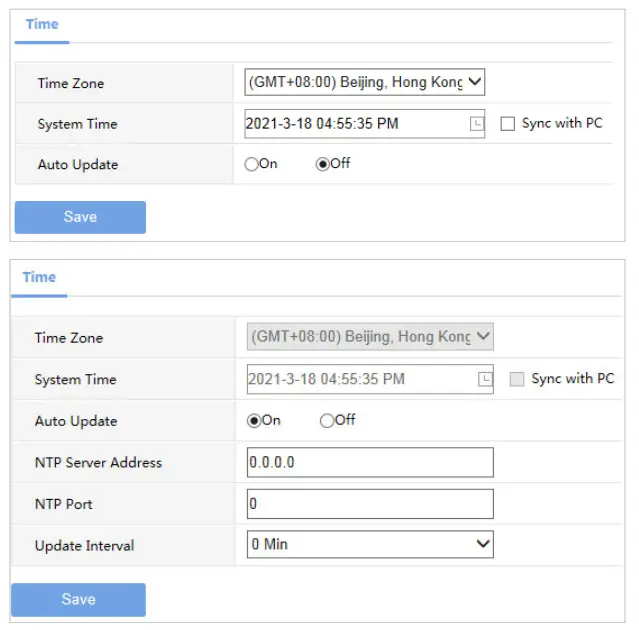

2. Set the parameters. Some are described in the table below.


   Parameter	Description
   Time Zone	Choose a time zone for your device.
   System Time	Current system time of the device. Click the Set Time text box and then set the time manually or select Sync with PC and then the device automatically synchronizes time with your computer.
   Auto Update	Enable this function if you have a Network Time Protocol (NTP) server on the network. The device synchronizes time with the NTP server at the set interval when enabled. The NTP server’s IP address, port number, and update interval are required.
   NTP Server Address	Enter the IP address of the NTP server. Note: Set only when automatic update is enabled.
   NTP Port	Enter the port number of the NTP server. Note: Set only when automatic update is enabled.
   Update Interval	The device time is updated every few minutes. Note: l  The valid range of input time is 1~10080 minutes. l  Available when auto update is enabled.

Note!
The device synchronizes time with the central server when operating in server mode.

 3.3 Serial
Set the serial port on the device, including the number, serial mode, baud rate, date bit, stop bit check bit and flow control method.
 3.3.1 Serial Port Parameters

1. Click System > Serial > Serial Port Parameters.

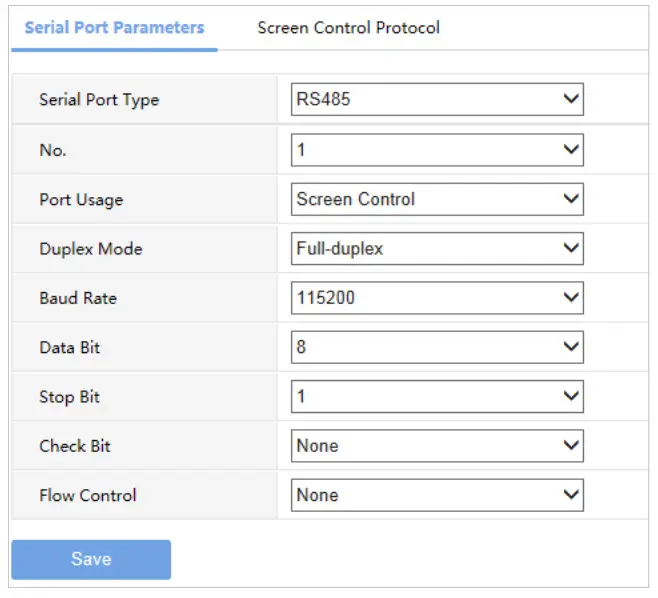

2. Configure the serial port. The figure below shows the RS485’s parameters.
3. Some parameters are described in the table below.


   Parameter	Description
   Serial Port Parameters	Select the serial port to set, including RS232 and RS485.
   NO.	Select the serial port to set.
   Port Usage	Screen Controll.
   Duplex Mode	Full duplex or half duplex. Available when RS485 is selected.
   Baud Rate	Transmission rate in bps. The baud rate must be consistent with that on the connected external device.
   Data Bit	Number of data bits per character.
   Stop Bit	Number of stop bits per character.
   Check Bit	Two kinds of parity bits: even parity bit or odd parity bit.
   Flow Control	Whether and how to control flow of data through the serial port.

4. Click Save.

Note!
In server mode, only Duplex can be configured on the Web browser, and all the other parameters can be configured only on the central server.

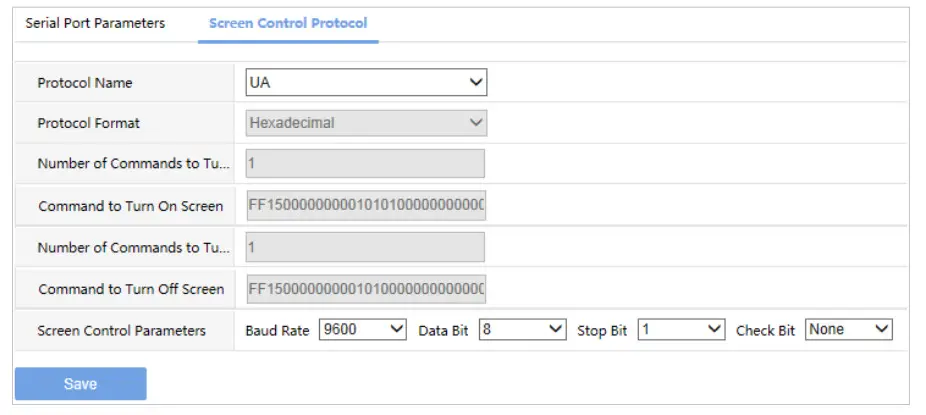

 3.3.2 Screen Control Protocol
Select or customize a screen control protocol as required. 3.4 Play

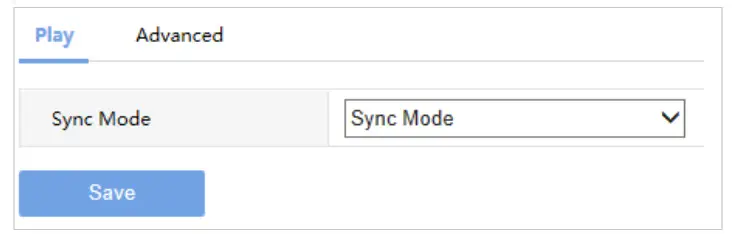

3.4.1 Play
Set display mode.
3) Click System > Play.
4) The Play page lists the display mode.

3) Click Save.
3.4.2 Advanced
Set what to display when decoding stops.

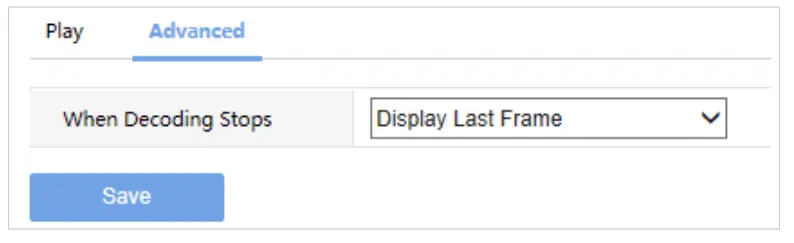

5) Click System > Play > Advanced

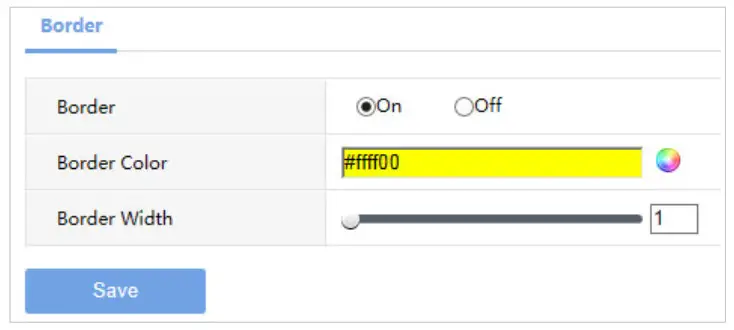

2) Set what to display when decoding stops. 3.5 Window
Set Window border.
1) Click System > Window 2) Set the parameters. Some are described in the table below.

3) Click Save.

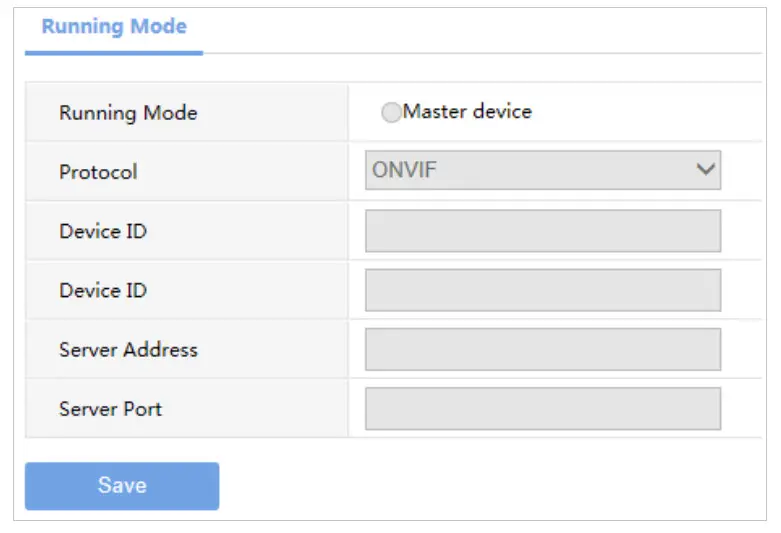

3.6 Running Mode
Set the running mode and protocol of the device.
2) Click System > Running Mode.
3) The Running Mode page lists the running mode and protocol 3) Click Save.
3.7 Security
Set the security of the device.
3.7.1 Telnet
Enable Telnet if you want to access the device from a computer with Telnet. By default the admin username cannot be changed…

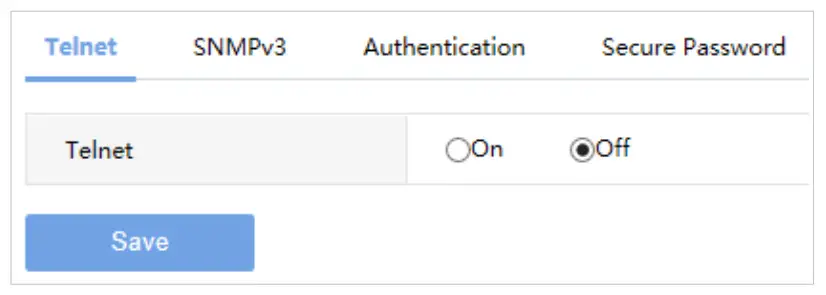

1) Click System > Security > Telnet.2) Select the check box to enable Telnet, and then click Save.

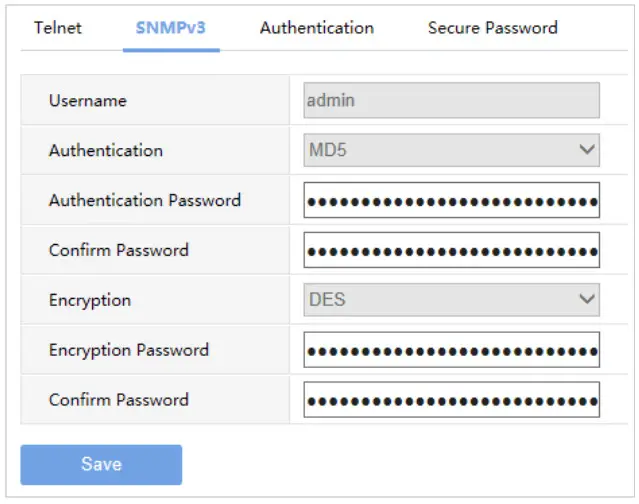

3.7.2 SNMPv3
Through SNMP the central server synchronizes audio/video channel configurations and some of the scheduled tasks to the device, and the device reports device alarms to  the central server.
1) Click System > Security > SNMPv3

2) This page can’t be configured.
3.7.3 Authentication
Select digest or null in the Authentication page. Digest access authentication is one of the agreed-upon methods a web server can use to negotiate credentials with server.

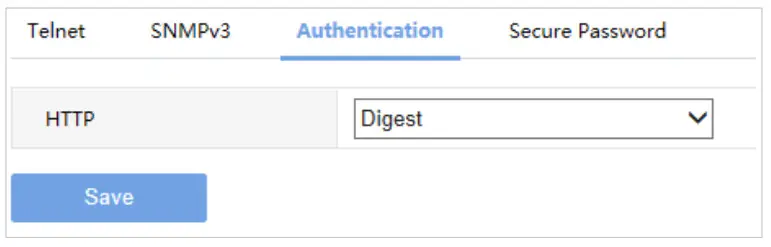

1) Click System > Security > Authentication

2) Select Digest to enable the digest authentication, and then click Save.
3.7.4 Secure Password
1) Click System > Security > Secure Password.
2) Some parameters are described in the table below.

3) Select password mode, and then click Save.

Network

Set network settings include TCP/IP and Telnet so that the device can communicate with other devices on the network.

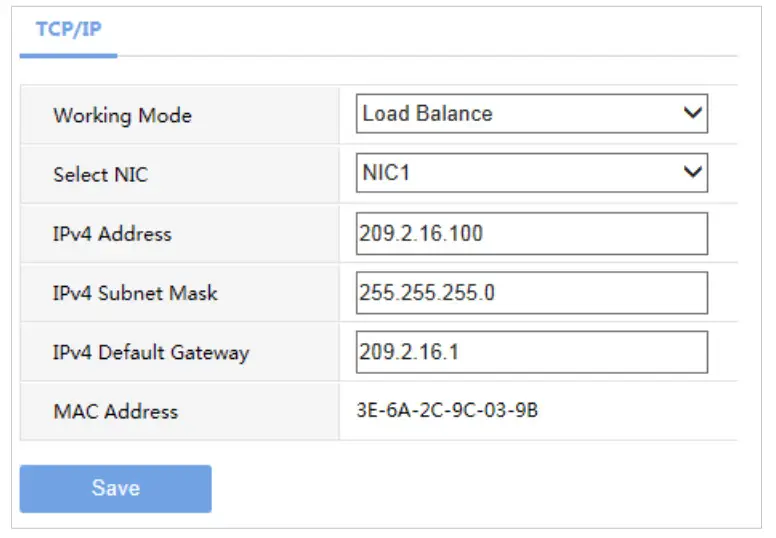

4.1 TCP/IP
Assign a static IP address manually, or obtain one using the DHCP server.
1) Click Network > TCP/IP.2) Set the parameters. Some are described in the table below.

2) Click to Save.

Maintenance

The major functions provided on the Maintenance menu are listed in the table below.

5.1 Device Status

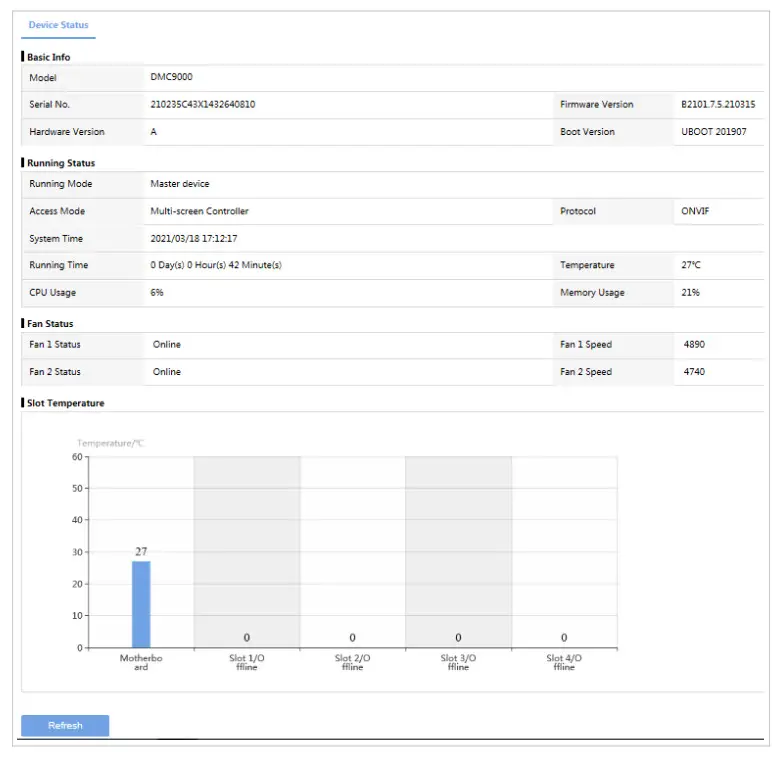

1) Click Maintenance > Device Status to view information of the device, its basic information, running status, fan status and slot temperature. The following shows an example.2) Some are described in the table below.

3) You can view the current boards in the icon types, such as temperature, whether online status information.

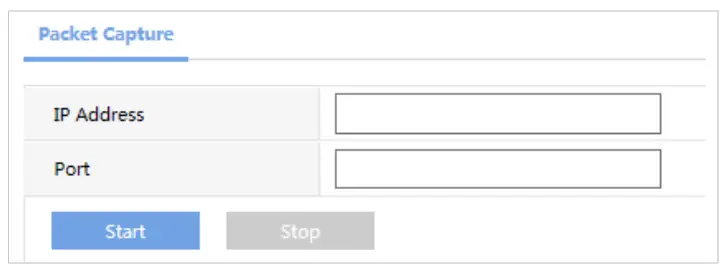

5.2 Packet Capture
1) Click Maintenance > Packet Capture.3) Some are described in the table below.

5.3 Maintenance

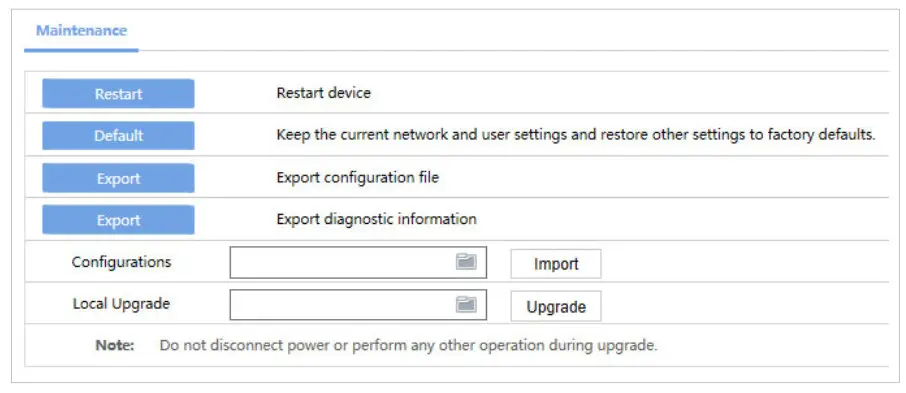

2) Click Maintenance > Maintenance and then perform maintenance operations as needed. You can restart the device, restore some factory default settings, import and export configuration files, export diagnostic information, and upgrade the device.

Specifications

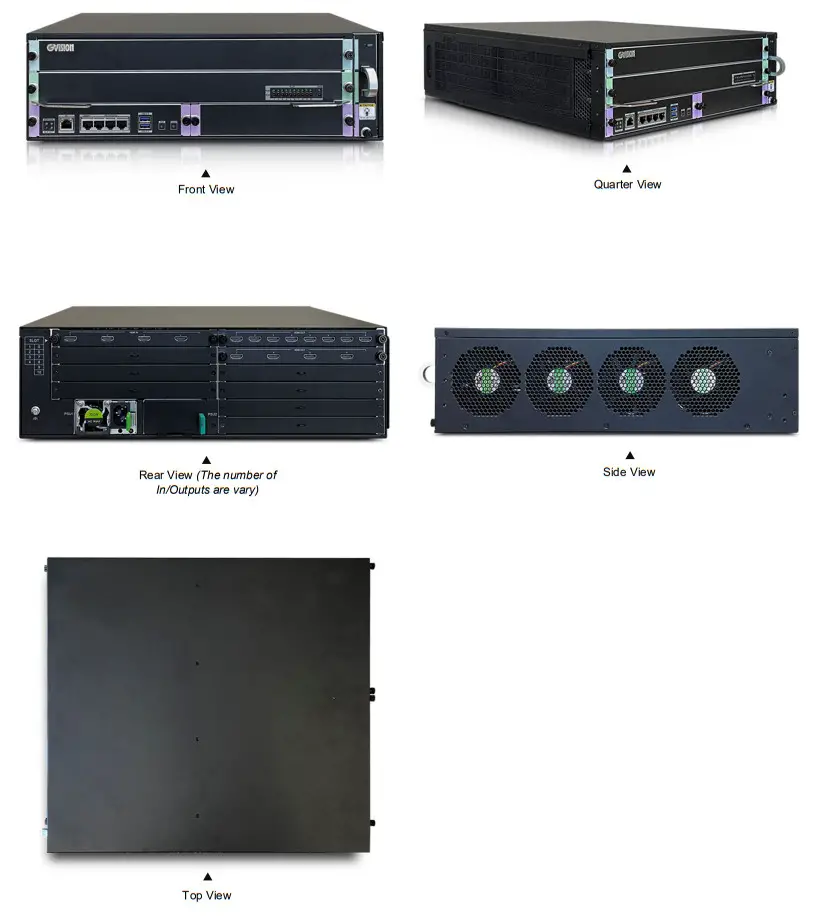

Product Photos
