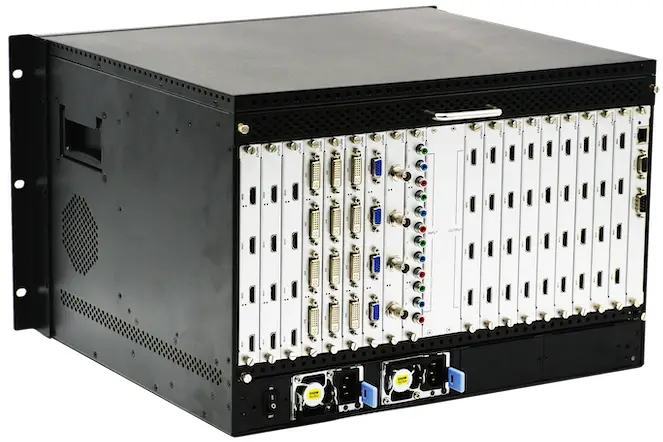

Angustos Avw6-3636 Video Wall Controller Instruction Manual

ANGUSTOS AVW6-3636 Video Wall Controller Instruction Manual

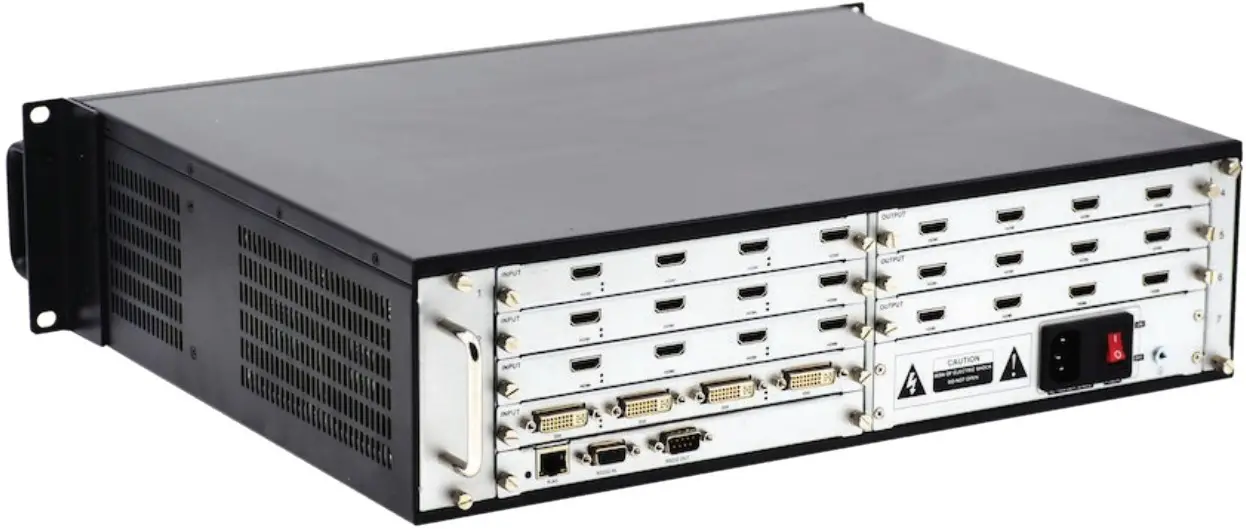

FPGA Dedicated Chipset

Dedicated Field Programmable Gate Arrray (FPGA) chipset is a combination of processing unit that dedicated in video processing. This eliminated the limitation of a CPU or a GPU from conventional Software or PC controller.

Without the use of PCI – Express card, the unit can work flawlessly when adding or editing the total layout of the videowall set up. As each of the FPGA chip is working independently, user can replace or add new input / output card without turning off the whole chassis.

Features

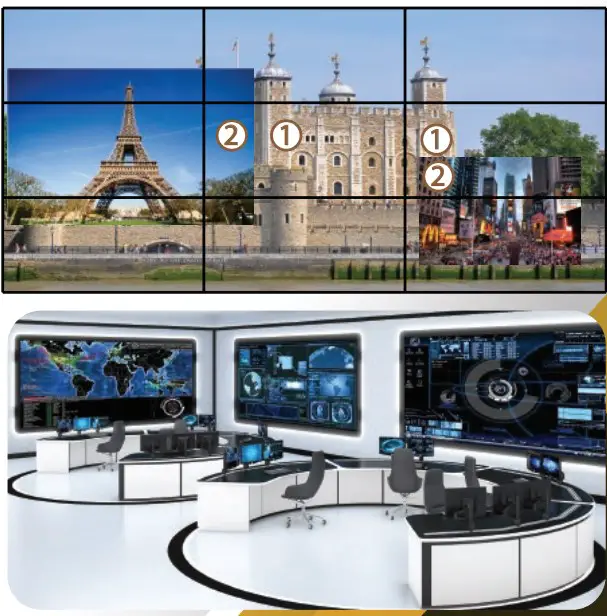

• High-end Multi Layers MPiP™ – Cross Screen
  Support up to 2 Layers Matrix Picture in Picture (MPiP™) in each screen
• Easy control with Drag & Drop
  Customize complex layout with simple Click – Drag – Drop
• High-end Video Wall Control
  Support Overlap, Roaming, Stretching, Zoom in / out.
• Front Panel Touch Screen
  Control scene mode, save / recall profile, IP setting with just a touch
• IP Camera Direct Stream (iDirect Stream™)
  IP input Card can support streaming video feed direct from IP CCTV Cameras.
• Background Image – Scrolling Text – Scheduling
  Support Static Background Image and Scrolling Text for Bank and Stock house Video Wall
  Support scene mode Scheduling – Cycle for advertising – digital signage Video Wall

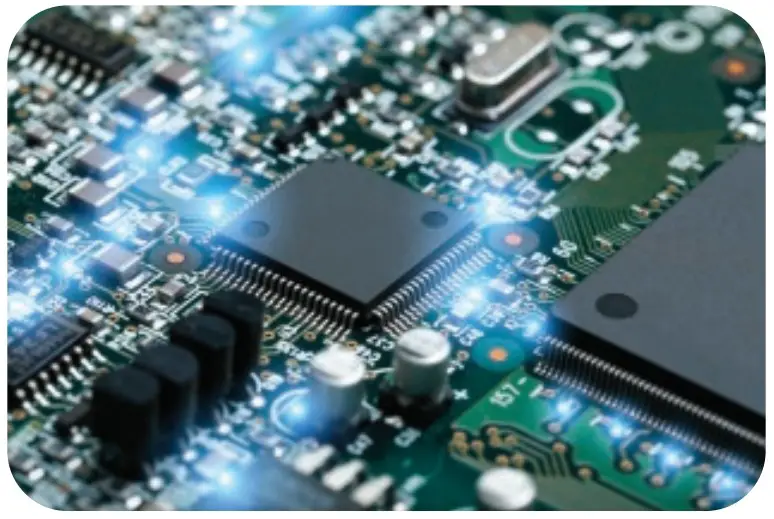

Hardware Based Design

High performance video processing equipment with hardware architecture design.

No more computer high-end specification.
No more high-end Graphic Processing Unit (GPU Card).
No more licenses.
No more blue-screen OS crash.
No more viruses and black screen.
No more ransomware, lost data.
Support up to 152 input x 144 output (20U Chassis)

Module design with Hot Swap

Multiple form of connections for client to custom fit their system. Client can now combine HDMI – DVI – VGA – Basset – IP Streaming in one total solution, maximizing system integration.

Reduce the total cost of investment in both pre & post phase of expansion. Chassis also support control multiple video walls, further simplify the complexity of connections and management.

Features

• Pure Hardware Structure – FPGA
• Modular Design
• Seamless Switching
• Bezel Compensation
• Scrolling Text
• Character Superimposition
• Ultra HD Background Image
• Multiple video wall management
• Signal preview(Optional)
• Support Redundant Power Supply

SPECIFICATION

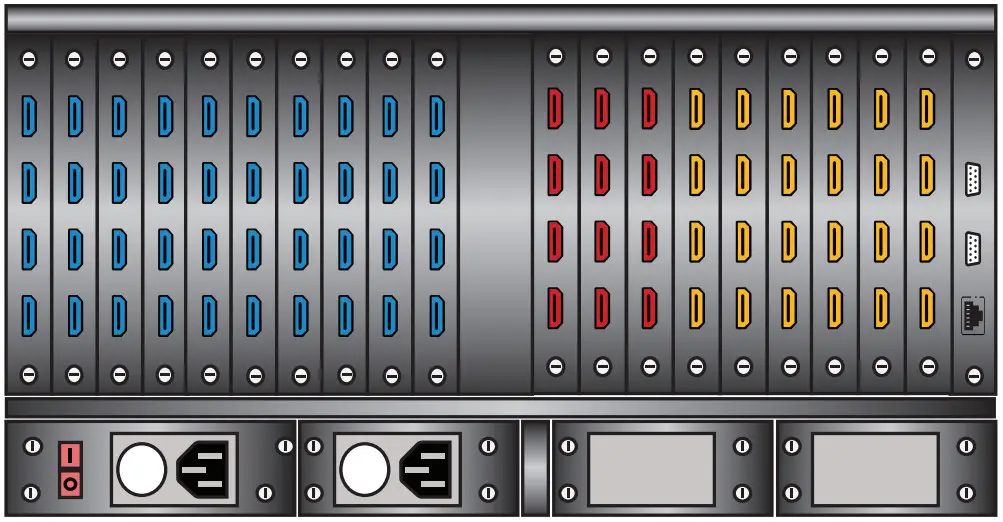

HYBRID I/O SLOT

Advance FPGA chip allow Angustos
Video Wall Controller chassis to set up flexible input / output slot.
Hybrid I/O Slot can be both Input or Output slot

INPUT PORT
POWER MODULE
OUTPUT PORT
ETHERNET PORT
HYBRID I/O PORT
RS-232 PORT

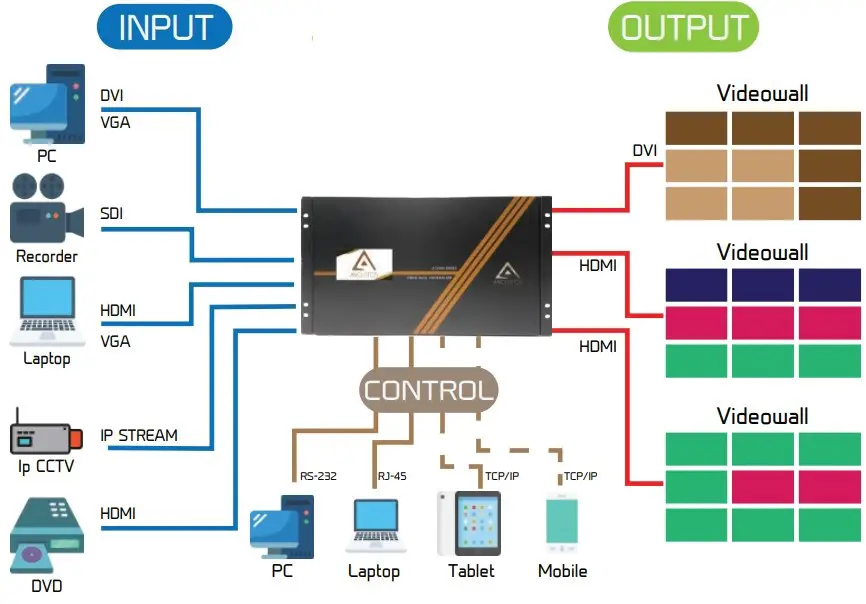

CONNECTION DIAGRAM
