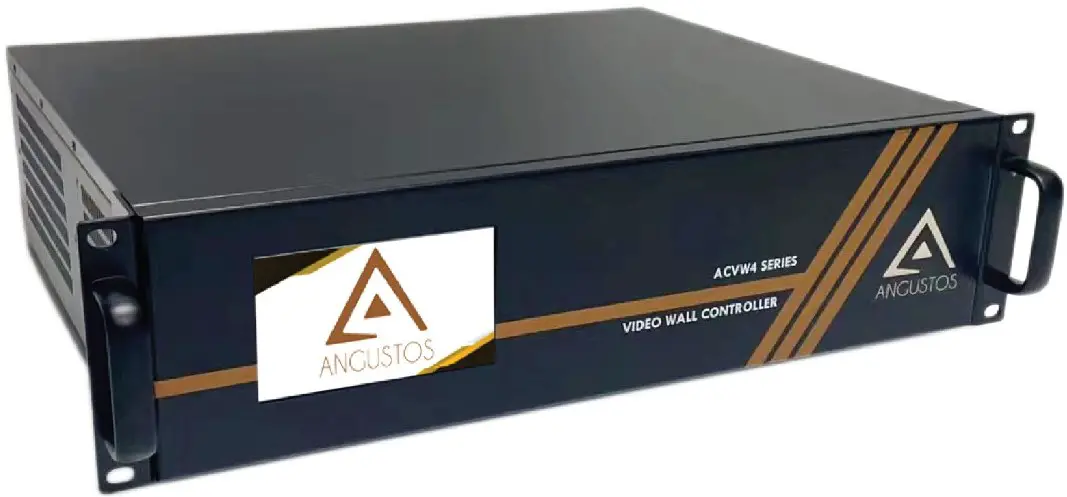

ANGUSTOS ACVW4-1609DD FPGA Videowall Controller Owner’s Manual

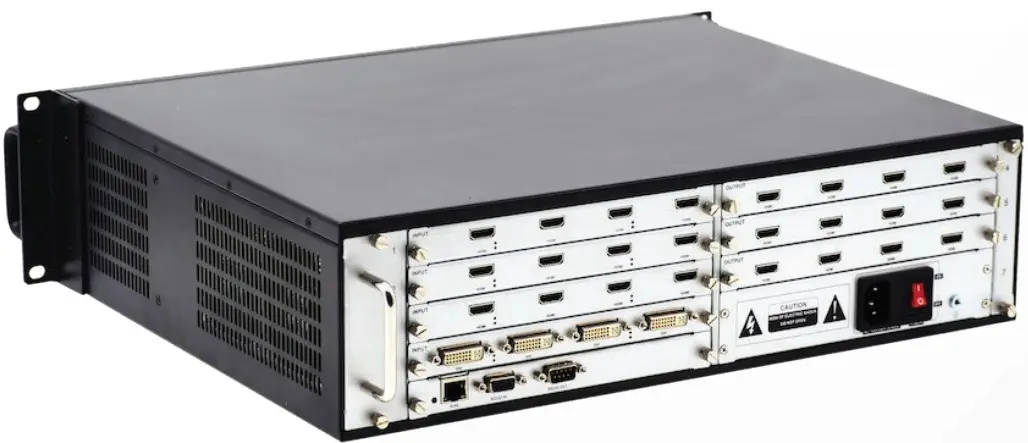

FPGA Dedicated Chipset

Dedicated Field Programmable Gate Array (FPGA) chipset is a combination of processing unit that dedicated in video processing. This eliminated the limitation of a CPU or a GPU from conventional Software or PC controller.

Without the use of PCI – Express card, the unit can work flawlessly when adding or editing the total layout of the videowall set up. As each of the FPGA chip is working independently, user can replace or add new input / output card without turning off the whole chassis.

Features

• High-end 4 Layers MPiP™ – Cross Screen
  Support up to 4 Layers Matrix Picture in Picture (MPiP™) in each screen
• Easy control with Drag & Drop
  Customize complex layout with simple Click – Drag – Drop
• High-end Video Wall Control
  Support Overlap, Roaming, Stretching, Zoom in / out.
• Front Panel Touch Screen
  Control scene mode, save / recall profile, IP setting with just a touch
• IP Camera Direct Stream (iDirect Stream™)
  IP input Card can support streaming video feed direct from IP CCTV Cameras.
• Background Image – Scrolling Text – Scheduling
  Support Static Background Image and Scrolling Text for Bank and Stock house Video Wall Support scene mode Scheduling – Cycle for advertising – digital signage Video Wall

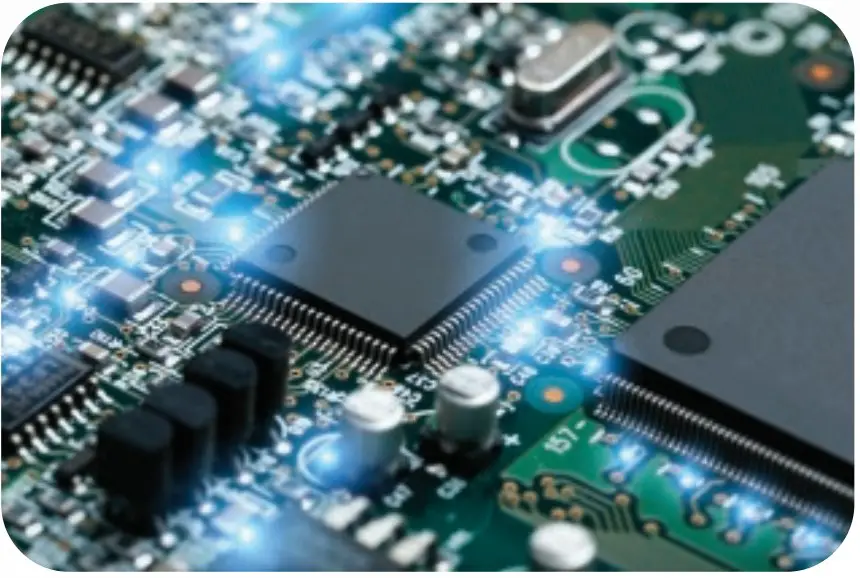

Hardware Based Design

High performance video processing equipment with hardware architecture design.

• No more computer high-end specification.
• No more high-end Graphic Processing Unit (GPU Card).
• No more licenses.
• No more blue-screen OS crash.
• No more viruses and black screen.
• No more ransomwares, lost data.
• Support up to 92 input x 72 output or 88 input x 60 output



Module design with Hot Swap

Multiple form of connections for client to custom fit their system. Client can now combine HDMI – DVI – VGA – HDBaseT – IP Streaming in one total solution, maximizing system integration.

Reduce the total cost of investment in both pre & post phase of expansion. Chassis also support control multiple videowalls, further simplify the complexity of connections and management

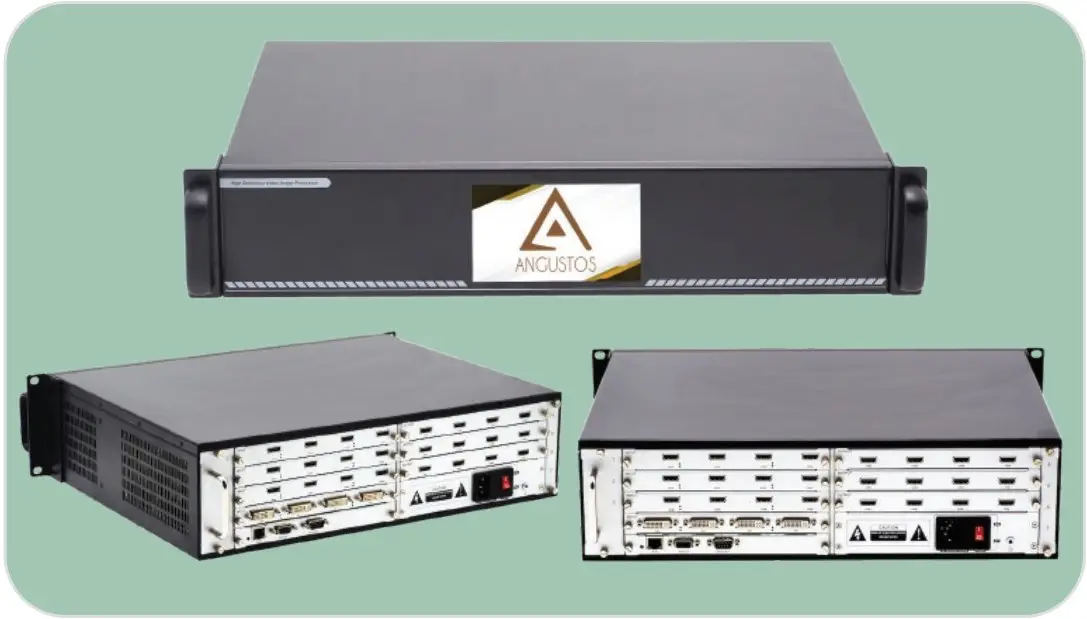

Features

• Pure Hardware Structure – FPGA
• Modular Design – Hot swap
• Seamless Switching – Auto EDID
• Bezel Compensation with Scaler
• Scrolling Text (Optional)
• Character Superimposition
• Ultra HD Background Image
• Multiple video wall management
• Signal preview (Optional)
• Support Redundant Power Supply


SPECIFICATION

HYBRID I/O SLOT

Advance FPGA chip allow Angustos
Video Wall Controller chassis to set up flexible input / output slot.
Hybrid I/O Slot can be both Input or Output slot

INPUT PORT
OUTPUT PORT
HYBRID I/O PORT
POWER MODULE
ETHERNET PORT
RS-232 POR

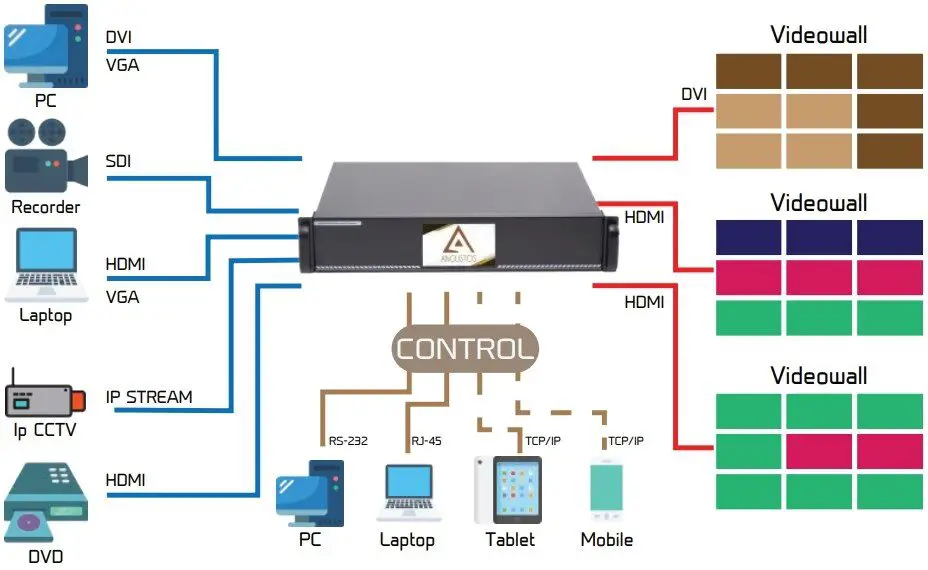

CONNECTION DIAGRAM

Website: http://www.angustos.com
ANGUSTOS Email: [email protected]
