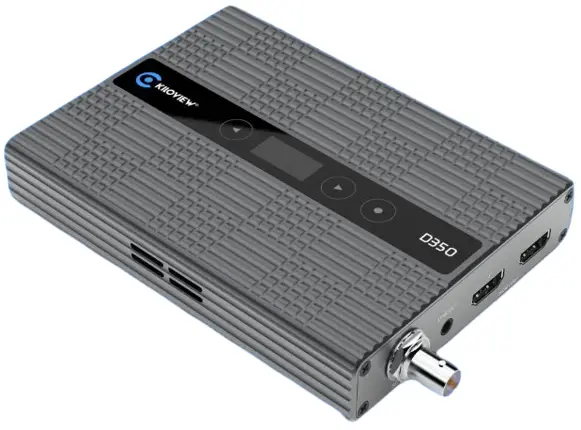

D350 4K H.265/H.264 NDI Decoder
Descriptions
The D350 decoder is a professional hardware decoding device that can simultaneously decode up to 9 network video streams and then output them through both 3G-SDI and HDMI interfaces in synchronization, with up to 4Kp60 output resolution. With a built-in LCD screen, users can monitor the IP status and decoding parameters in real-time.
| · NDI and NDI|HX | · 4K H.265 | · Low latency decoding |
| · Adjustable resolution | · Image and text overlay | · API provided |
| · Multi-stream switching | · 9 channels video split | · LCD Display |

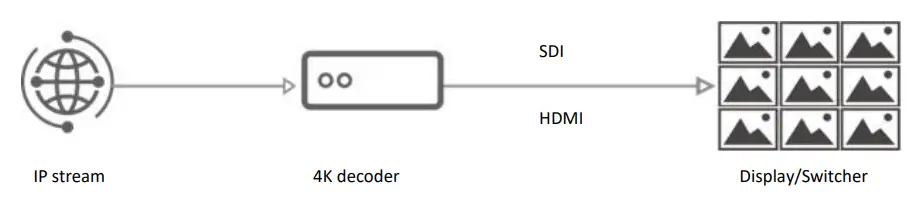

Application
Simultaneous decoding of 9 channels of network streams and split-screen output, network streaming on-screen/into the switcher, SRT video point-to-point transmission, program shooting monitoring, monitoring, video conferencing, audio and video engineering, conference engineering, etc.
Advantages
4k H.265 decoding, up to 9 channels video simultaneous decoding output, split display, dynamic switching
- Support 4K H.265/H.264 IP stream decoding
- Support 9 channels of video simultaneous decoding output (9 channels 1080P60, 4 channels 4kp30 or 2 channels 4Kp60)
- Up to 9 channels video decoding and output for 1/2/3/4/6/9 split display, and dynamic switching
- Multiple video sources can be added, and 9 video streams dynamic switching output
SDI and HDMI Three interface output，and support image and text overlay output
- 3G-SDI and 2×4K HDMI interface output, and output the same or different content
- HDMI output up to 3840×2160@60Hz and SDI up to 1920×1080@60Hz output, and the output resolution is adjustable
- Support SDI and HDMI embedded audio output, or 3.5mm analog audio output
- Support for logo, image and text overlay LCD Screen Display
- Support users to check the network speed, IP address and output status in real-time display
Support full protocols, especially NDI, NDIHX, SRT
- Support NDI, NDI|HX and SRT decoding
- Support RTMP, HLS, TS over UDP, RTSP protocols
| Model No. | D350 |
| Input | 2x100M/1000M RJ-45 Ethernet ports |
| Video output | 1xSD/HD/3G-SDI, up to 1080P60, 2 xHDMI 2.0, up to 3840×2160@60fps |
| LCD screen | YES |
| Output formats | SDI up to 1080P60Hz; HDMI up to 4k, details as below SDI: 1080P60/59.94/50,1080P30/29.97/25/24/23.98 1080i60/59.94/50, 720P60/59.94/50, 576i/50, 480i/60; HDMI:4K 3840×2160@60/50/30/25,1080p60/50,1080p24/25/30, 1080i60/50,720p60/50, compatible with VESA standard format. |
| Audio output | SDI/HDMI embedded or analog audio output |
| Media protocols | NDI High bandwidth, NDIIHX 2.0, NDIIHX 3.0, SRT, RTMP, RTMPS, HLS, TS over UDP, RTSP, RTP |
| Video decoding | H.265 /H.264 |
| Audio decoding | AAC/G.711 |
| Decoding latency | <200ms (adjustable) |
| Decoding capability | Up to 9CH 1080P60 decoding, or 4CH 4Kp30 decoding, or 2CH 4Kp60 decoding |
| Split screen display | Support 1/2/3/4/6/9 split screen |
| Management | Web page/KiloLink Server |
| Power/Consumption | 12V, 1A /6W |
| Dimension | 140x105x28mm (5.51×4.13×1.10″ ) |
| Weight | 380g (13.4oz) |
| Operating temperature | -20-60°C |
