D260 HD Video Decoder
D260 HD Video Decoder
The D260 HD video decoder is a professional hardware decoding
device that can independently decode IP streams to various formats
without relying on a computer. It supports NDI|HX2.0, NDI|HX3.0,
SRT, RTSP, RTMP, RTMPS, RTP unicast or multicast media streams,
etc. and outputs with 2xHDMI and 1xSDI signals. It also supports 4
streams decoding simultaneously, split to screen, dynamic
switching.
Applications
- 4CH streams decoding simultaneously and split output
- Streams to the screen/ to switcher
- SRT video point-to-point transmission (receiving end)
- Program shooting and monitoring (receiving end)
- Monitor to the screen
- Audio and video projects
- Conference projects, etc.
Advantages
- Strong decoding function
- Supports 4 streams decoding simultaneously, split display,
dynamic switching - Decode H.264/H.265 encoded video and
AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM encoded audio at a bit rate of
40Mbps supported - Support NDI|HX2.0/NDI|HX3.0/SRT/RTMP/HLS/TS over UDP/RTSP etc.
Protocols - Decoding latency for NDI|HX
Product Usage Instructions
- Connect the D260 HD video decoder to the IP stream source.
- Connect the D260 HD video decoder to the display or switcher
using the HDMI or SDI output. - Power on the D260 HD video decoder.
- Select the IP stream format to be decoded using the device’s
menu. - Configure the decoding settings, such as split screen output
and dynamic switching, using the device’s menu. - The decoded video and audio will be outputted to the connected
display or switcher.
D260 HD Video Decoder
Cost-effective video decoding device
Descriptions
D260 HD video decoder is a professional hardware decoding device, which can independently decode IP streams to various formats (including NDI|HX2.0,NDI|HX3.0, SRT, RTSP, RTMP, RTMPS, RTP unicast or multicast media streams, etc.) without relying on computer, and output with 2xHDMI and 1xSDI signals. It also supports 4 streams decoding simultaneously, split to screen, dynamic switching.
·Support NDI|HX, SRT ·Support 1080P60 ·Image and text overlay
· Support SDK/API · Analog audio independently output ·4CH streams decoding simultaneous
·2xHDMI and 1xSDI output ·Adjustable output resolution
Applications
4CH streams decoding simultaneously and split output, streams to the screen/ to switcher, SRT video point-to -point transmission (receiving end), program shooting and monitoring (receiving end), monitor to the screen, audio and video projects, conference projects, etc.
IP Stream
HD Video Decoder
SDI
HDMI HDMI
Display/switcher
Advantages
Strong decoding function, support 4 streams decoding simultaneously, split display, dynamic switching
Decode H.264/H.265 encoded video and AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM encoded audio at a bit rate of 40Mbps supported; Support 4CH streams decoding simultaneously, and select 1/2/3/4 split screen output; Support NDI|HX2.0/NDI|HX3.0/SRT/ RTMP/ HLS/TS over UDP/RTSP etc. Protocols; Decoding latency for NDI|HX <150ms, and for other protocols can be adjustable (about 100~200ms).
SDI+2xHDMI interface outputsupport image and text overlay

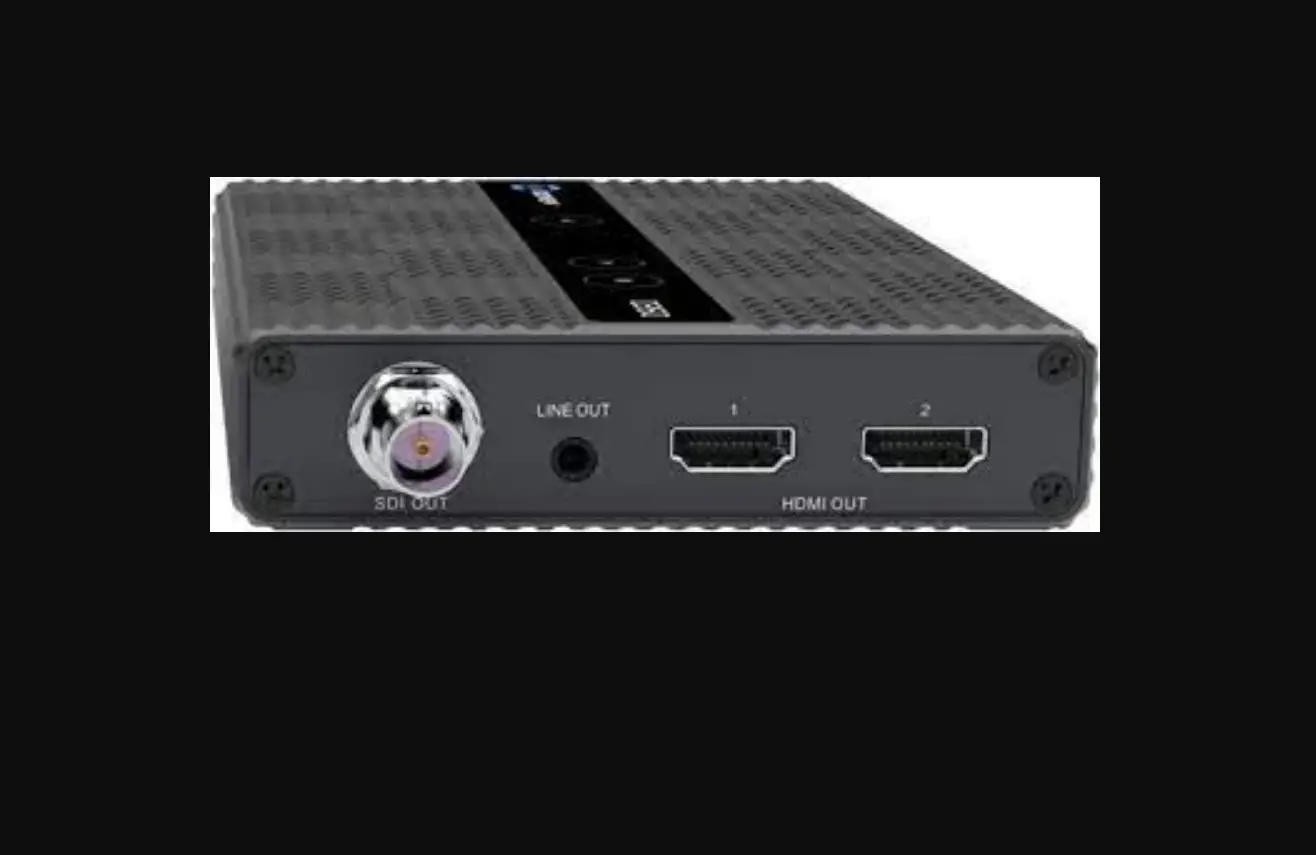

With 2xHDMI and 1xSDI output same or different content simultaneously; Supports up to 1080p60 HD video output, the output resolution is adjustable and compatible with HD-SDI (SMPTE 292M)/SD-SDI (SMPTE 259M) Support SDI and HDMI embedded audio output, or 3.5mm analog audio independent output; The output of the encoder can superimpose logo, picture, etc; Multiple video sources can be added simultaneously in the backstage for fast switching output.
Portable size, low power consumption, multifunctional, 24h continuous operation available
Small size, easy to carry and deploy; Power consumption is 7w max, makes 24h continuous operation available; Support automatic reconnection mechanism when power and network are off; Equipped with 1000M network port, and the network can be configured simultaneously with 3 IP addresses, which is convenient for business and management;
Parameters
Model
D260
Input
2 x 1000M RJ45 Ethernet port
USB interface
1 x USB Type-A1 x USB Type-C
Video output LCD screen Audio output
2xHDMIup to 1920×1080@60Hz (1080p60), 1xSD/HD/3G-SDIup to 1920×1080@60Hz (1080p60) 0.96 ” OLED display SDI/HDMI embedded or built-in Line out analog audio
Media transmission protocols NDI|HX2.0, NDI|HX3.0, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP and RTSP
Video decoding Audio decoding Decoding delay Decoding ability
H.264/H.265 AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM and other software expansion NDI|HX<150ms SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, RTSP: 100~200ms(adjustable) Up to 4 channels decoding simultaneous (1080p60fps H.264(AVC)/H.265(HEVC)
Management
Web page/ Kiloview KiloLink Server
Power supply/Consumption 12V, 1A/7w (MAX)
Dimensions/Weight
162.85×104.00×25.00mm/328.18g
Operation temperature
-20 ~60°C
Important Notes: D260 with NDI | HX3.0 decoding ability is open to users as a trial function, but whether D260 finally participates in or passes the NDI|HX3 standard certification, enjoys the exclusive logo of NDI|HX3, Kiloview reserves the right to final interpretation. The video decoding delay depends on many external factors such as the video encoding source capability, frame rate, the stability of network transmission and the transmission protocol itself. Due to these factors, the current test value is just for reference. Please consider your actual environments.
