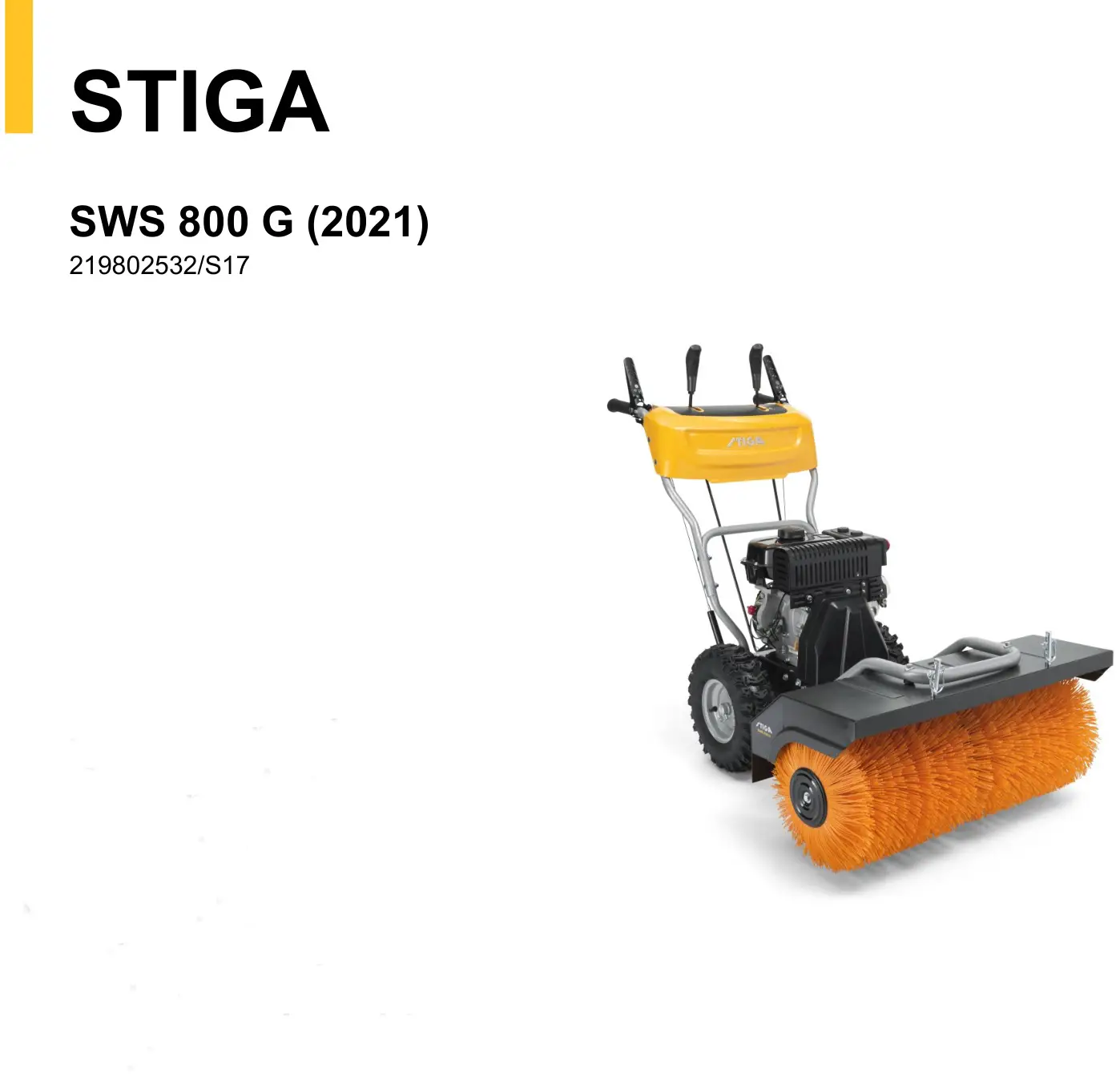

STIGA 219802532/S17 SWS 800 G Petrol
Sweeper User Guide

• Use ST. S.p.A. Genuine Spare Parts specified in the parts list for repair and/or replacement.
• The contents described in the parts list may change due to improvement.
• The drawings of the spare parts are only indicative And might Not represent the part in question exactly.
• The indications “right” – “left” – “front” – “rear” refer to the position of the operator when using the machine.
• When placing orders of parts for repair And/Or replacement, make sure that the illustrated parts list Is the one applying to the machine’s year of manufacture, as shown on the identification plate attached to the machine.

All rights reserved. No part Of this material may be reproduced Or transmitted, in any form Or by any means, electronic Or mechanical, including photocopying, recording Or by any information storage And retrieval system, without permission in writing from ST. S.p.A.

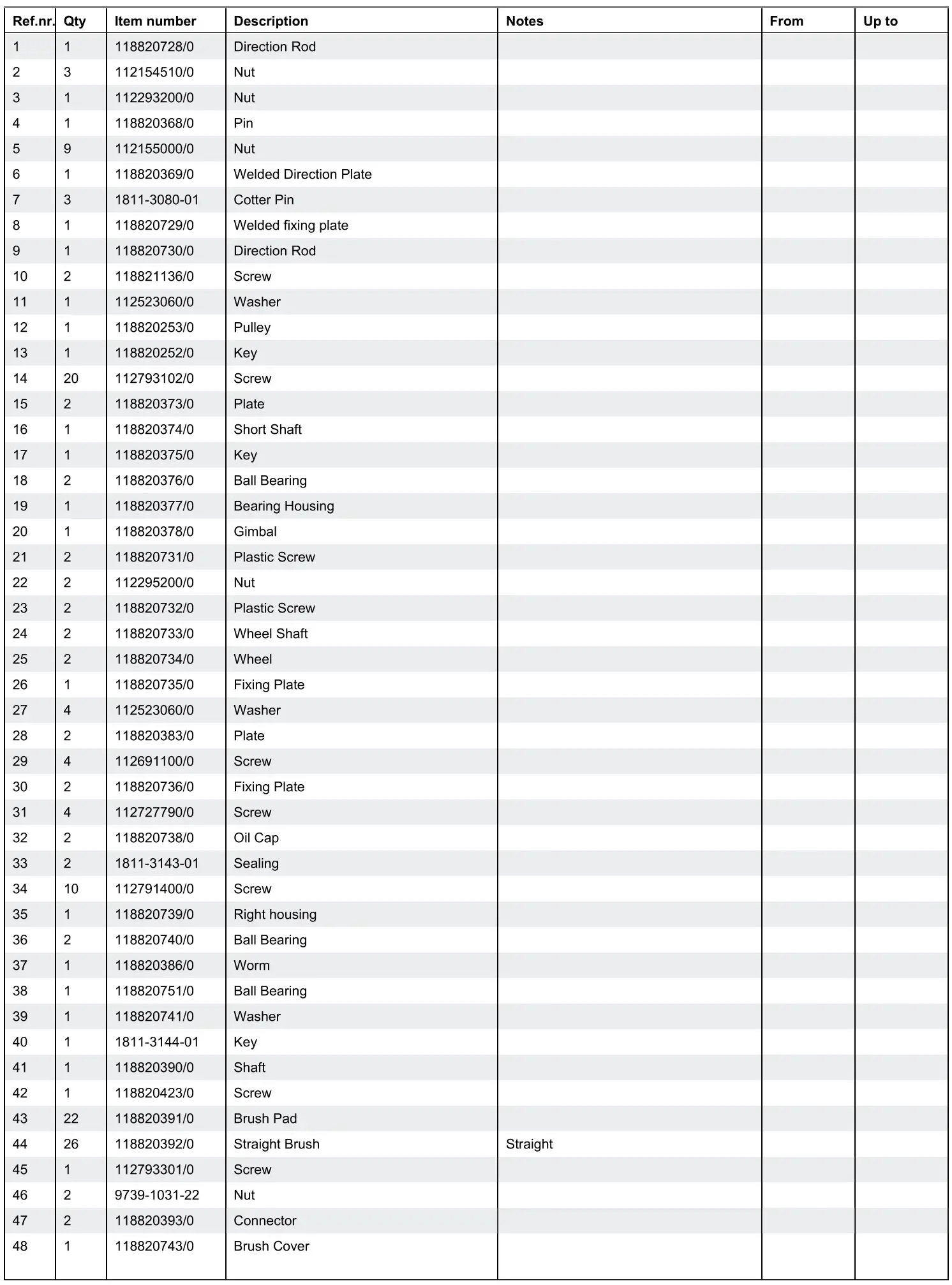

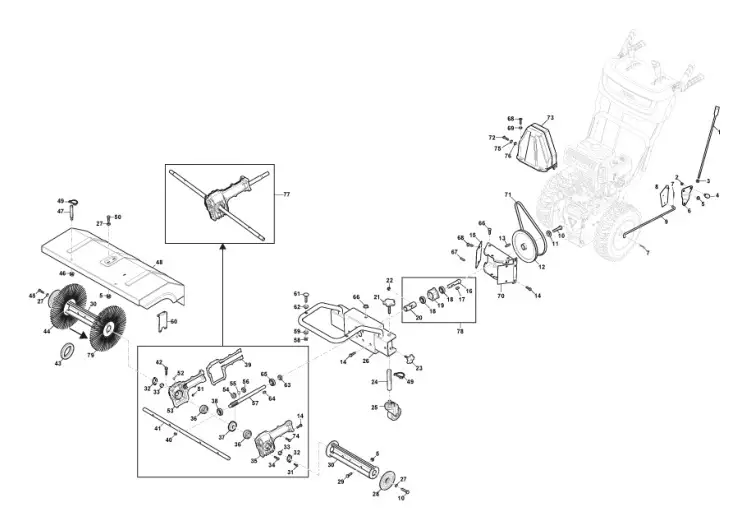

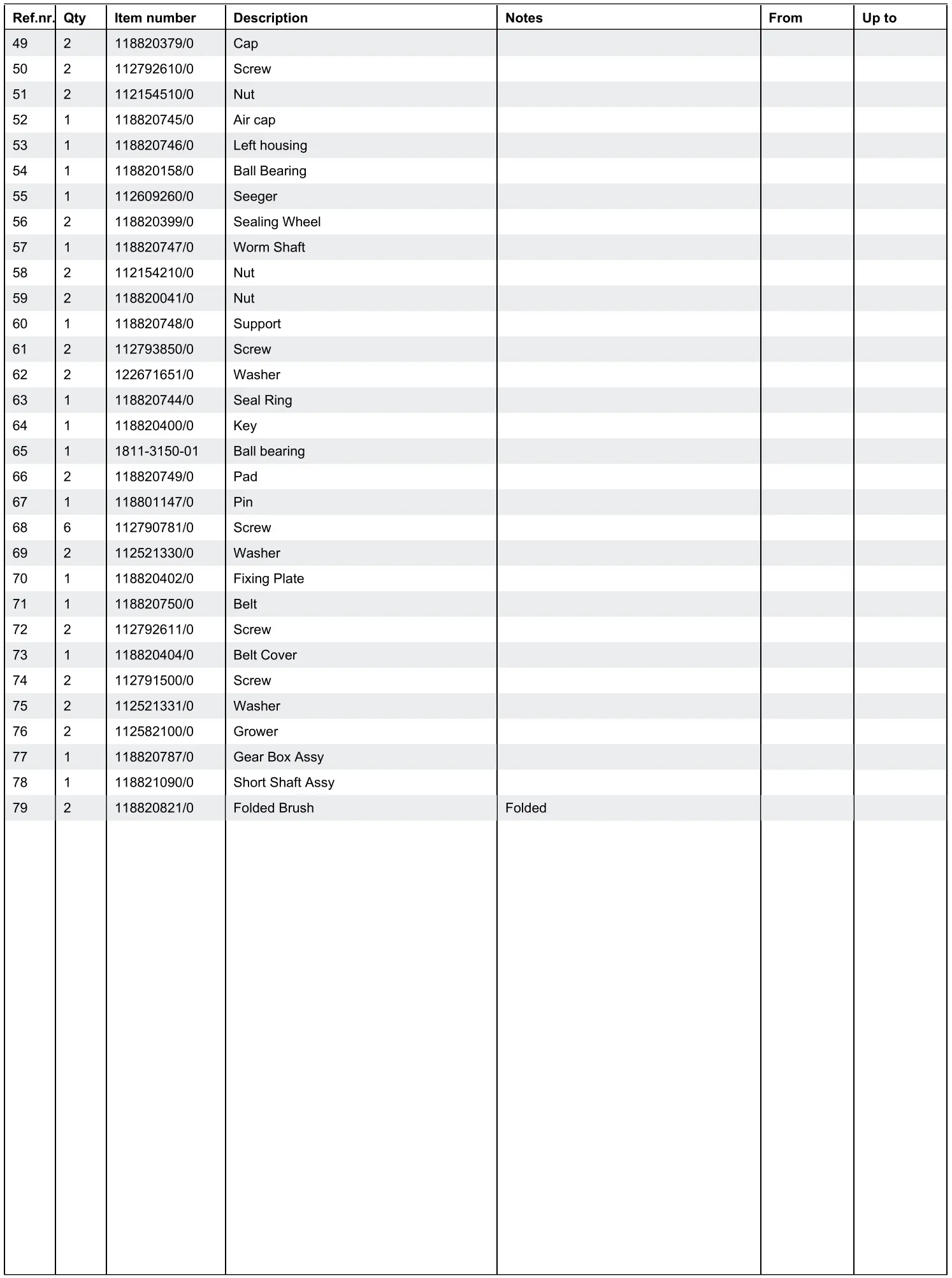

Body

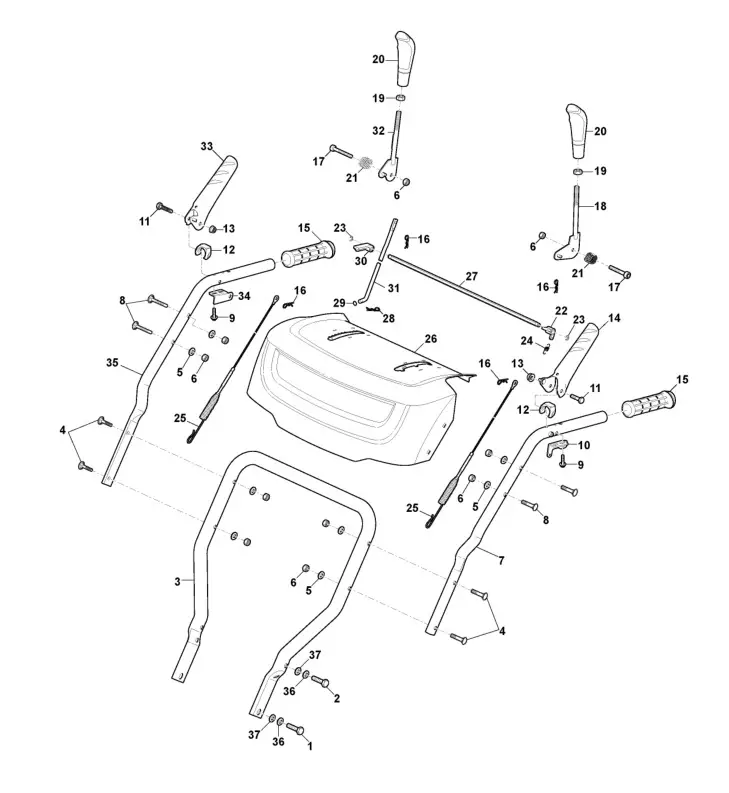

Handle

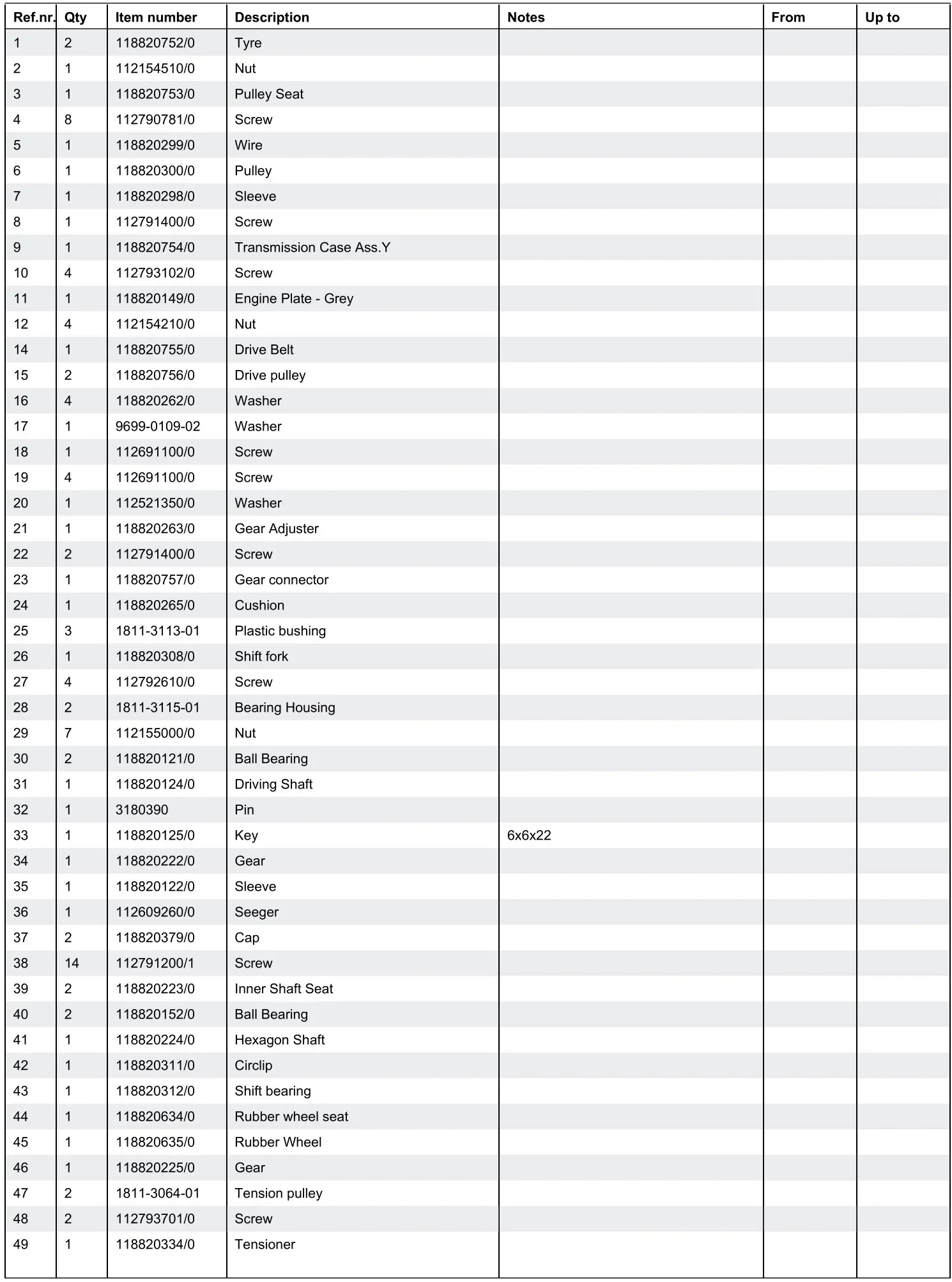

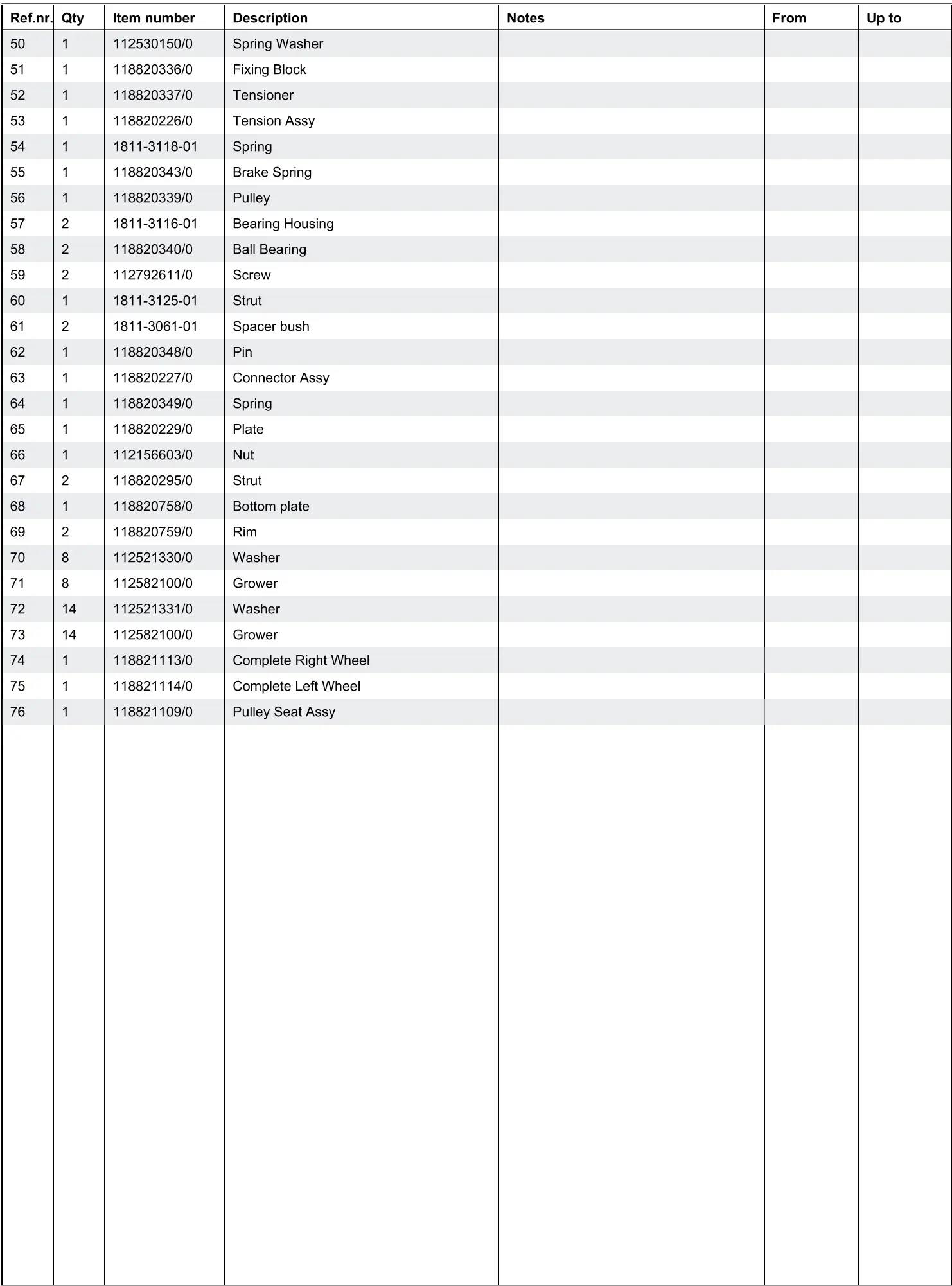

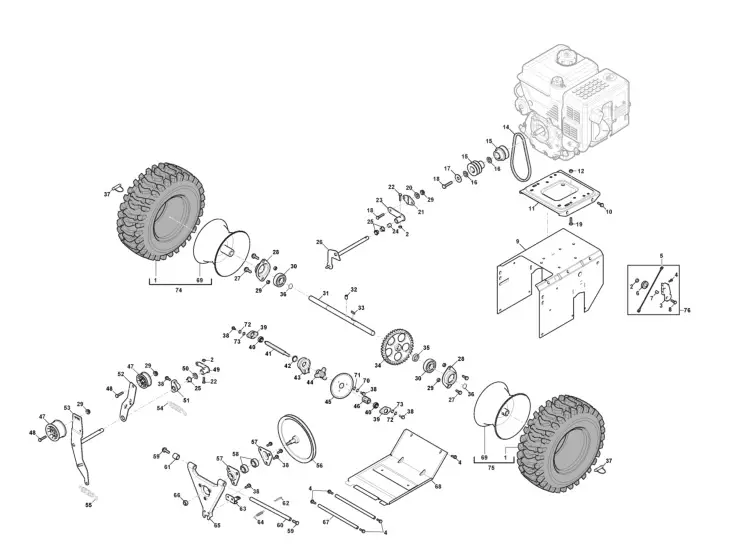

Transmission

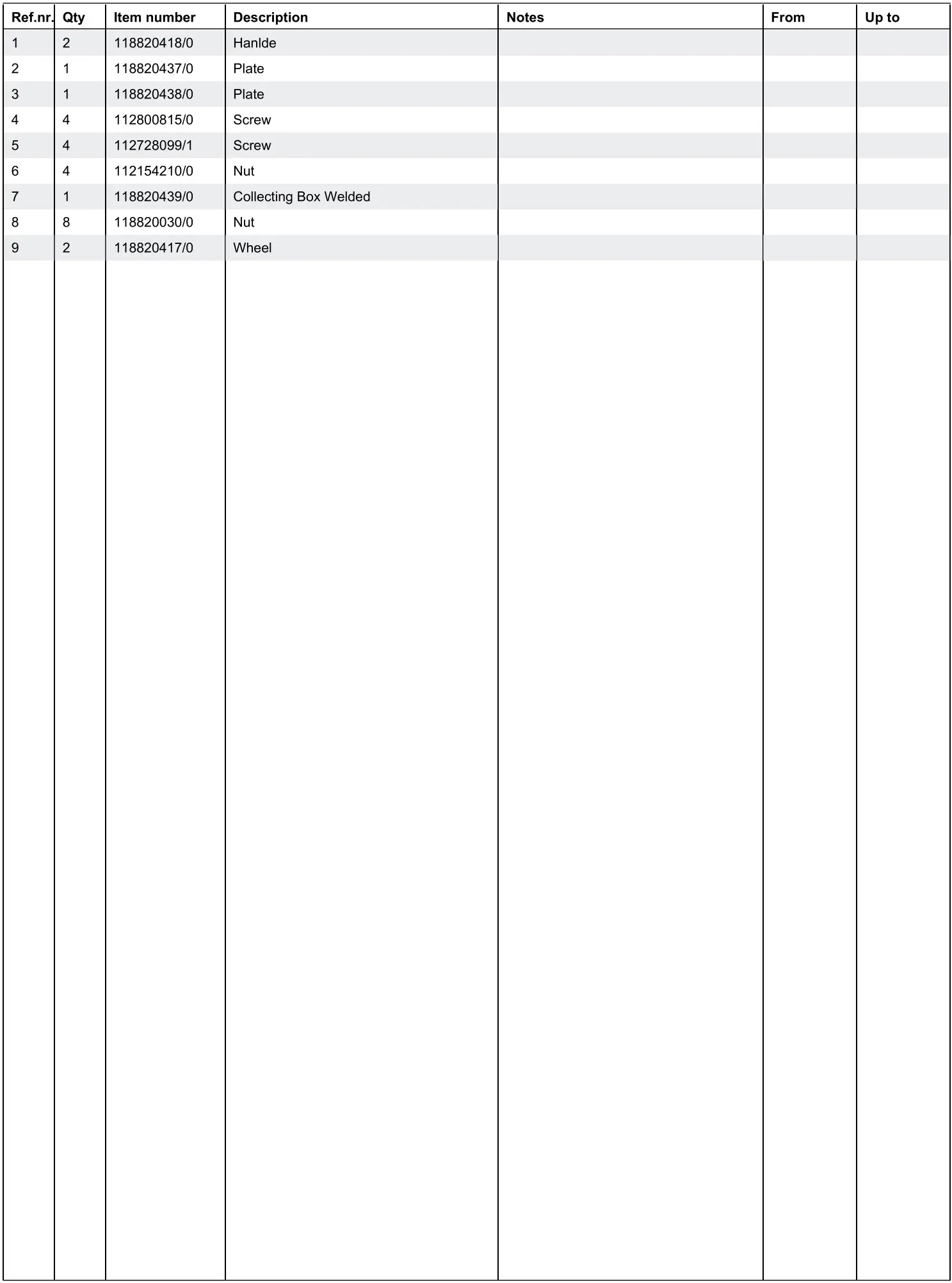

Collecting Box

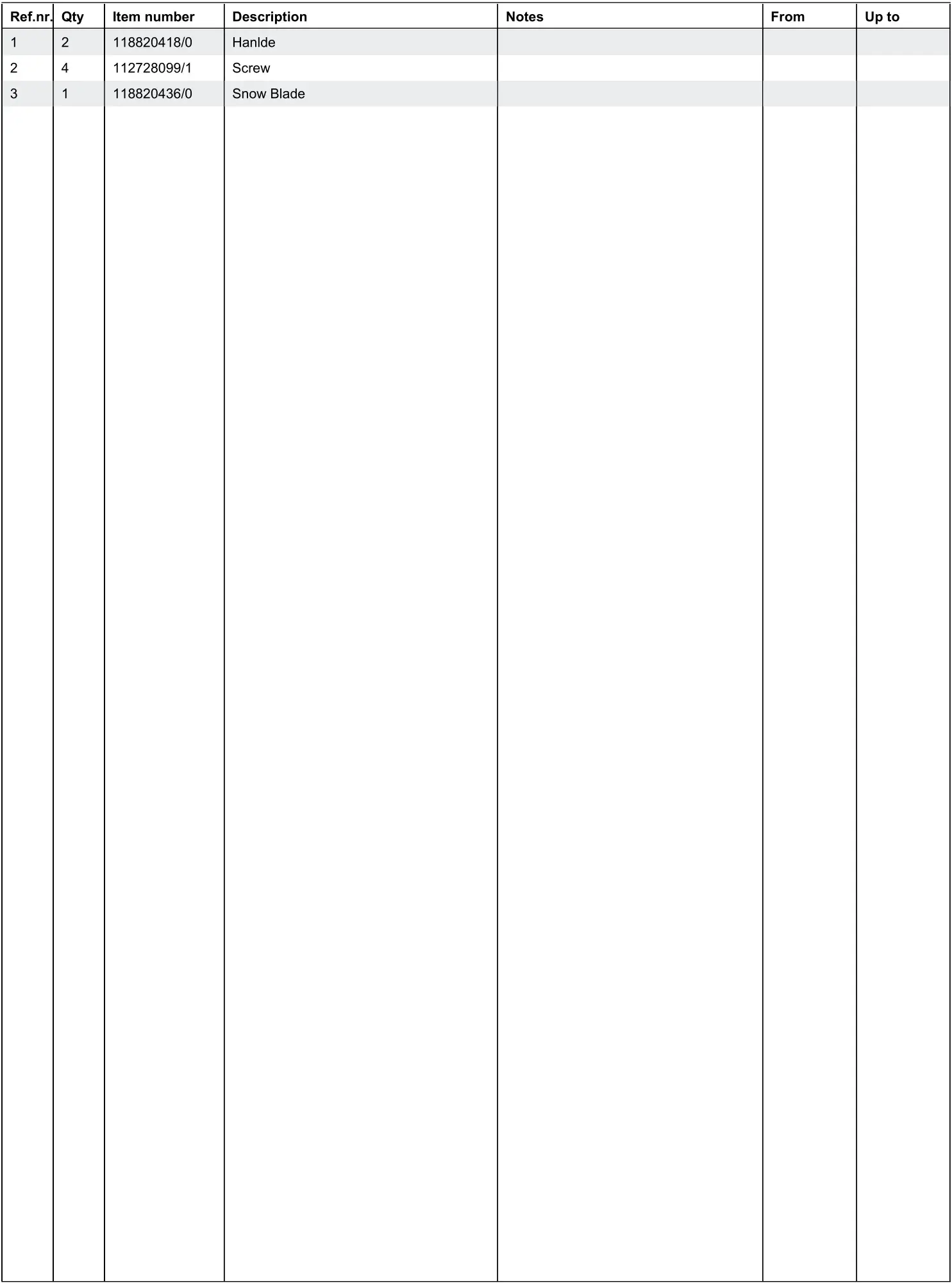

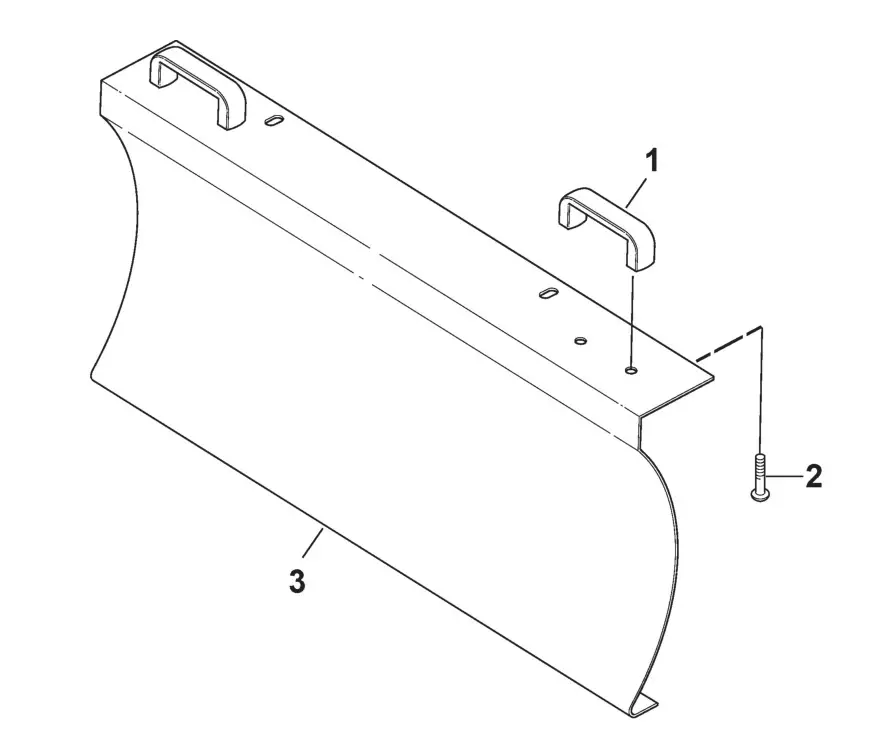

Snow blade

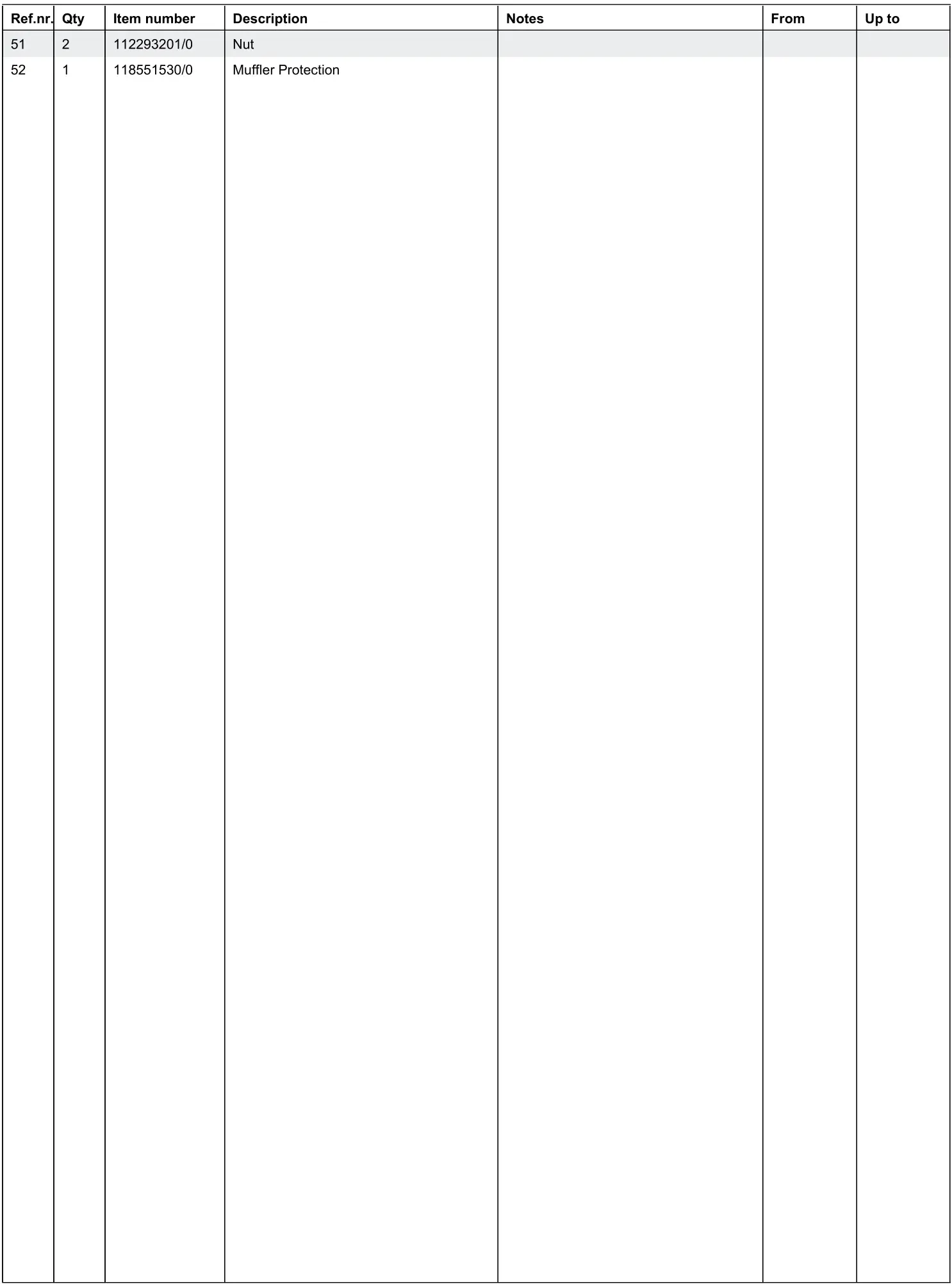

Engine WS 210 – Starter Assy, Tank

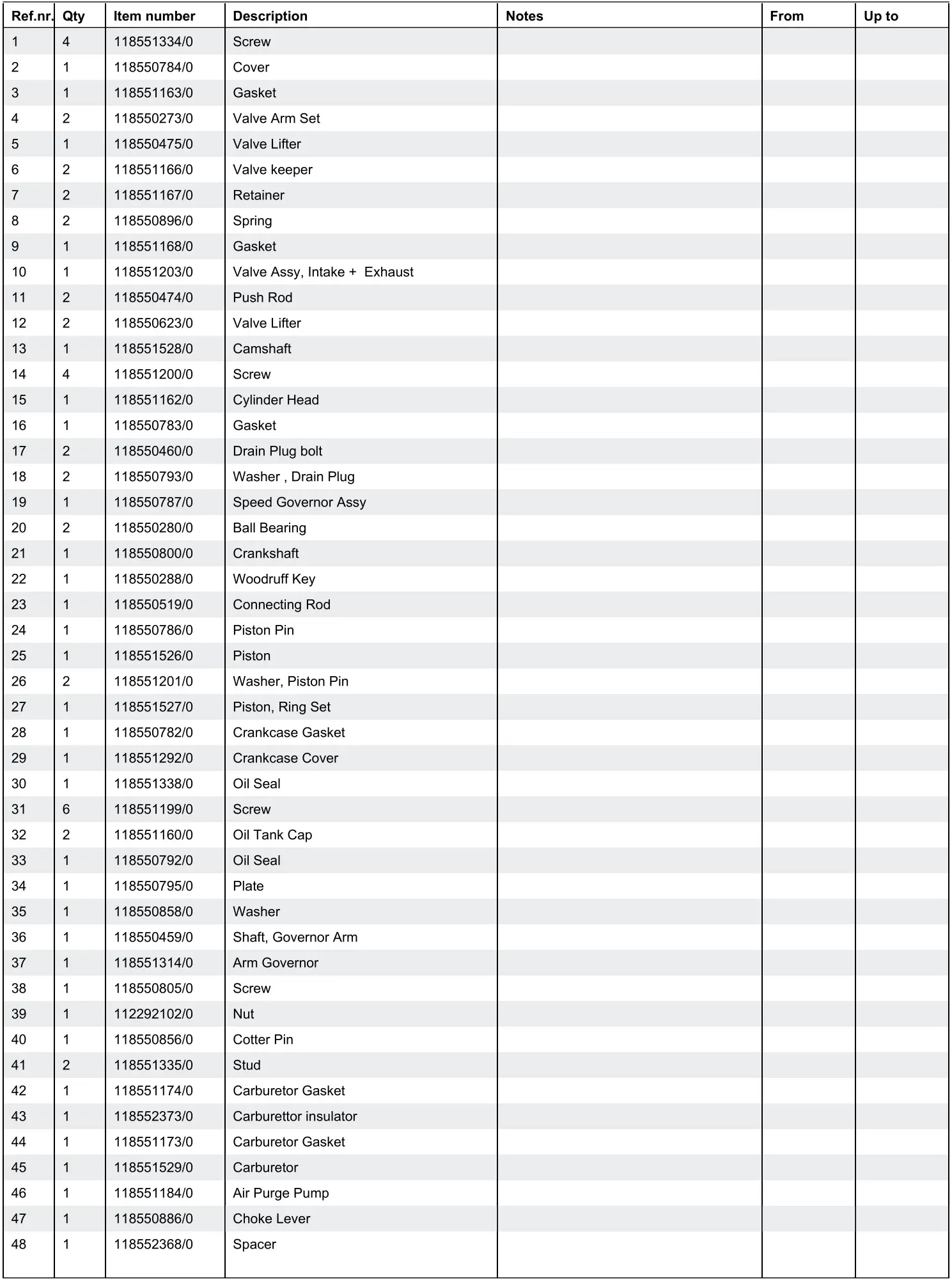

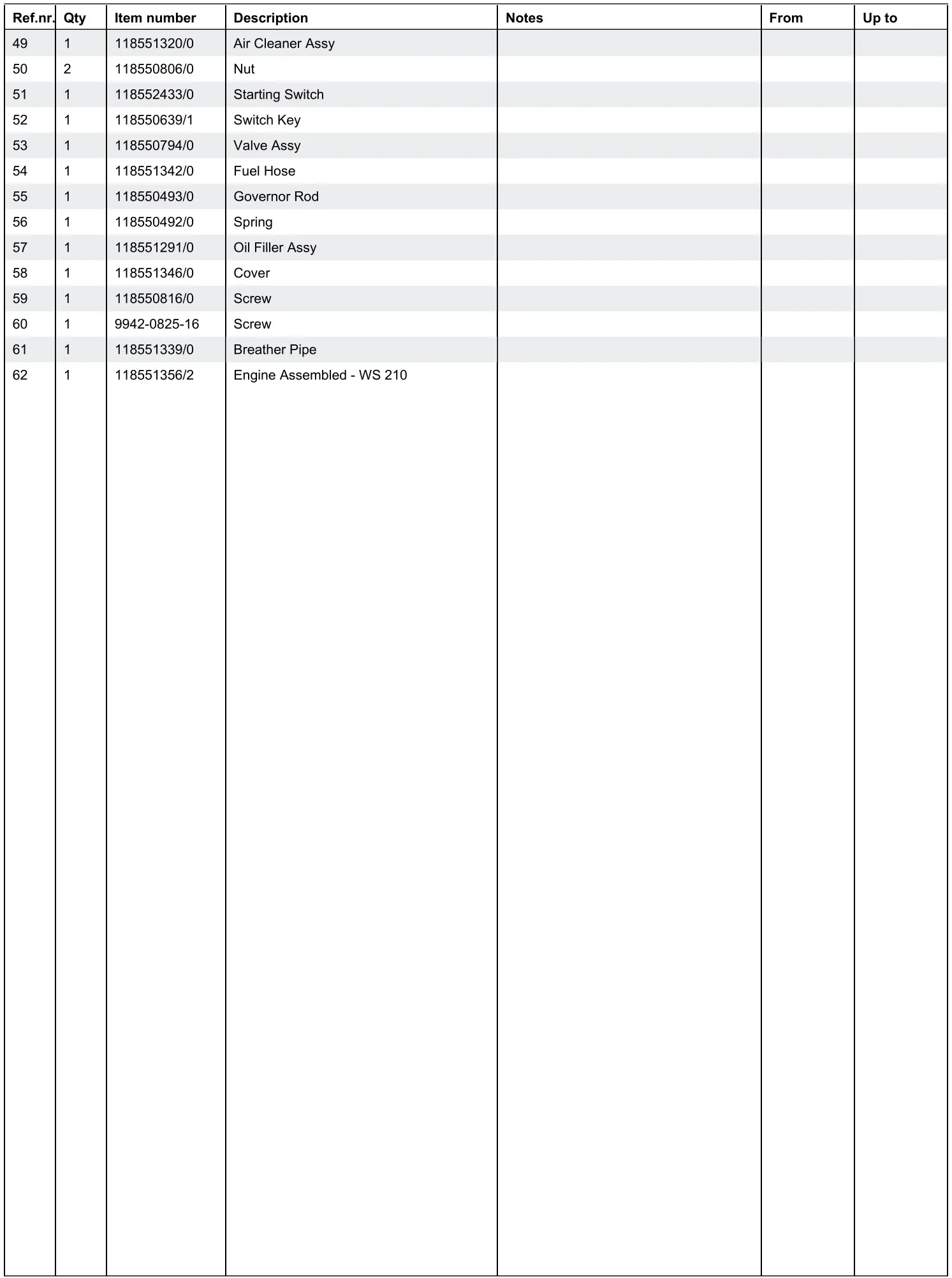

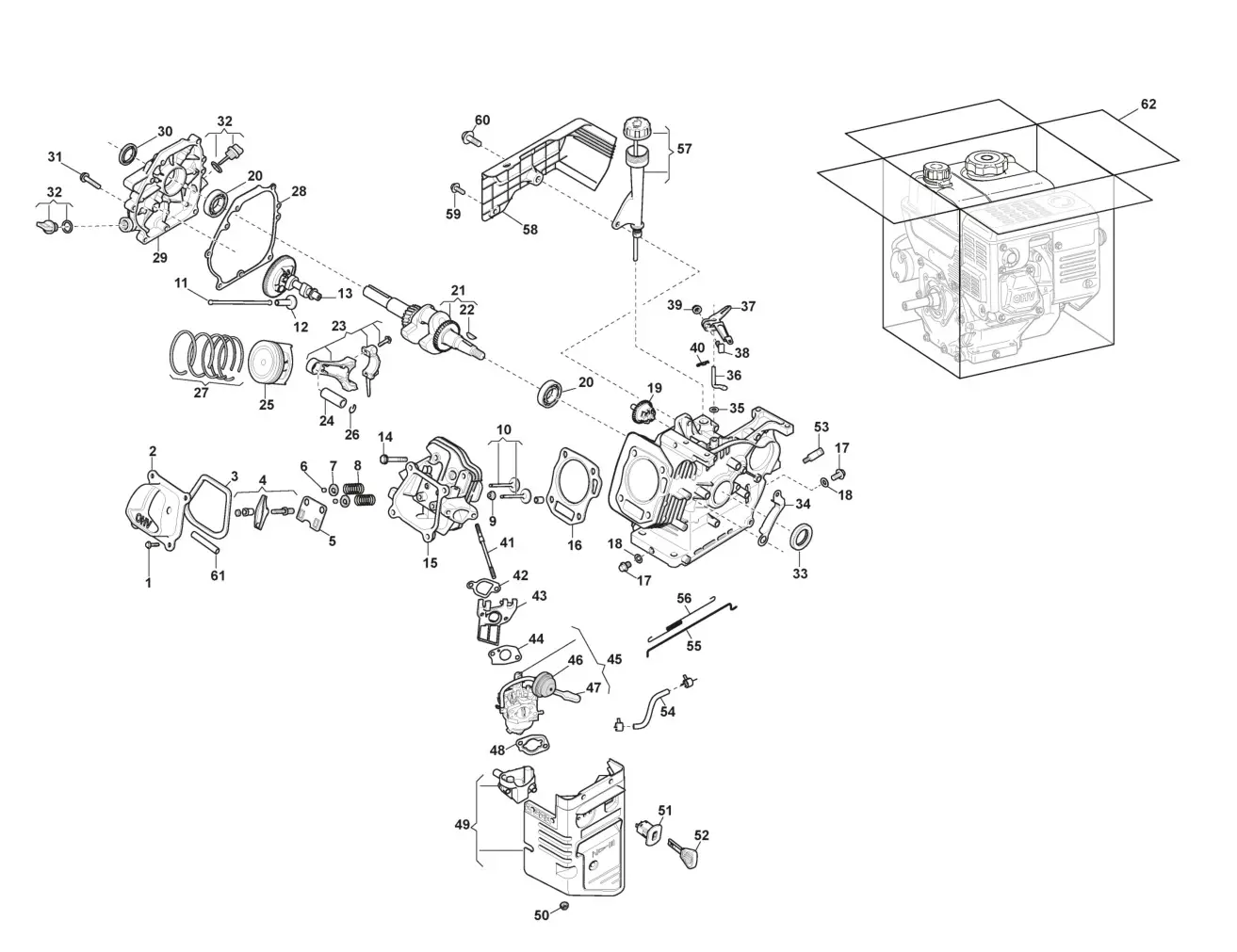

Engine WS 210 – Piston, Crankshaft
