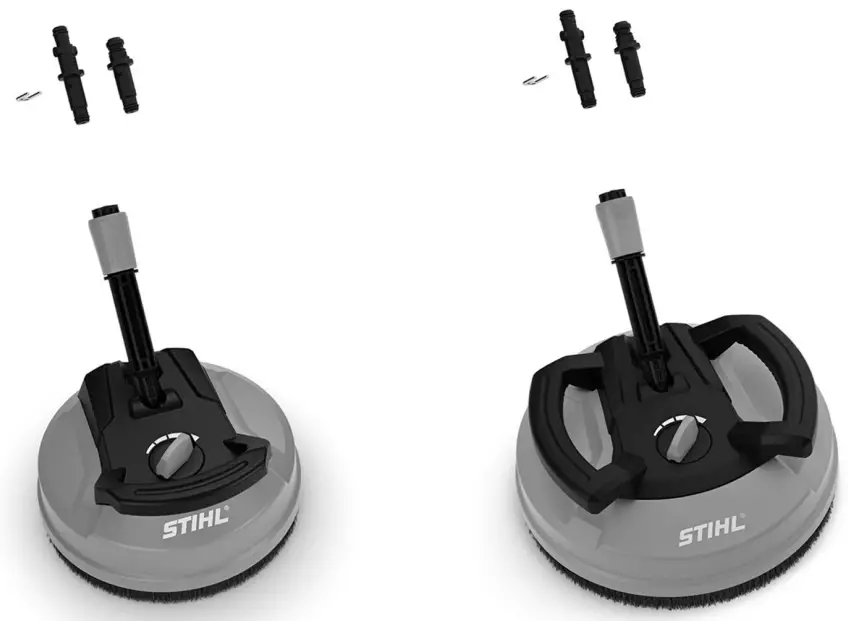

RA 90 Surface CleaneR
Instruction Manual
Instruction Manual
Guide to Using this Manual
Warning Symbols
The warning symbols on the rotating surface cleaner mean the following:
Observe safety notices and take the necessary precautions.Read, understand and keep the User Manual.
Do not reach under the surface cleaner.
Applicable Documents
The local safety regulations apply.
► In addition to this User Manual, read, understand and keep the following documents:
– Instruction manual of STIHL pressure washer being used
– Instruction Manual and packaging of the detergent used
Videos stihl.com/sxvr43
User Information

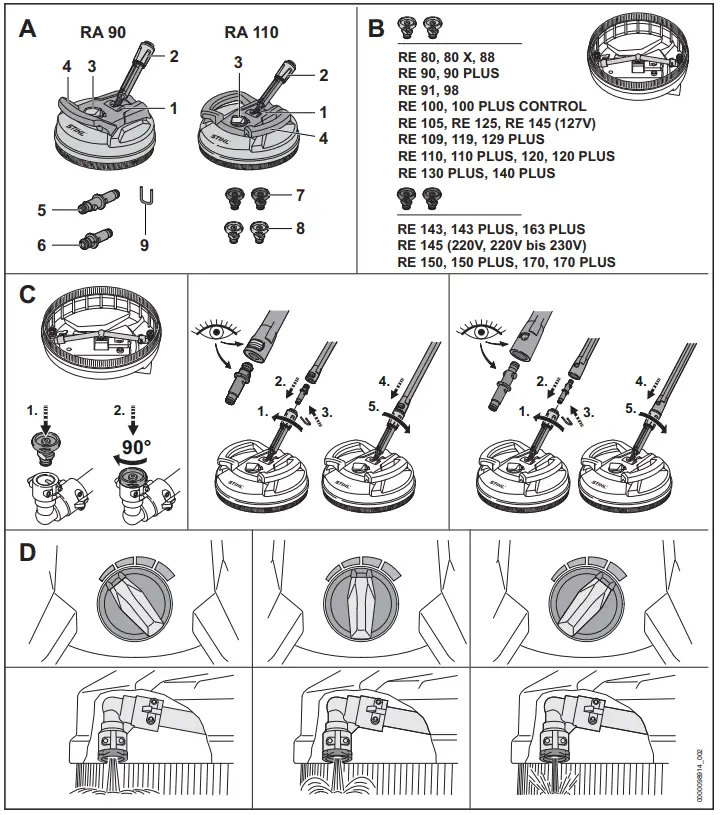

Main Parts
A
- Rotating surface cleaner
- Union nut
- Rotary control
- Handle
- Bayonet coupling
- Click coupling
- Black spray nozzle
- White spray nozzle
- Barrier bar
Safety information
The rotating surface cleaner is used to clean flat surfaces, including driveways and walkways, as well as vertical surfaces such as tile walls. Only suitable for use with STIHL RE series pressure washers. The pressure specification (max) and temperature specification (max) of the pressure washer must not be higher than the pressure specification and temperature specification on the accessories. WARNING
■ The water jet can injure the user. ► Do not reach under the rotating surface cleaner.
► Hold and guide the rotating surface cleaner as described in these operating instructions. WARNING
■ If the rotating surface cleaner hits a foreign object when working, the blade or parts of it may be thrown up at high velocity. Persons may be injured or property damaged.
► Remove foreign objects from the working area.
► Ensure that the surface cleaner is always in contact with the surface to be cleaned.
► If small stones or deposits accumulate under the spray cover: Tilt the rotating surface cleaner briefly to the side by up to 45° until the stones or deposits are flushed out of the spray cover.
Assembling
► Select correct spray nozzle B.
► Attach rotating surface cleaner C.
Working
► Adjust the pressure of the water jet with the rotary control so that the sur‐ face to be cleaned is not damaged D.

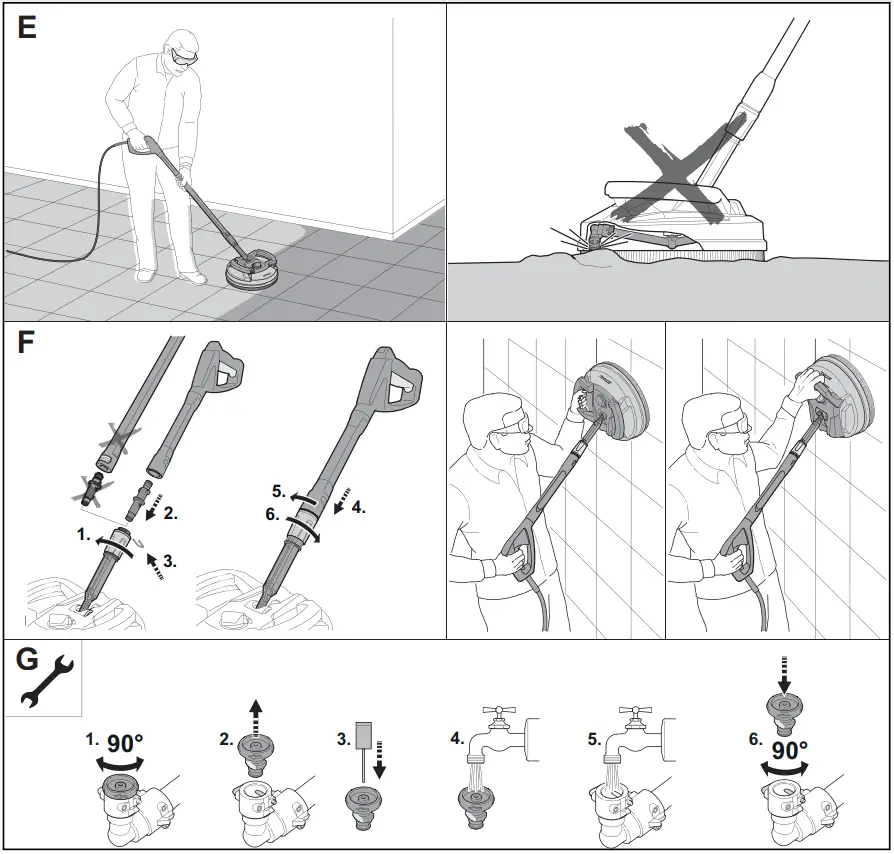

► Move rotating surface cleaner evenly along the surface to be cleaned E.
► Move forward slowly in a controlled manner.
► If vertical surfaces are being cleaned:
Attach rotating surface cleaner as shown and hold it so that the thumb encloses the handle F.
Storage
► Store the rotating surface cleaner so that the bristles are not damaged.
Cleaning
Cleaning the surface cleaner
► Clean the surface cleaner with a damp cloth.
Cleaning the nozzles
► Dismantle nozzles, rinse under running water and dry with a cloth G.
► If the nozzles are clogged: Clean nozzles with the cleaning needle of the STIHL pressure washer used G.
Cleaning the nozzle holder
► Rinse nozzle holder under running water and dry with a cloth G.
