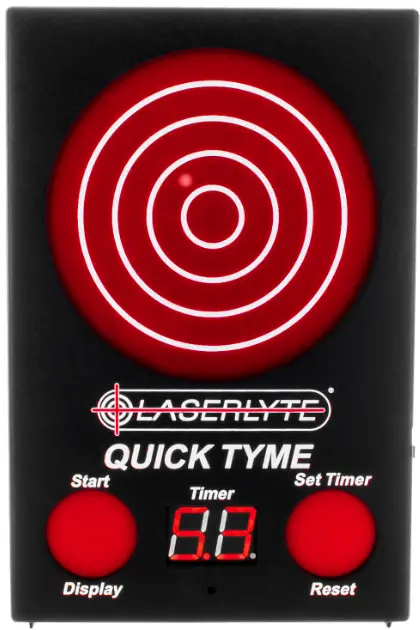

LASERLYTE TLB-QDM Quick Tyme Laser Trainer Target

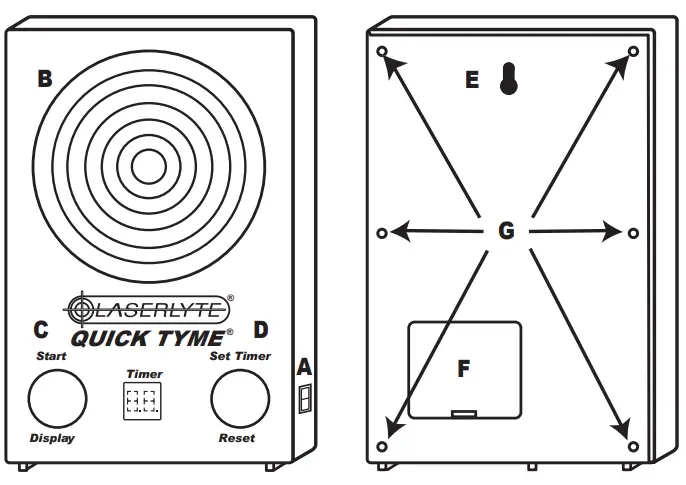

KEY FEATURES
- A: ON/OFF SWITCH
- B: TARGET AREA
- C: START/DISPLAY
- D: RESET/SET TIME
- E: WALL HANGER
- F: BATTERY COMPARTMENT
- G: DO NOT UNSCREW THESE SCREWS
TLB-QDM TARGET USAGE
- QUICK TYME® Mode
- 5 Second Score Mode
- 10 Second Score Mode
- 15 Second Score Mode
- Laser Tracer Fire Mode
QUICK TYME® MODE
- Turn QUICK TYME® TARGET to ON.
- Fire laser in the SET TIME circle (lower right). Timer will display 9.9 seconds.
- Fire laser at the START circle (lower left). After the beep, you have 9.9 seconds to fire a shot.
- Once you fire a shot at the target, it will display the shot time. Fire laser in the Set Timer/Reset circle to continue training.
- Fire red laser dot in the RESET/SET TIME circle to continue training.
LASER TRACER FIRE MODE
- Turn QUICK TYME® TARGET to ON.
- Fire 2 shots at the Reset circle. Ensure Timer displays 0.0 Seconds.
- Begin firing laser at target.
- Fire laser at Display circle to see shots on target.
- Fire laser at Reset circle to clear the target and continue training.
BATTERY WARNINGS
WARNING: KEEP BATTERIES AWAY FROM CHILDREN. THERE IS A CHEMICAL BURN HAZARD ASSOCIATED WITH BATTERIES.
- When used correctly, batteries provide a safe and dependable source of portable power. However, misuse or abuse may result in leakage, fire, or explosion.
- Batteries can explode or leak and cause burns if installed backwards, disassembled, charged, or exposed to water, fire or high temperature.
- Always take care to install your batteries correctly observing the “+” and “-” marks on the battery and the device.
- Always replace the whole set of batteries at one time, taking care not to mix old and new batteries, or batteries of different types.
- Store unused batteries in their original packaging and away from metal objects that may short-circuit them.
- Remove discharged batteries from equipment promptly to avoid possible damage from leakage.
- Never dispose of batteries in fire. (Failure to observe this precaution may result in an explosion.)
- The batteries are supplied in a charged state, and are not designed for recharging. Recharging may cause leakage, fire, or explosion.
- The batteries should be disposed of properly, including keeping them away from children.
- Dispose of used batteries immediately. Even used batteries can cause injury.
TROUBLESHOOTING

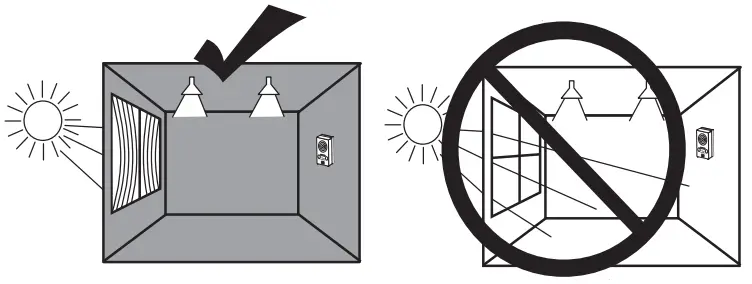

- Be sure the TLB-QDM Laser Target is in proper lighting conditions.
- A strong light source may affect the TLB-QDM’s ability to register “hits”. Conditions may vary
3-YEAR LIMITED WARRANTY
Crimson Trace Corporation warrants that this LASERLYTE® product will be free from defects in materials and workmanship for a period of three (3) years from the date of manufacture or, upon presentment of a dated sales receipt, from the date of original retail purchase. For complete warranty terms and conditions pleasewww.laserlyte.com/warranty, or contact us at the address/telephone number listed below.
For warranty service call Customer Service at 833-278-5470, or email [email protected] for a Return Authorization Number (RMA).
9780 SW FREEMAN DRIVE ■ WILSONVILLE, OREGON 97070
- 833-278-5470
- FAX: 503-783-5334
- ASERLYTE.COM
