qtx 152.747UK Mini Animation Laser
INTRODUCTION

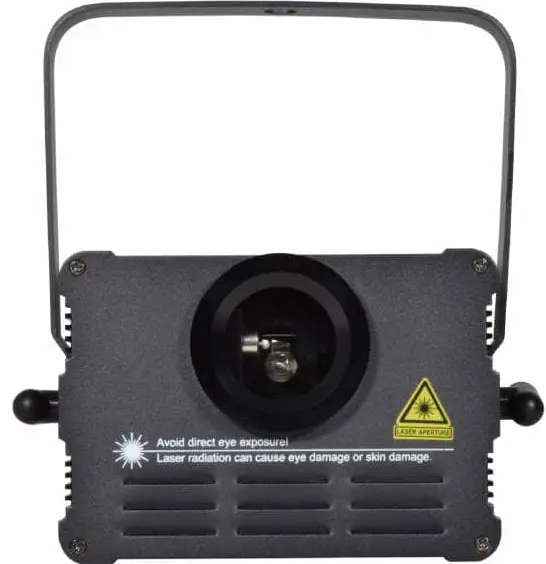

Thank you for choosing the QTX Crystalizer a compact, metal animation laser that produces a crystal clear array of 51 colourful patterns and animations. 5 control modes including auto, sound to light and DMX512 make this versatile, robust unit perfect for any function or event.
In the box:
Your Crystalizer should arrive with you in a single carton in good condition. The carton should contain 1x main unit with bracket, 1x UK IEC mains lead, 1x laser key and 1x user guide.
Warning: To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then check the unit before continuing use.
Caution: Laser radiation
Avoid pointing directly towards eyes. Laser output can cause injury if viewed directly. This product is a Class 3B laser and should only be installed and used by persons who are trained in the management of laser radiation and are able to operate in accordance within the guidance given by the Health and Safety Executive (HSE) in HS(G)95: “The Radiation Safety of Lasers used for Display purposes”. Copies of this guide can be downloaded from: www.avsl.com/assets/documents/hsg95.pdf
Placement:
- Use the included mounting bracket to fix to a stand or lighting truss
- Use secondary safety fixings if mounting overhead.
- Keep away from damp or dusty environments.
- Ensure adequate air-flow around the fixture housings.
- Ensure adequate access to controls and connections.
- Do not aim LED or laser output directly into line of sight, as this can result in eye injury.
Cleaning:
- Use a soft cloth with a neutral detergent to clean the casing as required.
- Use a vacuum cleaner to clear ventilation grilles of any dust or debris build-ups.
- Do not use strong solvents for cleaning the unit.

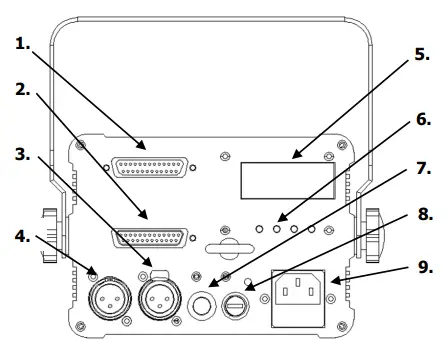

Rear panel controls
- ILDA output
- ILDA input
- DMX output
- DMX input
- LED display
- Manual controls
- Microphone
- Laser key
- IEC mains input
- Press the “MENU” button to enter the settings menu.
- Press “UP” and “DOWN” buttons to navigate through various setting functions.
- Press “ENTER” button to confirm the desired setting.
| Menu | Function | Description |
| Addr | A001-A512 | DMX address settings |
| Auto | Aut0-Aut9 | Auto mode – slow to fast |
| SoUn | SoU0-SoU9 | Sound to light mode – sensitivity low to high |
| vEr | vE1.2 | Software version 1.2 |
DMX modes
The Crystalizer can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit. To enter DMX mode, select A001 from the menu and confirm the correct start address by using the “UP” and “DOWN” buttons and “ENTER”. The A on the LED display will begin to flash once it’s received the DMX signal from the controller. This unit has 16 DMX channels as indicated in the table below:
16-CH (start address A001 for 1st unit, A017 for 2nd unit etc):
| Channel | Function | Value | Details |
| CH1 | Laser on/off | 0-9 | Laser off |
| 10-99 | Laser on | ||
| CH2 | Colour control | 0-69 | Fixed colour choice (W, R, B, P, C, Y, G) |
| 70-79 | Whole colour change (chase speed controlled by CH3) | ||
| 80-89 | Default colour (chase speed controlled by CH3) | ||
| 90-99 | 7 Colours (chase speed controlled by CH3) | ||
| 100-224 | Segment colour choice (chase speed controlled by CH3) | ||
| 225-229 | Dynamic colour chase 1 (chase speed controlled by CH3) | ||
| 230-234 | Dynamic colour chase 2 (chase speed controlled by CH3) | ||
| 235-239 | Dynamic colour chase 3 (chase speed controlled by CH3) | ||
| 240-244 | Dynamic colour chase 4 (chase speed controlled by CH3) | ||
| 245-249 | Dynamic colour chase 5 (chase speed controlled by CH3) | ||
| 250-255 | Dynamic colour chase 6 (chase speed controlled by CH3) |
| CH3 | Colour chase speed | 0-9 | No function |
| 10-127 | Colour chase clockwise (slow to fast) | ||
| 128-255 | Colour chase anticlockwise (slow to fast) | ||
| CH4 | Pattern selection | 0-255 | Pattern selection from 5 groups in CH5 |
| CH5 | Pattern group selection | 0-50 | Inner patterns group 1 |
| 51-101 | Inner patterns group 2 | ||
| 102-152 | Inner patterns group 3 | ||
| 153-203 | Inner patterns group 4 | ||
| 204-255 | Inner patterns group 5 | ||
| CH6 | Pattern size | 0-255 | Pattern size manual selection |
| CH7 | Pattern zoom | 0-15 | Pattern manual zoom |
| 16-55 | Zoom from small to large (slow to fast) | ||
| 56-95 | Zoom from large to small (slow to fast) | ||
| 96-135 | Cyclic zoom large to small (slow to fast) | ||
| 136-175 | Animated cyclic zoom 1 (slow to fast) | ||
| 176-215 | Animated cyclic zoom 2 (slow to fast) | ||
| 216-255 | Animated cyclic zoom 3 (slow to fast) | ||
| CH8 | Centre rotation | 0-127 | Rotation angle selection |
| 128-191 | Clockwise rotation speed | ||
| 192-255 | Anticlockwise rotation speed | ||
| CH9 | Horizontal flip | 0-127 | Flip horizontal selection |
| 128-255 | Flip horizontal speed | ||
| CH10 | Vertical flip | 0-127 | Flip vertical selection |
| 128-255 | Flip vertical speed | ||
| CH11 | Horizontal move | 0-127 | Horizontal movement selection |
| 128-255 | Horizontal auto movement (slow to fast) | ||
| CH12 | Vertical move | 0-127 | Vertical movement selection |
| 128-255 | Vertical auto movement (slow to fast) | ||
| CH13 | Wave effect | 0-9 | No function |
| 10-255 | Wave range and speed selection (small to large and slow to fast) |
| CH14 | Pattern drawing | 0-1 | No function |
| 2-63 | Manual drawing 1 | ||
| 64-127 | Manual drawing 2 | ||
| 128-153 | Auto drawing (increase) | ||
| 154-179 | Auto drawing (decrease) | ||
| 180-205 | Auto drawing (increase to decrease & erase) | ||
| 206-255 | Auto drawing (increase to decrease cyclical) | ||
| CH15 | Inner dynamic effect | 0-2 | No function |
| 3-229 | Single group dynamic effect (speed and colour controlled by CH16) | ||
| 230-249 | Random auto effect (speed and colour controlled by CH16) | ||
| 250-255 | Sound activated auto effect | ||
| CH16 | Inner dynamic effect speed | 0-127 | Inner effect speed auto (slow to fast) |
| 128-255 | Inner effect speed DMX (slow to fast) |
Specifications
| Power supply | 110-240Vac, 50/60Hz (IEC) |
| Power consumption | 22W (max) |
| Fuse rating | F2A |
| Laser power | 1000mW |
| Laser Class | 3B |
| DMX channels | 16 |
| Modes | Auto/Sound/DMX512/Master-Slave |
| Connections | IEC power, DMX in/out (XLR), Laser key, ILDA in/out |
| Dimensions | 188 x 193 x 173mm |
| Weight | 2.21kg |
Troubleshooting
| No power (mains) | Check mains voltage is correct and outlet is switched on |
| Check IEC lead and fuse (if fuse continually blows, refer to your dealer) | |
| No laser or light output | Check control panel mode settings |
| Check DMX settings from controller (dimmer levels, blackout etc.) | |
| Check laser key on rear panel is turned on | |
| Unresponsive to DMX | Check that unit is in DMX mode and ensure the A on the DMX |
| address flashes to confirm it’s receiving a DMX signal | |
| Check DMX controller is on correct fixture/page | |
| Check master dimmer value | |
| Check correct DMX address is set | |
| Check DMX connection and leads | |
| Overheating/ cutting out | Ensure adequate ventilation and unit is not too close to a heat source |
This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
