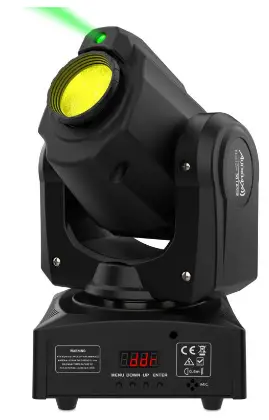

AUDIBAX BOSTON 30 Laser
Please read the manual before using the product
Function Description
| Addr | A001-A512 | 512 Address Setting |
| CHnd | 11CH | 11 Channel Setting |
| 9CH | 9 Channel Setting | |
| SLnd | MAST | Host mode |
| SL 1 | Controller mode | |
| SL 2 | Auxiliary machine mode | |
| SHnd | SH 0 | Effect 0 (Recommendation) |
| SH 1 | Effect 1 | |
| SH 2 | Effect 2 | |
| SH 3 | Effect 3 | |
| Soud | on | Sound turn on |
| oFF | Sound turn off | |
| SEnS | 0-99 | Sound Sensitivity Regulation |
| bLAnd | bLAc | None 512 signal return to zero |
| Auto | None 512 signal auto | |
| Soun | None 512 Signal sound | |
| HoLd | None 512 signal keeps the last controller state | |
| LEd | OFF | Five seconds later the screen turn off |
| ON | The screen keeps turn on | |
| dISP | no | Display reverse |
| YES | Display positive | |
| rPAN | no | X Motor forward |
| YES | X Motor inversion | |
| rTiL | no | Y Motor forward |
| REST | YES | Reset |
12 Channel
| CH | Function | Description |
| 1 | Pan | 0-255 |
| 2 | Pan fine | 0-255 |
| 3 | Tilt | 0-255 |
| 4 | Tilt fine | 0-255 |
| 5
| None | 0-9 |
| Color selection | 10-139 | |
| Automatic color change | 140-255 From slow to fast | |
| 6 | None | 0-7 |
| Fixed gobo | 8-63 | |
| Gobo dither | 72-127 | |
| Automatic gobo change | 128-255 From slow to fast | |
| 7 | Strobe | 0-255 From slow to fast |
| 8 | Dimming | 0-255 |
| 9 | Laser switch | 0-255 |
| 10 | Pan/Tilt operate speed | 0-255 |
| 11
| Auto | |
| None | 0-59 | |
| Auto | 60-159 | |
| Sound | 160-255 | |
| 12 | None | 0-9 |
| X-axis operation | 10-100 | |
| Y-axis operation | 101-200 | |
| X、Y-axis operation | 201-249 | |
| Reset | 250-255 |
10 Channel
| Channel | Function | Description |
| 1 | Pan | 0-255 |
| 2 | Tilt | 0-255 |
| 3
| None | 0-9 |
| Color selection | 10-139 | |
| Automatic color change | 140-255 From slow to fast | |
| 4 | None | 0-7 |
| Fixed gobo | 8-63 | |
| Gobo dither | 72-127 | |
| Automatic gobo change | 128-255 From slow to fast | |
| 5 | Strobe | 0-255 From slow to fast |
| 6 | Dimming | 0-255 |
| 7 | Laser switch | 0-255 |
| 8 | Pan/Tilt operate speed adjustment | 0-255 |
| 9 | None | 0-59 |
| Auto | 60-159 | |
| Sound | 160-255 | |
| 10 | None | 0-9 |
| X-axis operation | 10-100 | |
| Y-axis operation | 101-200 | |
| X、Y-axis operation | 201-249 | |
| Reset | 250-255 |
Technical Parameters
- Voltage：AC110-220V，50-60HZ
- Power：60W
- Light source：1PC LED 300MW
- G80+1PC 30W white light
- Gobo：8 gobos
- Color：8 colors
- Channel：10/12CH
- Control：Sound,Master-slave
- Auto,DMX
- X-axis：540°
- Y-axis：270°
- Manual focusing
