qtx 152.745UK 3D Animation Laser

INSTRUCTIONS

Please read through this manual thoroughly before use, any damage Caused by misuse of product will not be covered by warranty.
Thank you for choosing the QTX Mesmerizer 3D animation Laser With a stunning set of 440 dynamic and static patterns available including jaw-dropping 3D laser animations, colourful RGBW patterns and wall washes, the Mesmerizer is sure to pack a punch at any party, show or event. 4 control modes including auto, sound to light and DMX512 make this compact and lightweight unit perfect for any occasion large or small.

In the box:
Your Mesmerizer should arrive with you in a single carton in good condition. The carton should contain 1x main unit with bracket, 1x UK IEC mains lead, 1x laser key and 1x user guide.

Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then check the unit before continuing use.

Caution: Laser radiation
Avoid pointing directly towards eyes. Laser output can cause injury if viewed directly. This product is a Class 3B laser and should only be installed and used by persons who are trained in the management of laser radiation and are able to operate in accordance within the guidance given by the Health and Safety Executive (HSE) in HS(G)95: “The Radiation Safety of Lasers used for Display purposes”. Copies of this guide can be downloaded from: www.avsl.com/assets/documents/hsg95.pdf

Placement

• Use the included mounting bracket to fix to a stand or lighting truss
• Use secondary safety fixings if mounting overhead.
• Keep away from damp or dusty environments.
• Ensure adequate air-flow around the fixture housings.
• Ensure adequate access to controls and connections.
• Do not aim LED or laser output directly into line of sight, as this can result in eye injury.

Cleaning:

• Use a soft cloth with a neutral detergent to clean the casing as required.
• Use a vacuum cleaner to clear ventilation grilles of any dust or debris build-ups.
• Do not use strong solvents for cleaning the unit.

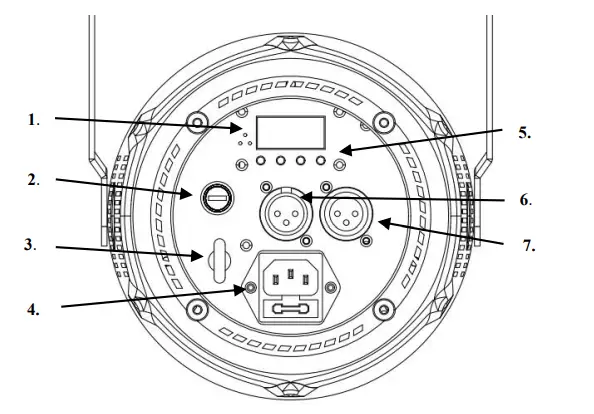

Rear panel controls:

1. LCD display
2. Laser key
3. Mounting point
4. IEC mains in
5. LCD control panel
6. DMX signal in
7. DMX signal out

Manual control menu:
Press the “MENU” button to enter the settings menu. Press “UP” and “DOWN” buttons to navigate through various setting functions. Press “ENTER” button to confirm the desired setting.

DMX modes:
The Mesmerizer can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit. To enter DMX mode, select A001 from the menu and confirm the correct start address by using the “UP” and “DOWN” buttons and “ENTER”. The A on the LED display will begin to flash once it’s received the DMX signal from the controller. This unit has either 7 or 21 DMX channels as indicated in the tables below:

7-CH (start address A001 for 1st unit, A008 for 2nd unit etc):

21-CH (start address A001 for 1st unit, A022 for 2nd unit etc):

Specifications

Troubleshooting

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.
