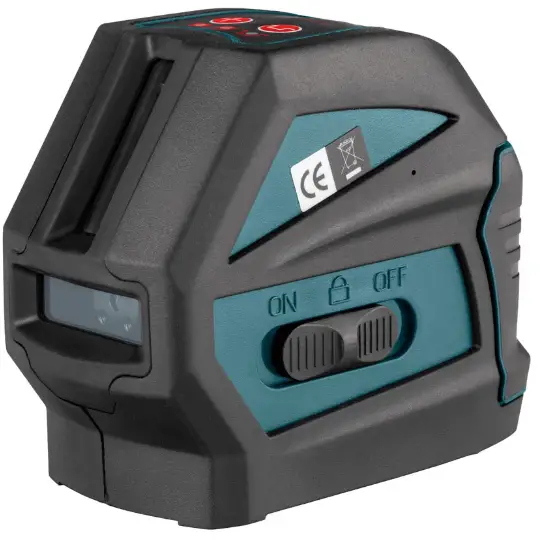

Ronix RH-9500 Cross Line Laser Level
SPECIFICATIONS
| Model | RH-9500 |
| Accuracy of horizontal line | ± 2 mm@5m |
| Vertical accuracy | ± 2 mm@5m |
| Leveling Range | 4°±0.5° |
| Working Range/ With Detector | 15m/50m with detector |
| Tripod Thread | 1/4 “ |
| Laser Type | 635 nm, laser class II |
| Operating Temperature | -10°to 45°C |
| Storage Temperature | -20°to 60°C |
| Dimension | 119 × 62 × 95/cm3 |
| Continuous Working Time (All Diodes) | <_ 8hour |
| Power Supply | 3 × 1.5v batteries |
Overview
Please read this instruction manual before first use.
WHAT IS INCLUDED WITH YOUR RED BEAM LASER
- Instrument

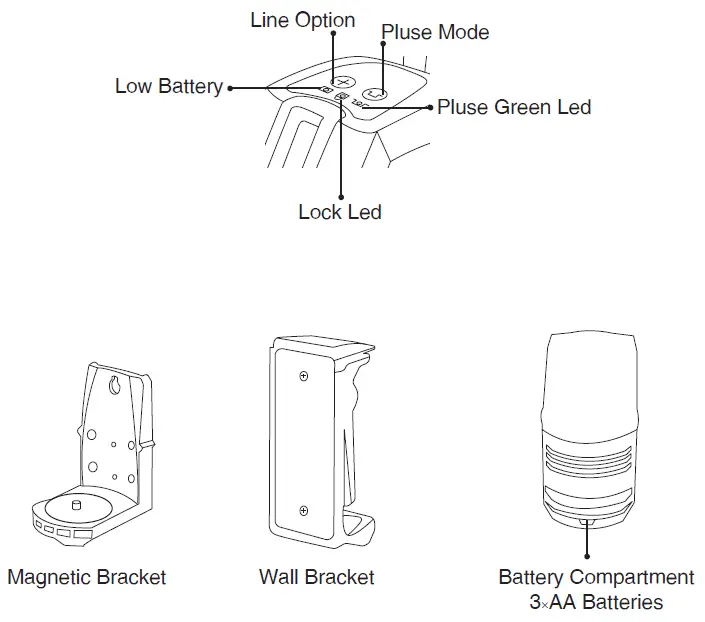

- Magnetic bracket and wall bracket
- Alkaline batteries
- User manual
- Plastic Case
OPERATING THE UNIT

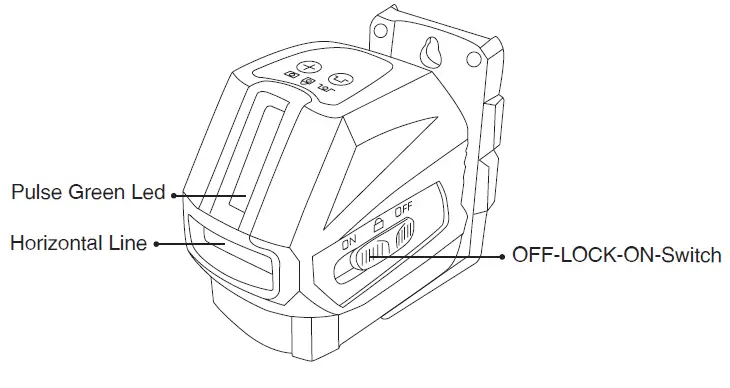

PENDULUM LOCK
The 1V1H Red beam laser level is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the Off position (Figure 1). Locking the pendulum allows the Cross Line Laser to better withstand vibration and trauma incurred during transportation or if the unit is dropped.
LOCKED LINE ANGLE
In the locked line angel position (figure 2), the pendulum is in the locked position and will not automatically level. When in the locked line position, both two laser lines will be on and flash slowly. The Red Lock LED will be on as well.
AUTOMATIC LEVELING
When the pendulum is unlocked (figure 3), the pendulum is free to automatically level, In order for the Cross Line Laser to automatically level, the base of the unit needs to be within 4o of level. When the pendulum is unlocked and the Cross Line Laser is within 4o of level, the unit will be in automatic leveling range, in this situation no LED light will be on. Should the base of the unit be outside the 4o leveling range the laser beam will flash meanwhile an audible warning will be sent out from Cross Line Laser.
LOW BATTERY ALARM
The Green battery LED will be on and keep flashing slowly when the working voltage of the laser is below 3V. In this situation, the batteries are required to be replaced.
