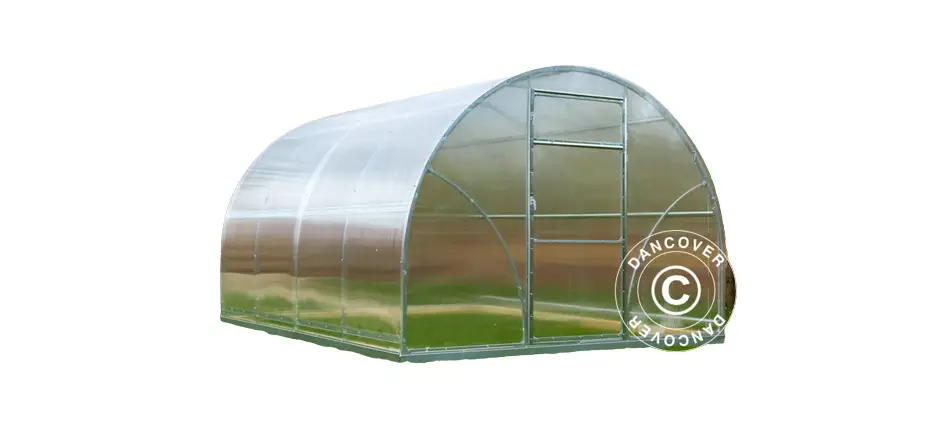

142-2-69 Greenhouse
Product Information:
The product is a model 142-2-43 that requires assembly. The
package includes two DJ01 parts and two DJ02 parts, each measuring
2988.6mm and 4399.4mm respectively. Additionally, the package
includes DJW01, S01, M01, DJW05, DJW03, DJZ01, S02, and DJW04
parts. These parts are used to assemble cills, connectors, and
anchor brackets for the product.
Product Usage Instructions:
- Before assembly, carefully read the instructions.
- Lay out the cills, connectors, and anchor brackets
approximately in place. - Connect DJ01 and DJ02 with DJW01.
- Tighten DJ01 and DJ02 with S01 and M01.
- Place DJW03 and DJW05 in the middle of the PC panel for each
section as shown in the diagram. - Tighten all parts with bolts and nuts provided.
Following these instructions will ensure proper assembly of the
model 142-2-43 product.
Assembly Instructions
MODEL:142-2-43 PLEASE READ CAREFULLY BEFORE ASSEMBLY
PART NO. QTY. 2988.6mm DJ01 2 4399.4mm DJ02 2
DJW01 4 DJW03 18 Ø9XØ17x1DJW04 18 DJW05 18 Ø5X40 DJZ01 18 M6X10 S01 16 M6 M01 34 TSM6X12 S02 18
1
DJ01
DJ02 1
Connect the DJ01 and DJ02 with DJW01 then tighten them with S01 & M01.
1 DJ02
DJ01 1
1 DJW01
1
Front
352
705
705
705
705
705
352
705
142-2-43
705
Rear
705
352
First lay out the cills, connectors and anchor brackets approximately in place, then tighten them with bolts and nuts which provided.
DJW05
DJW03
DJW05
DJZ01
M01
S02
DJW04
DJW03
This shows a layout for DJW03 & DJW05’s positions where it is placed in the middle of PC panel for each section.
2
