KRG CORPORATE Sigfox Senior Adom GPS Tracker User Manual
DESCRIPTION
KRG GPS tracker is designed to send geolocalized alerts.
GPS tracker is a fully supervised low-current detector including an advanced Sigfox protocol.
SET UP
To activate the GPS Tracker, press the button during 1 to 2 seconds. LED will blink as described below.
- Red LED on the tracker flashing every 1 second.
- Green or red (depending on the configuration) LED lights on during 5 seconds.
- The configuration is set up.
When the device restarts after a hardware or software reset or when it is plugged to be recharged after a shutdown due to empty battery, it will follow steps described before.
SEND AN ALERT
To send an alert, push button during 1 to 2 seconds
- Green LED will flash every second during 1 minute.
- Green LED lights on during 3 seconds to indicate an alert is sent.
To cancel the alert, push the button in the following 30 seconds during 10 seconds without interruption. Green LED will stop flashing to indicate alert has been well canceled.
BATTERY CHARGE
To indicate low battery (<20%), red LED will flash every 10 seconds.

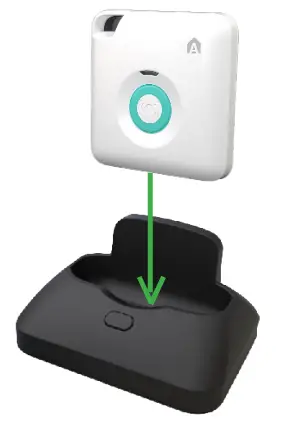

- Put the GPS tracker into the cradle to charge it.
- Green LED will start flashing every 3 seconds.
- When the green LED stops flashing and is continuously turned on, the device is fully charged (around 2h)

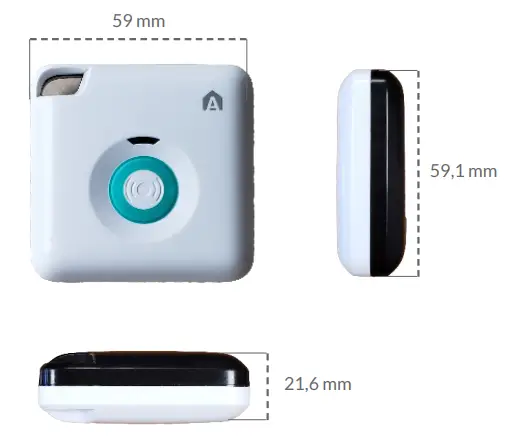

DIMENSIONS
SPECIFICATIONS
| Sigfox Zone | RCZ1 (Europe) |
| RF Specification | Sigfox Class 0 |
| Product Size | 59.1mm(L) x 59mm(VV) x 21,6mm(H) |
| Button | One big button for emergency usage |
| LED | Dual color LED Green and Red |
| Connector | 1. One MicroUSB connector for battery charging 2. One cradle to charge easily the tracker |
| IP Rating | IP65 |
| Battery | Rechargeable lithium. Battery 3.8V 630mAh |
| Battery life | > 18 months |
| Operation temperature | – 10 / +50c. 0-90% RH non-condensing |
| Storage temperature | – 20 / +70c. 0-90% RH non-condensing |
| Geo location | Geo location can not be fully guaranteed in the following conditions : indoor, in traffic |
| / | |
Regulatory Notices
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
The product comply with the US portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Industry Canada statement:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
- This device may not cause interference
- This device must accept any interference, including interference that may cause undesired operation of the device
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.
