Bard QPB36-V Plenum Box Installation Guide
Installation
The plenum box is designed for use with the Q-TECTM Series heat pumps. It is for use in free blow applications.

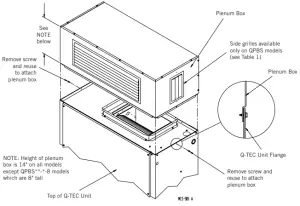

- Remove the center screw from each top side of the unit (see Figure 1 on page 2).
- Place plenum box on top of Q-TEC unit with the open side down and the grille facing the front of the unit.
- Make sure that the bottom offsets of the plenum box are inside the top of the Q-TEC unit flange as shown in Figure 1. The outside of the plenum box should be flush with the outside of the unit.
- Re-install the center screw in each top side of the Q-TEC unit. These screws will go through the clearance holes on the plenum box and hold it in place.
- Adjust louvers to obtain desired air distribution.
Model Number
Front Grille Part Number Side Grille Part Number
QPBS36-V
7051-035 7051-046
QPBS36-V-8
7051-073 7051-046 QPBS36-X 7051-035 7051-046
QPBS36-X-8
7051-073 7051-046 QPBS36-4 7051-035 7051-046
QPBS36-4-8
7051-073 7051-046 QPBS49-V 7051-045 7051-046
QPBS49-V-8
7051-078 7051-046 QPBS49-X 7051-045 7051-046
QPBS49-X-8
7051-078 7051-046 QPBS49-4 7051-045 7051-046
QPBS49-4-8
7051-078 7051-046 QPB36-V 7051-035 —
QPB36-X
7051-035 — QPB36-4 7051-035 —
QPB49-V
7051-045 — QPB49-X
7051-045 —
QPB49-4 7051-045 —
