Bard 11eer Q-tectm Series User Manual

REPLACEMENT PARTS MANUAL
11EER Q-TECT™ Series

General Notes

• Revised and/or additional pages may be issued from time to time.
• A complete and current manual consists of pages shown in the following contents section.

Important

• Contact the installing and/or local Bard distributor for all parts requirements. Make sure to have the complete model and serial number available from
  the unit rating plates.

Models:

Bard Manufacturing Company, Inc.
Bryan, Ohio 43506
www.bardhvac.com

Manual: 2110-1568G
Supersedes: 2110-1568F
Date: 8-13-21

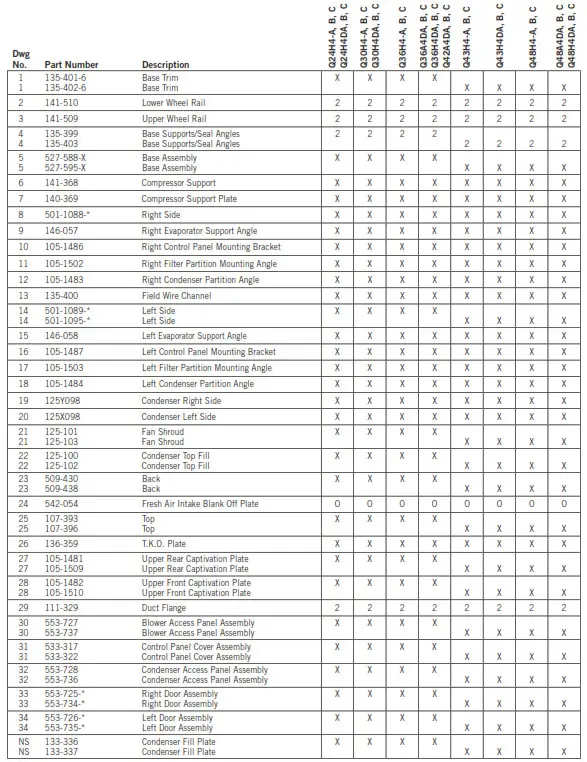

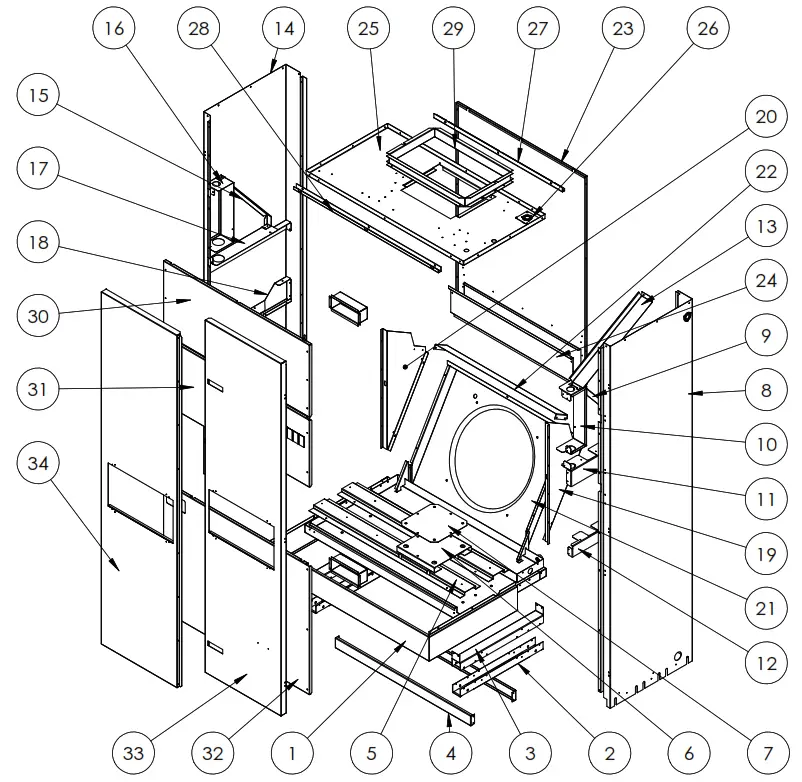

EXTERNAL COMPONENTS – STANDARD & DEHUMIDIFICATION

X – Standard Component
O – Optional Component

* Exterior cabinet parts are manufactured with various paint color options.
To ensure the proper paint color is received, include the complete model and a serial number of the unit for which cabinet parts are being ordered.

X – Standard Component
O – Optional Component

* Unit may have an alternative vent installed. Please see the vent manual for part information.

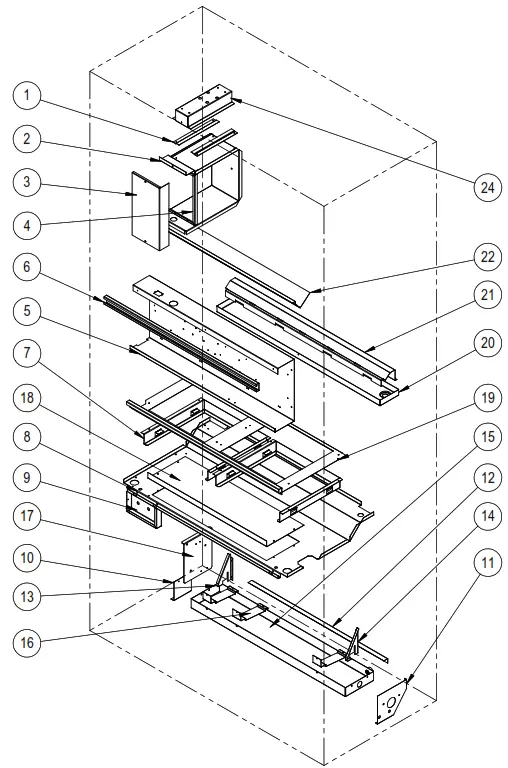

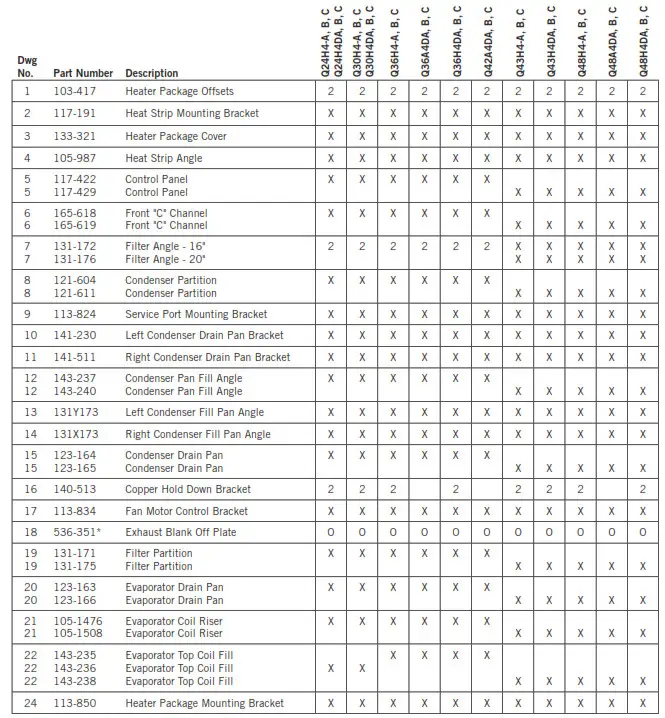

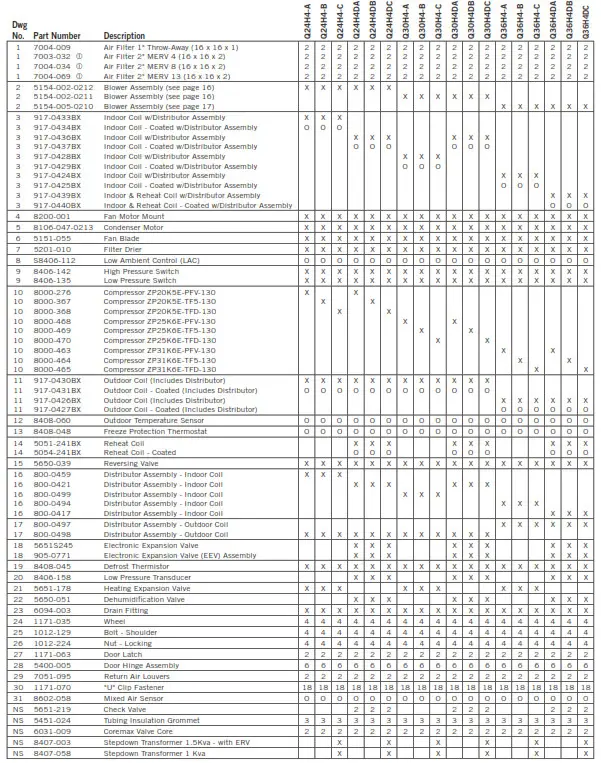

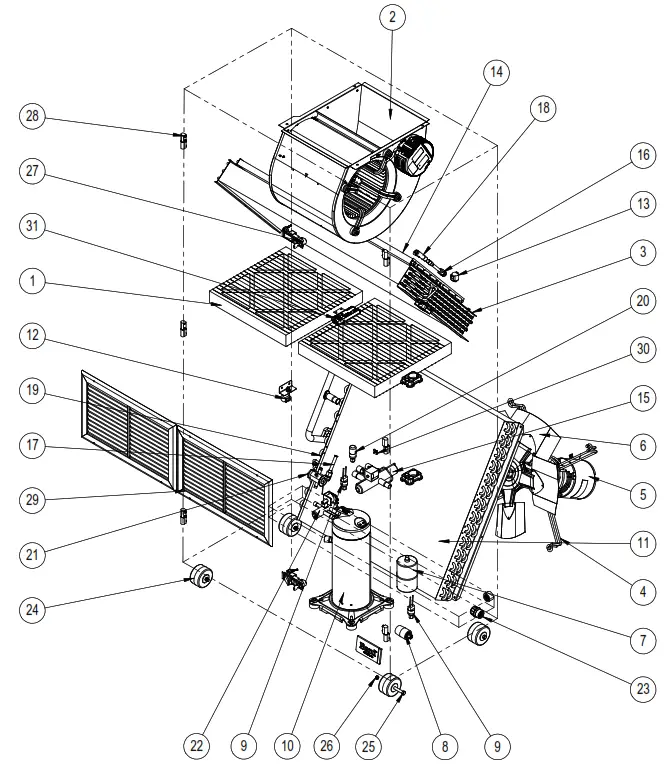

FUNCTIONAL COMPONENTS – QA DEHUMIDIFICATION

X – Standard Component
O – Optional Component

NS – Not Shown
1 – Optional on these models

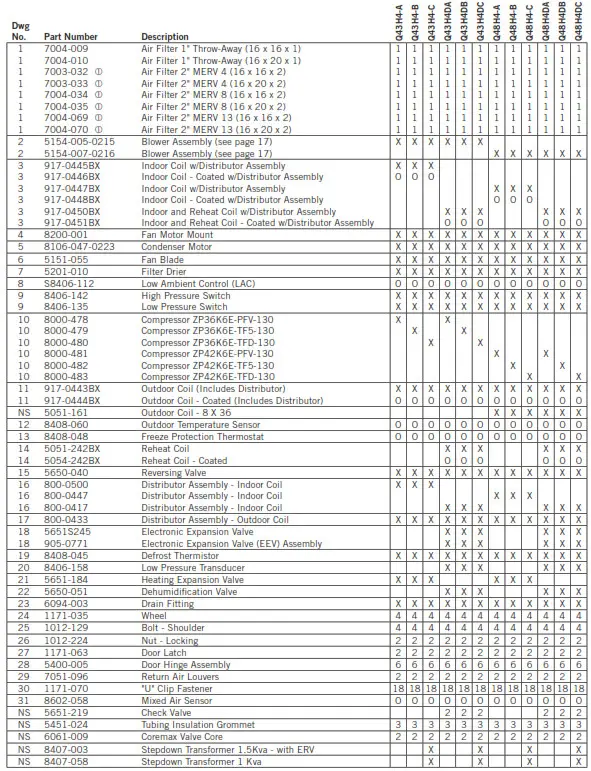

FUNCTIONAL COMPONENTS – QH STANDARD & DEHUMIDIFICATION

X – Standard Component
O – Optional Component
NS – Not Shown
1 – Optional on these models

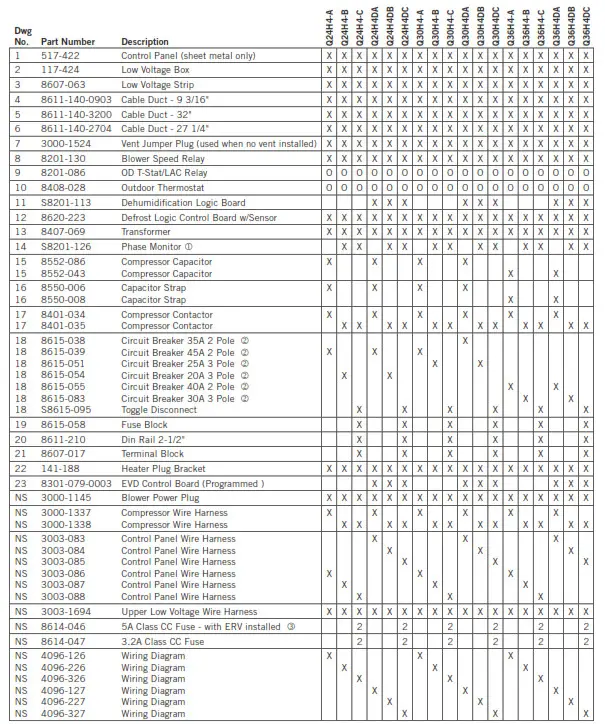

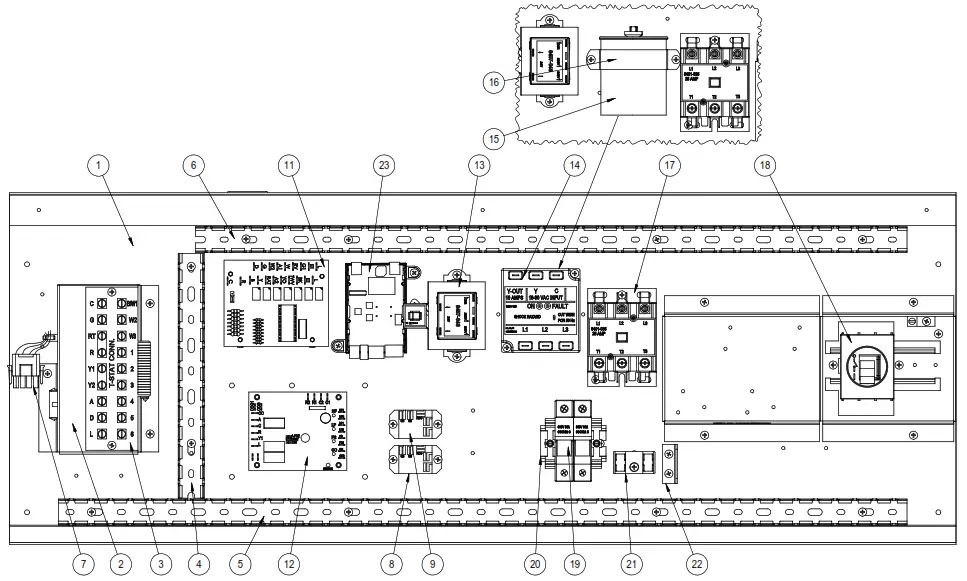

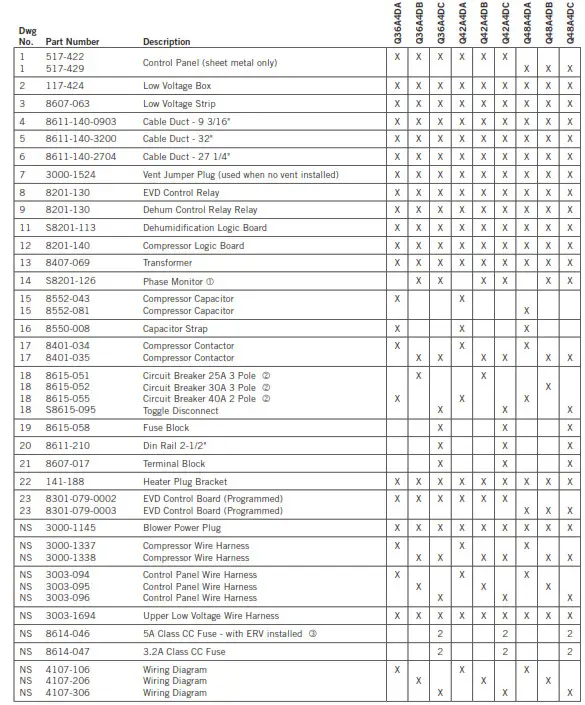

CONTROL PANEL COMPONENTS – QA DEHUMIDIFICATION

X – Standard Component
O – Optional Component

NS = Not Shown

1. Only used for three-phase units; single-phase models use capacitors.
2. Circuit breakers listed are for units without electric heat, “0Z” models.
   See heater replacement parts manual for units with electric heat.
3. Q**A4DC models will have two (2) of the same fuse installed; the part number is determined by the vent package installed.

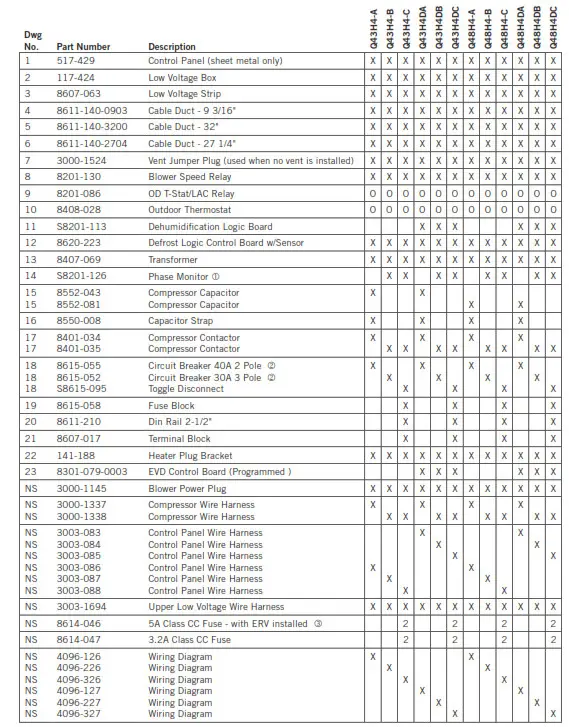

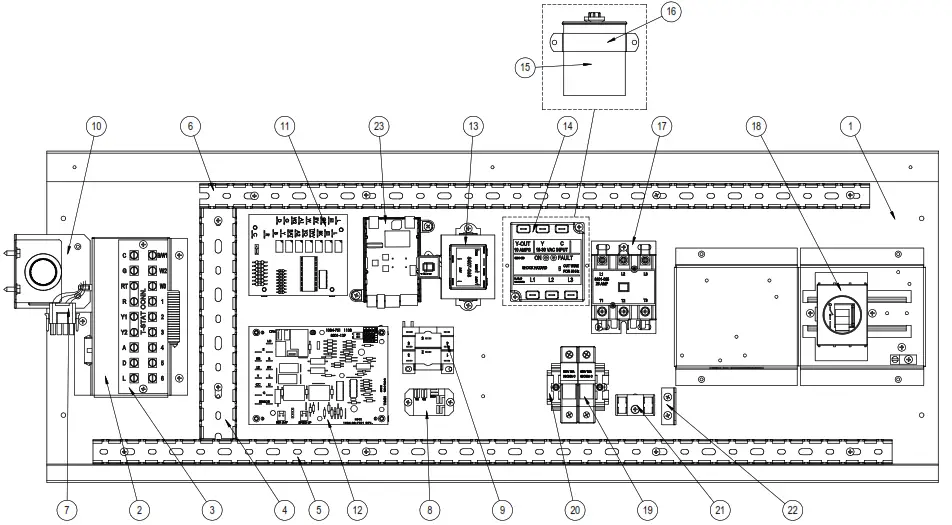

CONTROL PANEL COMPONENTS – QH STANDARD & DEHUMIDIFICATION

X – Standard Component
O – Optional Component

NS = Not Shown

1. Only used for three-phase units; single-phase models use capacitors.
2. Circuit breakers listed are for units without electric heat, “0Z” models.
   See heater replacement parts manual for units with electric heat.

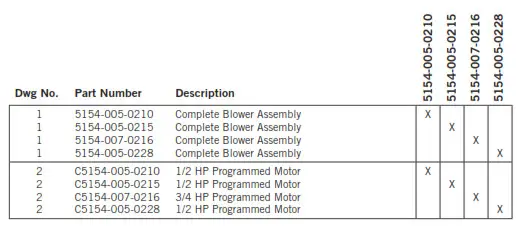

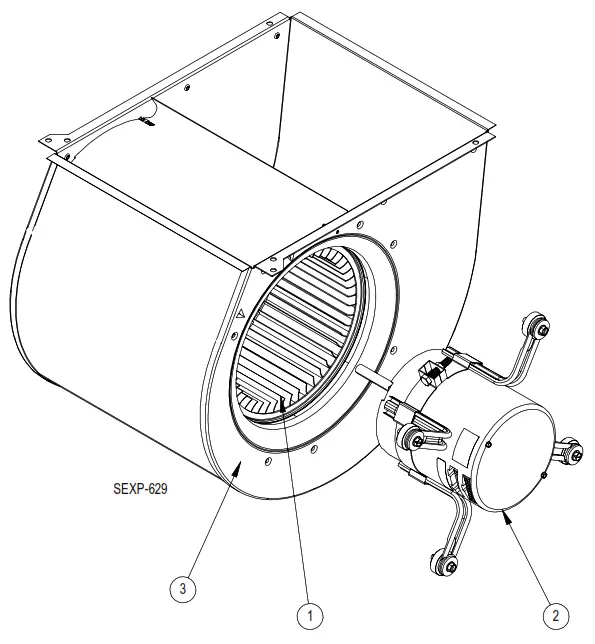

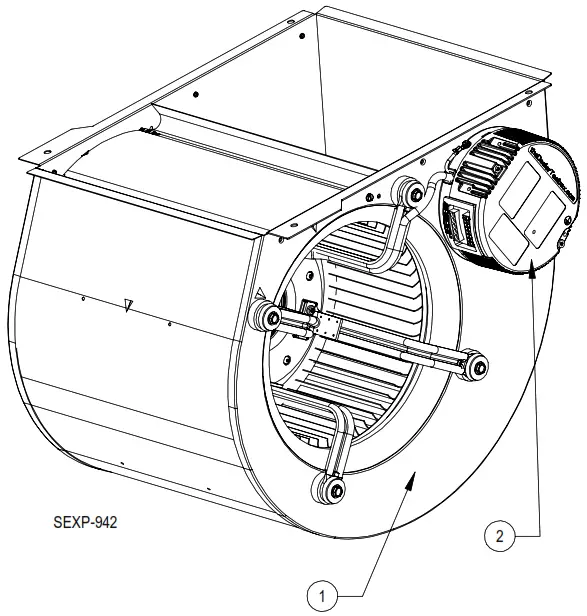

BLOWER ASSEMBLY COMPONENTS – Q24/30*4

BLOWER ASSEMBLY COMPONENTS – Q36/42/43/48*4
