W15110710048 Vector Motor-Rear Wheel
VECTOR MOTOR-REAR WHEEL
REPLACEMENT PROCEDURES
PART # W15110710048
Required Tools: (Not included)
A. Phillips screwdriver
B. Two (2) 19 mm wrenches
WARNING
CAUTION: To avoid potential shock or other injury, turn power switch OFF and disconnect charger before conducting any assembly or maintenance procedures. Failure to follow these steps in the correct order may cause irreparable damage.

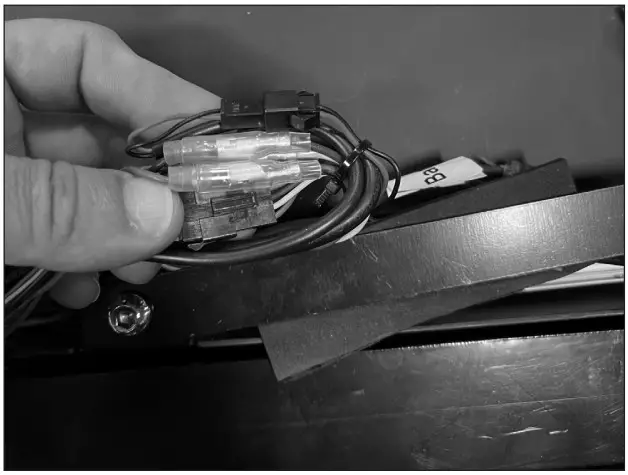

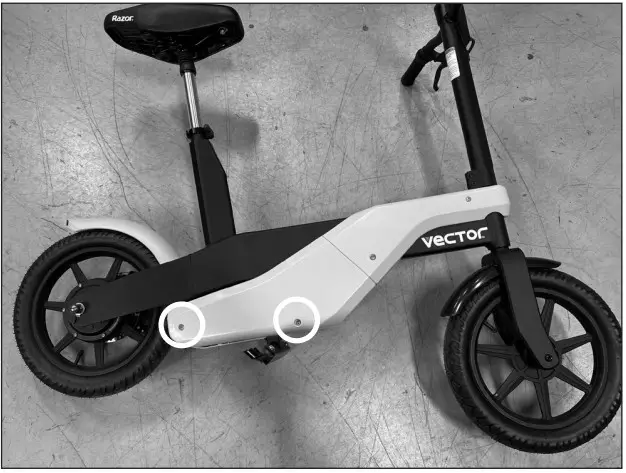

| Step 1 Using a Phillips screwdriver, remove two (2) screws from the battery cover on the right side of the unit. | Step 2 Locate and disconnect the motor connectors from the controller. |
 |  |

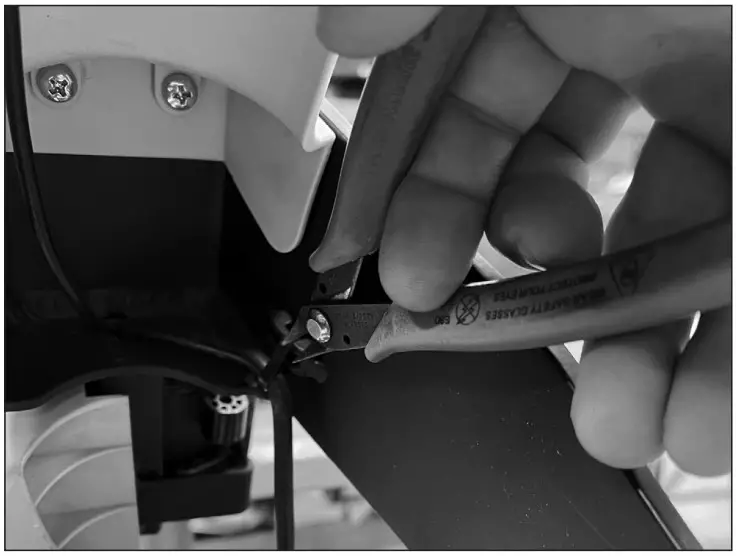

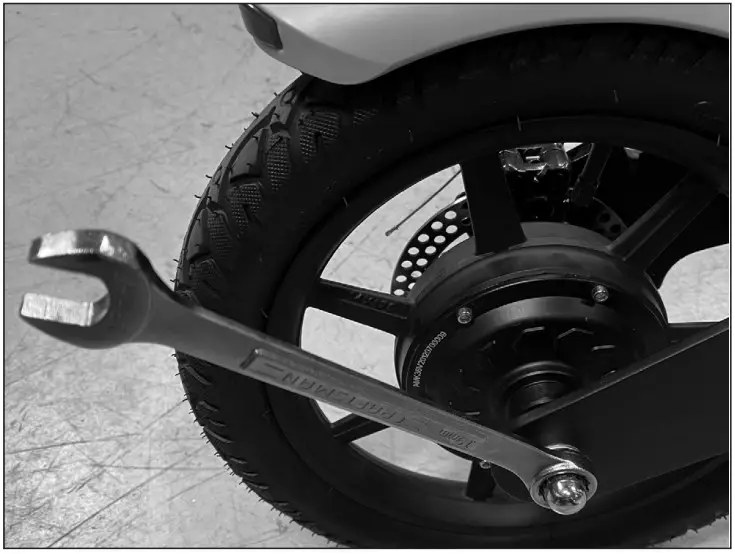

| Step 3 Using two (2) 19 mm wrenches, loosen the lock nuts from the rear axle and slide the wheel down. | Step 4 Cut the zip-tie that holds the motor cable onto the frame and slide the cable out from the frame. |
 |  |
| Step 5 Reverse the steps. ATTENTION: Charge battery 8 hours before using. | |
Need Help?
Visit our website at www.razor.com
or call toll-free at 866-467-2967
Monday – Friday 8:00am – 5:00pm Pacific Time.
