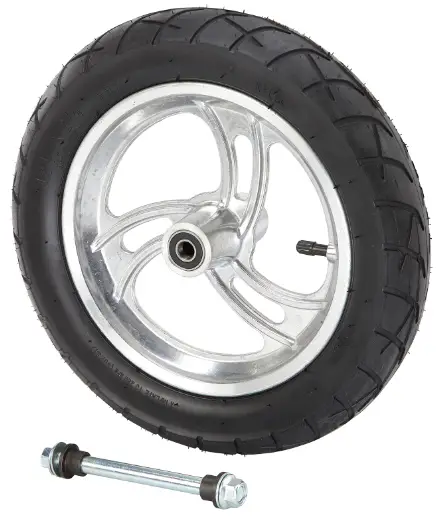

Razor W15128001049 RSF350 Front Wheel Complete w/ Wire Hub
REPLACEMENT INSTRUCTIONS
PART # W15128001049
Required Tools: (Not included)
- A. 14 mm wrench
- B. 17 mm wrench
WARNING
To avoid potential shock or other injury, turn power switch OFF and disconnect charger before conducting any assembly or maintenance procedures. Failure to follow these steps in the correct order may cause irreparable damage.

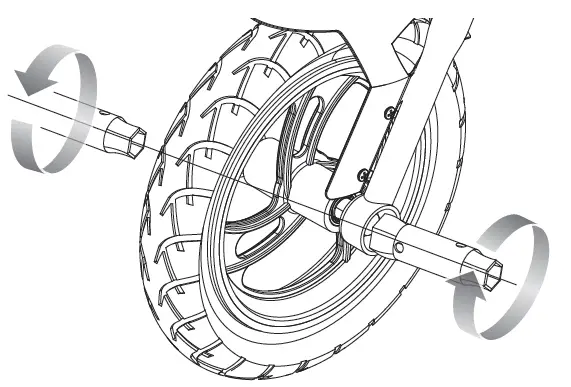

- Using 14 mm and 17 mm wrench loosen the locknut; slide axle bolt out and remove front wheel. Insert the new wheel and tighten the locknut.
- WARNING Failing to properly adjust and tighten the nuts and bolts that affix the front wheel can cause you to lose control and fall.

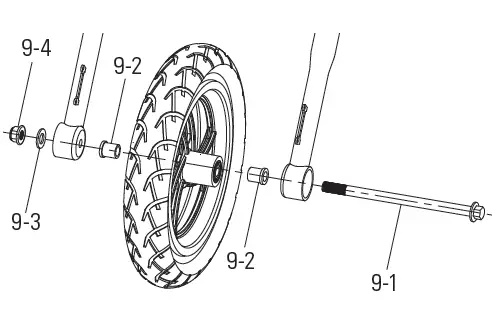

- Note the arrangement of the hardware sequence.
- 9-4 Locknut
- 9-3 Washer
- Front Fork
- 9-2 Spacer
- Wheel
- 9-2 Spacer
- Front Fork
- 9-3 Washer
- 9-1 Axle Bolt
ATTENTION: Charge the battery 12 hours before using.
Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday – Friday 8:00 am – 5:00 pm Pacific Time.
