Razor W15127016106 Vector Charger Port
Required Tools: (Not included)
- Phillips screwdriver
- Flat screwdriver
- Long needle pliers
WARNING
CAUTION: To avoid potential shock or other injury, turn power switch OFF and disconnect charger before conducting any assembly or maintenance procedures. Failure to follow these steps in the correct order may cause irreparable damage

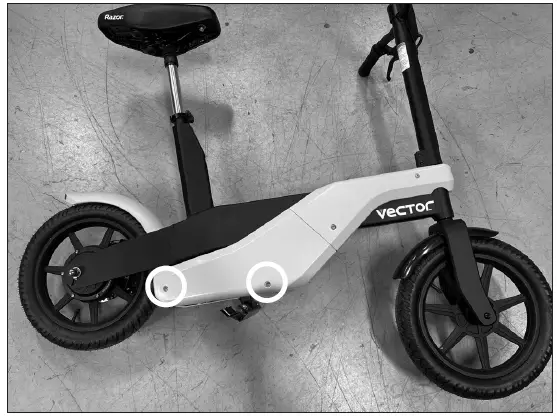

- Using a Phillips screwdriver, remove two (2) screws from the battery cover on the right side of the unit.

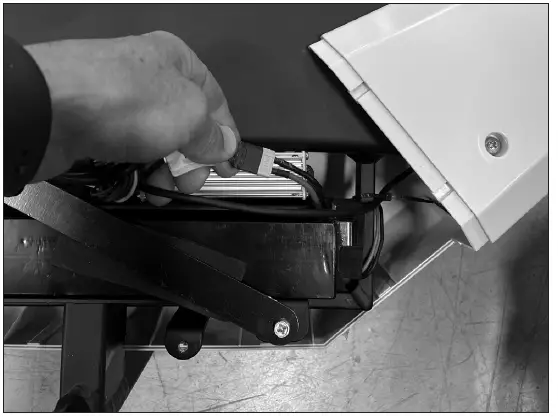

- Locate and disconnect the charger port connector from the controller

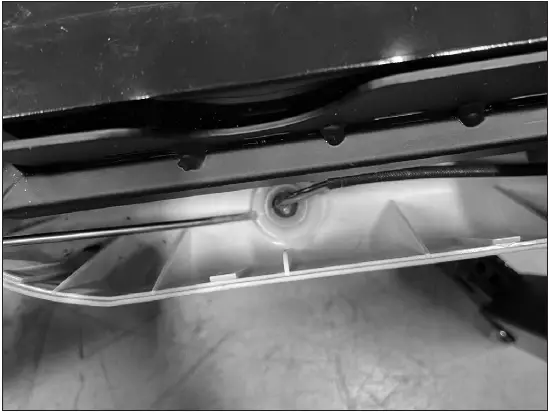

- Using a flat screwdriver, remove the glue at the back of the charger port

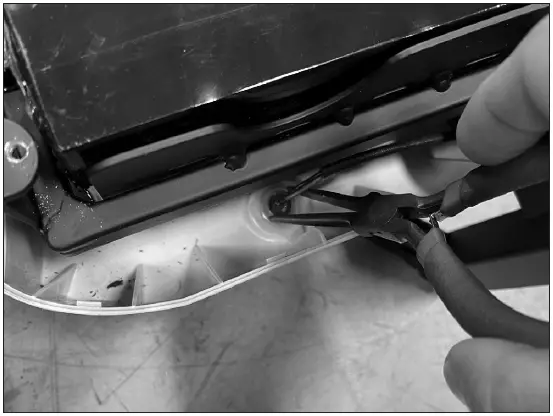

- Using long needle pliers, remove the lock nut from the back of the charger port and push the charger port out from the cover
- Reverse the steps.
ATTENTION: Charge battery 8 hours before using.
Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday – Friday 8:00am – 5:00pm Pacific Time
