Otter Unlinited Series Case Installation Guide

UNLIMITED SERIES INSTALLATION

PENCIL HOLDER INSTALLATION:

1. Pencil holder is optional
2. Remove rubber plug on right side of case
3. Insert the pencil holder through inside of case
4. Then pull elastic strap through to outside of case

CASE INSTALLATION:

1. After installing the pencil holder,insert tablet into the bottom edge of the case first
2. Push/pinch tablet into case, working around the case perimeter in a circle

SCREEN PROTECTOR INSTALLATION:

1. Once tablet is installed into the case, clean the screen thoroughly
2. Remove the protective film on the adhesive side first
3. Using home button and edges of case to align protector, install the screen protector onto the tablet working from the bottom edge towards the top
4. Remove the protective film by pulling on tab

KEYBOARD INSTALLATION:

1. Once tablet is inserted into the case
2. Make sure keyboard is charged
3. Turn keyboard power switch on
4. Press “Fn+C” to turn on wireless matching
5. Open Wireless Networks on your tablet and click the keyboard name
6. Input numbers on tablet and press “Enter”

ACTIVATING KEYBOARD TRACKPAD:

1. In tablet setting go to “Accessibility”, then “Touch”
2. Make sure the Assistive Touch is “on”
3. Press “Fn+command” to activate the trackpad

*Keyboard automatically sleeps if you do not use it within 10 minutes. To restart, press any key and wait 3-5 seconds.

KICKSTAND INSTRUCTIONS:

1. To open kickstand, pinch gray latch button and lift outer ring

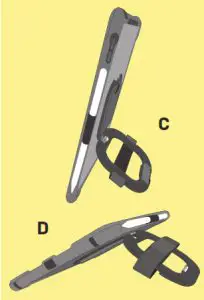

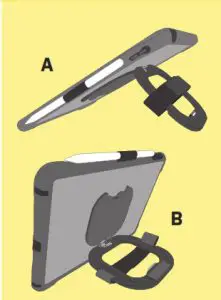

2. Kickstand can be rotated to achieve four different orientations:
   A. This orientation is recommended for typing and pressing on the tablet screen.
   B. This orientation is recommended for viewing only.
   C. This orientation is recommended for viewing only.
   D. This orientation is recommended for typing and pressing on the tablet screen.
3. Snap outer ring back into place

HAND STRAP INSTALLATION:

1. Pinch gray latch to open Kickstand before installing Hand Strap
2. Insert Hand Strap ends through slots at side of the kickstand
3. Fasten Velcro ends of strap together
4. Snap outer ring of kickstand back into place
5. Rotate Hand Strap for comfortable positioning

SHOULDER STRAP INSTALLATION:

1. Thread buckle cord through case anchor point
2. Pull cord loop through buckle hook
3. Repeat for other buckle
4. To adjust the shoulder strap, slide one or both of the length adjustment sliders

FOLIO INSTRUCTIONS:

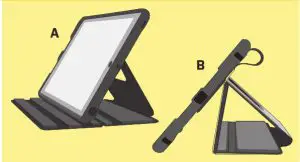

1. The folio can be rotated to be used as a stand in landscape or portrait mode:
   A. Rest bottom of tablet in the interior folio groove
   B. Fold folio into a triangle to prop up the back of the tablet
   *Folio can be configured into an acute triangle or an equilateral triangle depending on the angle you prefer


TABLE STAND INSTRUCTIONS:

1. Remove Allen wrench from underneath the stand base
2. Set stand on flat surface and lift long arm open
3. Release tablet holder arms
4. Insert tablet into holder either horizontally or vertically
5. Click holder hinges firm on tablet
   A. The holder spins 360°, so you orient tablet into portrait or landscape mode
6. Using the Allen wrench, adjust then tighten the angle of tablet holder hinge, and stand hinge
   *Stand and tablet holder feature cable holes to thread wires through
   To attach a tablet with case and kick stand, the holders of the stand should be attached towards one end of the tablet

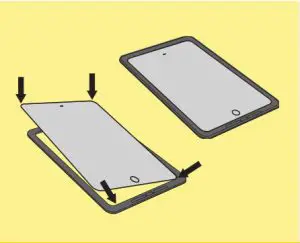

PRIVACY SCREEN INSTRUCTIONS:

1. Privacy Screen Protector can be installed over bare device screen or a screen protector
2. Set Unlimited Series case on a flat surface
3. A. There is no need to remove your tablet from inside the case
4. Using the home button and bottom edge of case for alignment, attach Privacy Screen on top of screen or screen protector
5. To remove Privacy Screen, pull from the upper right corner
   *Privacy screen adhesive can be cleaned with water and a lint-free cloth
   *When not in use, store Privacy Screen on included backer board
