EVENT LIGHTING ZP200LE 200 W LED Fresnel-Profile Spot – Light Engine

For your safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.

Safety Instructions

Warning

• Do not open this device, there are no user serviceable parts inside. Risk of electric shock.
• Do not look at the light source when the device is on.
• CAUTION: This unit’s housing may become hot during and after operation.
• Install this device in a location with adequate ventilation, at least 20 inches (50 cm) from adjacent surfaces.
• Do not leave any flammable material within 20 inches (50 cm) of this unit while operating or connected to power.
• Use a safety chain when mounting the device overhead.
• Do not operate this device outdoors or in any location where dust, excessive heat, water or humidity may affect it.
• Do not operate this device if the housing, lenses, or cables appear damaged.
• Do not connect this device to a dimmer or rheostat.
• Only connect this device to a grounded and protected circuit.
• Only use the hanging bracket to carry this device.
• If there is any concern of a serious problem, stop using this device immediately.
• Do not operate this device at ambient temperatures higher than 40° C (104° F).

Power Input and Power Linking

This device has an auto-switching power supply that works with 100-240 V AC, 50/60 Hz input. Link up to the maximum of 8A. DO NOT exceed this.

Fuse Replacement

If the fine wire fuse of the device fuses, replace it with one of the same type and rating. Before replacing the fuse, disconnect from mains power.

Procedure:

1. Unscrew the fuse holder on the rear panel from the housing with a fitting screwdriver.
2. Remove the old fuse from the fuse holder.
3. Install the new fuse in the fuse holder
4. Replace the fuse holder in the housing and secure it.

Product Installation

This device can be mounted in many orientations provided each individual device is secured by the use of the correct mounting bracket. Use a safety wire/chain when mounting this device overhead.

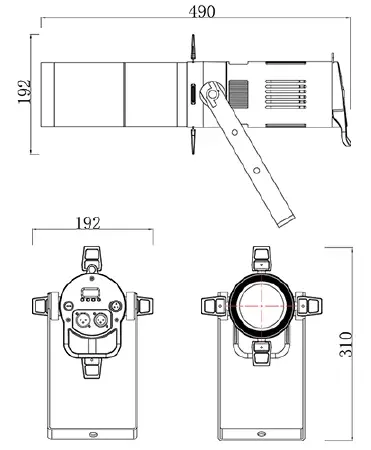

Dimensions

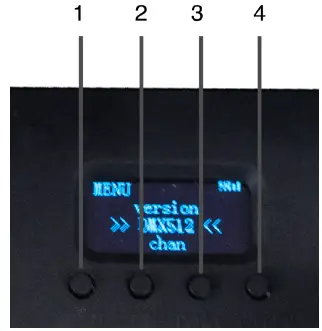

Control Board Operation

1. Menu: Move up one level.
2. Up: Move up one item.
3. Down: Move down one item.
4. Enter: Move down one level/confirm selection.

Menu

Use Up and Down to select the desired item and Enter to confirm.

• When there is no DMX signal, a flashing “!” will be displayed on the screen.
• The screen will turn off if no buttons are pressed for 30 seconds.

Set DMX Address
Select “DMX” then press Enter. Use Up and Down to set the desired DMX address from 1 to 512. Press Enter to confirm and save.

Set DMX Channel Mode
Select “Chan” then press Enter. Use Up and Down to set the desired DMX channel mode. Press Enter to confirm and save. Refer to the DMX Chart below for more information on each mode.

Set Manual Control
Manual Control allows you to set Dimmer, Dimmer Fine and Strobe values through the control panel. Select “Dimmer” then press Enter. Select “DIM” for Dimmer, “D_F” for Dimmer Fine, or “STO” for Strobe, then press Enter. Use Up and Down to set the desired value. Press Enter to confirm and save.

Set Dimmer Curve
Select “Curve” then press Enter. Use Up and Down to set the desired dimmer curve. Press Enter to confirm and save.

Set Fan Mode
Select “Fan” then press Enter. Use Up and Down to set the desired fan curve. Press Enter to confirm and save.

DMX Chart

• This fixture is controlled by the universal DMX 512 protocol. The DMX address is the first channel used to receive instructions from the external controller. For independent control, each fixture must be assigned a unique address for each of its control channels. For example, this device has three channel modes: 1/2/3, if it’s set to 3 channel mode, and there are several fixtures need to be independently controlled, we just simply address first fixture at 1, and second fixture at 4, third one at 7, etc.
• If multiple fixtures have the same DMX address, they will behave synchronically.
• Display will flash when no DMX signal is received.

Technical Specifications

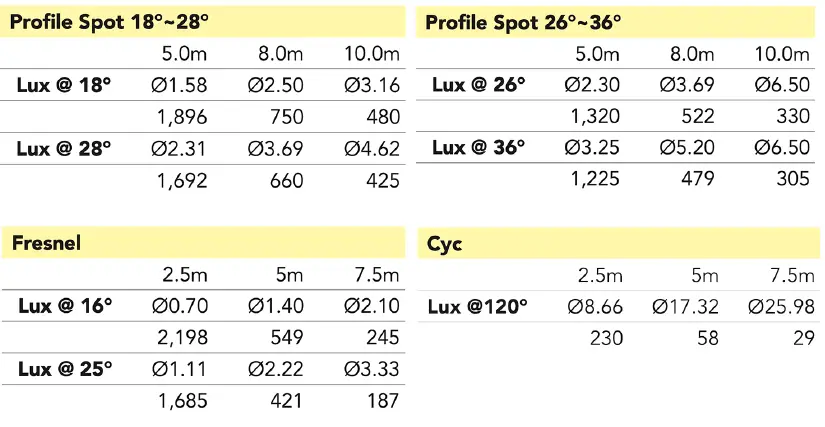

Photometrics

• Light Source: 3200 K 200 W COB LED
• CRI: 95
• PWM: 16,000 Hz
• LED Lifespan: 50,000 hours
• PROFILE Lens: ZPLP1828 (order separately)
  • Output: 1896 lux @ 5 m at 18°, 1692 lux @ 5 m at 28°
  • Beam Angle: 18°- 28°
• PROFILE Lens: ZPLP2636 (order separately)
  • Output: 1896 lux @ 5 m at 26°, 1692 lux @ 5 m at 36°
  • Beam Angle: 26°- 36°
• FRESNEL Lens: ZPLF 80mm Fresnel (order separately)
  • Output: 2198 lux @ 2.5 m at 16°, 1685 lux @ 2.5 m at 25°
  • Beam Angle: 16°- 25°
  • Field Angle: 30°- 55°
• CYC Lens: ZPLCYC (order separately)
  • Output: 210 lux @ 2.5 m at 120°
  • Beam Angle: 120°

Effects

• Dimming: 0~100%, 8-bit / 16-bit
• Strobe: 1~25 Hz
• Zoom: Manual

Power

• Input Voltage: 100~240 V AC, 50/60 Hz, 200 W
• Power Connection: Fixed

Control

• Operational Modes: DMX, Manual & Master / Slave
• Display: 4-Button LCD control panel
• DMX Protocol: DMX512
• DMX Channel Mode: 1 / 2 / 3
• DMX Interface: 3-pin XLR

Housing

• Housing Materials: Aluminium, matte black finish
• Cooling: Sensor Thermostat Controlled Variable Speed Fan
• Net Weight:
  • LED Engine 9 kg
  • Profile Lens: 1.9 kg
  • Fresnel Lens: 0.9 kg
  • Cyc Lens: 0.4 kg

Warranty

Please refer to your local dealer or contact Event Lighting.
