ELSEMA GLT43300 433MHz HAND HELD GIGALINK TRANSMITTERS User Guide
Features
- One, two, three, four & eight buttons.
- More than four billion code combinations
- Ability to program un-limited number of transmitters to a receiver
- Built-in battery monitor. Flashing red LED indicates battery is flat
- 433 MHz transmissions. No interference from electrical noise and other signals.
Applications
- Security, wireless activation/deactivation of domestic or industrial alarms
- Gate operation
- Panic buttons
- Remote Activation of lights
- Simultaneous operation of multiple on/off functions
Description
These hand held GIGALINK™ transmitters operate on 433MHz. These GIGALINK™ transmitters can be programmed to the 433MHz Gigalink receivers.
The GLT433 series is available with 1, 2, 4 and 8 buttons. The transmission is secure with over 4 billion code combinations.
The transmitter is also available without a case to allow easy integration into your applications.
The hand held GIGALINK™ transmitters have single and multi-channel code programming system that provides flexibility in programming each channel to different receivers. Each transmitter button can be programmed to different single channel receivers.
Multi-channel Code Programming
This is used to program all channels from a multi-channel receiver to the multi-channel transmitter. To multi-channel code program a transmitter, read receivers setup instructions.
Single Code Programming
This is used for programming one channel at a time to the transmitter. To single code program a transmitter read receivers setup instructions
Operating Distance
An operating distance (in conjunction with our GLR433.. series receivers) of 350 metres is possible with the GLT43300/1/2/4 and 500 metres with GLT43308.
The operating distance depends upon the receiver antenna and location. An independent test revealed the following ranges:
| Range (Metres) | Receiver Antenna | Receiver Type |
| 200 | 690 mm Long Wire | GLR433.… |
| 350 | ANT433S | GLR433.… |
| 500 (GLT43308) | ANT433S | GLR433.… |
Range tests were done in an open area test site with line-of-sight operation and the receiver antenna wire was fixed vertically, away from any metal objects.

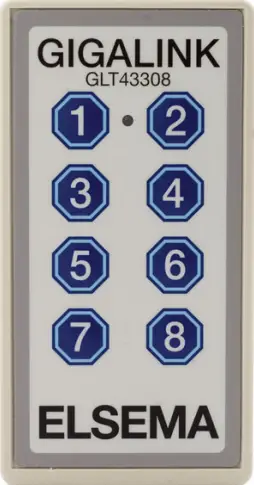

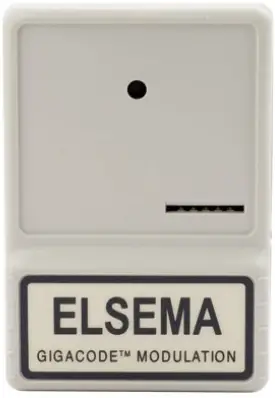

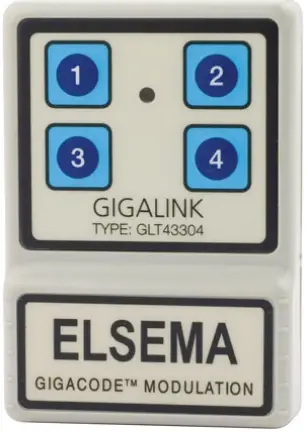

Products in the Range
 |  |  |  |  |
| GLT43300 Transmitter | GLT43301 1-Channel | GLT43302 2-Channel | GLT43304 4-Channel | GLT43308 8-Channel |
Technical Data
| Model | GLT43301, GLT43302, GLT43304 | GLT43308 |
| Power Supply | 9V Battery (Applied to the battery Clip) | 9V Battery (Applied to the battery Clip) or 10-16VDC (Only applied to + & – terminals) |
| Current Consumption | Max 35mA at 8VDC (Only when transmitting) | |
| Standby Current | 10uA (Typical) | |
| Transmission Modes | Continuous – Transmits as long as the channel is activated. | |
| Battery Monitor | LED flashes at 1Hz, during transmission, when battery voltage is at 6.5V (flat 9V battery) | |
| Operating Freq | 433.920MHz (Other frequencies available on request. Refer to the table below ) | |
| Carrier Freq Tolerance | Crystal controlled 30 parts per million | |
| Operating Temperature Range | -5 to 50°C | |
| Radiated RF Power Output | 100uW | |
| Antenna | Built-in loop Antenna | |
| Type of Emission | AM 100% depth | |
| Digital Coding System | Microcontroller based 96-bit word | |
| Code Combination | Approximately 4.3 billion | |
| Digital Channels | 1, 2 or 4 channels. The type of membrane label determines the number of channels. Customers can fit custom- made membrane labels | 8 channels. On board 16-pin IC socket. Channels are addressed by joining opposite side of the IC socket pins. Elsema has a 16- pin 35cm ribbon cable plug available |
| Dimension | 81 x 56 x 24mm | 130 x 67 x 27mm (GLT43308) |
| Weight | 51g excluding battery | 60g (GLT43308) |
| Useable Receivers | GLR433… series | |
| Useable Operating Range | Up to 350m; depending on receiver antenna and location | Up to 500m; depending on receiver antenna and location |
Available Frequencies
| SF2 | 433.664 MHz |
| SF3 | 433.408 MHz |
| SF4 | 433.152 MHz |
| SF5 | 434.688MHz |
| SF6 | 434.432 MHz |
Special Frequency products can be made upon request. There is a minimum quantity order of 20. Please quote Correct SF number when ordering transmitters on special frequencies.

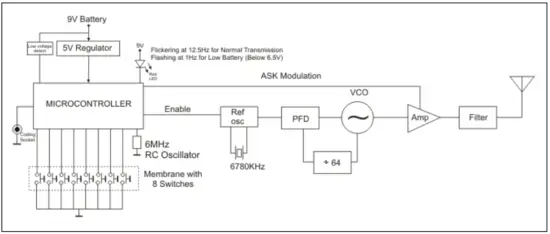

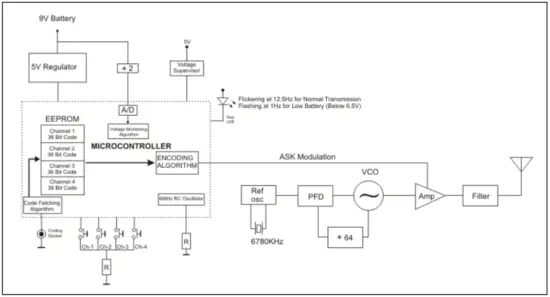

Block Diagram
GLT43301, GLT43302, GLT43304
GLT43308(NC)
Customised labels

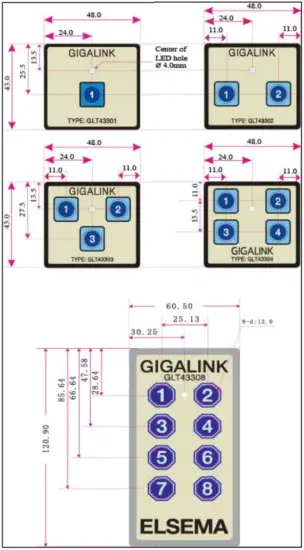

The transmitters are available without the front labels. Customers can purchase the GLT43300NL, which is a hand held GIGALINK™ transmitter without the front labels. This enables the customers to fit their custom made labels that can be a 1, 2 or 4 channels. This has the advantage of customers only stocking one model to function as a 1, 2 and 4 channel. Details of label dimensions are given below.
Customers who wish to have their own membranes can contact us with their designs on (+61) 2 9609 4668
You can have your own company logo and specific text printed on the membranes. e.g. Up, Down, Right and Left or Start, Stop etc.
The minimum quantity for custom membranes is 50 pieces per order.
