Potter Fib-1000 Fiber Interface Bridge Owner's Manual

FIB-1000 Fiber Interface Bridge
Owner’s Manual

Features

• Allows RS-485 (P-Link) circuit to be converted to/from fiber optic cable
• Class B or Class A operation
• Uses 62.5/125 micron multi-mode fiber optic cable; tolerates up to 12 db of signal loss (wave length 820 nm)
• Mounts with included stacker bracket
• Mounts in panel, accessory cabinet or PSN-1000/E Power Supply
• Optional FIB-1000RM 19-inch rack mount model available
• Maximum of 30 FIB-1000s per panel
• product includes a 5 year warranty
• UUKL Listed for Smoke Control

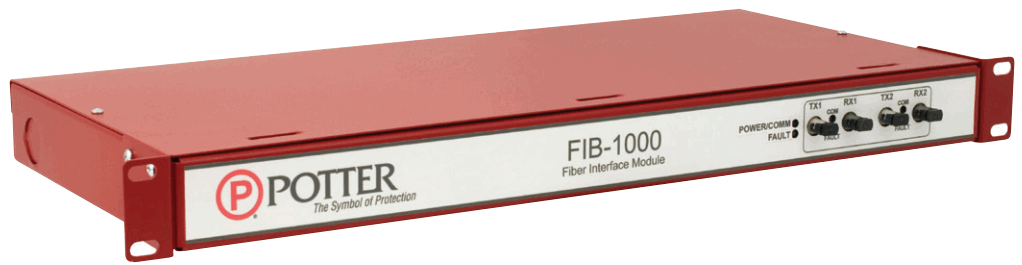

FIB-1000 Fiber Interface Bridge

FIB-1000RM Fiber Interface Bridge Rack Mount

Description

The FIB-1000 Fiber Interface Bridge allows the RS-485 P-Link bus to be converted into or from the fiber optic cable.
It is fully supervised and is capable of both Class B and Class A operation. The FIB-1000RM includes a 19-inch rack-mount kit for installation in an equipment rack. Each  card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.

Installation

The FIB-1000 is connected to the control panel using a four wire RS-485 (P-Link) connection. This connection is power limited and supervised. The FIB-1000 can be  installed in the AE-2, AE-8, and AE-14 Accessory Enclosures. The FIB-1000 can also be installed inside the pSN-100e Intelligent power Supply and larger control panel  enclosures that include space for mounting stacker bracket modules. The FIB-1000RM may be installed directly in an equipment rack.

Technical Specifications

*Legacy product

Ordering Information

Potter Electric Signal Company, LLC
St. Louis, MO
Phone: 800-325-3936
www.pottersignal.com
8830131-REv C 12/18
