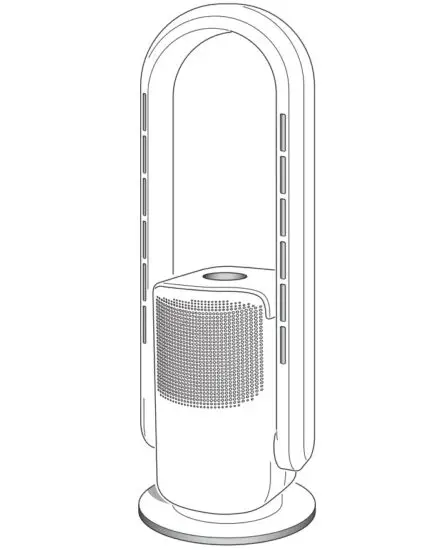

Olimpia Splendid Futura Air Purifier Instruction Manual

FUTURA Air Purifier
Instruction Manual

WARNINGS

1. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
   Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (be applicable for the European Countries).
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. (be applicable for other countries except the  European Countries).
3. If the power cable is damaged, it must be replaced by the manufacturer by its technical support service, or by similarly qualified personnel, to prevent any risk to the user.
4. To prevent any electrocution risk, it is essential to disconnect the plug from the power socket before performing any maintenance operation on the appliance.
5. For the correct operation of the appliance, observe the minimum distances and the indications written in this manual (see figure B).
6. For the correct electrical connection of the appliance, follow the indications in paragraph 2.2.

GENERAL WARNINGS

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED IN IN ORDER TO REDUCE THE RISKS OF FIRE,  ELECTRIC SHOCKS AND INJURY, INCLUDING THE FOLLOWING:

1. This document is restricted in use to the terms of the law and may not be copied or transferred to third parties without the express authorization of the manufacturer, OLIMPIA SPLENDID.
   Our appliances are subject to change and some parts may appear different from the ones shown here, without this affecting the text of the manual in any way.
2. Read this manual carefully before performing any operation (installation, maintenance, use) and follow the instructions contained in each chapter.
3. Keep the manual carefully for future reference.
4. After removing the packaging, check that the appliance is in perfect condition. The packaging materials must not be left within reach of children as they can be dangerous.
5. THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES TO PERSONS OR PROPERTY CAUSED BY FAILURE TO FOLLOW THE  INSTRUCTIONS IN THIS MANUAL.
6. The manufacturer reserves the right to make any changes it deems advisable to its models, although the essential features described in this manual remain the same.
7. The appliance is equipped with a power cord with a plug (Y-type connection). If the power cord is damaged, it must be replaced by the manufacturer, his technical service or a similarly qualified person in order to eliminate all possible risks.
8. Ordinary maintenance of the air outlet/inlet grilles and general external cleaning can also be performed by the user, as they do not involve difficult or dangerous operations.
9. At each maintenance operation, it is necessary to respect the precautions indicated in this manual and on the labels located inside or on the appliance, as well as to take all the precautions suggested by common sense and by the Safety Regulations in force in the country of installation.

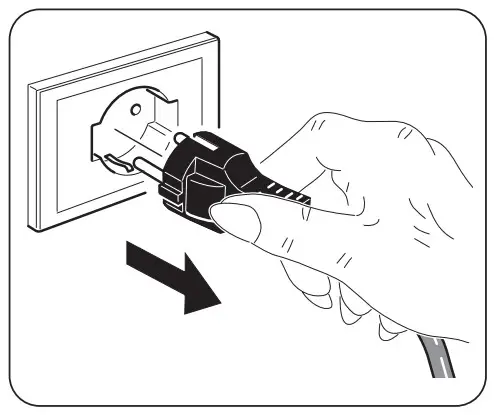

10. During cleaning, remove the plug from the socket.
11. In case of replacement of parts, use only original OLIMPIA SPLENDID parts.
12. Do not use liquid or corrosive detergents to clean the unit, do not spray water or other liquids onto the unit, since they could damage the plastic components or even cause electric shocks.
13. In case of functioning anomalies (for example abnormal noise, bad smell, smoke, abnormal increase in temperature, electrical dispersions, etc.), immediately switch off the appliance and disconnect the plug from the power socket.
    For repair work contact solely the technical service centers authorized by the manufacturer and ask for original spare parts to be used. Failure to do this can affect the safety of the appliance.
14. Do not disconnect the power plug during functioning.
    Fire or electrical shocks hazard.
    14a. Always unreel the cable completely during use.
15. This product is suitable for indoor use only and should not be used outdoors.
    15a. Do not use the appliance to dry clothes.
16. Before connecting, make sure that the plate data corresponds with the mains electrical supply. The data plate is located on the appliance.
17. DO NOT pull or disconnect the plug before turning off the appliance using the ON/OFF switch.
18. If the appliance’s plug is incompatible with the socket, have the socket replaced with a suitable one by a qualified technician, who must ascertain that the section of the socket cables is compatible with the power absorbed by the appliance. We do not recommend using adaptors and/or extension cables. If they cannot be avoided, however,  they must comply with current safety regulations and their ampacity (A) must not be below the maximum ampacity of the appliance.
19. DO NOT use the appliance near flammable objects, explosives, and heat sources. DO NOT use the appliance in places with a strong presence of dust.
    19a. It is recommended not to use the appliance in the immediate vicinity of the bathtub, shower, or pool.
20. Always and only use the appliance in a vertical position.
21. Do not obstruct the air inlet and outlet grids in any manner.
22. Do not insert extraneous items in the air inlet and outlet grids as this will create the risk of electrical shocks, fire, or damage to the appliance.
23. For correct use of the appliance NEVER:
    – Place it immediately underneath a mains wall socket.
    – Pull the power cable or the appliance itself to remove the plug from the main socket.
    – Leave it exposed to atmospheric agents (rain, sun, etc.).
    – Leave it plugged in when not in use.
    – Touch it with wet or damp hands.
24. Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock, or injury.
25. Do not let the appliance work in enclosed areas such as a cabinet since it could cause a fire.
26. Do not operate the unit near flammable liquids or in explosive atmospheres.
27. Do not spray insecticide or flammable gasses near the appliance.
28. Always place the appliance on a stable, plane, and leveled surface.
29. Leave at least 1 m of free space in front of the appliance.
    Do not place the device near curtains to avoid obstructing the air outlet (Fig.B-B1).
30. Do not use the appliance if it has been dropped or shows signs of damage.
31. The socket must be easily accessible so that the plug can be removed easily in an emergency. Do not place the power cable in the front of the appliance, risk of overheating or damage.
32. Do not handle the plug with wet hands.
33. Do not excessively bend, twist, pull or damage the power cord.
    33a. Do not allow a cord to come in contact with heated surfaces during operation.
34. Do not run the cord under carpeting, throw rugs or runners, etc. Arrange cord away from traffic areas so that it will not be tripped over.
    34a. Do not twist, kink, or wrap the cord around the appliance, as this may cause the insulation to weaken and split.
35. Unplug the cord when the unit is not in use for an extended period of time and/or when no one is home.
36. Do not use the appliance outdoors or on wet surfaces. Avoid dropping liquids on the appliance. Do not use the appliance near sinks and taps.
37. Do not immerse the appliance in water or in other liquids.
38. If this product is covered or placed incorrectly, it may cause a fire hazard.
    DO NOT use a programmable auto switch, timer, or any other device with this product.
39. This unit shall not be exposed to dripping or splashing water.
40. This product is NOT suitable for use in hot and humid areas (kitchen, bathroom, etc).
41. The unit should not be adjusted or repaired by anyone except specialized technicians.
42. To reduce the risk of fire or electric shock, do not use this product near any other electronic device.
43. Avoid positioning the product outdoors. Do not blow air directly toward people, especially children and the elderly.
44. Make sure the plug is always completely inserted into the power socket.
45. It is severely prohibited to remove or install the air filter (9) during the operation of the appliance.
46. Clean the appliance with a damp cloth; do not use abrasive products or materials.
    See the appropriate paragraph for the filter cleaning.
47. The most common cause of overheating is dust or lint deposit in the appliance.
    Regularly remove these accumulations by disconnecting the appliance from the power socket and vacuuming the grids.
48. Do not use the appliance if insecticide gas has just been sprayed in the room or in the presence of burning incenses, chemical vapors, or oily residues.
49. Do not use the appliance if the filter is not positioned correctly.
50. Disassembly, repair or reconversion performed by an unauthorized person could cause heavy damages and will cancel the manufacturer warranty.
51. Do not use the appliance in case of malfunctioning or faults, if the cord or plug are damaged, or if it has been dropped or damaged in any manner. Turn the appliance off,  disconnect the plug from the socket and let it be checked by professionally qualified personnel.
52. Neither disassemble nor modify the appliance.
53. Repairing the appliance by yourself is extremely dangerous.
54. If you no longer wish to use this appliance, it must be made inoperative by cutting the power supply cable after removing the plug from the power socket. Hazardous parts of the appliance must be rendered harmless, especially as there is a risk of children playing with it.
55. This heater is intended for floor use only. Do not mount on the ceiling or walls.
56. It is forbidden to dispose of or leave in the reach of children the packaging materials which could become a source of danger.
57. Children of less than 3 years should be kept away unless continuously supervised.
58. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
59. WARNING – Some parts of this product may become very hot and could cause burns. Be very careful when children or vulnerable adults are nearby.
60. WARNING: in order to avoid overheating, do not cover the heater (Fig.B1).
61. In the presence of gas leaks from other equipment, ventilate the room well before activating the appliance.
62. After removing the packing, make sure that the appliance is complete, without visible damage that could have been caused during transport. In case of doubt, do not use the appliance and contact the authorized Technical Assistance centers.
63. At first use and after a long period of inactivity of the appliance, a slight noise may be heard and a slight odor may be smelled. It is a normal phenomenon that will disappear after a few minutes of operation.
64. This appliance contains a UV emitter.
    Do not stare at the light source.

PROPER USE

• The appliance must be used exclusively for cooling, heating, or purifying the air with the sole purpose of making the environment where you stay comfortable.
• This appliance is only designed for domestic use or similar, not for commercial or industrial use.
• Improper use of the appliance with possible damages caused to people, things, or animals releases OLIMPIA SPLENDID from any responsibility.

HAZARDOUS ZONES

• The appliance must not be installed in places with inflammable gases, explosive gases or excess humidity (laundries, greenhouses, etc.), or in places with other machines that generate a strong heat source, in the proximity of sources of saltwater or sulfurous water.
• DO NOT use gas, gasoline, or other inflammable liquids near the appliance.
• Only use supplied components. The use of non-standard parts may cause water leaks, electric shocks, fires, and injuries or damage to things.

This product must be used exclusively according to the specifications indicated in this manual. Using different to that specified could cause serious injuries.
THE MANUFACTURER IS NOT LIABLE FOR INJURY/DAMAGE TO PERSONS/OBJECTS DERIVING FROM FAILURE TO COMPLY WITH THE REGULATIONS CONTAINED IN THIS MANUAL.

MAIN FEATURES AND FUNCTIONING

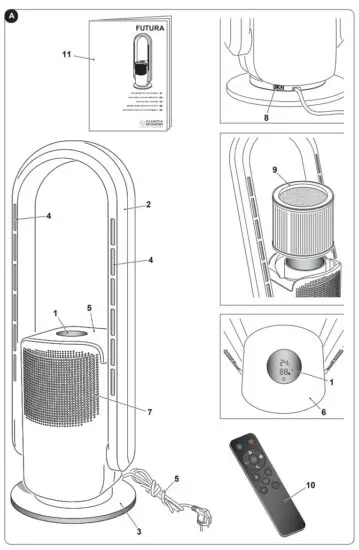

IDENTIFICATION OF MAIN PARTS (Fig.A)

INSTALLATION

WARNINGS
A failure to respect what follows may cause damage to the appliance.

a. Install the appliance on a flat, stable surface and on the floor.
b. The appliance must only be connected to earthed power outlets.
c. Make sure that curtains or other objects do not obstruct the air suction filters.
d. The appliance must always be activated paying attention that there are no obstacles to air suction and output.
e. Do not use the appliance in places used as laundry rooms.
f. The appliance must only be installed in dry places.
g. The appliance must not be activated in the presence of dangerous materials, vapors, or liquids.

ELECTRICAL CONNECTION

The appliance is equipped with a power cable with a plug.
Before connecting the appliance, make sure that:

• The voltage and power frequency values match those specified on the appliance plate data, See chapter “Technical data”.
• The power supply line is equipped with an effective earth connection and is correctly sized for maximum absorption of the appliance.

USE OF THE APPLIANCE

Some operating modes of the appliance can be selected both via the remote control and from the control panel.
The reception of the selected function is confirmed by the emission of a “beep” by the buzzer.
It is possible to adjust the angle of the air duct (2) to direct the air outlet.

AIR DUCT ADJUSTMENT
Before adjusting the inclination of the air duct, make sure that the product is turned off.
Hold the body of the appliance with one hand and tilt the air duct (2) forward or backward (Fig.C).

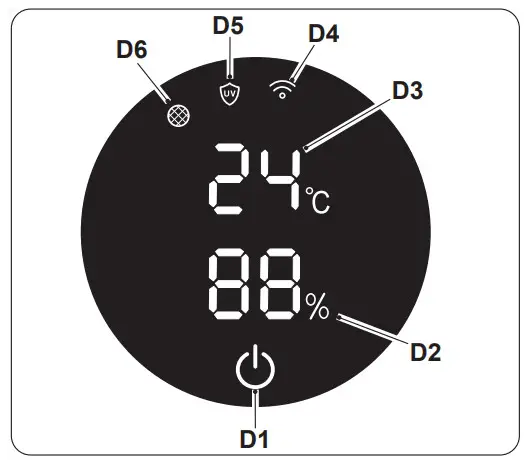

CONTROL PANEL AND REMOTE CONTROL

D1. ON/OFF key
D2. Display: – % humidity – airspeed – timer
D3. Room temperature detected (°C)
D4. Wi-Fi function active led
D5. “Purifier” mode active led
D6. “Filter to be replaced” warning led

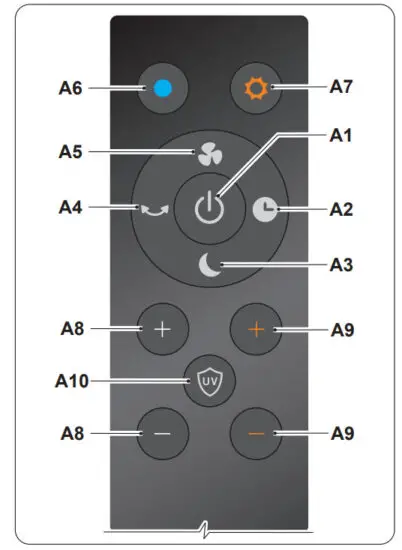

A1. ON/OFF key
A2. “Timer” key
A3. “Sleep” key
A4. “Oscillation” key
A5. “Turbo” key
A6. “Fan” key
A7. “Heater” mode ON/OFF key
A8. Airspeed increase/decrease
A9. Temperature increase/decrease (only in heating mode)
A10. “Purifier” mode key

USE OF THE REMOTE CONTROL

The remote control supplied with the appliance is the instrument that will allow you to use the appliance in the most comfortable way possible.

It should be handled with care and in particular:

• Keep it dry (do not clean it with water or leave it outdoors in bad weather).
• Avoid dropping or bumping it.
• Keep it out of direct sunlight.

• The remote control operates by means of an infrared beam.
• Avoid obstacles between the remote control and the appliance during use.
• If other appliances in the room have remote controls (TV, stereo, etc…), there may be interference.
• Electronic and fluorescent lights may interfere with the transmissions between remote control and appliance.
• Remove the batteries in case of prolonged disuse of the remote control.

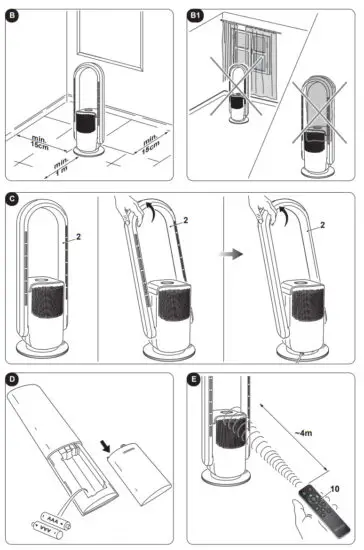

Inserting the batteries (Fig.D)
To insert the batteries correctly:
a. Remove the battery compartment door.
b. Insert the batteries in the appropriate compartment.
Strictly respect the polarities indicated on the bottom of the battery compartment.

Replacing the batteries
The batteries must be replaced if by pressing one of the keys you do not hear the “beep” of the device signal reception.

Always use new batteries.
The use of old batteries could generate malfunctioning of the remote control.
Once discharged, the batteries must be replaced and disposed of in the appropriate collection centers or as required by local regulations.

• If you do not use the remote control for a few weeks or more, remove the batteries.
  Leaking batteries could damage the remote control.

Do not recharge or disassemble the batteries. Do not throw the batteries into fire. They could burn or explode.

If the battery liquid falls onto the skin or clothes, wash well with clean water. Do not use the remote control with batteries that have leaked.
The chemical products contained in the batteries can cause burns or other risks to health.

Location of the remote control
Keep the remote control (10) in a position from which the signal can reach the receiver of the appliance (maximum distance is approx. 4 meters – with charged batteries) (figure E). The presence of obstacles (furniture, curtains, walls, etc.) between the remote control and the appliance reduces the remote control range.

USE OF THE APPLIANCE
Work as follows in order to use the appliance.

Preliminary operations

• Place the appliance on a stable and not inclined base, at least 15 cm. from the wall or from any other object, in order to ensure the correct air circulation.
• Do not obstruct the air outlet/inlet ways.
• Insert the plug into the socket, and press the ON/OFF switch (8); the appliance emits a “beep” and goes into stand-by.
  Before electrically connecting the appliance, make sure the plate data correspond to those of the electricity distribution network.

OPERATING INSTRUCTIONS

Each time the keys are pressed, the appliance emits a “beep”.

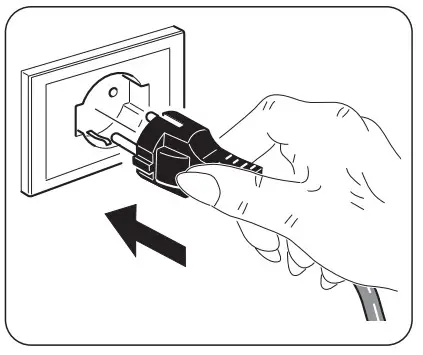

a. Insert the plug into the socket.

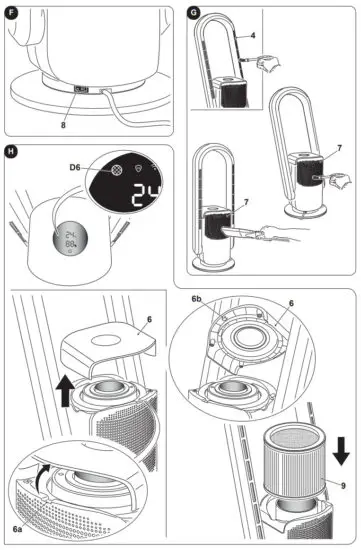

b. To turn on the appliance, press the switch (8) (a beep is heard) (Fig.F).
b. To activate the appliance, press the ON/OFF key (D1) on the display, or the ON/OFF key (A1) on the remote control.
c. To turn off the appliance, see the next paragraph.

ON/OFF key
Remote control
In standby mode (display off) by pressing any key on the remote control, the display turns on and shows the room temperature (in °C).
By pressing the ON/OFF (A1) key, the appliance turns on and the display shows the room temperature (in °C) and the speed previously set.
To turn off the appliance, press the ON/OFF key (A1) again.
Display
By pressing the ON/OFF (D1) key, the appliance turns on and the display shows the room temperature (in °C) and the speed previously set.
To turn off the appliance, hold down the ON/OFF (D1) key for a few seconds until the appliance emits the second beep.

After a few seconds of operation of the appliance, the display shows the percentage of detected humidity.
Without pressing any key for approximately one minute, the display automatically turns off and lowers its brightness.

Ventilation airspeed
Settable speed varies from 01 (minimum) to 09 (maximum).
Remote control
Airspeed can be increased or decreased by means of the keys “+” or “-” (A8).
Press the key (A5) to select “Turbo” mode, on the display appears the symbol “HH”; press the key (A5) again to deactivate the function.
Display
Air speed can be increased or decreased by pressing the key ON/OFF (D1) several times.

Ventilation airspeed (heating mode)
Settable speed varies from 01 (minimum) to 04 (maximum).
Remote control
Airspeed can be increased or decreased by means of the keys “+” or “-” (A8).
Display
Airspeed can be increased or decreased by pressing the key ON/OFF (D1) several times.
In heating mode, the function “Turbo” is not available.

Appliance oscillation
Remote control
While the appliance is running, press the key (A4) and the appliance body starts to rotate alternatively.
Press the key (A4) again, the function turns off and the appliance stops in the chosen position.
Display
While the appliance is running, press the ON/OFF key (D1) for approximately 3 seconds, and the appliance body starts to rotate alternatively.
Press the ON/OFF key (D1) again for approximately 3 seconds, the function turns off and the appliance stops in the chosen position.

Mode key (only activable from the remote control)
Fan mode
To activate this mode, press the key (A6). The temperature shown on the display is WHITE. To change ambient temperature, increase or decrease airspeed by means of the keys “+” or“-” (A8).
Heating mode
To activate this mode, press the key (A7). The temperature shown on the display is RED. To increase or
decrease temperature (min.1°C – max.30°C), use the keys “+” or “-” (A9). When set, the desired value continues to blink (approximately 10 seconds) to confirm the setting.

• In this function, it is possible to decide whether to increase or decrease airspeed by means of the keys “+” or “-” (A8).
• To activate this function, the temperature to be set MUST be higher than the ambient temperature.
• When the ambient temperature reaches the set temperature value, the heating function interrupts and the appliance blows a slight breeze for approximately 40 seconds, then it enters Standby mode.
  When the ambient temperature drops below the set temperature, the heating mode reactivates automatically.
• The default temperature is set at 25°C.
• After 9 hours of continuous operation, the appliance automatically stops operation.

WARNING: When the appliance enters heating mode, the air duct (2) overheats. Even after switching off, the appliance may still be hot.
The appliance is equipped with an integrated protection sensor which automatically switches off the appliance if the latter is accidentally overturned or overheats excessively.
In this case:
a. switch off the appliance by means of the ON/OFF switch (8) and disconnect the power plug;
b. let the appliance cool down for 15/20 minutes;
c. restart the appliance.
If the issue persists, disconnect the plug from the power outlet and please contact the retailer or the technical assistance service.

Purifier mode
To activate/deactivate this mode, press the key (A10), and the LED (D5) appears on the display.
This mode switches off automatically after 1 hour of operation.

Sleep mode
To activate/deactivate this mode, press the key (A3), and the display shows the symbol “LL”.
This function automatically lowers fan speed to a minimum.
This mode cannot be activated in heating mode.

Wi-Fi function (can only be activated from the Display)
To activate this function, keep the ON/OFF key (D1) on the display pressed for a few seconds until the appliance emits the third beep and the LED (D5) starts blinking.
To deactivate this function, keep the ON/OFF key (D1) on the display pressed for a few seconds until the appliance emits the third beep.

When the appliance connects with your smartphone, the LED (D5) stops blinking and remains switched on steadily on the display.
The instructions for connecting to the WiFi network and for use of the App are available on www.olimpiasplendid.com in the download area.

Timer key (can only be activated from the remote control)
When the appliance is on, press this key and the timer changes according to this sequence: 0h (Timer off) —> 1h —> 2h —> 3h —> .. 8h —> 0h (Timer off) —> ..
The display, after a few seconds from the timer setting, returns to display the percentage of detected humidity.

MAINTENANCE AND CLEANING

Before proceeding with any maintenance and cleaning operation, always make sure that you disconnected the power plug from the socket and check that the appliance is not hot.
Do not wash nor soak the appliance in water. Prevent water from entering in contact with the internal components of the appliance. Risk of electric shocks!

CLEANING

Cleaning the appliance and the remote control
a. Use a dry cloth to clean the appliance and the remote control.
b. It is possible to use a cloth moistened with cold water to clean the appliance in case it’s very dirty.

Do not use a chemically treated or antistatic cloth to clean the appliance.
Do not use gasoline, solvent, polish or similar solvents.
These products could cause the breakage or deformation of the plastic surface.
Make sure the appliance is completely dry before reconnecting the plug to the power socket.

Air inlets and outlets cleaning
Use a soft-bristled brush or a vacuum cleaner to clean the air inlets and outlets (Fig.G).
Do not allow dust to accumulate in order to avoid malfunctions.

Filter replacement (Fig.H)
After 700 h of operation of the appliance, the LED (D6) activates on the display indicating that the filter MUST be replaced.
Do not use the appliance without a filter or if the latter is damaged.
Do not use the appliance beyond the 700 h of operation without changing the filter.

a. Leverage by means of the recess (6a) and raise the top cover (6), removing it.
b. Raise the filter (9) and extract it.
c. Replace the filter (9) with a new one.
d. Make sure the filter is inserted correctly in its seat, then reposition the cover (6), making the lower pivot
(6b) match in the respective fissure located in the rear part of the appliance.

The top cover (6) is equipped with magnets to ease closure.
After the filter is replaced, press the ON/OFF key (A1) on the remote control for approximately 5 seconds; the appliance switches off and usage time (700 h) is reset.

BEFORE STORING THE APPLIANCE AT THE END OF THE SEASON

• Clean the air outlets and inlets as previously described.
• Position the appliance in its original packaging and store it in a dry and fresh environment, far from direct exposition to sunlight.

TECHNICAL DATA

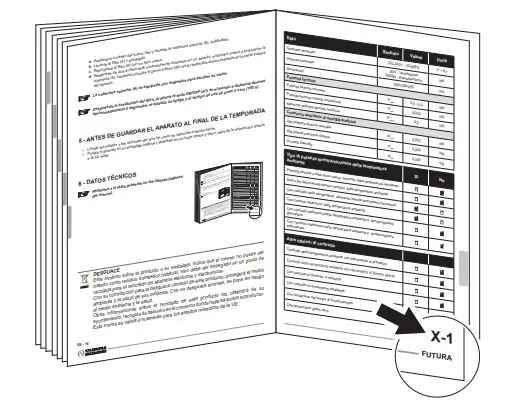

Please refer to the table on the last pages of the manual.

DISPOSAL
This symbol on the product or its packaging indicates that the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling electric and electronic appliances.
Your contribution to the correct disposal of this product protects the environment and the health of your fellow men. Health and the environment are endangered by incorrect disposal.
Further information about the recycling of this product can be obtained from your local town hall, your refuse collection service, or in the store at which you bought the product.
This regulation is valid only in EU member states.

Type of heat output/room temperature control	Yes	No
Single-stage heat output and no room temperature control
Two or more manual stages, no room temperature control
With mechanic thermostat room temperature control
With electronic room temperature control
Electronic room temperature control plus day timer
Electronic room temperature control plus week timer

Other control options
Room temperature control, with presence detection
Room temperature control, with open window detection
With distance control option
With adaptive start control
With working time limitation
With black bulb sensor

OLIMPIA SPLENDID
spa via Industriale 1/3
25060 Cellatica (BS)
www.olimpiasplendid.it
[email protected]

References

• OlimpiaSplendidUS – Portable Air Conditioners, Without Outdoor Unit
• Mobile, feste Klimageräte ohne Außeneinheit, Heizung | Olimpia Splendid
• HomePage | Olimpia Splendid
• HomePage | Olimpia Splendid
• Climatizzatori Portatili, Fissi e Senza Unità Esterna, Riscaldamento | Olimpia Splendid
