man hattan 168397 4K 30Hz HDMI Over Ethernet Extender Kit Instructions

Contents hide

1 Instructions

2 WASTE ELECTRIC AL & ELECTRONIC EQUIPMENT

3 Documents / Resources

3.1 References

4 Related Posts

Instructions

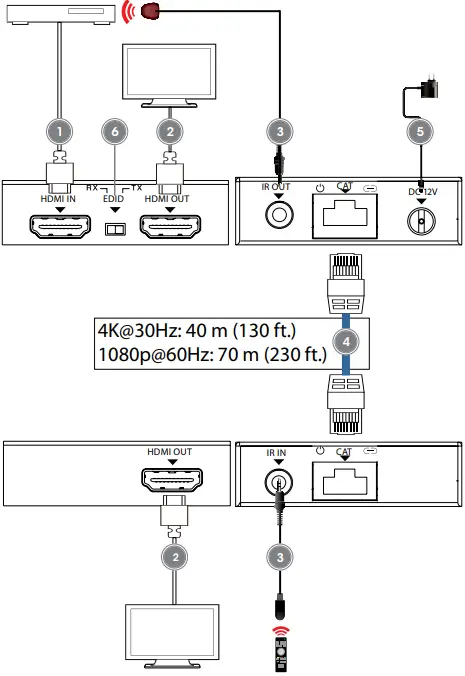

On the Transmitter, connect HDMI cable from your signal source to the HDMI IN.
On the Transmitter and Receiver, connect HDMI cables from your displays to the HDMI OUT.
Connect the infrared blaster cable to the IR OUT port of the Transmitter; connect the infrared receiver cable to the IR IN port of the Receiver. Ensure that each IR device has a clear line of sight to source/remote.
Use Cat5e/6 cable to connect the CAT ports on the Transmitter and Receiver.
On the Transmitter, connect the included power adapter to the DC input, then plug it into a power outlet. The transmitter will power the receiver via Power over Cable (PoC) technology.
EDID: Select the display that you want your source to optimize its output for: the transmitter (TX) or the receiver (RX).

WASTE ELECTRIC AL & ELECTRONIC EQUIPMENT

Disposal of Electric and Electronic Equipment (applicable in the E.U. and other countries with separate collection systems)

This symbol on the product or its packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user’s local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.
