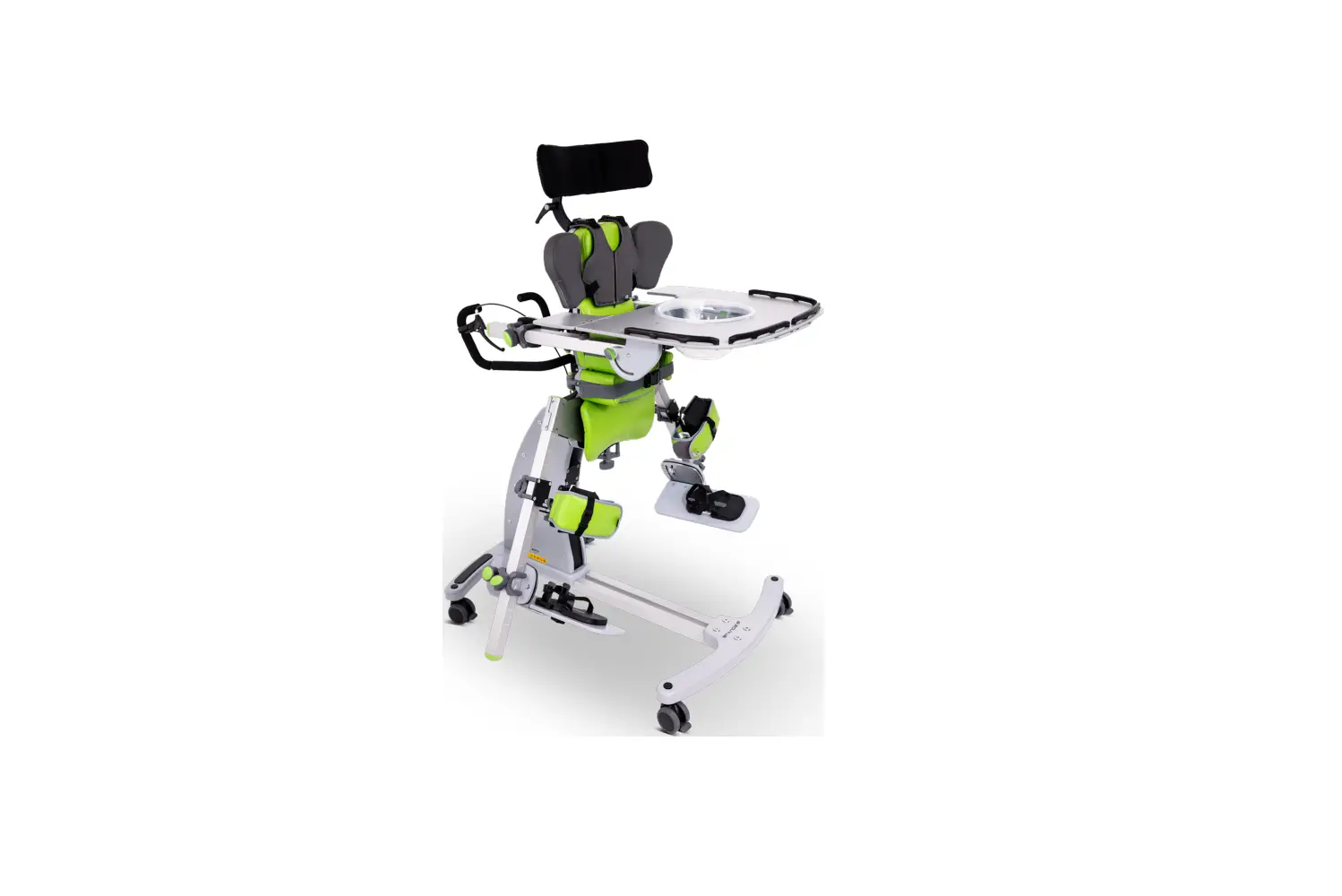

medifab Jenx Standz 2 Abduction Stander Owner’s Manual
Contents hide
Client Details
| Date: | |
| DOB: | |

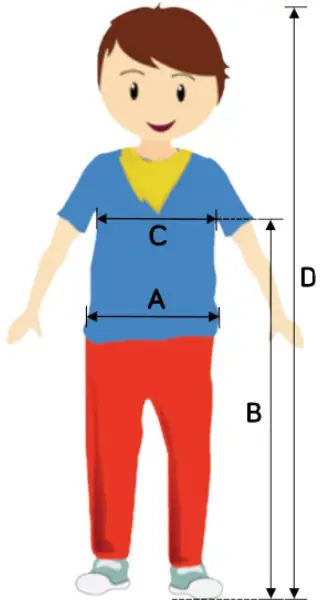

| User measurements | |
| A Hip Width | |
| B Axilla Height | |
| C Chest Width | |
| D Overall User Height | |
| User Weight | |
| Product Specifications | |
| Average Age | 5 – 14 Years |
| Weight Capacity | 70 kg |
| Hip Width | 25 – 37 cm |
| Hip Height | 50 – 95 cm |
| Chest Width | 22 – 36 cm |
| Chest Height | 82 – 116 cm |
| Max Height | 160 cm |
| Tilt Range (90 Degrees = Upright) | 00 – 900 |
| Frame Width | 76 cm |
| Frame Length | 107 cm |
| Height off surface when horizontal | 90 cm |
| Abduction Range | 300 Either Leg |

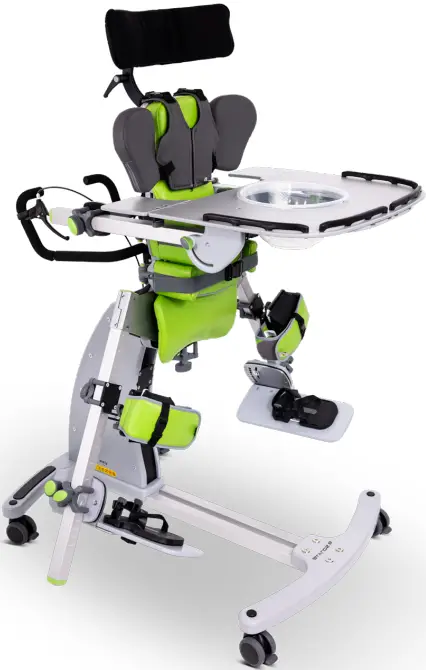

Base unit

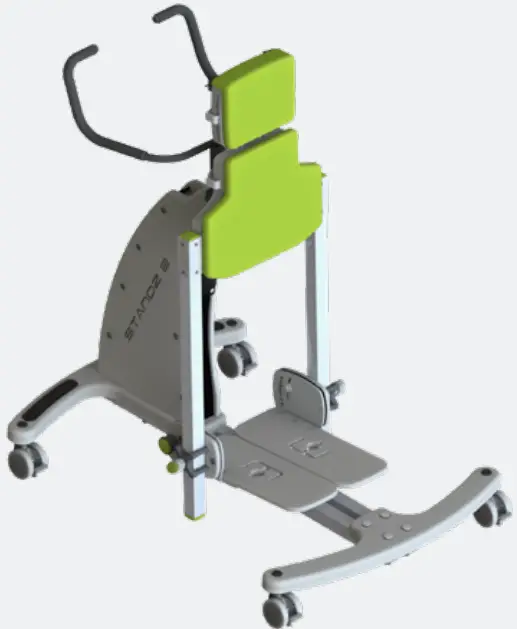

Standz Basic Package
- 4 lockable swivel castors
- Tilt mechanism with dedicated release lever on handle with safety lock
- 0° – 30° independent abduction movement of leg posts in 5 degree increments with easy to use locking plunger
- Individual footplates with angle adjustment for plantar and dorsiflexion
- Tilt range of 5° – 90° with easy to read angle gauge
- Pelvic and trunk support boards and cover pads
- Includes tray mounting bracket
Foot support options

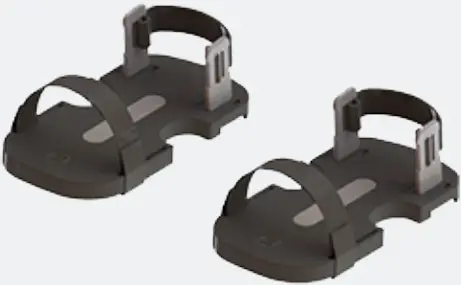

| Sandles | ||||
Multi-adjustable foot supports to ensure secure placement and postioning of feet. | Size 1 | Size 2 | Size 3 |  |
| 5356-6081-000 | 5356-6082-000 | 5356-6083-000 | ||
| 8cm W x 17cm L | 9.5cm W x 22cm L | 10.5cm W x 27.5cm L | ||

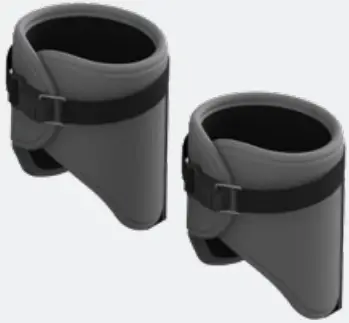

| Ankle Snugs | |||
Additional ankle support for us- ers that need it, featuring unique magentic buckle fastening. | Size 1 | Size 2 |  |
| 5356-6131-000 | 5356-6132-000 | ||
| Inner Circumference: 12-22.5cm | Inner Circumference: 16.5-29.5cm | ||
Knee support options
| Multi-Axis Knee Supports | |||
| Width, height, depth and angle adjustable supportswith soft arched foam pads behind the kneeand support straps. Ideal for accommodating knee flexion. | Multi-Axis Knee Support Size 1 | Multi-Axis Knee Support Size 2 |  |
| 5242-1770-054 | 5242-1771-054 | ||
| 11.5cm W x 13.5cm H | |||

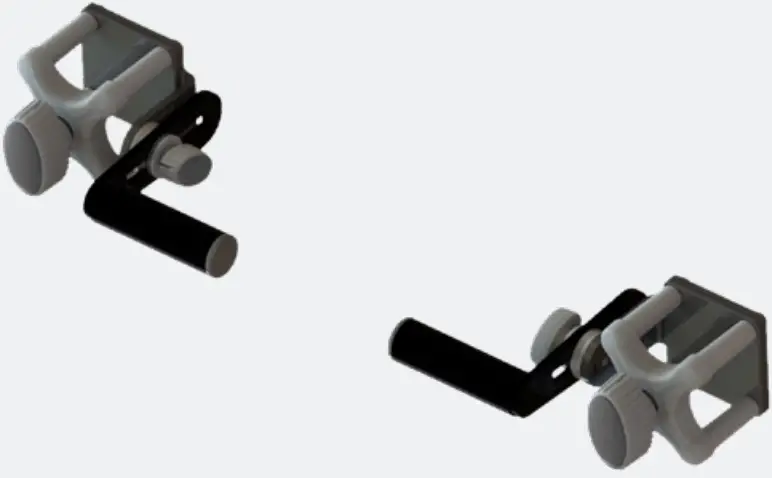

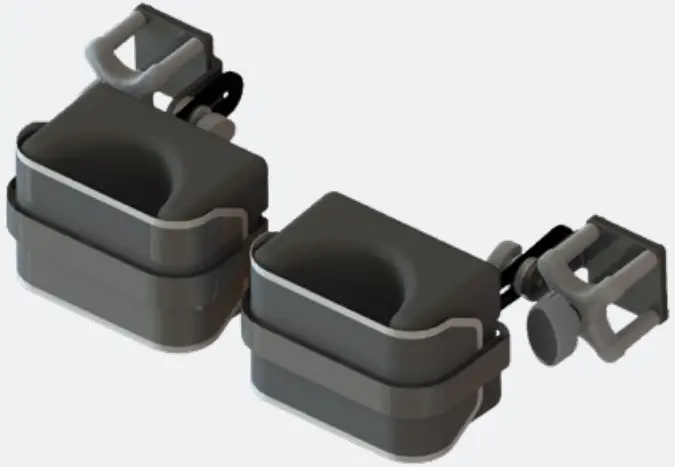

Knee Blocks
Flexible PU knee cups, complete with padded knee straps. Adjustable for height, width, angle and depth.
Knee Blocks Size 1
Internal Support Size: 7.5cm W x 10cm H 5356-1751-011
Knee Blocks Size 2
Internal Support Size: 9.5cm W x 12cm H
Knee Block Mounting Bracket**
Mounting bracket required when using knee block option for knee support.
Knee support options (continued)
| Standard Knee Support** | |

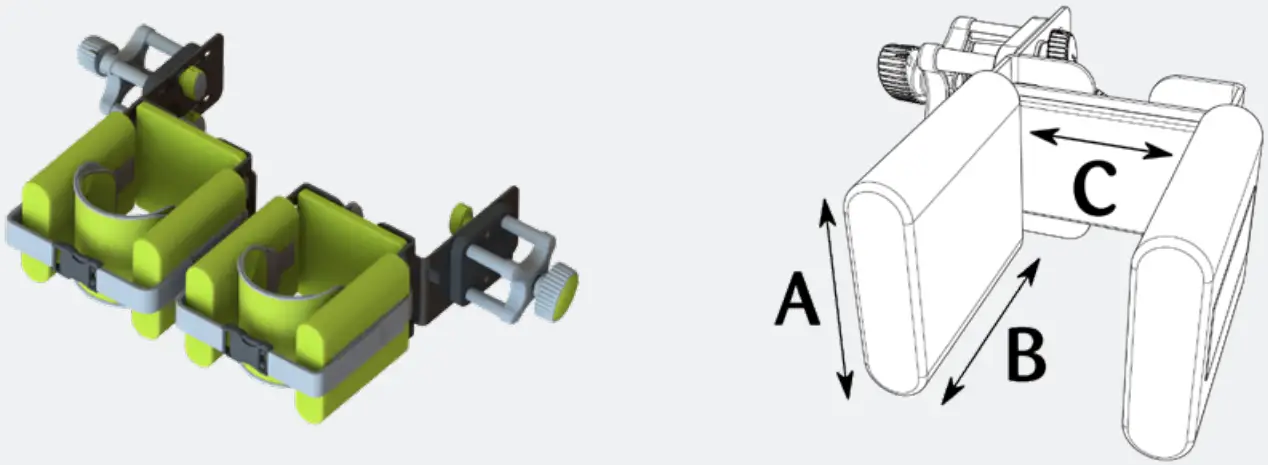

| Width, height, depth and angle adjustable supports. Provides width adjustable walls to correctly gutter the knee position. Used with knee strap accessories.5242-1750-054A: 11.5cm B: 12.5cm C: 6.5 – 9.5cm |  |

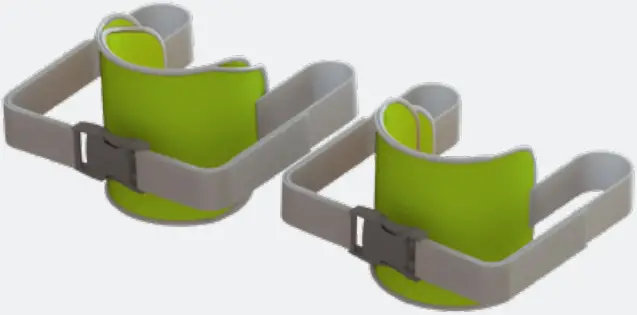

| Standard Knee Straps | |||
| Holds knee in positionand prevents knee flexion in supine. Only compatible with Standard Knee Support. | Standard Knee Straps Size 15242-1766-054Vinyl Pad Length: 16.5 – 21cm | Standard Knee Straps Size 25242-1767-054Vinyl Pad Length: 24 – 36cm |  |

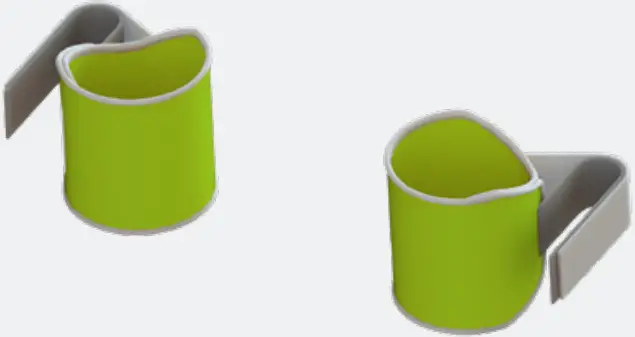

| Rotation Control Knee Straps | |||
| Knee cuff and strap system suitable for adjusting internal and external knee rotation. Only compatible with Standard Knee Support. | Rotation Control Knee Straps Size 15242-1786-054Cuff Circumference – 38cm Max | Rotation Control Knee Straps Size 25242-1787-054Cuff Circumference – 45cm Max |  |
Pelvic support options

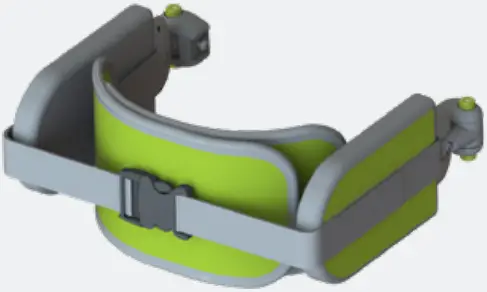

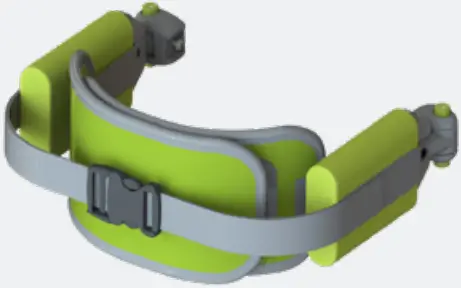

| Flip-away Lateral Support with Strap | Flexi Flip Away Lateral Support with Strap | ||
| Firm lateral support pads with incor- porated support strap. Flip away to aid transfers.5242-3371-054Support Pads: 9.5cm H x 12cm D |  | Flexible lateral supports with incorporated support strap. Contour to the body to give firm yet com- fortable positioning. Flip away to aid transfers.5242-3372-054Support Pads: 11.5cm H x 18.5cm D |  |
Trunk support options
| Flip-away Lateral Support with Strap | Flexi Flip Away Lateral Support with Strap | ||
| Firm lateral support pads with incor- porated support strap. Flip away to aid transfers.5242-3371-054Support Pads: 9.5cm H x 12cm D | | Flexible lateral supports with incorporated support strap. Contour to the body to give firm yet com- fortable positioning. Flip away to aid transfers.5242-3372-054Support Pads: 11.5cm H x 18.5cm D | |
Shoulder support options

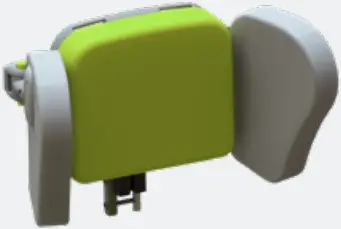

| Flat shoulder support | Shoulder support – Size 1 | Shoulder support – Size 2 | |||

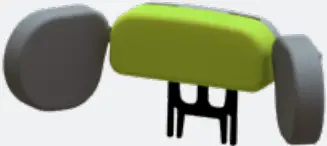

A simple support pad for the shoulders.5242-2750-054 |  | Shoulder protractors mounted to a flat shoulder pad. Offers angle adjustment and promotes shoulder girdle stability.5242-2751-054Back Pad: (22cm W x 9cm H) Protractor:(15.5cm W x 13cm H) |  | Shoulder protractors mounted to a flat shoulder pad. Offers angle adjustment and pro- motes shoulder girdle stability. Required to achieve maximum user height.5242-2752-054Back Pad:(22cm W x 19cm H) Protractor:(15cm W x 21.5cm H) |  |
Head support options

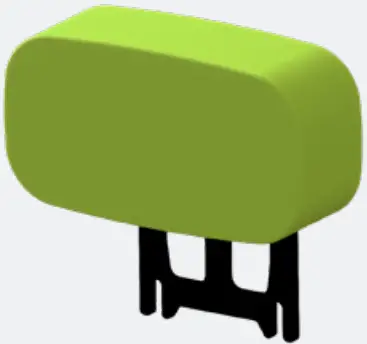

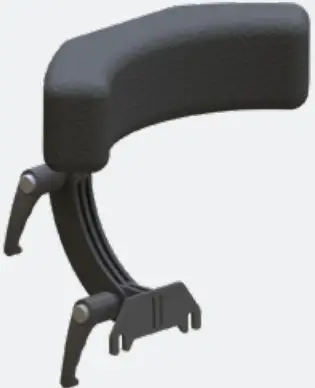

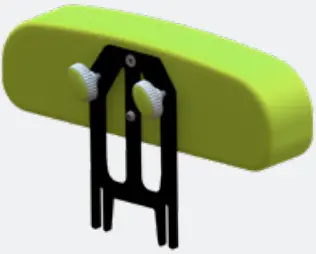

| Flat Head Support | Oval Head Support | ||

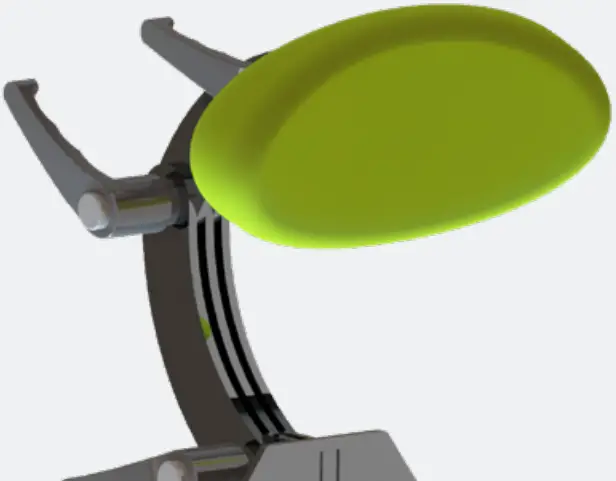

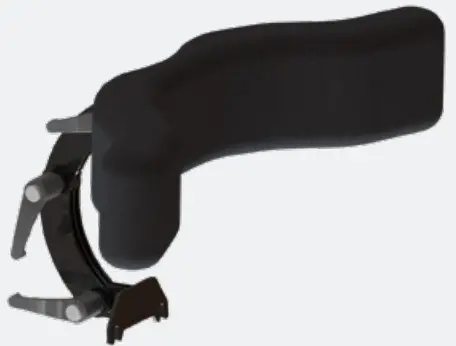

| A simple head support pad for use in supine for children with reasonable head control. Also used in prone to extend the height of the chest pad.5240-4110-05419cm W x 10cm H |  | Simple headrest for children who re- quire minimal head support. Comes mounted on a adjustable bracket.5356-4611-05419cm W x 10cm H |  |
| 1 Link Multigrip™ | 2 Link Multigrip™ | 3 Link Multigrip™ | |||

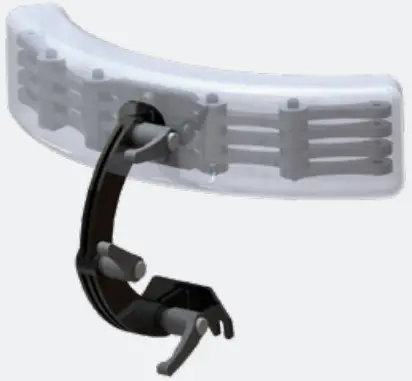

| Innovative Multigrip™ with 1 link of lateral support adjustment. Mounted on an adjust- able bracket to provide height, depth and angle configuration.5356-4601-00033cm W x 7.5cm H |  | Innovative Multigrip™ with 2 links of lateral support adjustment. Mounted on an adjust- able bracket to provide height, depth and angle configuration.5356-4602-00047.5cm W x 12cm H |  | Innovative Multigrip™ with 3 links of lateral support adjustment. Mounted on an adjust- able bracket to provide height, depth and angle configuration.5356-4603-00062cm W x 12cm H |  |
Optional Accessories
| Pelvic Support Board | Pelvic Support Board Back Pad | ||

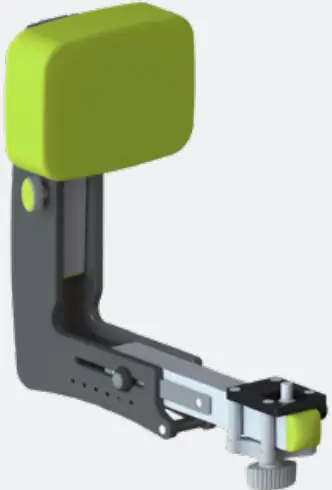

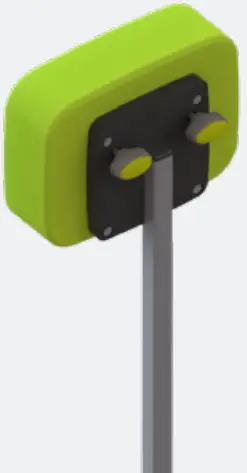

| Offers a full contact surface to facilitate hip extension and neutral pelvic positioning.5242-1903-054Pad Size: 19.5cm W x 15cm H |  | Offers support to the child’s upper back, May be used in combination with a head rest to limit unwanted hyper extension in prone. Only usa- ble with pelvic support board.5242-1902-054Pad Size: 19.5cm W x 15cm H |  |
| Waistcoats | ||
 | ||

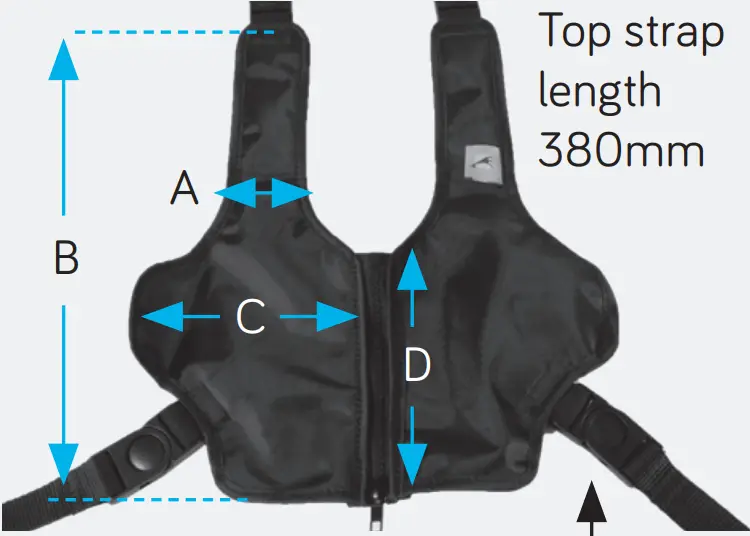

| 4 point detachable harness with zip. Used to provide additional trunk stability. | Size 2 5242-6252-000A: 5cm B: 32cm C: 14cm D: 15.5cm | Size 3 5242-6253-000A: 6.5cm B: 37cm C: 17.5cm D: 18cm |
| Anti Tamper Conversion Kit | |

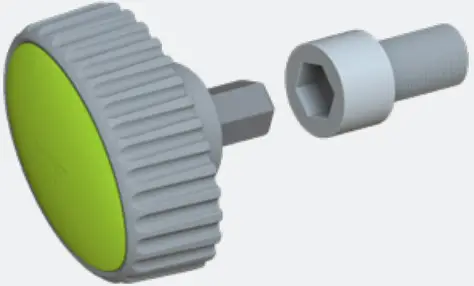

| Allows for all wing knob adjustments to be converted to a tool fixing – ideal for environments where easy adjustment can be problematic. 5240-0170-000 |  |
Trays
| Multi-Position Tray | Multi-Position Tray with Bowl | ||

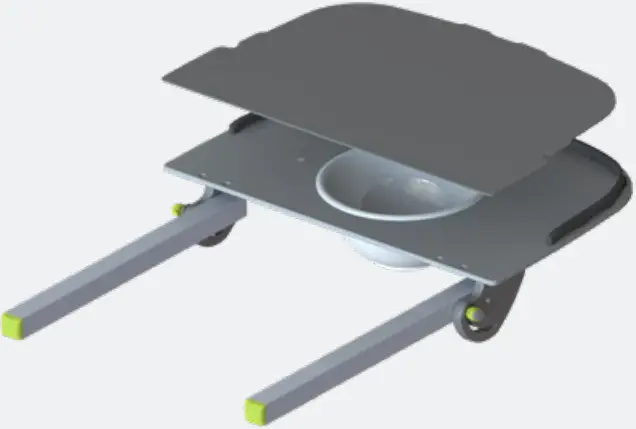

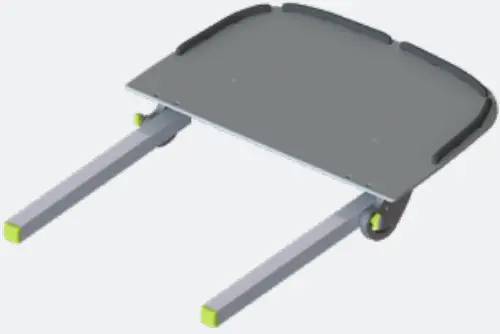

| Can be used in both prone and su- pine. The tray is angle adjustable to ensure the correct position in either application. 5242-7110-054 |  | Multi-postion tray with included bowl which can be used for encouraging tactile play and hands to mid-line function. Comes with tray overlay when bowl use not required. 5242-7113-054 |  |
Trays Accessories
| Tray Padded Wings | Full Tray Padding | ||

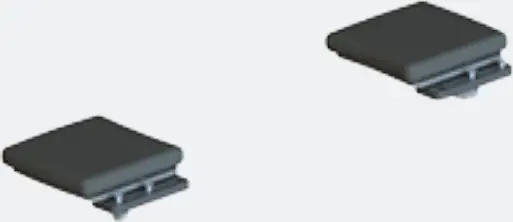

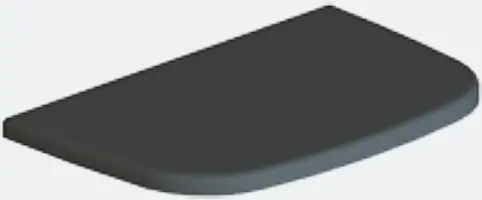

| Recommended for use in supine and just as effective in prone. Padded extension wings for comfort and protection for the elbow.5242-7116-00015 cm W x 15cm L (3cm Padding) |  | Pads the entire tray surface to give a soft surface to prevent any discom- fort caused by sudden uncontrolled arm and hand movement.5242-7115-000(3cm Padding) |  |

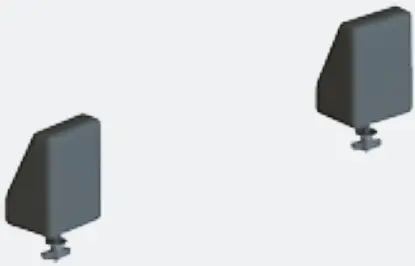

| Tray Elbow Blocks | Tray Extension Wings | ||

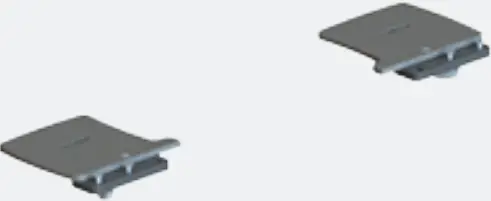

| Aid in supporting the arms and pro- moting a functional arm and hand position – only usable in conjunction with Tray Extension Wings.5356-7351-00010cm W x 14cm H |  | Recommended for use in supine and just as effective in prone. Extension wings offer a support surface for the child’s elbows and prevents arms from slipping off the tray.5242-7355-00017cm W x 16cm L |  |
