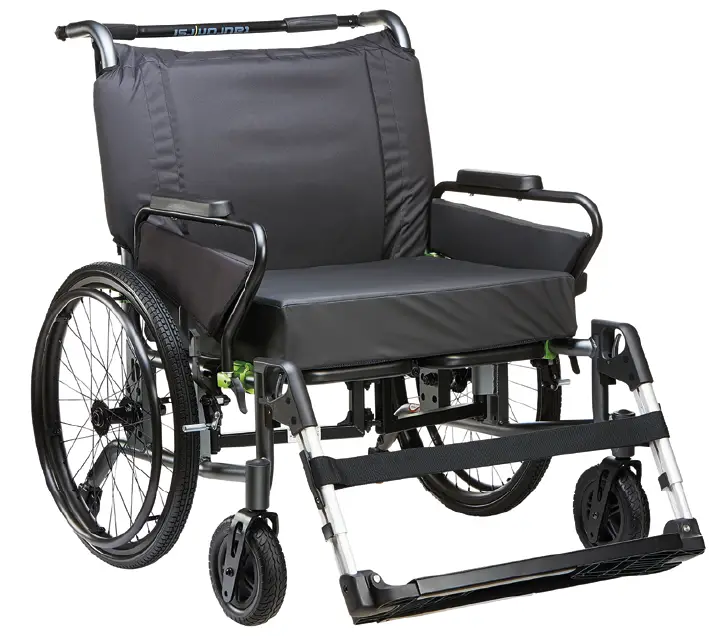

DIETZ Rehab XXL Folding Wheelchair

Completing the form on paper

Simply print out the order form, check the relevant component boxes to configure the product, sign the form and send it to us at Fax: +49 7248.9186 – 86

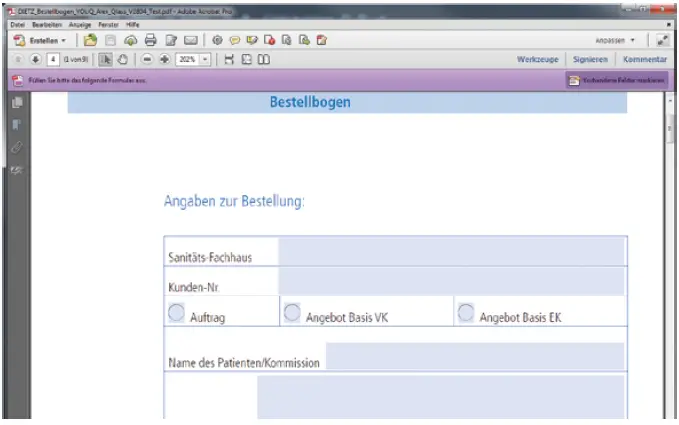

Completing the form on a computer or tablet

lf you open the document in Acrobat, a menu bar highlighted in color appears at the top edge. lf the option „Highlight Existing Fields“ is activated, all writeable and selectable fields will be displayed.

• Circular selection fields indicate that a selection has to be made within the chosen selection.
• Circular-filled selection fields indicate that these options are included in the standard.
• Square selection fields are not subject to any conditions and are freely selectable and deselectable.

Save the order form locally on your computer under a free selectable name and send it to our customer service via email/fax: [email protected] fax: +49 7248.9186 – 86 Printing errors, mistakes, and changes to prices and products reserved. © DIETZ Gmbh REHA-PRODUKTE, Karlsbad This catalog may be reprinted, in part or in full, only subject to the prior written consent of DIETZ GmbH, Karlsbad. You can find our general terms and conditions at: https://shop.dietz-group.de/allgemeine-geschaeftsbedingungen-agb

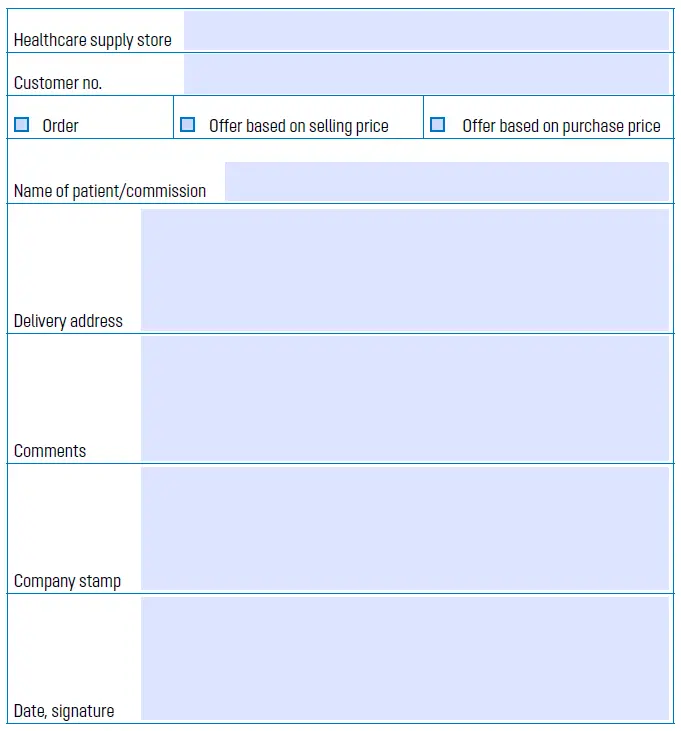

Details of your order

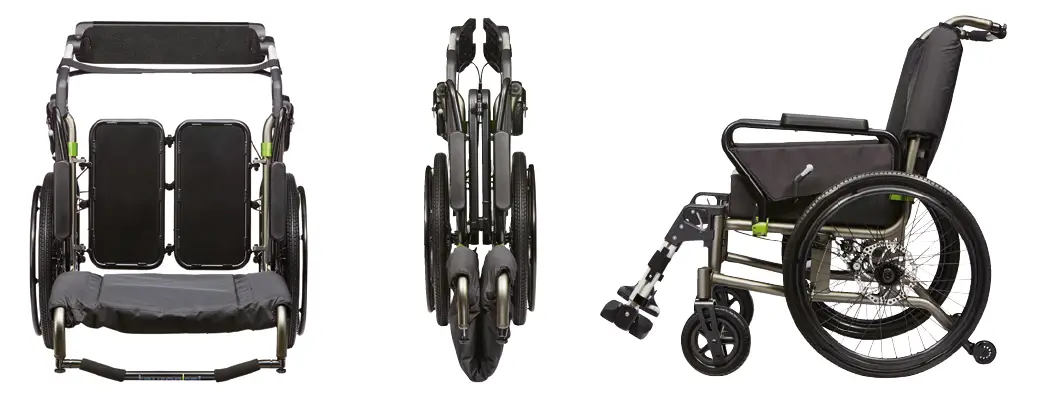

Product details Basic configuration

•  Frame, seat frame, and side panels made of aluminum
•  Parking brake
•  Adjustable padded backrest(Velcro®)
•  Comfortably padded backrest
• Adjustable seat height
• neat width adjustable at the rear by positioning the armrests max. – 100 mm

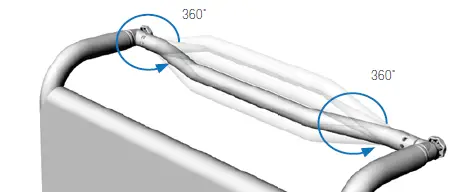

• Push bar adjustable in 45° increments
•  Adjustable wheelbase
•  Abduction frame + abduction side panels
•  Polyurethane armrest depth adjustable by 30 mm
• Stabilizers to prevent tipping included
•  Padded side panels included
•  Padded seat included
•  Load up to 300 kg for seat height 430/470 mm possible. Price on request

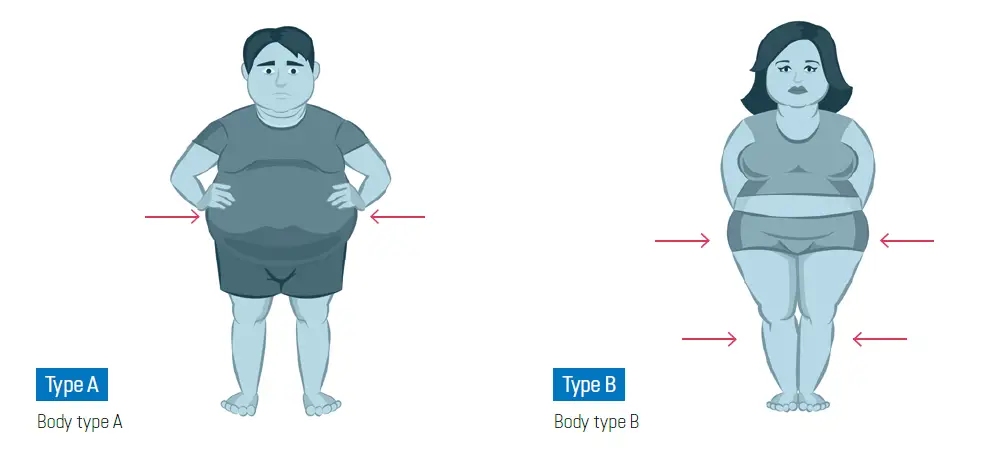

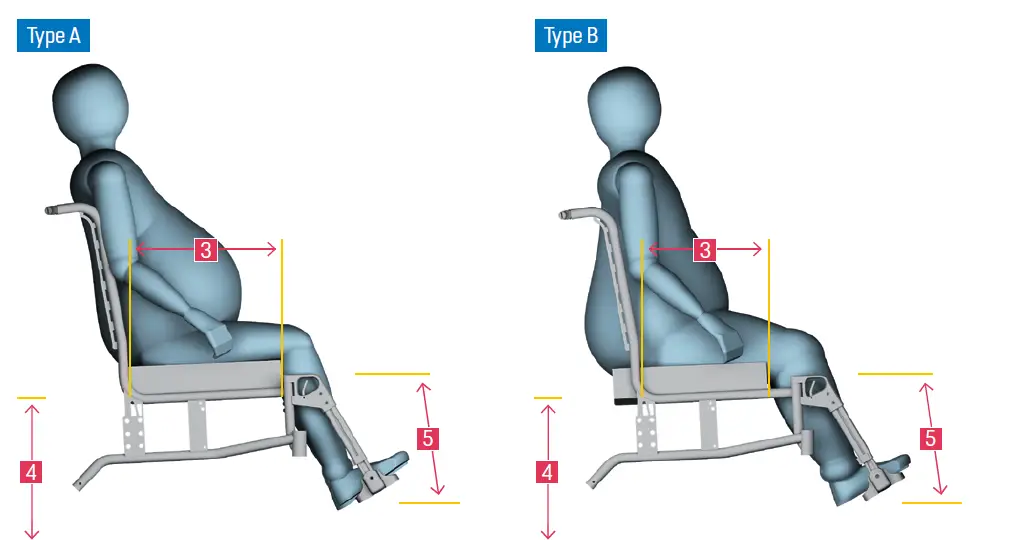

Obesity typology normally distinguishes between A body types and B body types

•  Predominantly male.
•  Accumulates fat primarily in the abdominal region, usually beneath the abdominal muscles.
•  Normally forces the person to sit with the legs very far apart. It is also usually more comfortable to lean back in order to ease the burden on the abdominal region.
•  Predominantly female.
•  Accumulates fat primarily around the bottom and on the upper and lower thighs, usually above the muscles.
•  Bodily volume in the bottom region prevents a comfortable sitting posture

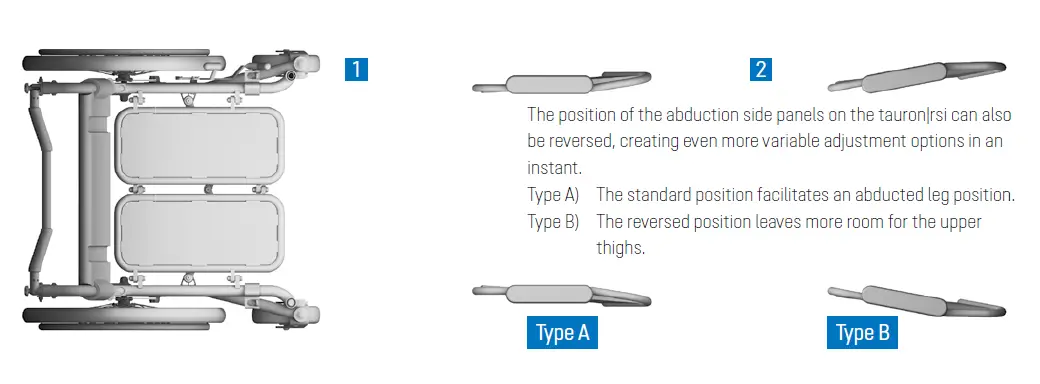

The abduction frame 1 and the abduction side panels 2 on the tauron|rsi can adjust the rear seat width very flexibly to accommodate. The tauron|rsi is designed specially to meet the ergonomic needs of caring for obese patients. The abduction frame and abduction side panels optimize the seating position from an ergonomic perspective, allowing obese patients in particular to sit more comfortably. At the back, the seat width can be adjusted simply by swinging the side panels outwards or inwards. The tauron|rsi thus provides ongoing support in the course of an illness, as it can easily be adapted to changes in the patient‘s physical condition.

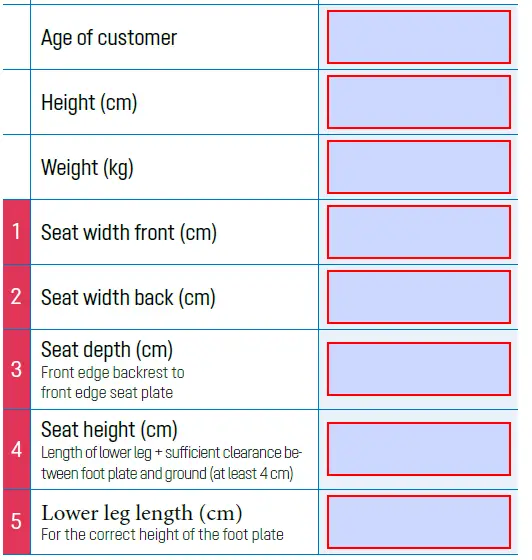

Key dimensions and specifications
Together with the height and weight of the user, these are the key dimensions allowing us to align the wheelchair perfectly to the needs of the user.

DIMENSIONS

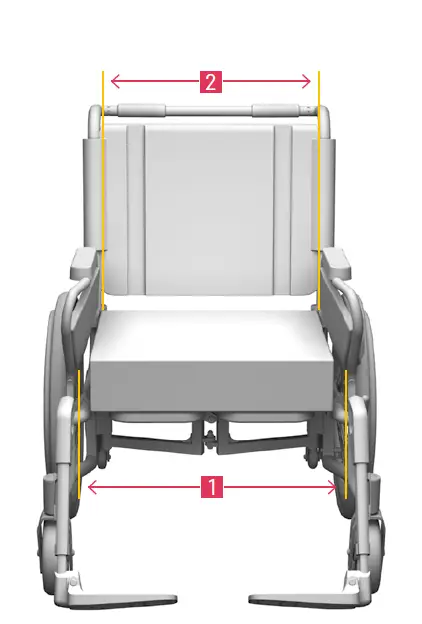

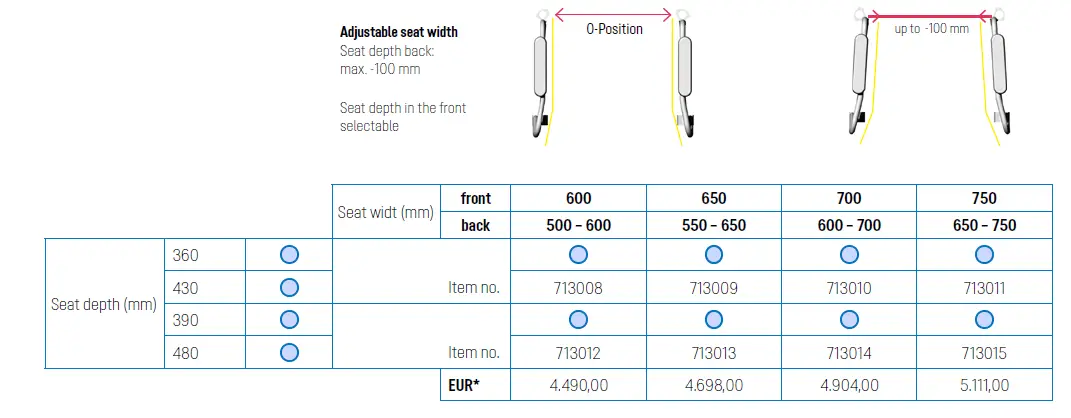

Seat width / Seat depth

SELECT THE RIGHT SEAT WIDTH

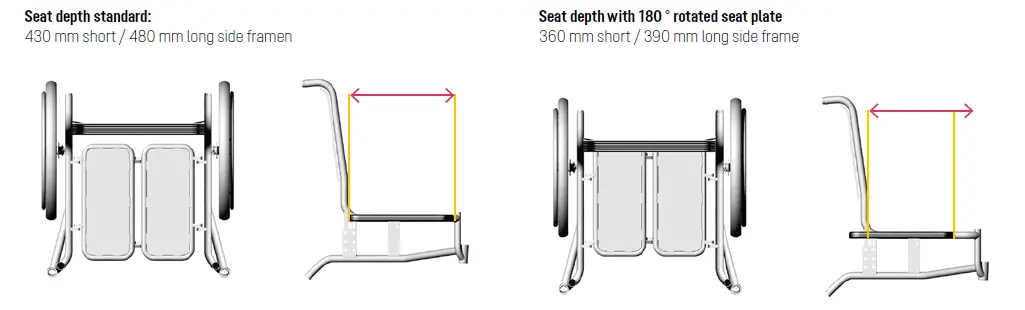

Seat depth is measured from the front edge of the backrest to the front edge of the seat plate.

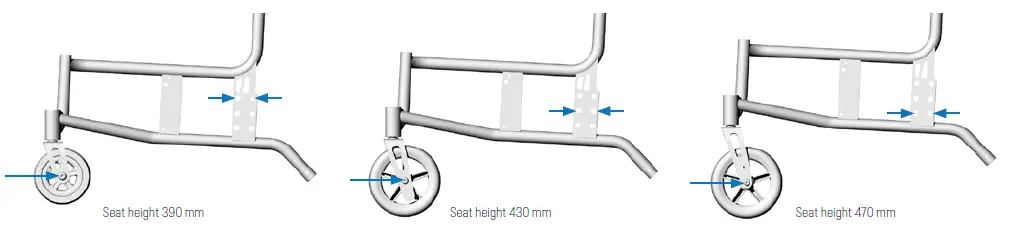

SELECT SEAT HEIGHT

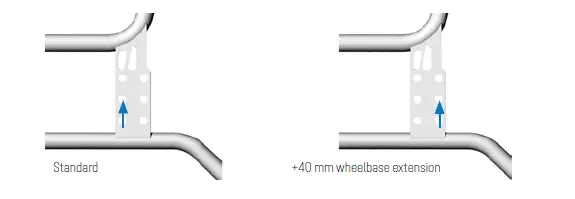

POSITIONING OF THE DRIVING WHEEL

POSITIONING PUSH HANDLE

BRAKE FOR ATTENDANT PERSON

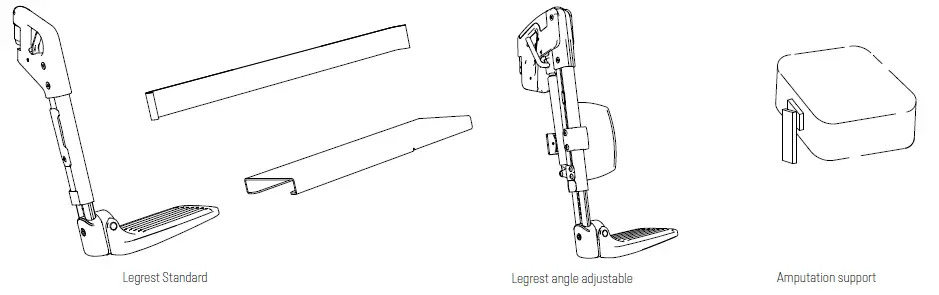

OPTIONS legrests

OPTIONS FOR THE legrests

SEAT CUSHION

ANTI-DECUBITUS CUSHION

HEADREST

AUXILIARY DRIVE

PUSHING AND BRAKING AID

VARIOUS OPTIONS

Productgroupe: Manual XXL-Wheelchair Product: tauron|rsi
DIETZ GmbH
Reutäckerstraße 12
76307 Karlsbad
[email protected]
www.dietz-group.de
