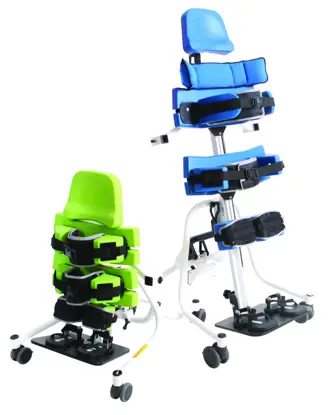

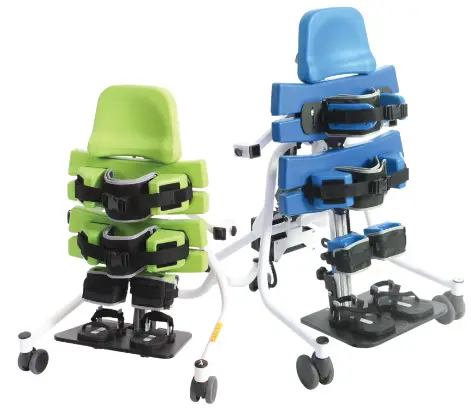

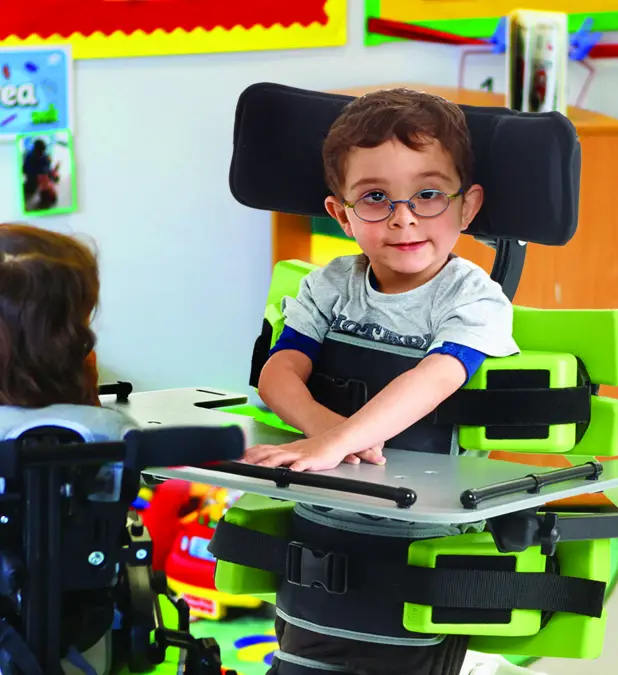

Jenx Multistander
PRONE OR SUPINE STANDING AID
AUSTRALIAN SCRIPTING AND ORDERING GUIDE
Client Details
| Client/User name: | |
| Date: | |
| DOB: | |

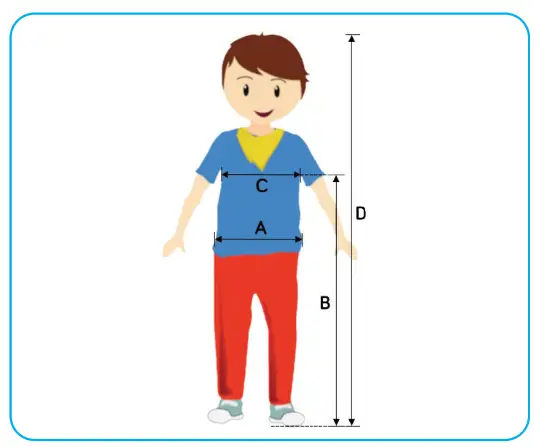

| User measurements | |
| A Hip Width | |
| B Axilla Height | |
| C Chest Width | |
| D Overall User Height | |
| User Weight | |
Medifab Notes
Product Details
| Product Specifications | Size 1 | Size 1 – With Abduction | Size 2 |
| Average Age | 9 Months – 6 Years | 9 Months – 6 Years | 3 – 13 Years |
| Weight Capacity | 35kg | 35kg | 60kg |
| Hip Width | 14cm – 27.5cm | 14cm – 27.5cm | 20cm – 32cm |
| Hip Height | 25cm – 44cm | 25cm – 44cm | 37.5cm – 60cm |
| Chest Width | 14cm – 27.5cm | 14cm – 27.5cm | 20cm – 32cm |
| Chest Height | 49cm – 85cm | 50cm – 89cm | 75cm – 120cm |
| Height Range | 62cm – 116cm | 60cm – 116cm | 110cm – 155cm |
| Tilt Range (900 = Upright) | 100 – 900 | 100 – 900 | 00 – 850 (Powered) / 100 – 850 (Manual) |
| Frame Width | 61.5cm | 61.5cm | 67.5cm |
| Frame Length | 76cm | 76cm | 107cm |
| Abduction Range | – | 300 Either Leg | – |
| Height of Surface When Horizontal | 56cm | 56cm | 77.5cm |
*Max ranges are achieved with additional accessories
Jenx Multistander Package Includes:
- Multistander Manual or Powered Frame
- Base with 4 lockable swivel castors
- Knee block mounting brackets
- Angle adjustable footplate
Key
| Blue | Suitable for Prone and Supine |
| Green | Suitable for Supine only |
| Yellow | Suitable for Prone only |

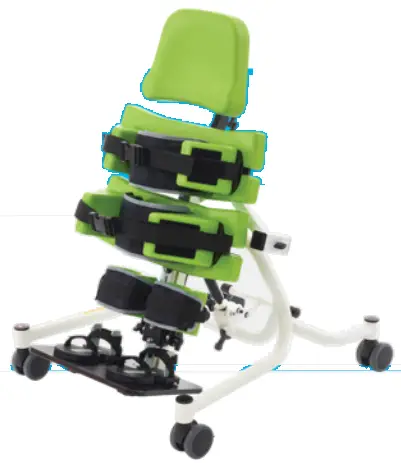

Power & Size Options

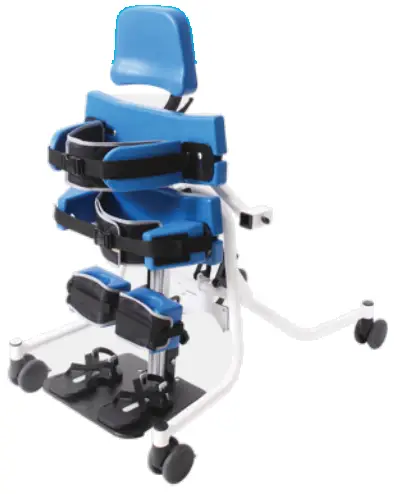

| Manual |  | Battery Powered | |
| Size 1 5230-0001-000 | Size 2 5230-0008-000 | ||
| Size 2 5230-0002-000 | Purchase only option/Not stocked |
Colour Options
| Blue | | Lime |  |
| -66 | -54 |

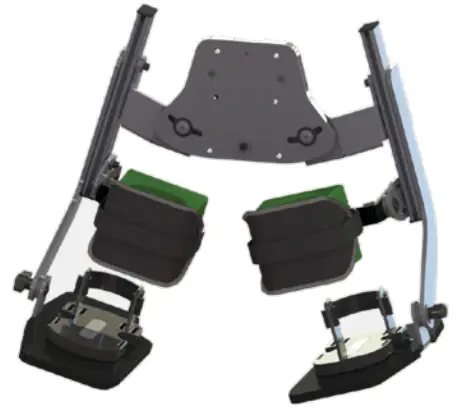

Abduction Accessory
| Only Available on Size 1 |  |
| Supports 0-30 degrees in each leg in 5 degree increments | |
| Fitted prior to shipping | |
| 5230-5000-000 |
| Size 1 | Size 2 |  |

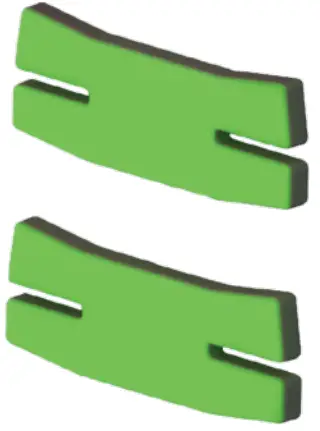

| PU chest & hip support boards | PU chest & hip support boards | |
| 5230-2201-XXX | 5230-2202-XXX | |
| 450mm Wide | 520mm Wide |

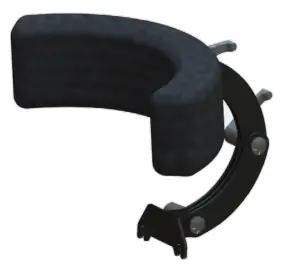

Head Supports (supine only)
| Moulded Head Support | Oval Head Support | ||
| Moulded polyurethane headrest for children who require minimal -moderate head support. |  | A simple support for children who require minimal head positioning. |  |
| 5230-4101-XXX | 5356-4611-XXX | ||
| 280mm wide x 210mm high | 190mm wide x 100mm high | ||
Key
Blue: Prone and Supine
Green: Supine only
Yellow: Prone only
| Multigrip – 1 Link | Multigrip – 2 Link | Multigrip – 3 Link |  |
| Single link wings for some degree of lateral support. |  2 Links in each wing for extra support and positioning | 3 adjustable links in each wing for ultimate lateral headrest control and comfort. | |
| 5356-4601-000 | 5356-4602-000 | 5356-4603-000 | |
| 330mm W x 50mm D x 75mm H | 475mm W x 50mm D x 120mm H | 620mm W x 50mm D x 120mm H |

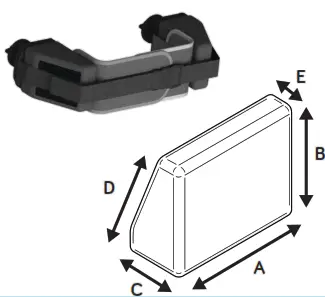

Pelvic Supports
| Support Pad & Straps Small | Support Pad & Straps Medium |  |
| A 100mm B 90mm C 90mm D 120mm E 25mm | A 100mm B 130mm C 90mm D 140mm E 25mm | |
| 5356-3221-XXX | 5356-3222-XXX | |
| Flexi Thoracics (Pair) Size 1 | Flexi Thoracics (Pair) Size 1 Long | Flexi Thoracics (Pair) Size 2 |  |
| A 180mm B 80mm | A 215mm B 80mm | A 220mm B 110mm | |
| 5356-3333-000 | 5356-3334-000 | 5356-3335-000 | |
| Covers Required 5356-3363-XXX | Covers Required 5356-3364-XXX | Covers Required 5356-3365-XXX |

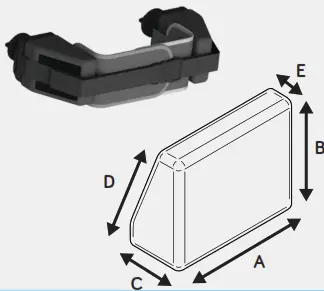

| Hi-Rise Thoracic Laterals |  |
| Adjustable for height, width and angle | |
| 5230-3251-XXX | |
| A 90mm B 90mm C 200mm D 120mm E 25mm |
Trunk Supports
| Support Pad & Straps Small | Support Pad & Straps Medium |  |
| A 100mm B 90mm C 90mm D 120mm E 25mm | A 100mm B 130mm C 90mm D 140mm E 25mm | |
| 5356-3221-XXX | 5356-3222-XXX |
Key
Blue: Prone and Supine
Green: Supine only
Yellow: Prone only
Colour Codes
Blue -066
Lime -054
| Flexi Thoracics (Pair) Size 1 | Flexi Thoracics (Pair) Size 1 Long | Flexi Thoracics (Pair) Size 2 | |
| A 180mm B 80mm | A 215mm B 80mm | A 220mm B 110mm | |
| 5356-3333-000 | 5356-3334-000 | 5356-3335-000 | |
| Covers Required 5356-3363-XXX | Covers Required 5356-3364-XXX | Covers Required 5356-3365-XXX |
| Hi-Rise Thoracic Laterals |  | Multigrip Body Support |  |
| Adjustable for height, width and angle | For Size 2 only Provides extra support on shoulders or lumbar area | ||
| 5230-3251-XXX | 5230-2721-XXX | ||
| A 90mm B 90mm C 200mm D 120mm E 25mm | 420mm Wide |
| Sternal Prompt |  |
| For Prone | |
| 5230-2910-000 | |
| Cover required 5230-8801-XXX |

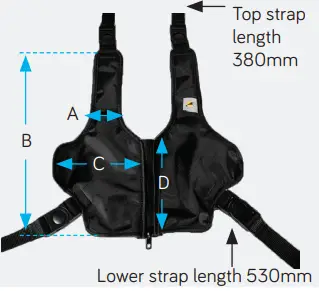

Waistcoat Harness
| Size 2 | Size 3 | Size 4 |  |
| Provides additional trunk and shoulder stability | |||
| A 50mm B 320mm C 140mm D 155mm | A 65mm B 370mm C 175mm D 180mm | A 85mm B 395mm C 205mm D 185mm | |
| 5230-6712-000 | 5230-6713-000 | 5230-6714-000 | |

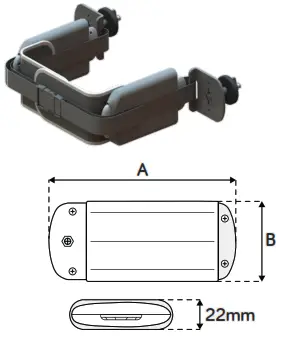

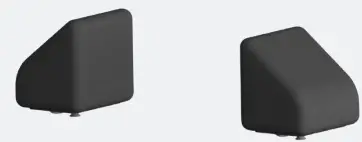

Knee Supports
| Size 1 | Size 2 |  |
| Easy to attach and adjust for height, angle & depth | ||
| 5356-1751-XXX | 5356-1752-XXX | |
| A 100mm / B 45mm / C 75mm | A 120mm / B 60mm / C 95mm | |
Key
Blue: Prone and Supine
Green: Supine only
Yellow: Prone only
Colour Codes
Blue -066
Lime -054
Tray Options
| Elbow Blocks |  |
| Suits all sizes | |
| 5356-7351-000 | |
| 100mm W x 140mm H x 85mm D |

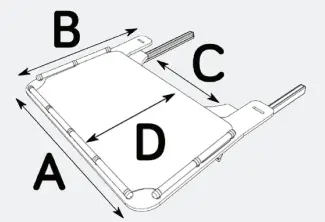

| Adjustable Tray – Size 1 | Adjustable Tray – Size 2 |  |
| 5230-7111-000 | 5230-7112-000 | |
| A 650mm / B 450mm / C 370mm D (With Insert) 330mm /D (Without Insert) 290mm | A 700mm / B 530mm / C 460mm D (With Insert) 410mm /D (Without Insert) 360mm |
Foot Positioning

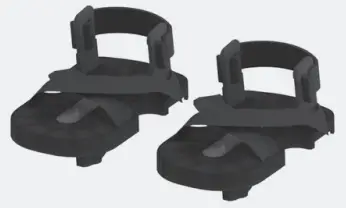

| Sandals – Size 1 | Sandals – Size 2 | Sandals – Size 3 |  |
| 170mm long x 80mm wide | 220mm long x 95mm wide | 275mm long x 105mm wide | |
| 5356-6081-000 | 5356-6082-000 | 5356-6083-000 |

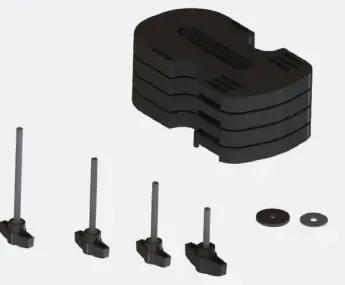

| Sandal Raiser Blocks Size 1 | Sandal Raiser Blocks Size 2 | Sandal Raiser Blocks Size 3 |  |
| Kit of 4x15mm blocks | Kit of 4x15mm blocks | Kit of 4x15mm blocks | |
| 5356-6091-000 | 5356-6092-000 | 5356-6093-000 |
| Ankle Snugs – Size 1 | Ankle Snugs – Size 2 |  |
| 5356-6131-000 | 5356-6132-000 | |
| 120mm – 225mm Circumference | 165mm – 295mm Circumference | |
| 120mm High | 120mm High |
Key
Blue: Prone and Supine
Green: Supine only
Yellow: Prone only
Colour Codes
Blue -066
Lime -054
Distributed by Medifab Ltd
32 Detroit Drive
Rolleston 7675
New Zealand
+64 3 307 9790
[email protected]
www.medifab.com
