ChangeOver6
Operating Guide
Motorized 6-port Ball Valve
User Guide
ChangeOver6 Motorized 6-Port Ball Valve

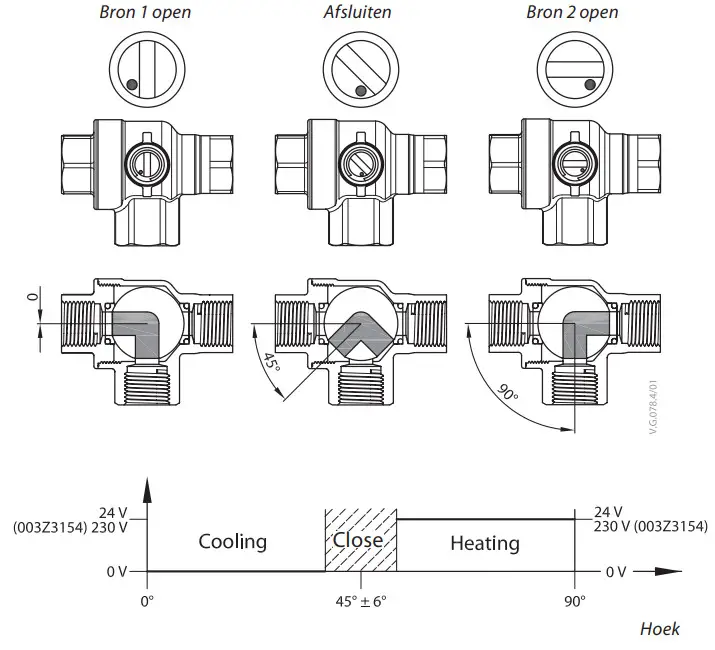

The 6 ports of the ChangeOver6 valve allow the following flow directions.
 | ontrol signal – 0 VAC (brown wire) Port 1 to port 2 and port 3 to port 4 |
 | ontrol signal – 24(230) VAC (brown wire) Port 5 to port 2 and port 3 to port 6 |

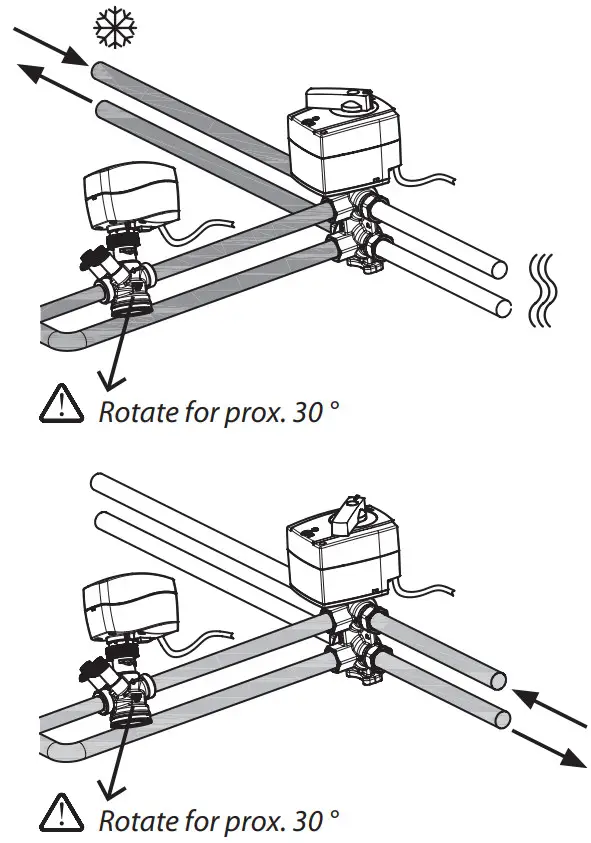

 | Heating or cooling distribution pipes Ports 1, 4, 5 and 6 |
 | erminal unit pipes Ports 2 and 3 |
