AXOR 11731000 Urquiola Thermostat HighFlow Shower Mixer Installation Guide
Product features
- maximum flow rate at 3 bar: 59 l/min
- thermostat cartridge
- safety lock at 40 °C
- temperature limitation adjustable
- non-return valve
- with silencer
- connection type: basic set
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar

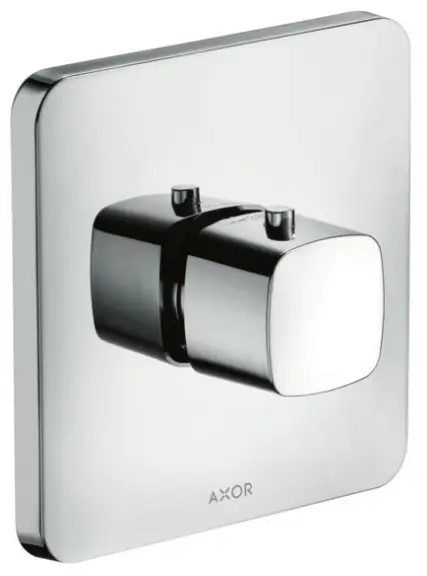

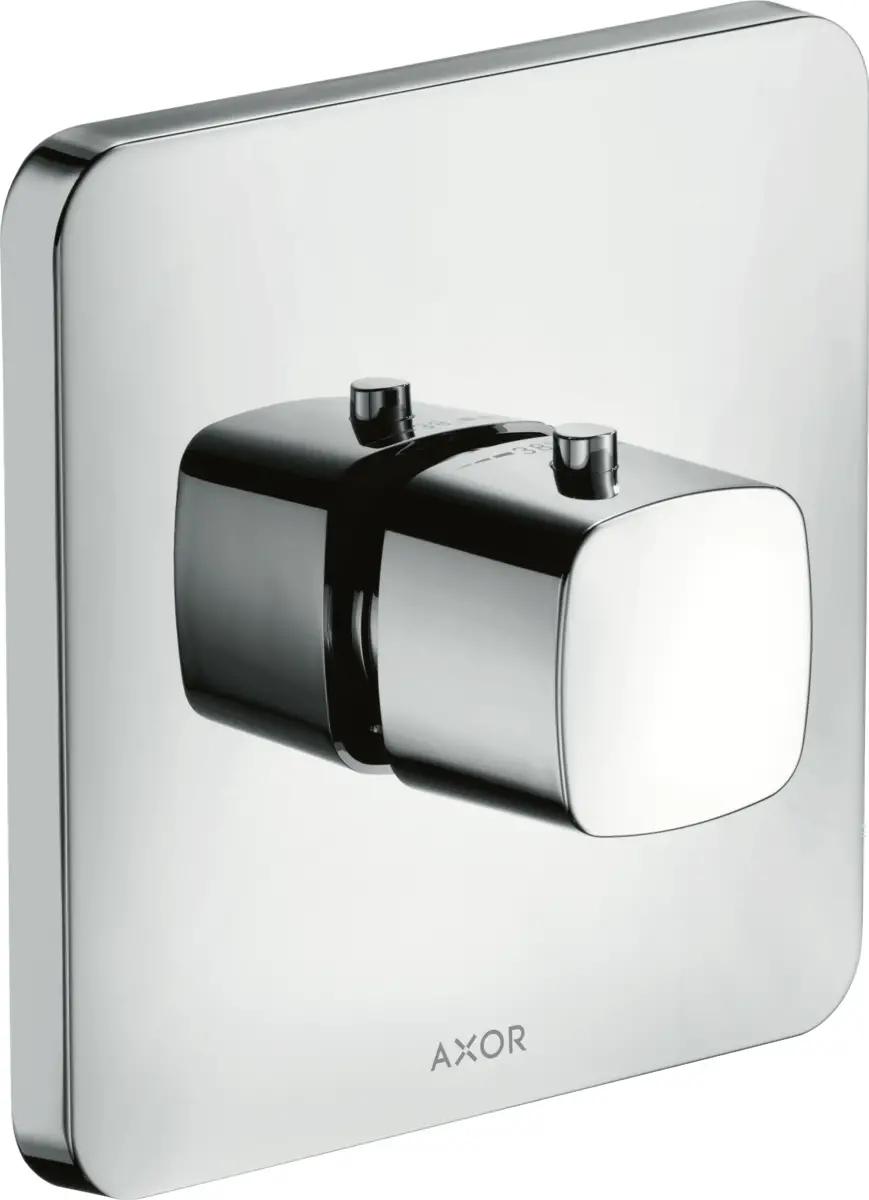

Product image

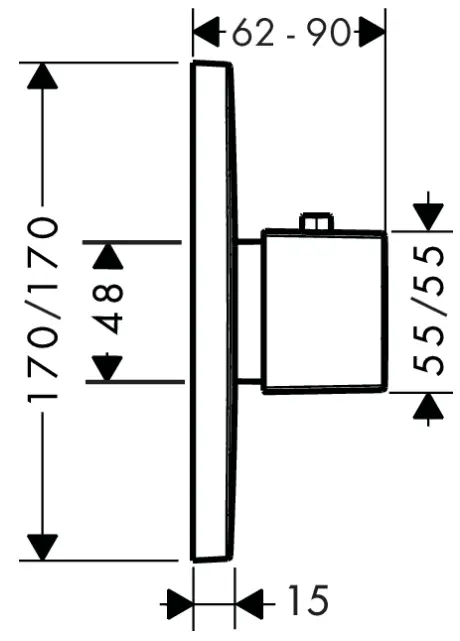

Scale drawing

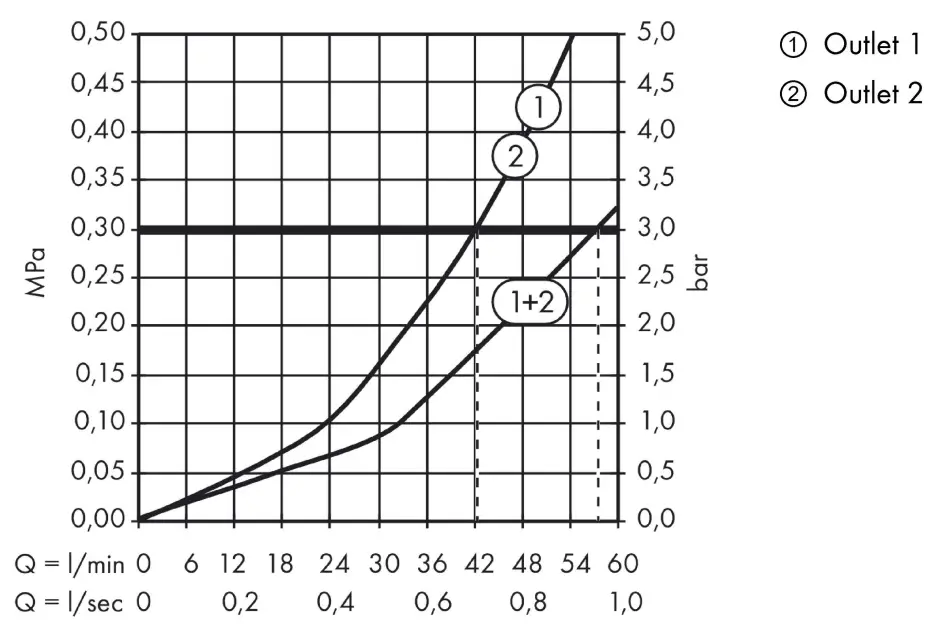

Flowchart

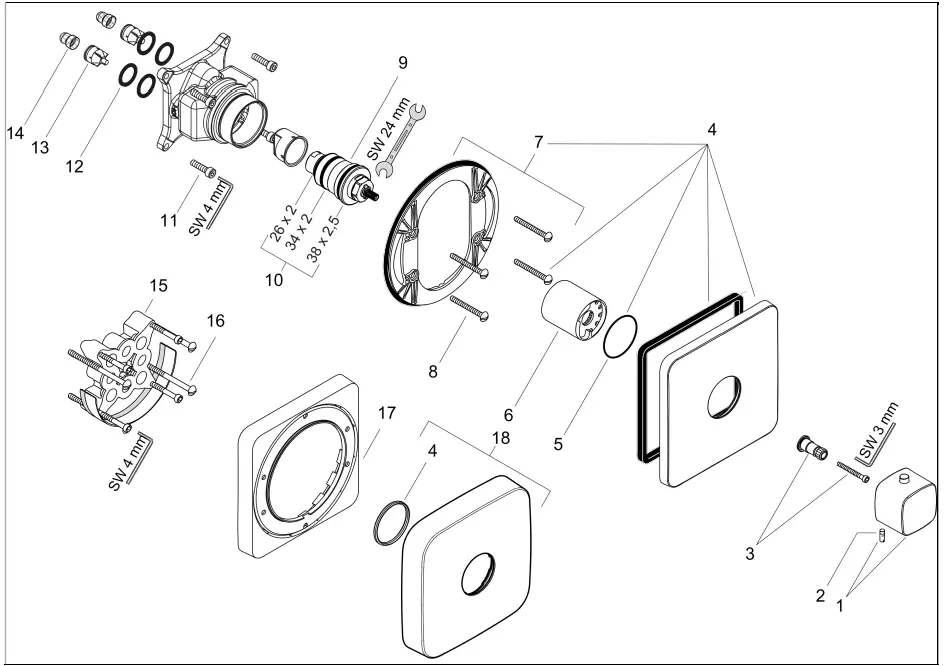

Exploded Drawing
Year of production: >02/12
Spare part list
Year of production: >02/12
| Pos. | Article Number | Price | PU | |
| 1 | handle for thermostat | 11791000 | – | 1 |
| 2 | hollow set screw M5x16 | 97666000 | – | 1 |
| 3 | adapter for handle | 96435000 | – | 1 |
| 4 | escutcheon | 95173000 | – | 1 |
| 5 | O-Ring 48×3 | 95508000 | – | 1 |
| 6 | sleeve | 97439000 | – | 1 |
| 7 | holder for escutcheon | 98793000 | – | 1 |
| 8 | set of fixing screws | 96454000 | – | 1 |
| 9 | thermostat cartridge | 96633000 | – | 1 |
| 10 | sealing set | 96636000 | – | 1 |
| 11 | set of screws | 96525000 | – | 1 |
| 12 | O-ring 16×2 | 98133000 | – | 1 |
| 13 | set of non return valves DW 15 | 97350000 | – | 1 |
| 14 | filter | 98513000 | – | 1 |
| 15 | extension 25 mm | 13595000 | – | 1 |
| 16 | set of fixing screws | 97747000 | – | 1 |
| 17 | extension 22 mm | 98860000 | – | 1 |
| 18 | escutcheon height = 33 mm (when wall is not deep enough). | 14971000 | – | 1 |
| a | concealed item | 01800180 | – | 1 |
| b | adapter for exchanged connections | 93181000 | – | 1 |
