TOTO Display Converter EcoPower Ultra High Efficiency Concealed Toilet Flush Valve Instruction Manual
EcoPower® Flush Valve, Toilet, Concealed Large, 1.0 Gpf

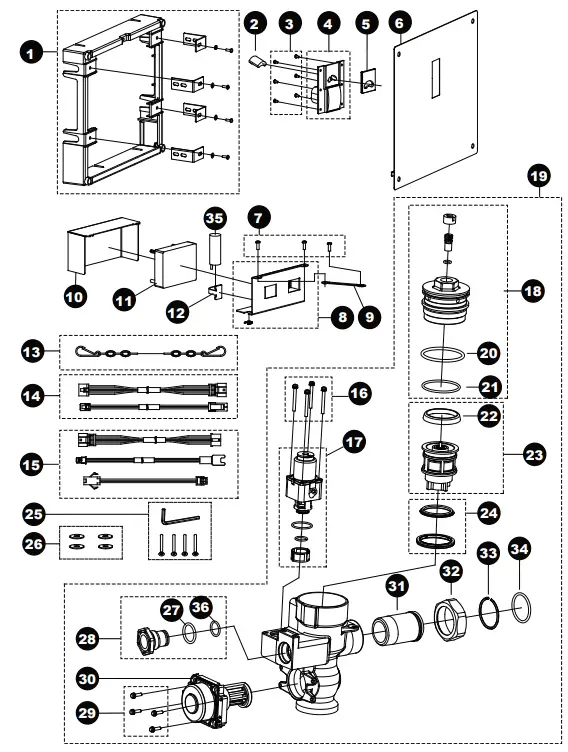

| Item | Part | Description |
| 1 | TH559EDV341 | Frame assembly, large cover |
| 2 | THP3187 | Sensor |
| 3 | THP3215 | Screw, sensor bracket, concealed (6/bag) |
| 4 | THP3214 | Bracket, sensor, w/ push button |
| 5 | THP3213 | Glass, sensor window, concealed |
| 6 | THP3211 | Cover plate, large |
| 7 | THP3204 | Screws, valve body, cover (5/bag) |
| 8 | THP3217 | Housing, controller, concealed |
| 9 | THP3218 | Mount stay, controller box |
| 10 | THP3216 | Cover, box, controller, concealed |
| 11 | THP3280 | Controller unit, E |
| 12 | TH559EDV517 | Clamp set (10/bag) |
| 13 | TH559EDV345 | Chain, cover plate |
| 14 | THP3221 | Harness, concealed (2 type/bag) |
| 15 | THP3209 | Extension harness (3 type/bag) |
| 16 | THP3192 | Screw, solenoid valve (4/bag) |
| 17 | THP3190R | Solenoid valve assembly |
| 18 | THP3188 | Piston cap sub assembly |
| THP3188X | Piston cap sub assembly for Reclaimed Water | |
| 19 | THP3282 | Valve body assy, concealed, toilet |
| THP3226X | Valve body assy, concealed, toilet for Reclaimed Water | |
| 20 | THP3189 | O-ring, piston cap, top, large (10/bag) |
| 21 | TH305SV112 | O-ring, valve cap botm (10/bag) |
| 22 | TH305SV103 | U-packing, piston (10/bag) |
| 23 | TH323V104R | Piston assembly |
| 24 | TH321 | Seat packing set |
| 25 | THP3233 | Screw w/wrench set |
| 26 | THP3219 | Washer, plastic (4/bag) |
| 27 | THP3013 | O-ring, cap (10/bag) |
| 28 | THP3220 | Plug |
| 29 | TH559EDV505 | Screw, EcoPower generator (4/bag) |
| 30 | TH559EDV503 | EcoPower generator, toilet |
| 31 | TH305SV114 | Tailpiece |
| 32 | TH305SV113 | Nut, tailpiece/angle stop |
| 33 | TH305SV105 | Locking ring set, tailpiece (10/bag) |
| 34 | TH305SV106 | O-ring, tailpiece (10/bag) |
| 35 | THP3053 | Back-up battery |
| 36 | THP3242 | O-ring (1/bag) |
