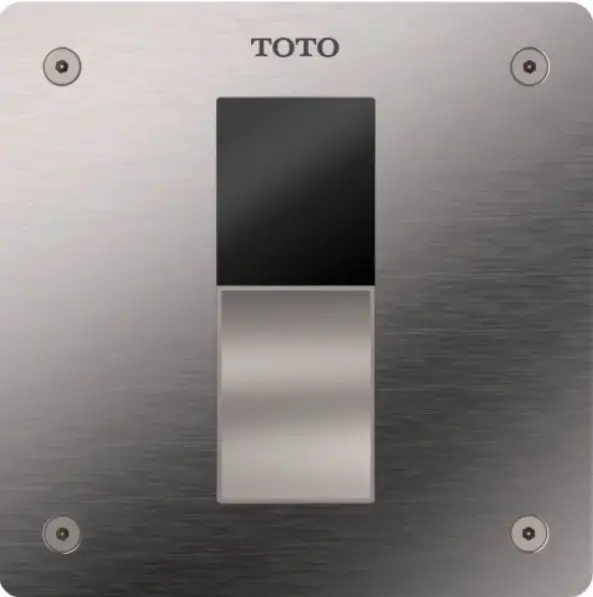

TOTO TET3LB Series ECOPOWER Flush Valve Instructions

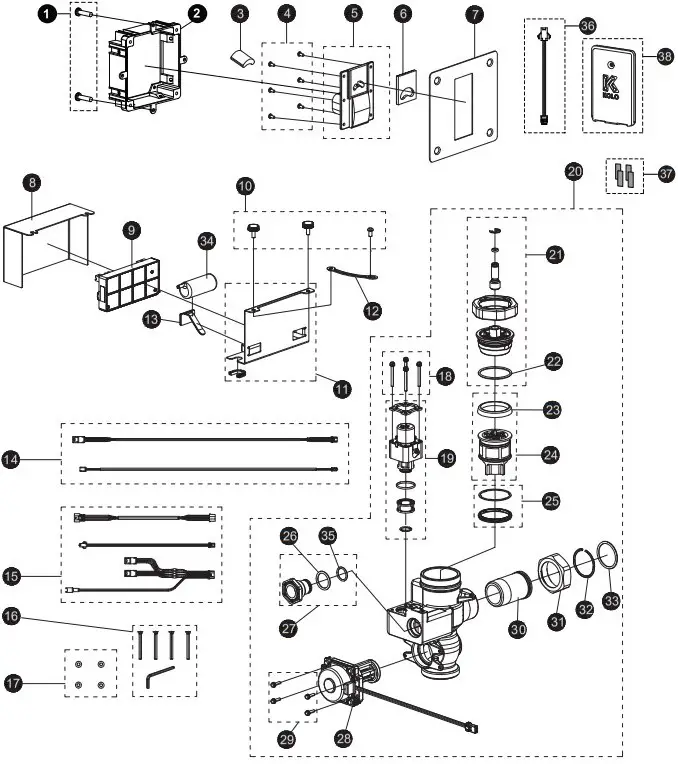

Instruction
| 1 | THP3222 | Screw, wooden screw (10/bag) |
| 2 | THP3210 | Wall frame assembly, small cover |
| 3 | THP3523 | Sensor unit |
| 4 | THP3215 | Screw, touch button (6/bag) |
| 5 | THP3214 | Touch-button assembly |
| 6 | THP3213 | Glass, sensor window, concealed |
| 7 | THP3212 | Cover plate, small |
| 8 | THP3537 | Cover, controller box, concealed |
| 9 | THP3525 | Controller unit 1.28gpf |
| THP3553 | Controller unit 1.28gpf for IoT Flush Valve | |
| 10 | THP3538 | Screw, cover, controller box (3/bag) |
| 11 | THP3539 | Housing, controller, concealed |
| 12 | THP3540 | Mount stay, controller box |
| 13 | TH559EDV517 | Clamp set (10/bag) |
| 14 | THP3541 | Harness, concealed (2 type/bag) |
| 15 | THP3522 | Extension harness (3 type/bag) |
| 16 | THP3233 | Screw w/wrench set |
| 17 | THP3219 | Washer, plastic (4/bag) |
| 18 | THP3192 | Screw (4/bag) |
| 19 | THP3190R | Solenoid unit & diaphram assy |
| 20 | THP3543 | Valve assembly, concealed, toilet 1.28gpf |
| THP3530X | Valve assembly, toilet 1.28gpf for Reclaimed Water | |
| 21 | THP3532 | Valve cap assembly |
| 22 | THP3533 | O-ring, valve cap top |
| 23 | TH305SV103 | U-packing, piston (10/bag) |
| 24 | TH323V104R | Piston assembly |
| 25 | THP3534 | Seat packing set |
| 26 | THP3013 | O-ring, cap (10/bag) |
| 27 | THP3220 | Plug |
| 28 | TH559EDV503 | ECOPOWER generator, toilet |
| 29 | TH559EDV505 | Screw, ECOPOWER generator |
| 30 | TH305SV114 | Tailpiece |
| 31 | TH305SV113 | Nut, tailpiece/angle stop |
| 32 | TH305SV105 | Locking ring set, tailpiece (10/bag) |
| 33 | TH305SV106 | O-ring, tailpiece/angle stop |
| 34 | THP3053 | Back-up battery |
| 35 | THP3242 | O-ring (1/bag) |
| 36 | THP3515 | IoT wire harness |
| 37 | THP3503 | Velcro tape (2 pairs/bag) |
| 38 | IoT communication card, please contact TOTO | |
| sales representative or technical support for more information. |
