Asus Rog Strix G17 G713pv-hx048w Portable Laptop Owner's Manual

ROG Strix G17
G713PV-HX048W Portable Laptop
Owner’s Manual

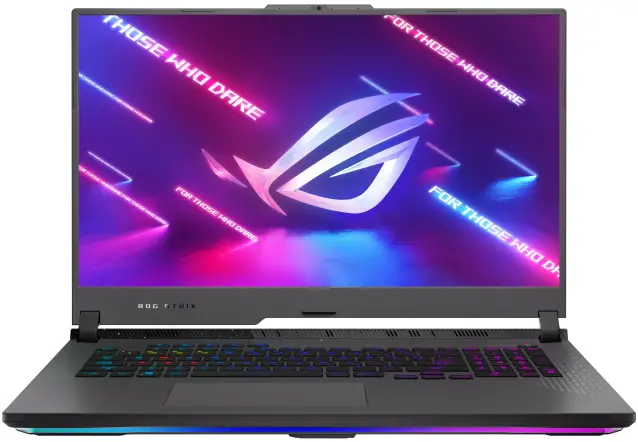

ROG Strix G17 G713PV-HX048W Portable Laptop

ASUS ROG Strix G17 G713PV-HX048W notebook 7845HX 43.9 cm (17.3″) Full HD AMD Ryzen™ 9 16 GB DDR5-SDRAM 1000 GB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax) Windows 11 Home Black, Grey
Brand: ASUS
Product family: ROG
Product code: G713PVHX048W
Product name: G713PVHX048W

• Windows 11 Home 64-bit
• AMD Ryzen 9 7845HX (76MB Cache, 3GHz)
• 43.9 cm (17.3″) Full HD 1920 x 1080 IPS, NVIDIA GeForce RTX 4060 (8GB GDDR6)
• 16GB (4800MHz) DDR5-SDRAM (2 x 8) & 1000GB SSD

AMD Ryzen 9 7845HX (76MB Cache, 3GHz), 16GB DDR5-SDRAM, 1000GB SSD, 43.9 cm (17.3″) Full HD 1920 x 1080 IPS, AMD Radeon 610M, NVIDIA GeForce RTX 4060 (8GB GDDR6), LAN, WLAN, Webcam, Windows 11 Home 64-bit
ASUS ROG Strix G17 G713PV-HX048W.
Product type: Notebook,
Form factor: Clamshell.
Processor family: AMD Ryzen™ 9,
Processor model: 7845HX,
Processor frequency: 3 GHz.
Display diagonal: 43.9 cm (17.3″),
HD type: Full HD,
Display resolution: 1920 x 1080 pixels.
Internal memory: 16 GB,
Internal memory type: DDR5-SDRAM.
Total storage capacity: 1000 GB,
Storage media: SSD.
On-board graphics card model: AMD Radeon 610M.
Operating system installed: Windows 11 Home.
Product colour: Black, Grey
Design

Display

Display diagonal *	43.9 cm (17.3″)
Display resolution *	1920 x 1080 pixels
Touchscreen *
HD type	Full HD
Panel type	IPS
LED backlight
Native aspect ratio	16:09
Anti-glare screen
RGB colour space	sRGB
Colour gamut	62.50%
Maximum refresh rate	144 Hz

Processor

Memory

Audio

Number of built-in speakers	2
Built-in microphone

Camera

Front camera
Front camera HD type	HD

Network

Top Wi-Fi standard *	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Mobile network connection *
Antenna type	2×2
Ethernet LAN
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth
Bluetooth version	5.2

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity *	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity *	1
HDMI version	2.1
Combo headphone/mic port
Power adapter barrel connector	6.0 mm
USB Type-C DisplayPort Alternate Mode
USB Power Delivery

Keyboard

Pointing device	Touchpad
Numeric keypad *
Keyboard backlit
Keyboard backlit colour	RGB

Memory

Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory *	32 GB
Storage
Total storage capacity *	1000 GB
Storage media *	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 4.0
NVMe
SSD form factor	M.2
Optical drive type *
Card reader integrated
Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model *	NVIDIA GeForce RTX 4060
On-board graphics card *
Discrete graphics card *
On-board graphics card model *	AMD Radeon 610M
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
NVIDIA G-SYNC
Audio
Audio system	Smart Amp
Keyboard
Keyboard backlit zone	Per-key RGB
Software
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers
Operating system installed *	Windows 11 Home
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity *	90 Wh
Power
AC adapter power	240 W
AC adapter frequency	50 – 60 Hz
AC adapter input voltage	100 – 240 V
AC adapter output current	12:00 AM
AC adapter output voltage	20 V
Security
Trusted Platform Module (TPM)
Password protection
Password protection type	BIOS, User
Weight & dimensions
Width	395 mm
Depth	282 mm
Height (front)	2.34 cm
Height (rear)	3.08 cm
Weight *	2.8 kg
