Asus G513ie-hn046t 15.6 Inch Rtx 3050ti Windows 10 Gaming Laptop Owner's Manual

G513IE-HN046T 15.6 Inch RTX 3050Ti Windows 10 Gaming Laptop

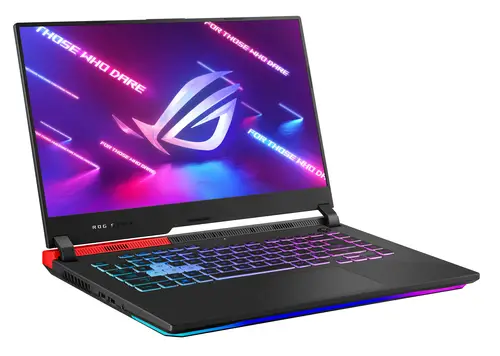

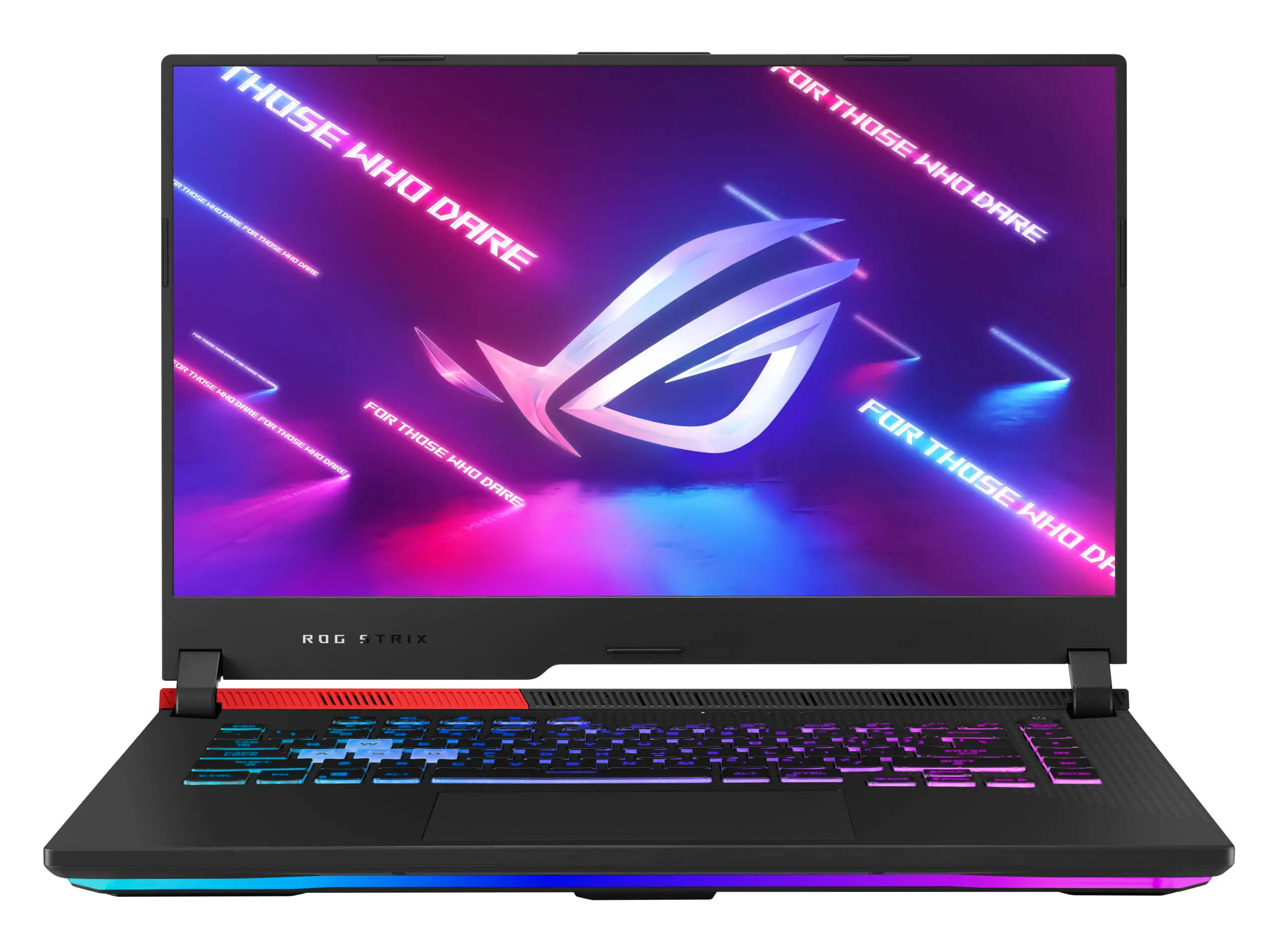

ASUS ROG Strix G15 G513IE-HN046T notebook 4800H 39.6 cm (15.6″) Full HD AMD Ryzen™ 7 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce RTX 3050 Ti  Wi-Fi 6 (802.11ax) Windows 10 Home Black

Brand : ASUS
Product family: ROG
Product code: G513IE-HN046T
Product name : G513IEHN046T

– Windows 10 Home 64-bit
– AMD Ryzen 7 4800H (8MB Cache, 2.9GHz)
– 39.6 cm (15.6″) Full HD 1920 x 1080 IPS, NVIDIA GeForce RTX 3050 Ti (4GB GDDR6)
– 16GB (3200MHz) DDR4-SDRAM & 512GB SSD
AMD Ryzen 7 4800H (8MB Cache, 2.9GHz), 16GB DDR4-SDRAM, 512GB SSD, 39.6 cm (15.6″) Full HD 1920 x 1080 IPS, AMD Radeon Graphics, NVIDIA GeForce RTX 3050 Ti (4GB GDDR6), LAN, WLAN, Windows 10 Home 64-bit
ASUS ROG Strix G15 G513IE-HN046T. Product type: Notebook, Form factor: Clamshell. Processor family:
AMD Ryzen™ 7, Processor model: 4800H, Processor frequency: 2.9 GHz. Display diagonal: 39.6 cm (15.6″), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon Graphics. Operating system installed: Windows 10 Home. Product colour: Black

Design		Network
Colour name	Original Black	Top Wi-Fi standard *	Wi-Fi 6 (802.11ax)
Product type *	Notebook	Wi-Fi standards	Wi-Fi 6 (802.11ax)
Product colour *	Black	Mobile network connection *
Form factor *	Clamshell	Antenna type	2×2
Market positioning	Gaming	Ethernet LAN
Display		Ethernet LAN data rates	10,1000,100 Mbit/s
Display diagonal *	39.6 cm (15.6″)	Bluetooth
Display resolution *	1920 x 1080 pixels	Bluetooth version	5.1
Touchscreen *		Ports & interfaces
HD type	Full HD	USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity *	3
Panel type	IPS	USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Native aspect ratio	16:09	Ethernet LAN (RJ-45) ports	1
Anti-glare screen		HDMI ports quantity *	1
Maximum refresh rate	144 Hz	HDMI version	2.0b
Processor		Combo headphone/mic port
Processor manufacturer *	AMD	USB Type-C DisplayPort Alternate Mode
Processor model *	4800H	USB Power Delivery
Processor family *	AMD Ryzen™ 7	Keyboard
Processor frequency *	2.9 GHz	Pointing device	Touchpad
Processor boost frequency	4.2 GHz	Numeric keypad *
Processor cores	8	Keyboard backlit
Processor cache	8 MB	Software
Memory		Operating system architecture	64-bit
Internal memory *	16 GB	Operating system installed *	Windows 10 Home
Internal memory type	DDR4-SDRAM	Battery
Memory clock speed	3200 MHz	Battery technology	Lithium-Ion (Li-Ion)
Memory form factor	SO-DIMM	Number of battery cells	4
Memory slots	2x SO-DIMM	Battery capacity *	56 Wh
Maximum internal memory *	32 GB	Power
Storage		AC adapter power	200 W
Total storage capacity *	512 GB	Power
Storage media *	SSD	AC adapter frequency	50 – 60 Hz
Total SSDs capacity	512 GB	AC adapter input voltage	100 – 240 V
Storage		AC adapter output current	10:00 AM
Number of SSDs installed	1	AC adapter output voltage	20 V
SSD capacity	512 GB	Security
SSD interface	NVMe, PCI Express 3.0	Password protection
NVMe		Password protection type	BIOS, User
SSD form factor	M.2	Weight & dimensions
Optical drive type *		Width	354 mm
Graphics		Depth	259 mm
Discrete graphics card model *	NVIDIA GeForce RTX 3050 Ti	Height (front)	2.06 cm
On-board graphics card *		Height (rear)	2.59 cm
Discrete graphics card *		Weight *	2.1 kg
On-board graphics card model *	AMD Radeon Graphics	Packaging data
Discrete graphics card memory	4 GB	Package width	576 mm
Discrete graphics memory type	GDDR6	Package depth	114 mm
Audio		Package height	369 mm
Audio system	Dolby Atmos	Package weight	5.75 kg
Number of built-in speakers	2	Logistics data
Speaker power	1.5 W	Harmonized System (HS) code	84713000
Built-in microphone

4711081257745
