Asus 90nb0st2-m06670 Laptop Owner's Manual

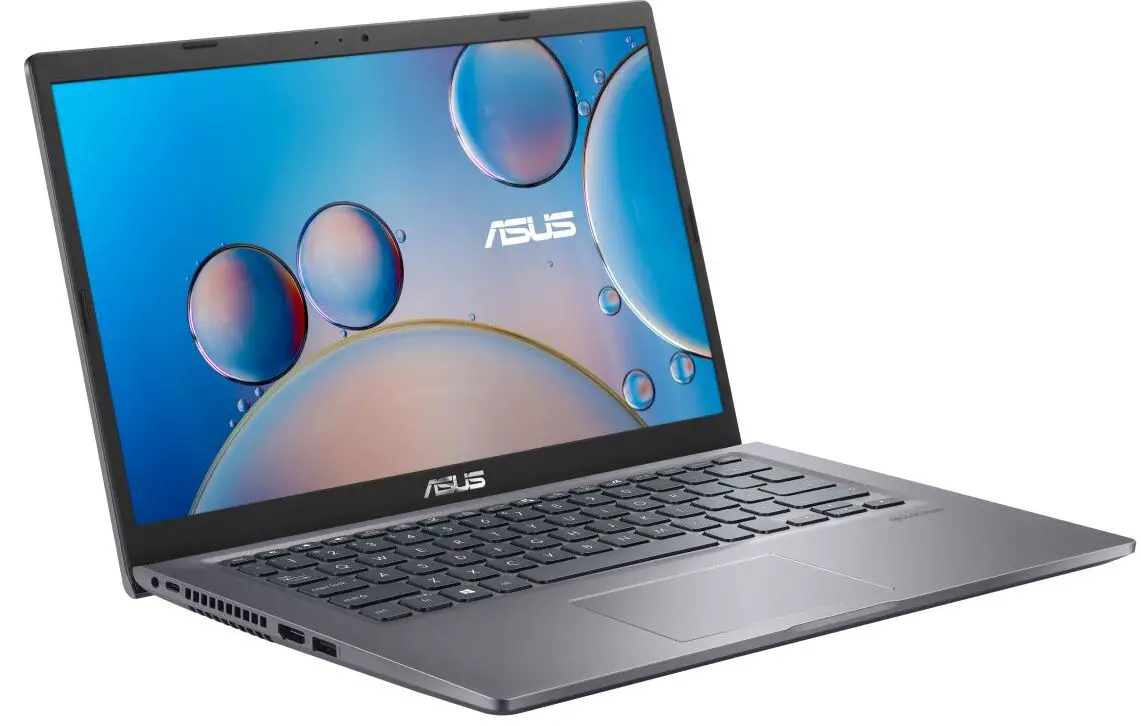

ASUS 90NB0ST2-M06670 Laptop

INTRODUCTION

• Brand: ASUS
• Product code: 90NB0ST2-M06670
• Product name: X415JA-EB022T
  •  Windows 10 Home 64-bit
  • Intel Core i5-1035G1 (6MB Cache, 1GHz)
  • 35.6 cm (14″) Full HD 1920 x 1080
  • 8GB (3200MHz) DDR4-SDRAM & 256GB SSD

Intel Core i5-1035G1 (6MB Cache, 1GHz), 8GB DDR4-SDRAM, 256GB SSD, 35.6 cm (14″) Full HD 1920 x 1080, Intel UHD Graphics, WLAN, Webcam, Windows 10 Home 64-bit ASUS X415JA-EB022T. Product type: Notebook, Form factor: Clamshell. Processor family: Intel® Core™ i5, Processor model: i5-1035G1, Processor frequency: 1 GHz. Display diagonal: 35.6 cm (14″), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 8 GB, Internal memory type: DDR4- SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 10 Home. Product color: Grey

SPECIFICATIONS

Design

• Product type * Notebook
• Product color * Grey
• Form factor * Clamshell

Display

• Display diagonal * 35.6 cm (14″)
• Display resolution * 1920 x 1080 pixels
• Touchscreen *
• HD type Full HD
• LED backlight
• Native aspect ratio 16:9
• Display surface Matt
• Display brightness 250 cd/m²
• RGB color space NTSC
• Color gamut 45%

Processor

• Processor manufacturer * Intel
• Processor Generation 10th gen Intel® Core™ i5
• Processor model * i5-1035G1
• Processor family * Intel® Core™ i5
• Processor frequency * 1 GHz
• Processor boost frequency 3.6 GHz
• Processor cores 4
• Processor cache 6 MB
• Configurable TDP-up frequency 1.2 GHz
• Configurable TDP-up 25 W
• Configurable TDP-down 13 W
• Configurable TDP-down frequency 0.7 GHz

Memory

• Internal memory * 8 GB
• Internal memory type DDR4-SDRAM
• Memory clock speed 3200 MHz

Network

• Ethernet LAN
• Bluetooth

Ports & interfaces

• USB 2.0 ports quantity * 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A
• ports quantity * 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C
• ports quantity * 1
• HDMI ports quantity * 1
• HDMI version 1.4
• Combo headphone/mic port
• Charging port type DC-in jack

Keyboard

• Pointing device Touchpad
• Keyboard layout QWERTY
• Numeric keypad *

Software

• Operating system architecture 64-bit
• Operating system installed * Windows 10 Home

Processor special features

• Intel Trusted Execution Technology
• Intel VT-x with Extended Page
• Tables (EPT)
• Intel TSX-NI
• Intel Stable Image Platform Program
• (SIPP)
• Intel Software Guard Extensions
• (Intel SGX)
• Intel 64
• Execute Disable Bit
• Idle States
• CPU configuration (max) 1
• Embedded options available

Storage

• Total storage capacity * 256 GB
• Storage media * SSD
• Total SSDs capacity 256 GB
• Number of SSDs installed 1
• SSD capacity 256 GB
• SSD interface PCI Express 3.0
• Optical drive type *
• Card reader integrated

Graphics

• Discrete graphics card model * Not available
• On-board graphics card *
• Discrete graphics card *
• On-board graphics card model * Intel® UHD Graphics

Audio

• Audio system SonicMaster
• Built-in microphone

Camera

• Front camera

Network

• Top Wi-Fi standard * Wi-Fi 5 (802.11ac)
• Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4
• (802.11n), Wi-Fi 5 (802.11ac)
• Mobile network connection *
• Antenna type 1×1

Processor special features

• Intel Virtualization Technology for Directed I/O (VT-d)
• Intel Virtualization Technology (VTx)

Battery

• Battery technology Lithium-Ion (Li-Ion)
• Number of battery cells 2
• Battery capacity * 37 Wh

Power

• AC adapter frequency 50/60 Hz
• AC adapter input voltage 100 – 240 V
• AC adapter output voltage 19 V

Security

• Cable lock slot
• Password protection

Weight & dimensions

• Width 325.4 mm
• Depth 216 mm
• Height 19.9 mm

Logistics data

• Harmonized System (HS) code 84713000

Technical details

• Repairability index 6.6
