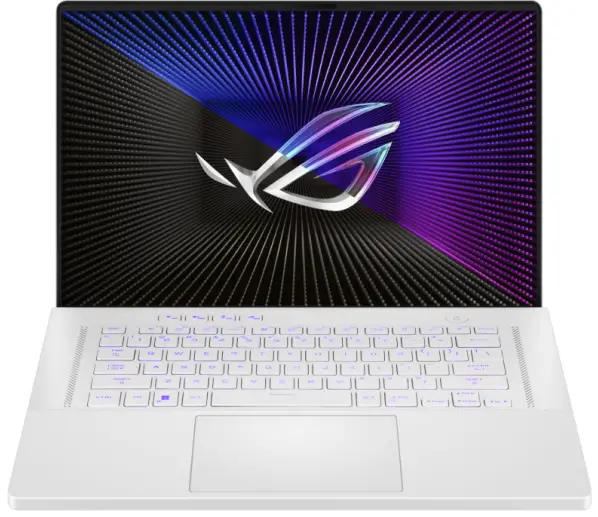

ASUS ROG Zephyrus G16 GU603ZU-N3003W Portable Laptop Owner’s Manual

Introduction

• Windows 11 Home 64-bit
• Intel Core i7-12700H (24MB Cache)
• 40.6 cm (16″) WUXGA 1920 x 1200 IPS, NVIDIA GeForce RTX 4050 (6GB GDDR6)
• 16GB DDR4-SDRAM & 512GB SSD
  Intel Core i7-12700H (24MB Cache), 16GB DDR4-SDRAM, 512GB SSD, 40.6 cm (16″) WUXGA 1920 x
  1200 IPS, Intel Iris Xe Graphics, NVIDIA GeForce RTX 4050 (6GB GDDR6), LAN, WLAN, Webcam, Windows
  11 Home 64-bit
• ASUS ROG Zephyrus G16 GU603ZU-N3003W. Product type: Notebook, Form factor: Clamshell. Processor
  family: Intel® Core™ i7, Processor model: i7-12700H. Display diagonal: 40.6 cm (16″), HD type: WUXGA,
• Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM.
  Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe
  Graphics, Discrete graphics card model: NVIDIA GeForce RTX 4050. Operating system installed: Windows
  11 Home. Product colour: White

Design
Colour name	Moonlight White
Product type *	Notebook
Product colour *	White
Form factor *	Clamshell
Market positioning	Gaming
Display
Display diagonal *	40.6 cm (16″)
Display resolution *	1920 x 1200 pixels
Touchscreen *
HD type	WUXGA
Panel type	IPS
Native aspect ratio	16:10
Anti-glare screen
RGB colour space	sRGB
Colour gamut	100%
Maximum refresh rate	165 Hz
High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology	Dolby Vision
Processor
Processor manufacturer *	Intel
Processor generation	12th gen Intel® Core™ i7
Processor model *	i7-12700H
Processor family *	Intel® Core™ i7
Processor boost frequency	4.7 GHz
Processor cores	14
Processor cache	24 MB
Configurable TDP-down	35 W
Network
Antenna type	2×2
Ethernet LAN
Bluetooth
Bluetooth version	5.2
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity *	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4
Combo headphone/mic port
Power adapter barrel connector	6.0 mm
USB Type-C DisplayPort Alternate Mode
USB Power Delivery
Keyboard
Pointing device	Touchpad
Numeric keypad *
Keyboard backlit
Keyboard backlit colour	RGB
Software
Operating system architecture	64-bit
Operating system installed *	Windows 11 Home
Processor special features
Intel Flex Memory Access
Intel Trusted Execution Technology
Intel VT-x with Extended Page
Tables (EPT)
Execute Disable Bit
Storage
Total storage capacity *	512 GB
Storage media *	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe
SSD form factor	M.2
Optical drive type *
Card reader integrated
Compatible memory cards	MicroSD (TransFlash)
Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model *	NVIDIA GeForce RTX 4050
On-board graphics card *
Discrete graphics card *
On-board graphics card model *	Intel Iris Xe Graphics
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
Audio
Audio system	Dolby Atmos
Built-in microphone
Number of microphones	3
Camera
Front camera
Front camera HD type	HD
Infrared (IR) camera
Network
Top Wi-Fi standard *	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Mobile network connection *
Processor special features
CPU configuration (max)	1
Embedded options available
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Virtualization Technology (VTx)
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	90 Wh
Power
AC adapter power	240 W
AC adapter frequency	50 – 60 Hz
AC adapter input voltage	100 – 240 V
AC adapter output current	12 A
AC adapter output voltage	20 V
Security
Cable lock slot
Cable lock slot type	Kensington
Windows Hello
Trusted Platform Module (TPM)
Password protection Password protection ty	BIOS, User
Weight & dimensions
Width	355 mm
Depth	243 mm
Height (front)	2.05 cm
Height (rear)	2.29 cm
Weight *	2 kg
