Condtrol Vector 100 Laser Distance Meter User Manual

CONDTROL Vector 100 Laser Distance Meter

Congratulations on your purchase of laser distance meter Vector 100 CONDTROL. Safety instructions can be found in the end of this user manual and should be carefully read before you use the product for the first time.

SAFETY REGULATIONS

The user manual should be read carefully before you use the product for the first time. Unintended use of the product can be dangerous for human’s health and cause serious injury. Keep this user manual. If the product is given to somebody for temporary use, be sure to enclose user manual to it.

• Do not misuse the product
• Do not remove warning signs and protect them from abrasion, because they contain information about safe operation of the product.
  The device belongs to laser product class 2 in accordance with EN60825-1.
• Do not look into the laser beam or its reflection, with unprotected eye or through an optical instrument. Do not point the laser beam at people or animals without the need. You can dazzle them.
• To protect your eyes close them or look aside.
• It is prohibited to disassemble or repair the product yourself. Entrust product repair to qualified personnel and use original spare parts only.
• Do not use the product in explosive environment, close to flammable materials.
• Avoid heating the batteries to avoid the risk of explosion and electrolyte leakage. In case of liquid contact with skin, wash it immediately with soap and water. In case of contact with eyes, flush with clean water during 10 minutes and consult the doctor.

INTENDED USE

Laser distance meters Vector 100 is intended to measure distance, to calculate area and volume of measured objects, perform calculations by tilt sensor and Pythagoras’ Theorem, point to point measurements, store results of measurement/calculation in memory and also transmit via Bluetooth. The product is suitable for use at both indoor and outdoor building areas.

DELIVERY PACKAGE

The delivery package includes:

1. Laser distance meter – 1pc.
2. Carry pouch with a strap – 1 pc.
3. User manual – 1 pc.
4. USB charger – 1 pc.

TECHNICAL SPECIFICATIONS

• Use a reflective plate to increase the measurement range during daylight or if the target has poor reflection properties.
• Accuracy can decrease in unfavorable conditions, such as intense sunshine or when measurements are made against glossy or transparent surfaces, moving objects, objects with rough surface.

In unfavorable conditions or when measured distance is over 100 m the maximum permissible accuracy is calculated in the following way:

• ± (Y + 0,25хDх10-3) mm, where
• D (mm) – measured distance
• Y (mm) – permissible accuracy according to technical data.

PRODUCT DESCRIPTION

Display

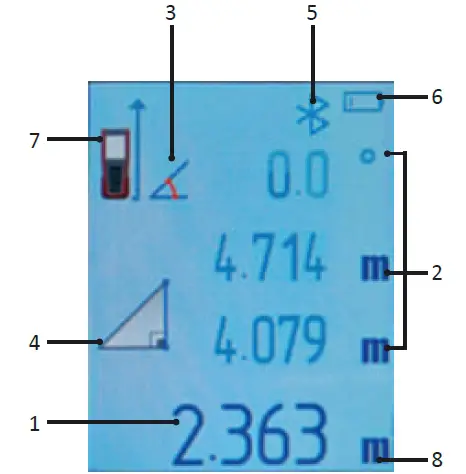

1. Main line for displaying measuring results
2. Additional lines for displaying measuring results
3. Indication of tilt angle
4. Indication of the mode
5. Indication of Bluetooth
6. Indication of battery charge level

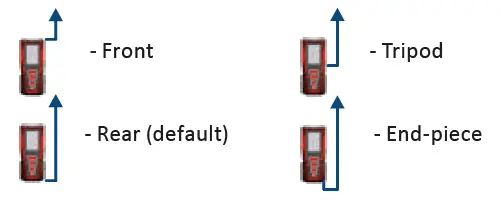

7. Indication of reference point
8. Indication of measuring unit

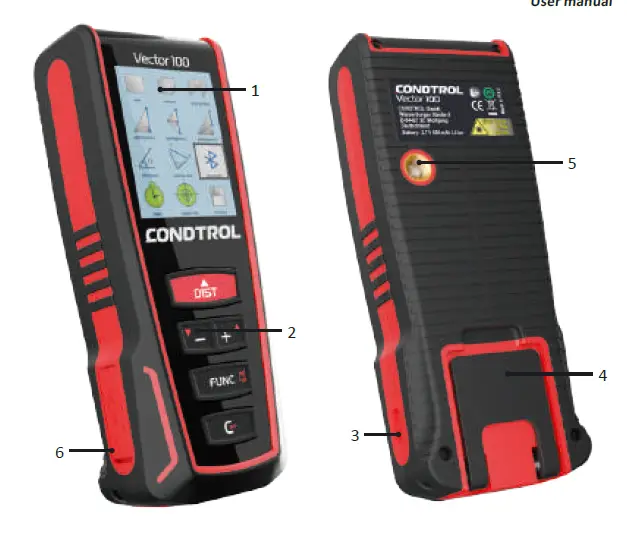

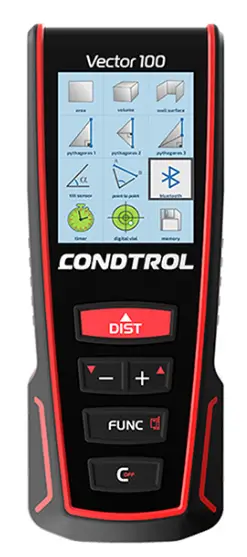

1. Display
2. Keyboard
3. A hole for the strap
4. End-piece
5. Tripod thread 1/4’’
6. Mini-USB connector for charging

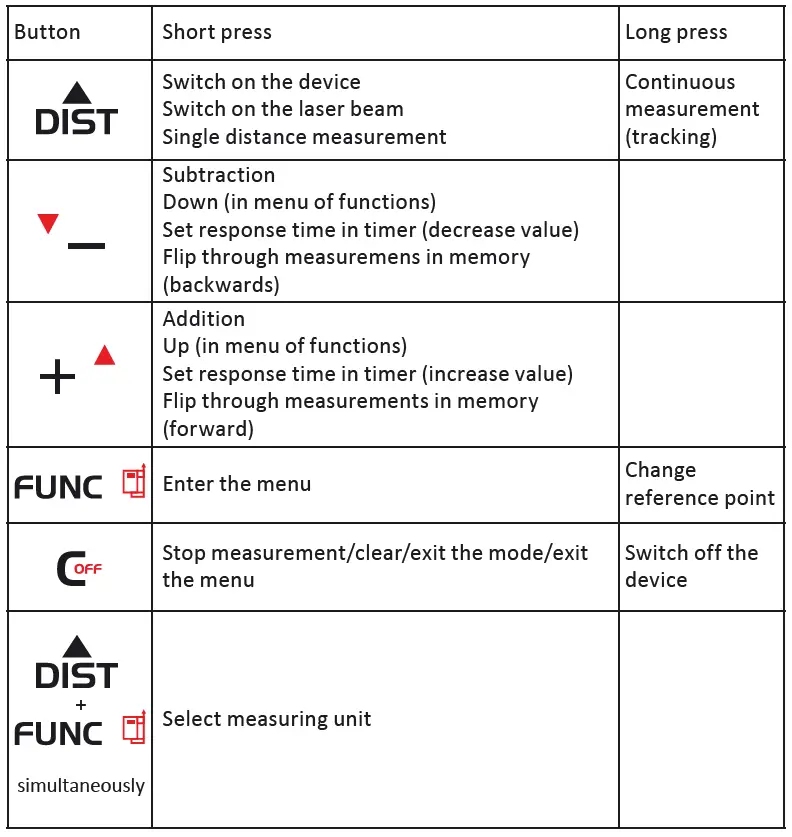

Functions of buttons

OPERATION

Battery charging
Charge level is shown on display. Charge the battery when symbol appears on the display. Use USB charger delivered in the set only. It is not recommended to use the product while charging. It takes approximately 3 hours to fully charge the batteries.

Switch on/off the device
To switch on the device short press
To switch off the device press and hold during 1 second.

Measuring unit
Short press and simultaneously.
Short press buttons and t o select the required measuring unit – m/ft/in. Short press t o confirm and return to single distance measurement mode.

Reference point
Press and hold the button for 1 second to select the reference
point. The appropriate indicator will appear on the display.

Menu

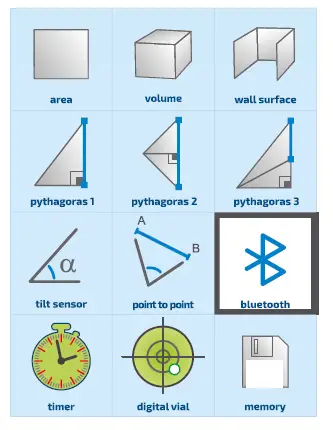

Short press button  to enter the menu of functions:
Short press buttons (down), (up) to select the function. Selected function will be framed in grey color.
Short press to confirm. The selected functions will be activated.
Short press to exit the menu.

MEASUREMENTS

Single distance measurement

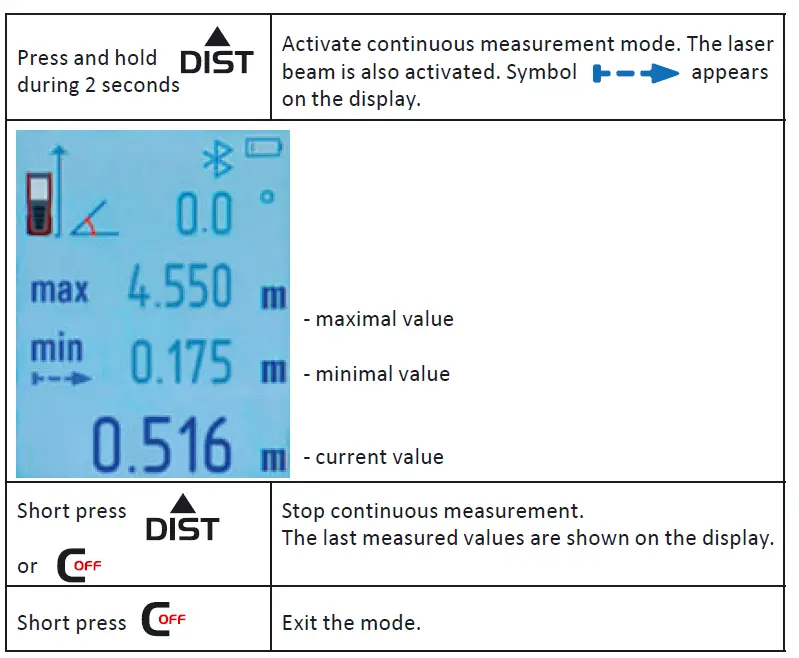

Continuous distance measurement (Tracking)

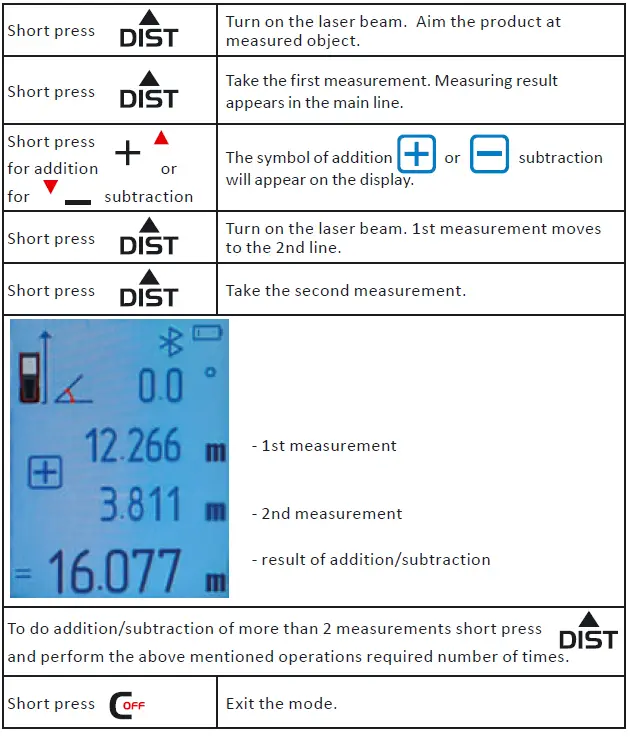

Addition/subtraction

CALCULATIONS

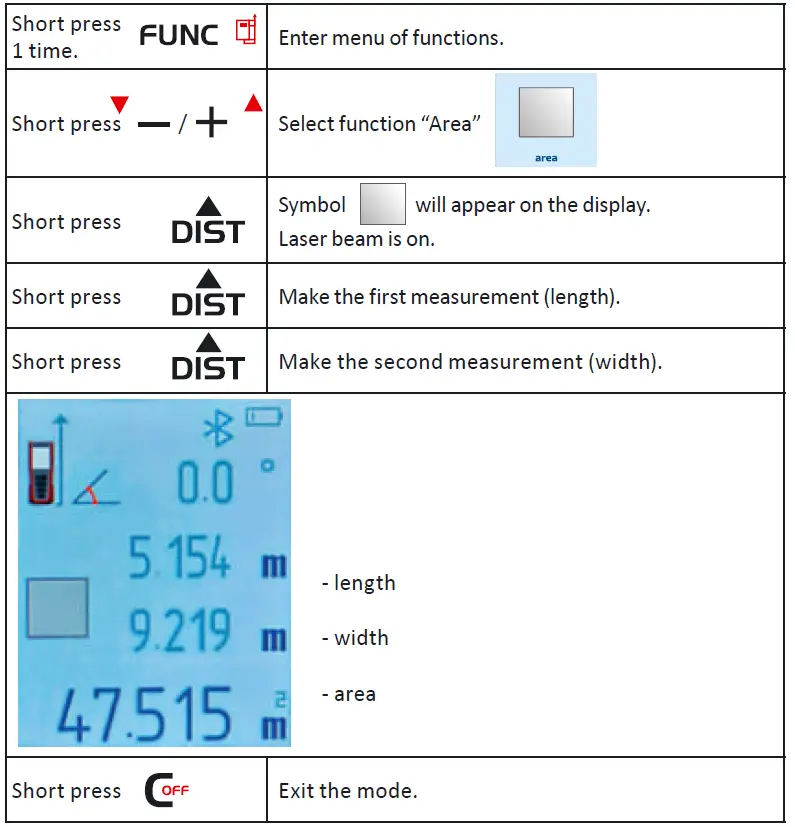

Area

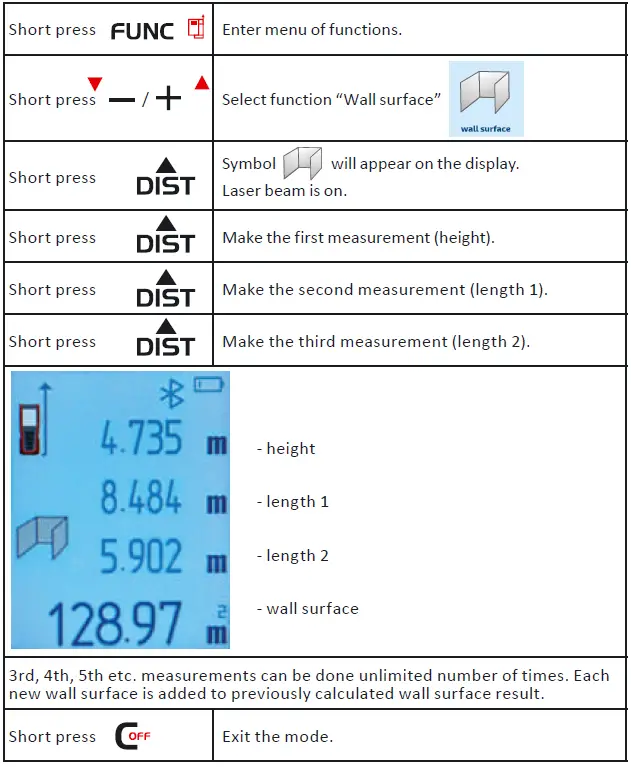

Wall surface

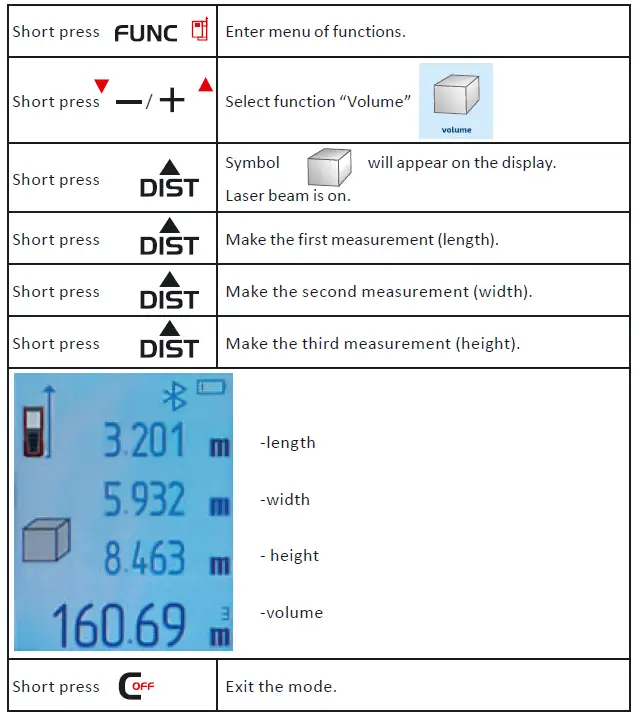

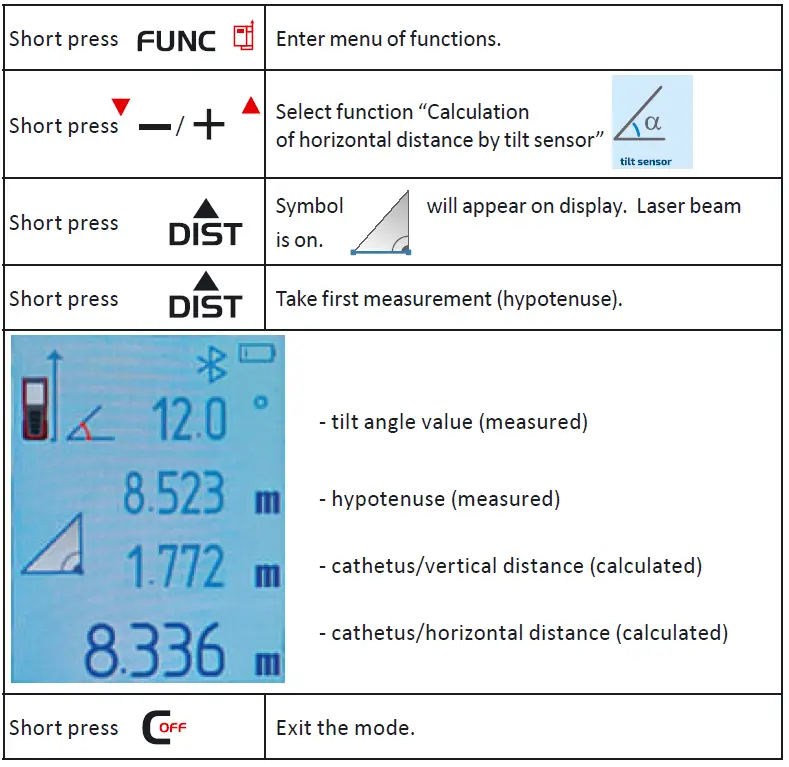

VolumeCalculation of horizontal distance by the tilt sensor

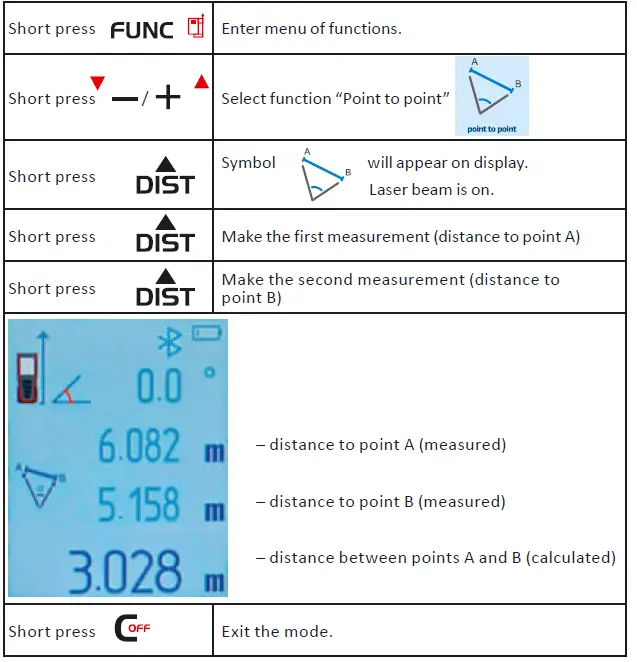

Point to point measurement

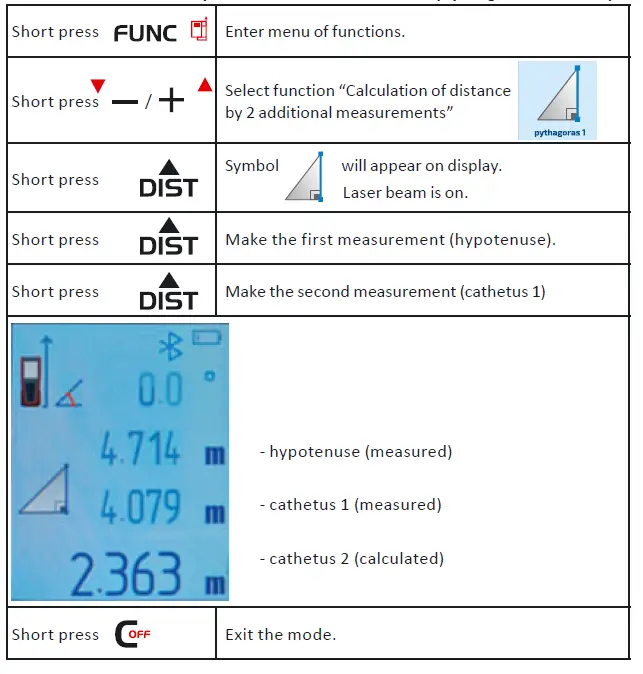

Calculation of distance by 2 additional measurements (Pythagoras’ theorem)

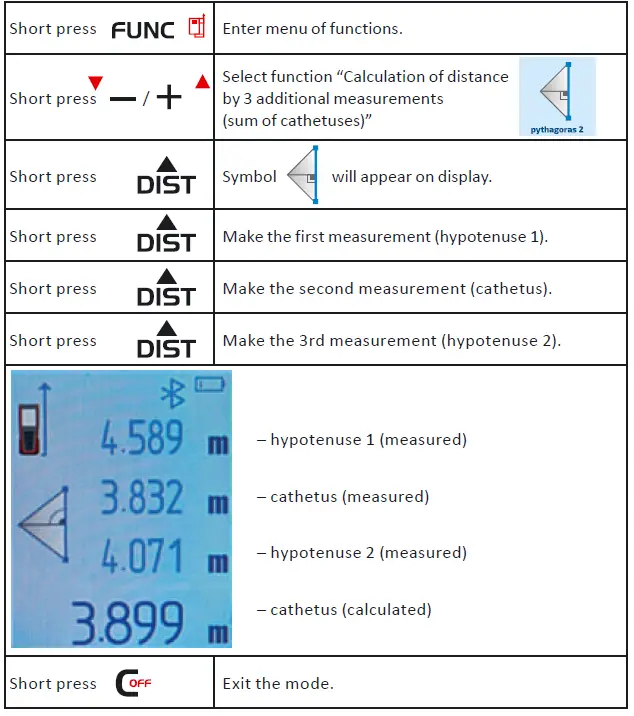

Calculation of distance by 3 additional measurements (sum of cathetuses)

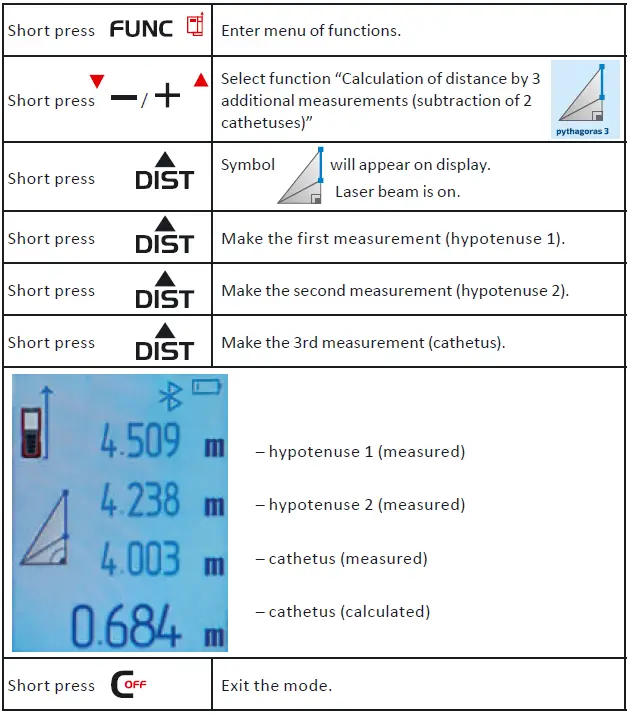

Calculation of distance by 3 additional measurements
(subtraction of 2 cathetuses)

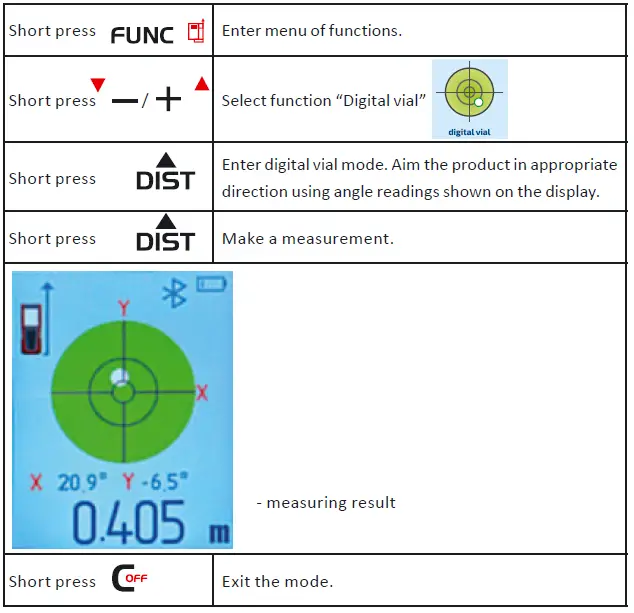

Digital vial

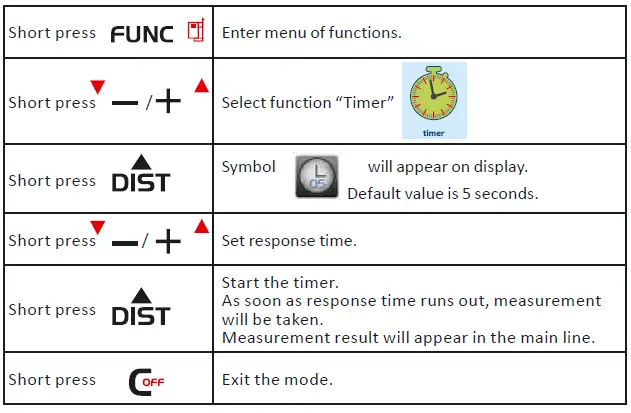

Timer

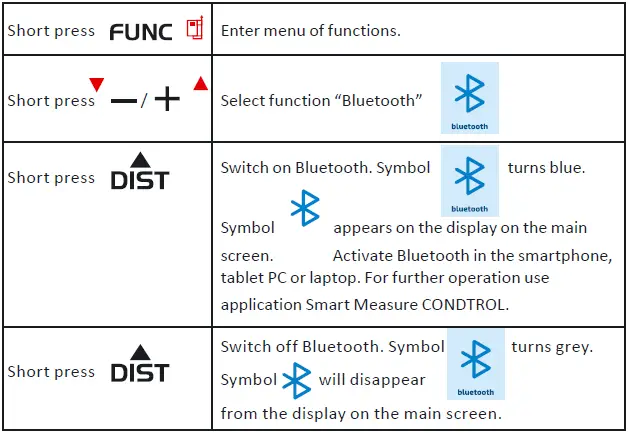

Bluetooth

Memory

MESSAGE CODES
While operation, the following codes/symbols may appear on the display:

CARE AND MAINTENANCE

Attention! The instrument is a precise device and requires careful handling. The following recommendations will extend the life of the product:

• Do not point the product at the sun.
• Protect the product from bumps, falls, and excessive vibration; do not let liquids, construction dust and foreign objects get inside the product.
• Do not expose the product to extreme temperatures.
• If liquids get inside the product first remove the batteries, then contact the service center.
• Do not store or use the product under high humidity conditions for a long time.
• Clean the product with soft wet cloth.
• Keep device optics clean and protect it from mechanical damage.
• Сarry out control measurements occasionally, especially if the product is subject to excessive mechanical or other impact, before and after taking important measurements.

UTILIZATION
Expired tools, accessories and package should be passed for waste recycle. Please send the product to the following address for proper recycle:

Do not throw the product in municipal waste!
According to European directive 2002/96/ЕC expired measuring tools and their components must be collected separately and submitted to environmentally friendly recycle of wastes.

WARRANTY

All CONDTROL GmbH products go through post-production control and are governed by the following warranty terms. The buyer’s right to claim about defects and general provisions of the current legislation do not expire.

1. CONDTROL GmbH agrees to eliminate all defects in the product, discovered during the warranty period, that represent the defect in material or workmanship in full volume and at its own expense.
2. The warranty period is 36 months and starts from the date of purchase by the end customer (see the original supporting document).
3. The warranty dösn’t cover defects resulting from wear and tear or improper use, malfunction of the product caused by failure to observe the instructions of this user manual, untimely maintenance and service and insufficient care, the use of non-original accessories and spare parts. Modifications in design of the product relieve the seller from responsibility for warranty works. The warranty does not cover cosmetic damage, which dösn’t hinder normal operation of the product.
4. CONDTROL GmbH reserves the right to decide on the replacement or repair of the device.
5.  Other claims not mentioned above, are not covered by the warranty.
6. After holding warranty works by CONDTROL GmbH warranty period is not renewed or extended.
7. CONDTROL GmbH is not liable for loss of profit or inconvenience associated with a defect of the device, the rental cost of alternative equipment for the period of repair. This warranty applies to German law except the provision of the United Nations Convention on contracts for the international sale of goods (CISG).

In warranty case please return the product to the retail seller or send it with the defect description to the following address:
