DBC905W Signal Dimmer
Controller Instructions
DBC905
Signal Dimmer Controller
DBC905W Signal Dimmer Controller
Devices must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations.
IEC Pollution Degree II
Control Channel Ratings
| DALI Addressable and Broadcast | ≤ 5/CH Guaranteed 15 mA Maximum 250 mA Insulation: basic | ≤ 45 |
| DSI | ≤ 5/CH | ≤ 45 |
| 1-10 V | Sink 10 mA Source 10 mA | Driver dependent |
Output Ratings/Channel (CH)
| Load Type | CH1-CH9 | Maintained |
 General Use | 5 A, 230 V | 5 A, 230 V |
 Electronic Ballast | 2 A, 230 V | |
 Inrush Current | 100 A |

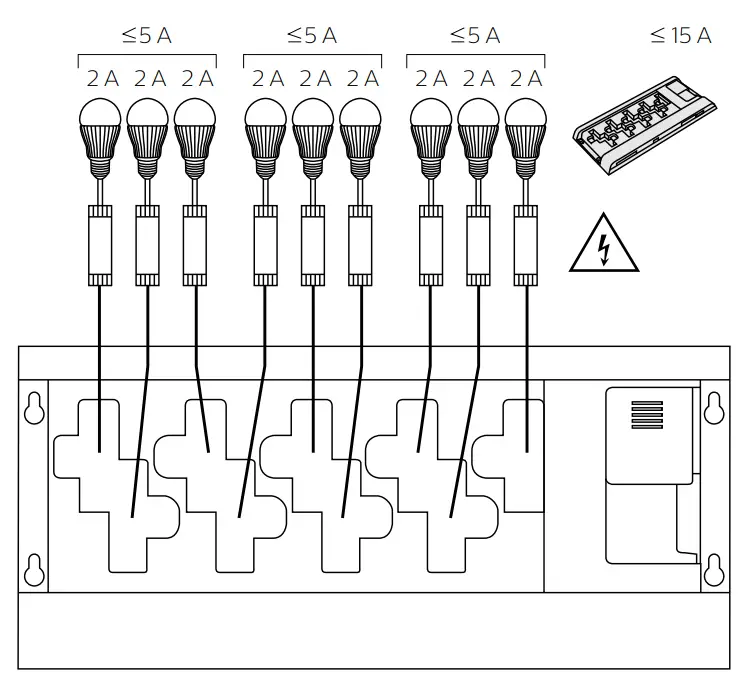

Output Ratings/Group
CH1-CH3 ≤ 5 A
CH4-CH6 ≤ 5 A
CH7-CH9 + Maintained output ≤ 5 A
DBC905 ≤ 15 A
This is a class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.
© 2022 Signify Holding. All rights reserved. Specifications are subject to change without notice. No representation or warranty as to the accuracy or completeness of the information included herein is given and any liability for any action in reliance thereon is disclaimed. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. All other trademarks are owned by Signify Holding or their respective owners.
AZZ 368 0922 R16
