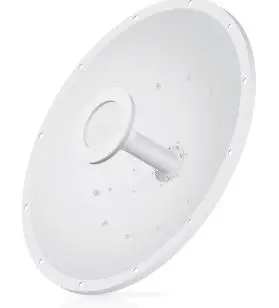

UBIQUITI RD-3G26 Rocket Dish

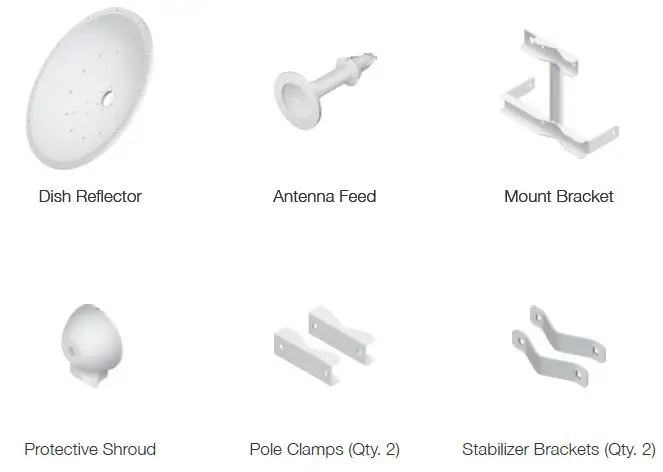

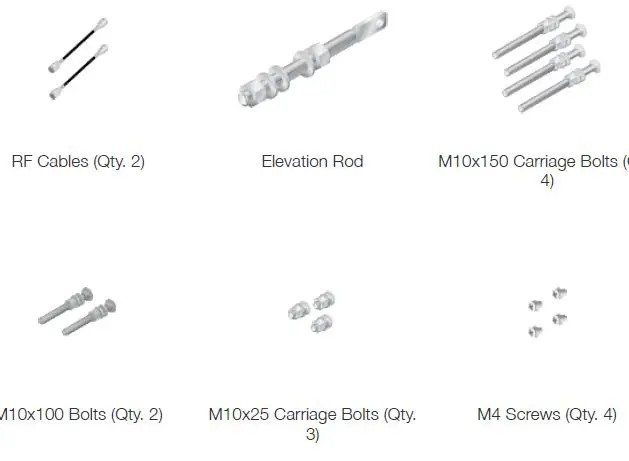

Package Contents
- Rocket®M3/M3 GPS or RocketM365/M365 GPS (sold separately)
- Phillips #1 screwdriver
- 16 mm or 5/8″ wrench
- 24 mm wrench
- Shielded Category 5 (or above) cabling with drain wire should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable

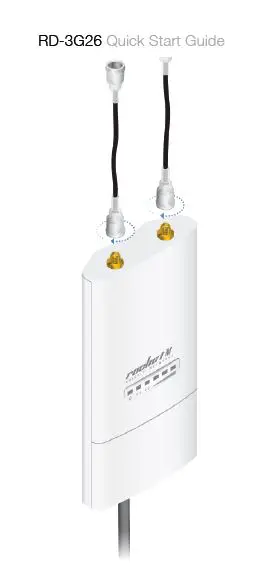

Hardware Installation
IMPORTANT: Handle the Dish Reflector with care. Deformations in its shape may reduce the antenna’s effectiveness.
IMPORTANT: The Dish Reflector and Antenna Feed are keyed so the Antenna Feed can only be installed in a single orientation.
IMPORTANT: Do not handle the antenna by the Antenna Feed once the feed is connected.

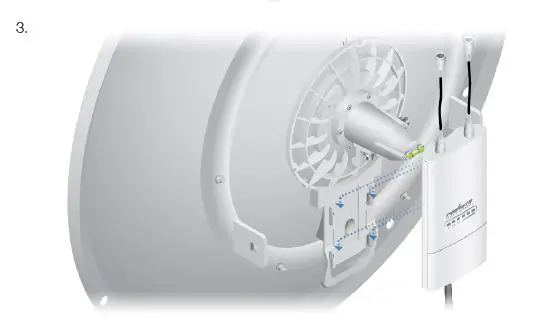

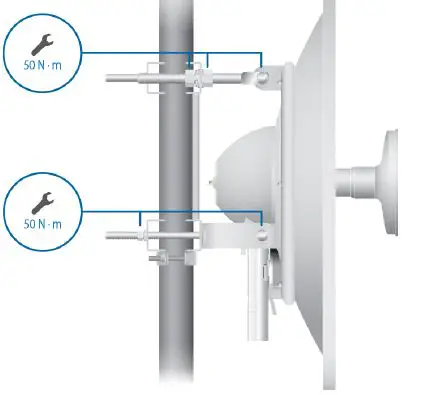

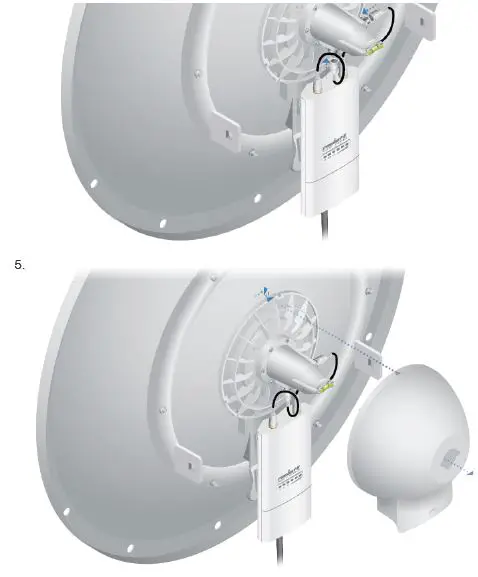

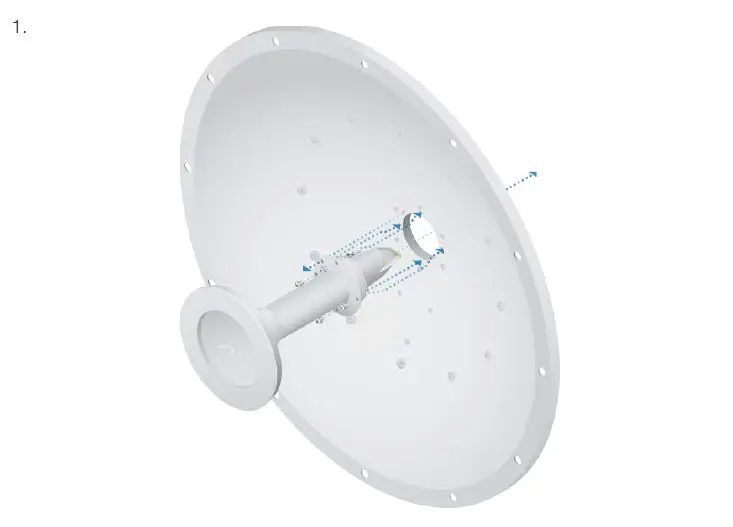

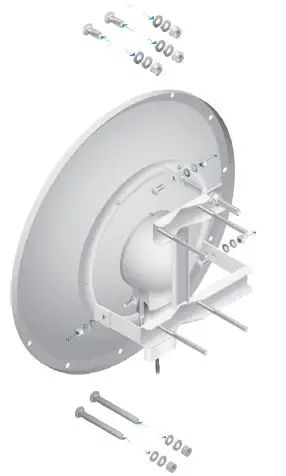

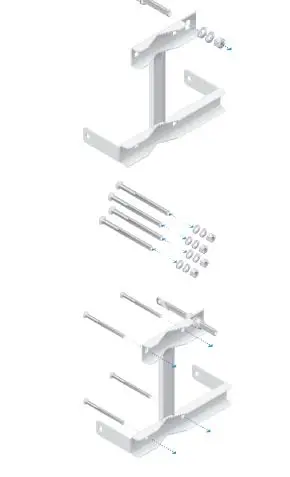

INSTALLATION
TOOLS REQUIRED

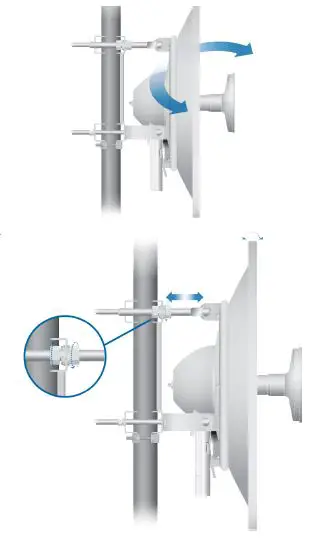

HOW TO FIXED
Specifications
| RocketDish RD-3G26 | |
| Dimensions | 650 x 650 x 300 mm (25.59 x 25.59 x 11.81″) |
| Weight | 9.8 kg (21.61 lb) |
| Frequency | 3.35 – 3.75 GHz |
| Gain | 26 dBi |
| HPOL Beamwidth | 7° (3 dB) |
| VPOL Beamwidth | 7° (3 dB) |
| Front-to-Back Ratio | -33 dB |
| Max. VSWR | 1.7:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 787 N @ 200 km/h (177 lbf @ 125 mph) |
| Polarization | Dual Linear |
| Cross-Pol Isolation | 35 dB Min. |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
Safety Notices
- Read, follow, and keep these instructions.
- Heed all warnings.
- Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
Electrical Safety Information
- Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
- There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
Limited Warranty
ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.
Compliance
RF Exposure Warning
The antenna and transmitter must be installed to provide a separation distance from all persons and must not be located or operating in conjunction with any other antenna or transmitter. For the specific separation distance, refer to the Quick Start Guide for your Rocket device (transmitter).
WEEE Compliance Statement
Declaration of Conformity
Online Resources
© 2022 Ubiquiti Inc. All rights reserved.
Ubiquiti - Warranty
community.ubnt.com/
WEEE Compliance Statement
Ubiquiti - Rethinking IT
