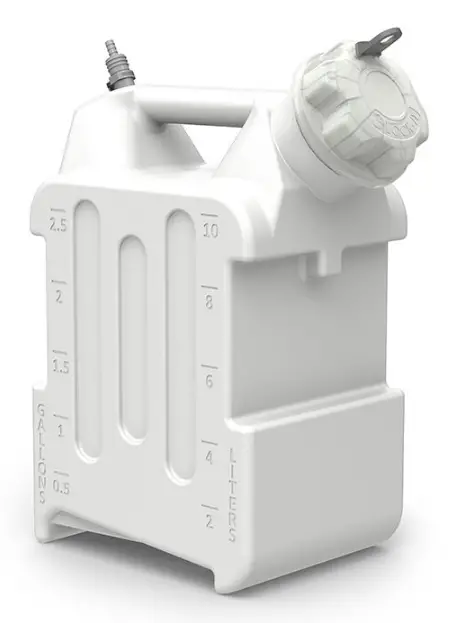

FOAMit J2.5BKSR 2.5 and 5 Gallon Chemical Jug
FOAMit J2.5BKSR 2.5 and 5 Gallon Chemical Jug
READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT
WARNING
Read this manual completely and understand the unit before operating or servicing it.
- Always wear appropriate personal protective equipment (PPE) when operating or servicing the jug.
- Always follow all chemical safety precautions and handling instructions provided by the chemical manufacturer and Safety Data Sheet (SDS).
- Always flush the jug with fresh water when switching from an alkaline to an acid or an acid to alkaline.
- Do not exceed a fluid temperature of 100˚F (37˚C).
- Never use units with hydrocarbons or flammable products.
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations. Always remember to recycle. Specifications and parts are subject to change without notice.
| OPTIONS – | ||||||
| Capacity | Cap Color | Suction Fitting | Rack |
– | Tank Color | |
|
J | 2.5 gallons (2.5) | Black (BK) | Not included (standard) | Not included (standard) | Natural (standard) | |
| 5 gallons (5) | Blue (BL) | Included (S) | Included (R) | Blue (BL) | ||
| Green (GN) | Brown (BNT) | |||||
| Red (RD) | Green (GN) | |||||
| Yellow (YL) | Purple (PLT) | |||||
| Red (RD) | ||||||
| Yellow (YL) | ||||||
Add bold option codes to the item numbers as shown. For standard options, no option code is needed. Examples:
- J2.5BK (standard 2.5-gallon jug with black cap)
- J5BKSR (5-gallon jug with black cap, suction fitting, and rack)
- J2.5BL (2.5-gallon jug with blue cap)
- J2.5BK-GN (2.5-gallon green jug with black cap)
| REQUIREMENTS | |
| Liquid temperature range | 40-100˚F (4.4-37˚C) |
| Chemical compatibility | Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department. |
| SPECIFICATIONS | ||
| 2.5 GALLON JUG | 5 GALLON JUG | |
| Capacity | 2.5 gallons (9.46 liters) | 5 gallons (18.93 liters) |
| Tubing/fittings sizes | Jugs with suction fitting option include fittings for 1/4 in. (6.4 mm) inside diameter hose | |
READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT

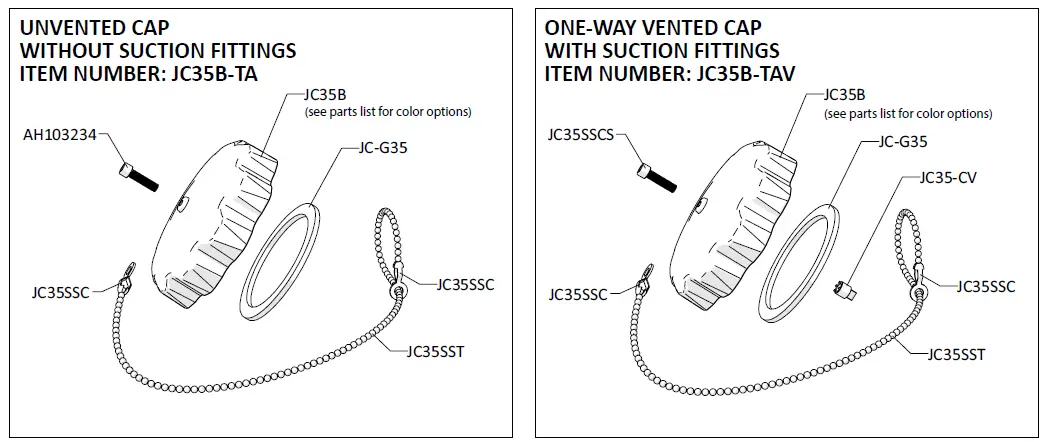

UNVENTED CAP WITHOUT SUCTION FITTINGS

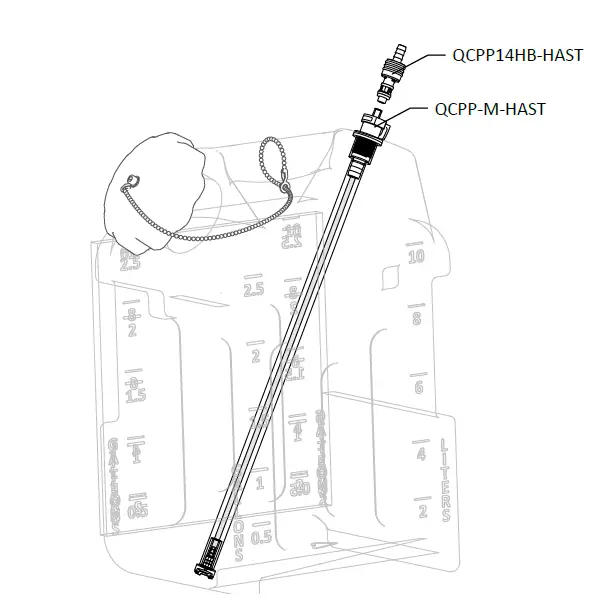

SUCTION FITTINGS REPLACEMENT KIT

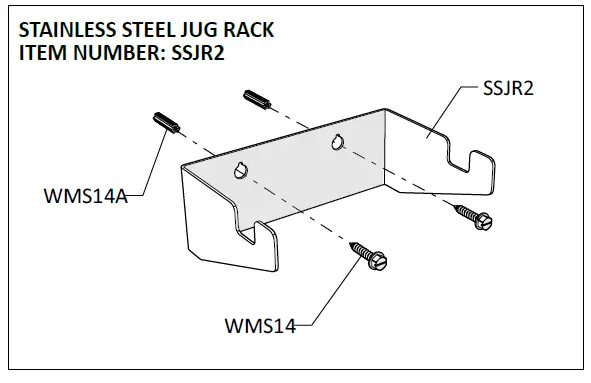

STAINLESS STEEL JUG RACK ITEM NUMBER: SSJR2
| ITEM NUMBER | DESCRIPTION |
| AH103234 | 10-32 X 3/4 SOC CAP SCR 18-8 PLN |

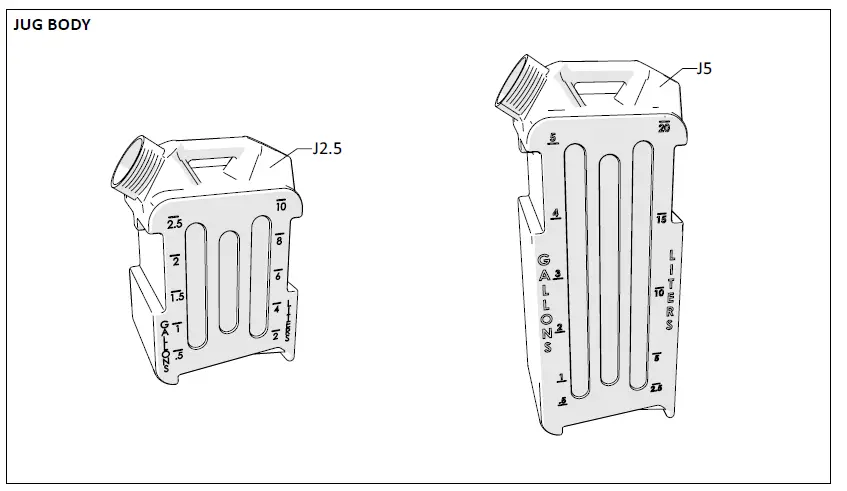

| J2.5 | 2.5 GALLON POLYETHYLENE JUG |
| J5 | 5 GALLON POLYETHYLENE JUG |
| JC35B | BLACK 3.5 INCH ONE WAY VENTED CAP ASSEMBLY – INCLUDES CAP, GASKET, AND CHECK VALVE |
| JC35BL | BLUE 3.5 INCH ONE WAY VENTED CAP ASSEMBLY – INCLUDES CAP, GASKET, AND CHECK VALVE |
| JC35GN | GREEN 3.5 INCH ONE WAY VENTED CAP ASSEMBLY – INCLUDES CAP, GASKET, AND CHECK VALVE |
| JC35RD | RED 3.5 INCH ONE WAY VENTED CAP ASSEMBLY – INCLUDES CAP, GASKET, AND CHECK VALVE |
| JC35YL | YELLOW 3.5 INCH ONE WAY VENTED CAP ASSEMBLY – INCLUDES CAP, GASKET, AND CHECK VALVE |
| JC35B-TA | BLACK 3.5 INCH UNVENTED POLYPROPYLENE CAP-EPDM GASKET-NO CHECK VALVE-BEAD CHAIN TETHER ASSEMBLY |
| JC35B-TAV | BLACK 3.5 INCH ONE WAY VENTED CAP POLYPROPYLENE-EPDM GASKET AND CHECK VALVE-BEAD CHAIN TETHER ASSEMBLY |
| JC35-CV | EPDM CHECK VALVE FOR NON LOCKABLE JUG CAP |
| JC-G35 | JUG CAP GASKET 3.5 INCH CAP VITON |
| JC35SSC | 304 SS END COUPLING FOR SIZE 8-10, ROUND BEAD CHAIN |
| JC35SSCS | VENTED 18-8 SS SOCKET HEAD CAP SCREW, 10-32 THREAD, 3/4 INCH LENGTH .046 VENT DIAMETER |
| JC35SST | ROUND BEAD CHAIN, TYPE 304 SS |
| J2.5-SR | 2.5 GALLON SUCTION FITTINGS REPLACEMENT KIT (SUCTION TUBE, COUPLER, PLUG) |
| J5-SR | 5 GALLON SUCTION FITTINGS REPLACEMENT KIT (SUCTION TUBE, COUPLER, PLUG) |
| QCPP14HB-HAST | 1/4IN IN-LINE HOSE BARB-POLYPRO BODY-HASTELLOY SPRING |
| QCPP-M-HAST | 3/8IN PANEL MOUNT SOCKET-SUCTION 3/8 ID X QUICK CONNECT-HASTELLOY SPRING |
| SSJR2 | SS RACK TO MOUNT CHEMICAL JUG-INCLUDES MOUNTING HARDWARE |
| WMS14 | 14 X 1 1/4 HEX W/H SMS SLOTT-SS |
| WMS14A | 5/16 X 1 1/2 STRAIGHT PLASTIC ANCHOR |
