Auto Satellite Dish
User Guide

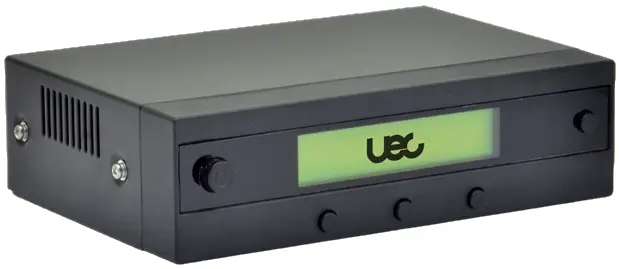

Stand-Alone Indoor Control Unit

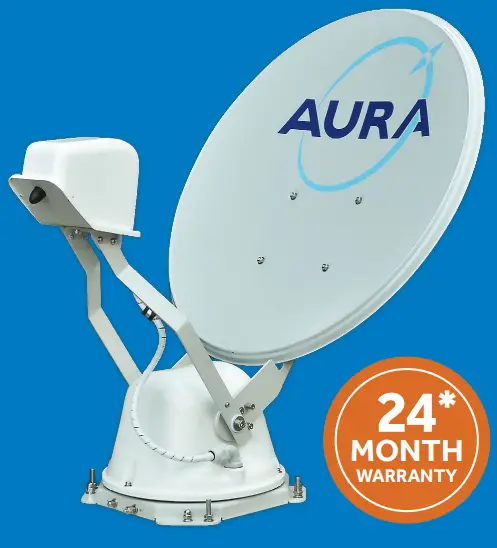

AURA Auto Satellite Dish
Enjoy your shows Everywhere
- Easy to Operate,
- One Touch Operation,
- Integrated solution with UEC VAST™ Receiver,
- Run one UEC VAST™ plus Pay TV Receivers from single HALO Dish with Quad LNB support,
- Dedicated after sales support,
- Built in GPS and Auto Skew adjustment,
- Single cable connection to Satellite
- Dish (minimum to support a single receiver).
Locate your nearest stockist
www.uec.com.au
https://uec.com.au/
SATELLITE SPECS
| Frequency Range: Ku-band GPS Interface: Built-in DVB-S2 Compatible Polarization: Vertical/Horizontal Azimuth Range: 0° – 360° Mechanical Accuracy: 0.67° Operation Temperature: -25° – +60° Storage Temperature: -25° – +80° Water Ingress: IPX6 Antenna Gain: 36.67 dB Channel: 52 | LNB Outputs: 2 Elevation Range: 0° – 140° Skew Range: -90° – +90° Survival Wind: 180 km/h Operation Power: 9 – 30VDC Humidity Limit: 95% R.H Skew Control: Manual/Automatic Satellite Coverage: Australia Wide (Reduced Coverage) Warranty: 2 years (*3 if installed by authorised agent) |
HARDWARE
Dish Dimensions: 60cm x 65 cm
Dish and Motor Weight: 14 kg
Required Roof Area: Refer to Constraints Drawings
Find the Constraints Drawings Here
https://www.uec.com.au/satellite-dish-docs
A true end-to-end solution
Whether you’re at home or on the road, UEC’s full service solution has you covered . Enjoy your shows wherever you are. Complete your VAST™ System with UEC:
- HALO or AURA Automatic Satellite Dish,
- DSD4921RV Vast Satellite Receiver,
- 24” HDTV or Smart TV
UEC VAST Set Top Boxes and Auto-pointing Satellite Dishes
