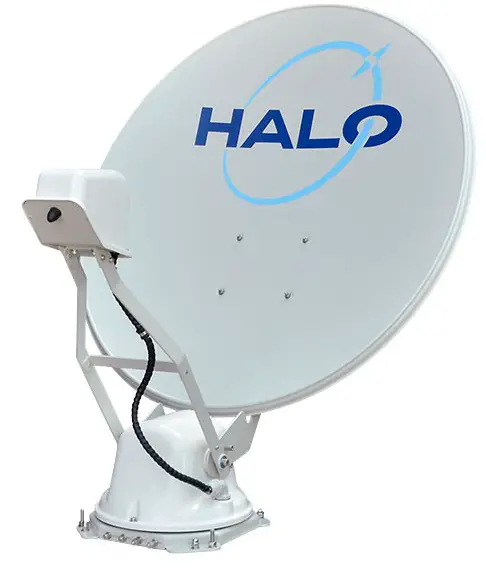

uec HALO Auto Satellite Dish User Guide
- Easy to Operate,
- One Touch Operation,
- Integrated solution with UEC VAST™ Receiver,
- Run two UEC VAST™, plus Pay TV Receivers
- from single HALO Dish with Quad LNB support,
- Dedicated after sales support,
- Built in GPS and Auto Skew adjustment,
- Single cable connection to Satellite
- Dish (minimum to support a single receiver).
Locate your nearest stockist
www.uec.com.au
SATELLITE SPECS
- Frequency Range: Ku-band
- GPS Interface: Built-in
- DVB-S2 Compatible
- Polarization: Vertical / Horizontal
- Azimuth Range: 0° – 360°
- Mechanical Accuracy: 0.67°
- Operation Temperature: -25° – +60°
- Storage Temperature: -25° – +80°
- Water Ingress: IPX6
- Satellite Coverage: Australia Wide (Full Coverage)
- Warranty: 2 years (*3 if installed by authorised agent)
- Antenna Gain: 39.5dB
- Channel: 52
- LNB Outputs: 4
- Elevation Range: 0° – 140°
- Skew Range: -90° – +90°
- Survival Wind: 180km/h
- Operation Power: 9 – 30VDC
- Humidity Limit: 95% R.H
- Skew Control: Manual / Automatic
HARDWARE
- Dish Dimensions: 85cm x 93cm
- Required Roof Area: Refer to Constraints Drawings
- Dish and Motor Weight: 15kg
Find the Constraints Drawings Here
www.uec.com.au/satellite-dish-docs
A true end-to-end solution
Whether you’re at home or on the road, UEC’s full service solution has you covered . Enjoy your shows wherever you are. Complete your VAST™ System with UEC:
- HALO or AURA Automatic Satellite Dish,
- DSD4921RV Vast Satellite Receiver,
- 24” HDTV or Smart TV
UEC VAST Set Top Boxes and Auto-pointing Satellite Dishes
