FOERSTER TECHNIK Automatic Calf Feeder

INSTALLATION INSTRUCTION

This document gives a brief overview of the most important steps when recommissioning a feeder

1. Remove the protective cover
   • Place the feeder in the desired position and clean the outside with a damp cloth.
2. Mounting the protective grid/cover of the powder hopper
3. Fill up milk replacer

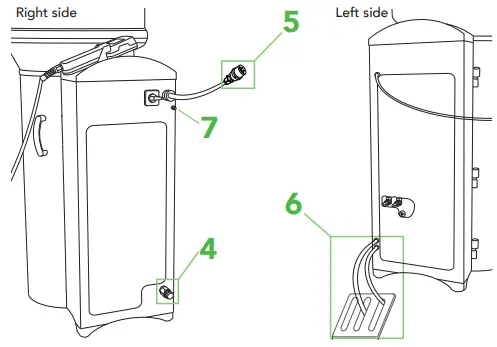

4. Connect water
   • Use a new hose!
5. Connect power
6. Provide draining options
   • On the left side of the feeder
   • In front of the feeder in the middle of the housing
   • At every feeding station
7. Establish potential equalization
8. Attach new teats and suction hoses
9. Connect the Ethernet cable and, if necessary, the identification cable
   • Remove the dummy plug/sealing cap Open the door on the left side and plug in the Ethernet cable
   • TIPP: check QuickStartGuide 2.3 CalfCloud
10. Install external detergent supply
    • Check storage level and re-fill if necessary.

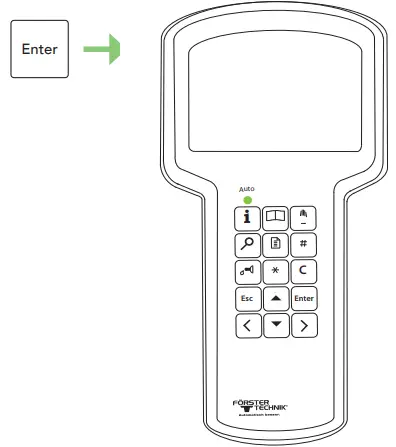

11. Turn the automatic feeder on

• This checklist refers to the basic equipment of the calf feeder. Not all available functions of the automatic feeder or the extensions can be shown.
• For detailed information and valid warnings as well as safety instructions, please refer to the instructions manual. (Status 23/02)
