QUICK START GUIDE
Automatic calf feeder 2.1 SynchroFeed (IFS) single and quadruple

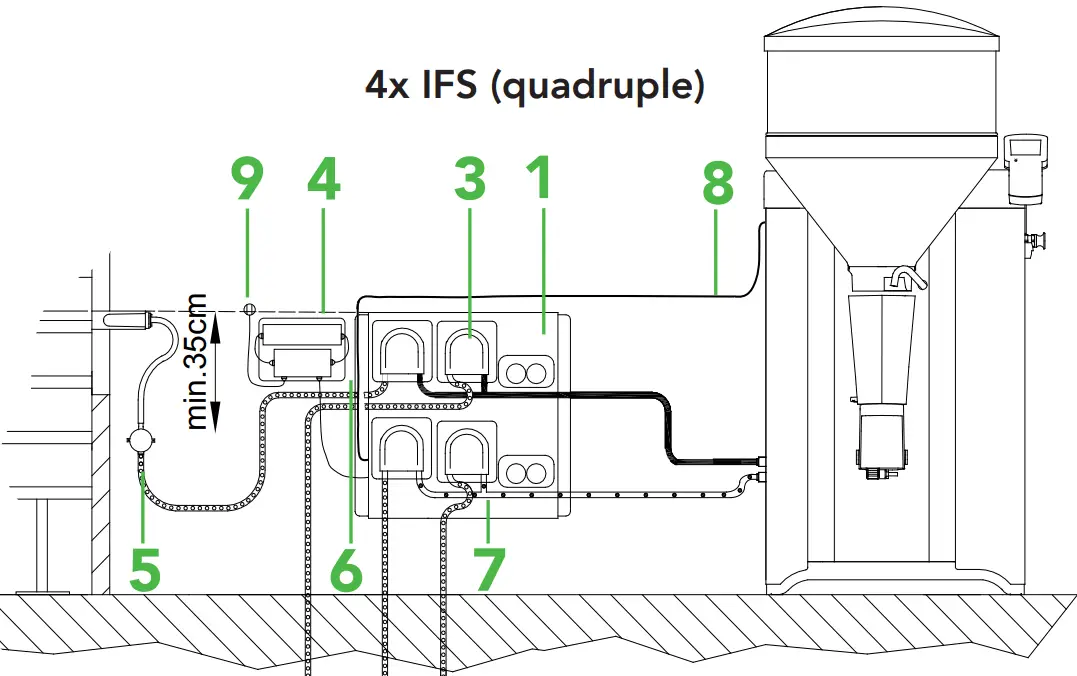

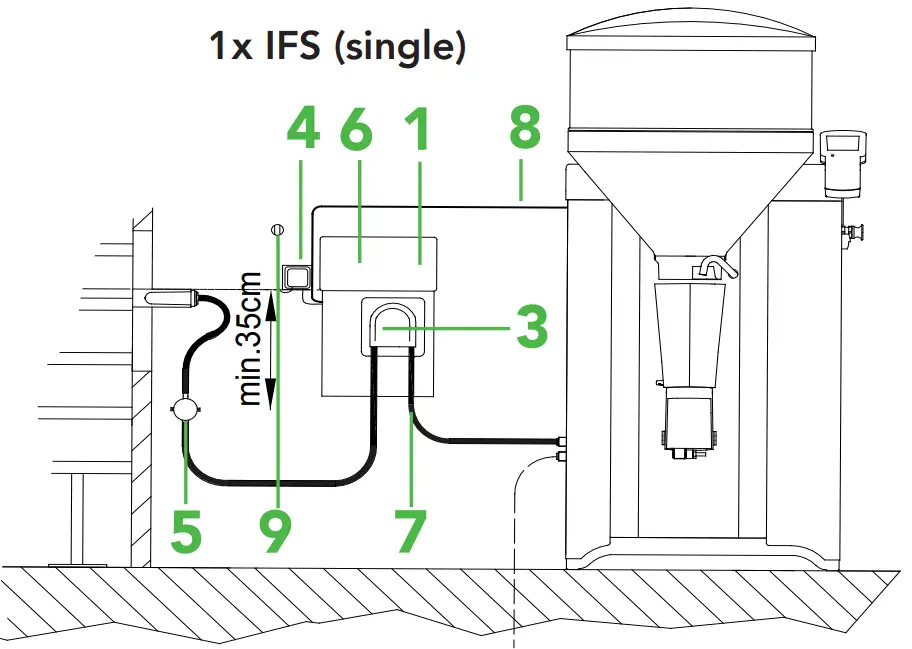

This document provides a brief overview of how to set up a single or quadruple IFS.

1. Mount the SynchroFeed feeding station
   Not higher than the teat and near to the automatic feeder maximum length of the suction hose with pump = 8m.
2. Establish ground connection
3. Insert the pump hose into the servo pump
   The pump house (from Förster-Technik) has to lie against the pumps housing in the top half.
4. Mount the power supply unit
5. Mount the pressure sensor
   Close to the teat but min. 35 cm/14“ below.
6. Connect the antenna to the IFS
7. Connect the suction hose & prepare rinse return flow
   Per feeding station, a complete suction hose should not be longer than 8 m/24‘.
8. Connect IFS and feeder via CANbus cable
9. Connect the power supply

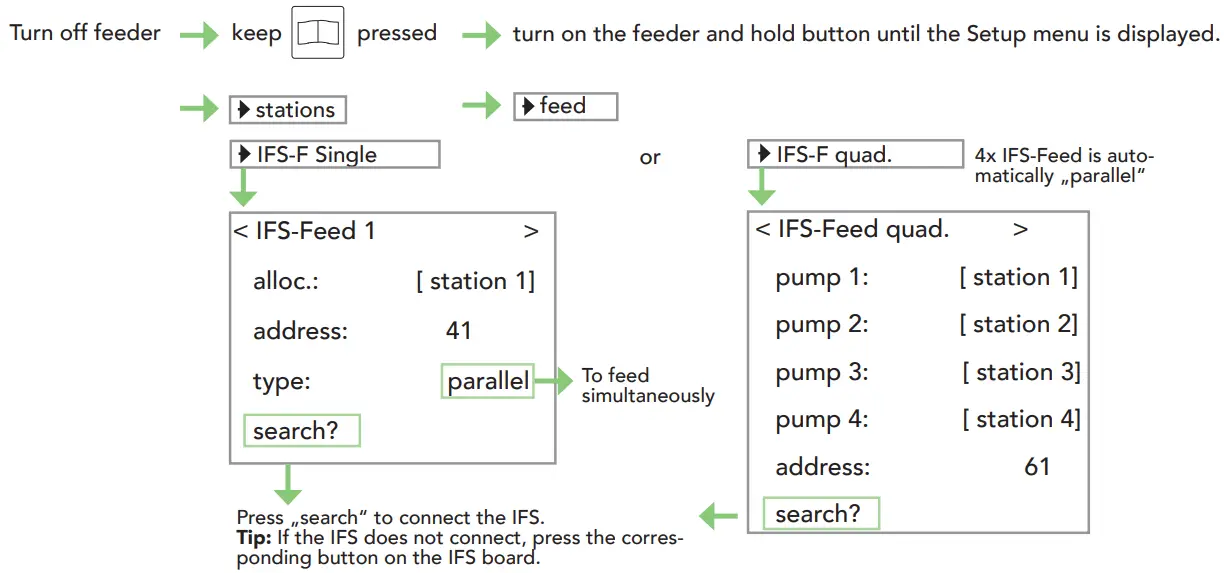

10. Register the IFS feed station

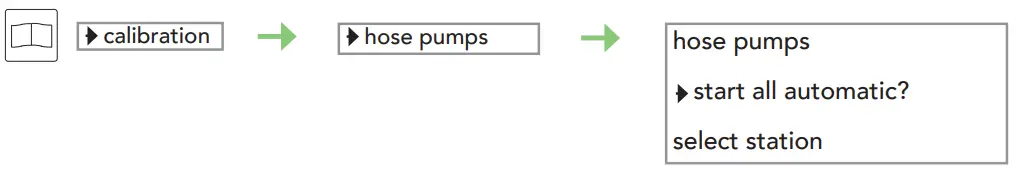

11. Calibrate the IFS

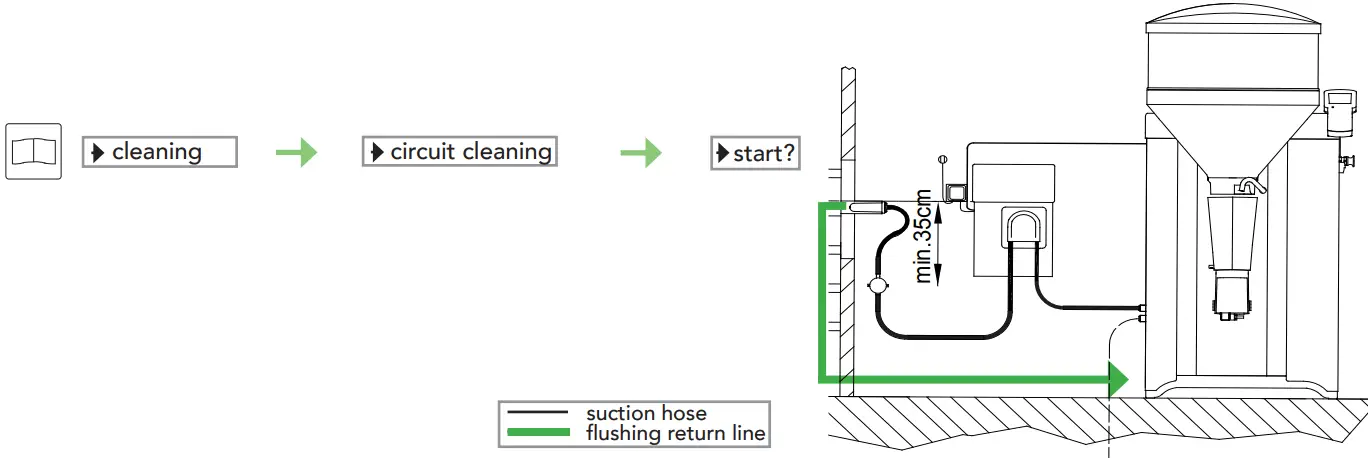

12. Perform cleaning
    Connect suction hose and flushing return line.

13. Further Information
    The pump speed can be adjusted for each individual group.
    Only use Förster-Technik teats with open ends. Don‘t use teats with a cross-cut, these could damage the pump.
    Has the suction hose been replaced by a technician if damaged?
    Don‘t ignore calibration warnings. If warnings come back daily, check the pump and replace the pump hose with a technician if necessary.
    Clean the membrane of the pressure sensor at least every 3 months with warm water.
    Replace if damaged or out of shape.
    Only use Förster-Technik hoses.

This checklist refers to the basic equipment of the calf feeder. Not all available functions of the automatic feeder or the extensions can be shown.
For detailed information and valid warnings as well as safety instructions, please refer to the instructions manual. (Status 21/07)
