SPO 868-915-6
Base Station Antenna ISM LoRa 868 MHz & 915 MHz bands
Instruction Manual
DESCRIPTION

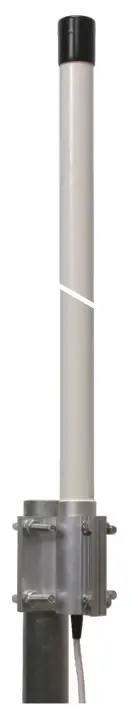

Base station antennas conceived for ISM LoRa systems working on 868 MHz & 915 MHz.
The radiant colinear dipoles are made of PCB and protected by a strong fiberglass tube.

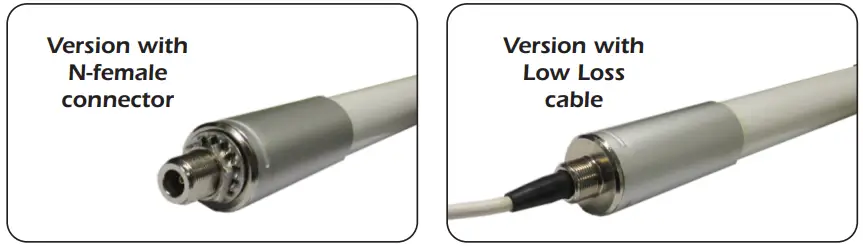

SPO 868-915-6 are aviable in 2 versions: N-f connector (fitted at the bottom) or supplied with 5m Low Loss cable directly connected and SMA-male (other type on request).
SPECIFICATIONS
| Electrical Data | SPO 868-915-6 N-f connector | SPO 868-915-6 cable version |
| Type | 3 x 1/2 ) Colinear | |

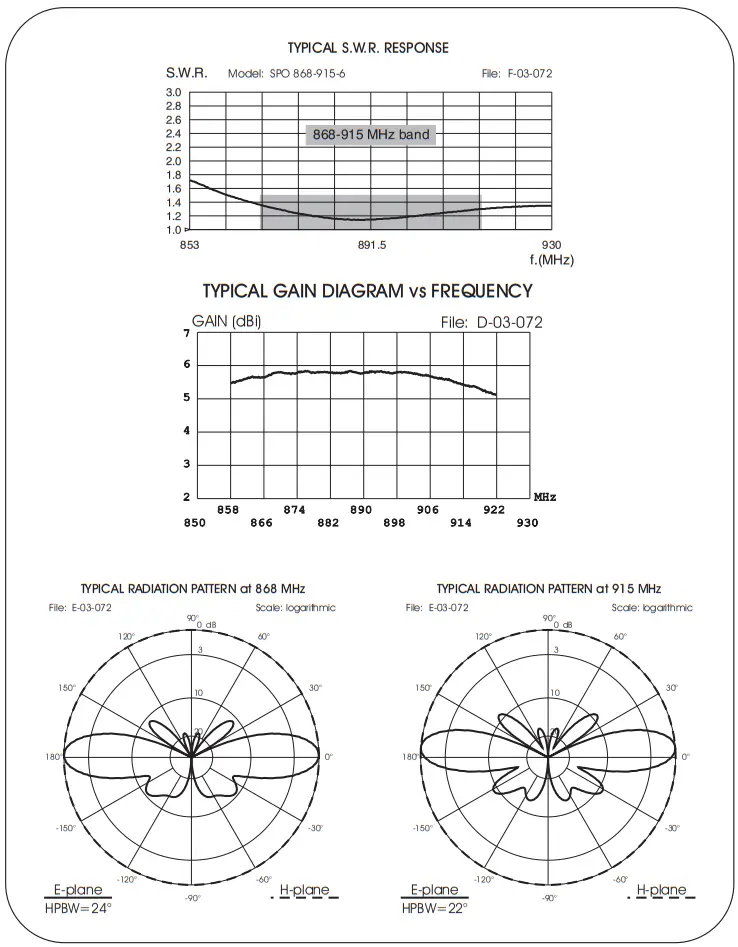

| Frequency Range @ SWR 1.5 | 868 – 915 MHz | |
| Impedance | 50 Ω | |
| Antenna detection DC resistance | on request | |
| Radiation (H-plane) | 360° omnidirectional | |
| Radiation (E-plane) Beamwidth @ -3 dB: | 23° | |
| Radiation angle deg. | 0° | |
| Polarization | Linear Vertical | |
| Gain | 3.7 dBd, 5.8 dBi | |
| Max Power (CW) @ 30°- C | 20 Watts | |
| Cable Type / Length | / | White Low Loss cable / 5m 16.4 It |
| Connector | N-female, gold plated central pin | SMA-male, other type on request |
Mechanical Data
| Housing & Radome Material | Fiberglass, PCB, Anodized aluminium, Nickel plated brass | |
| Bracket & Hardware Material | Aluminium, Stainless steel, Zinc plated steel | |
| Wind Load @ 150 Km/h,93 mi/h | 36 N | |
| Wind Resistance | 140 Km/h, 87 mi/h | |
| Wind Surface | 0.028 m2; 0.3 ft2 | |
| Height (approx.) | 840 mm, 2.75 ft | |
| Weight (without bracket, approx.) | 460 gr, 1.9 lb I | 560 gr, 2.1 lb |
| Operating Temperature | -40 °C to +80 °C | |

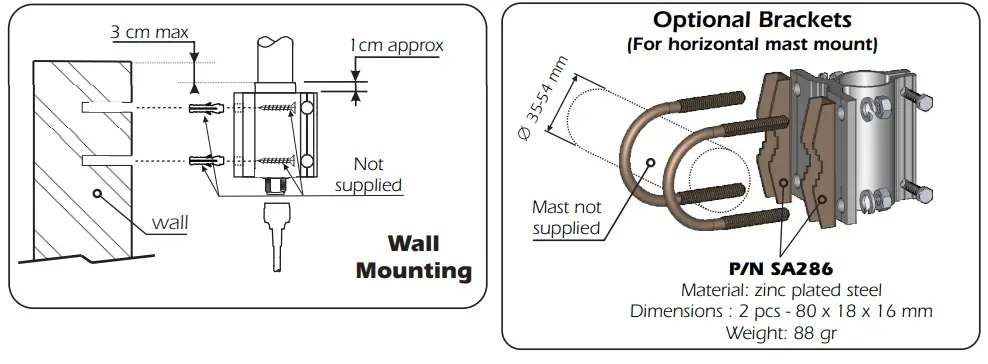

| Installation type | Mast: Ø 35-52 mm, Ø 1.4-2.0 inch with U-bolt Wall: mounting screws (not included) | |

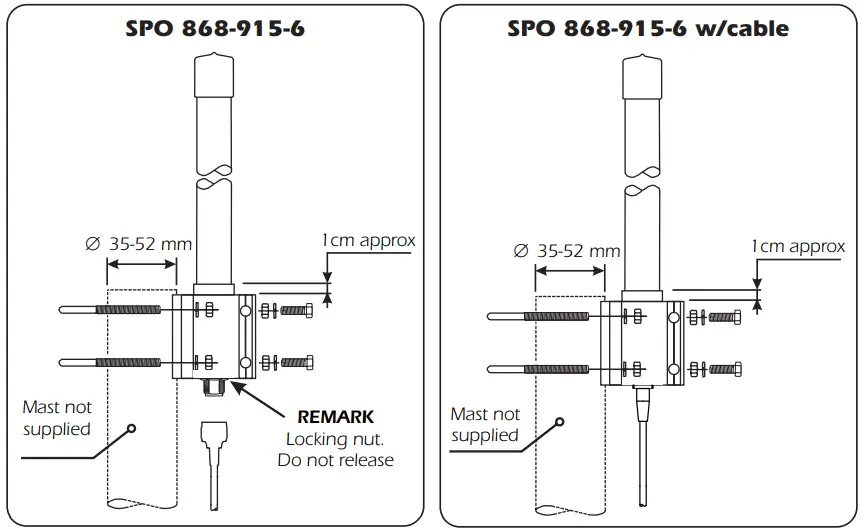

MOUNTING INSTRUCTIONS

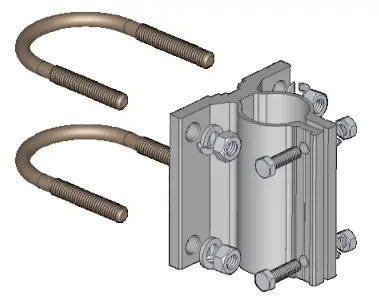

Standard Mounting Bracket
Spare parts: P/N SA285
Materials: extruded aluminum
Hardware: stainless & zinc plated steel
Dimensions : 80 x 76 x 65 mm
Weight: 363 gr
Part list
| Q. ty | Description | |
| 1 | Extruded aluminium bracket | |
| 2 | M8x200 U-bolt | |
| 4 | M8 Grower washer | |
| 4 | M8 Hexagonal nut | |
| 2 | M6x20 Hexagonal head screw | |
| 2 | M6 Grower washer | |
| 2 | M6 Hexagonal nut | |
HI-QUALITY ANTENNAS MADE IN ITALY
B Copyright SIRIO antenne
– Technical Data are subjected to change
– Printed in ITALY
– Rev. 05/12/2019
– Cod. ID465
