AD 3700 Active Directional Antenna
Instruction Manual
Instruction manual
SENNHEISER
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Printed in Germany, Publ. 02/22, 583970/A03
OPERATION

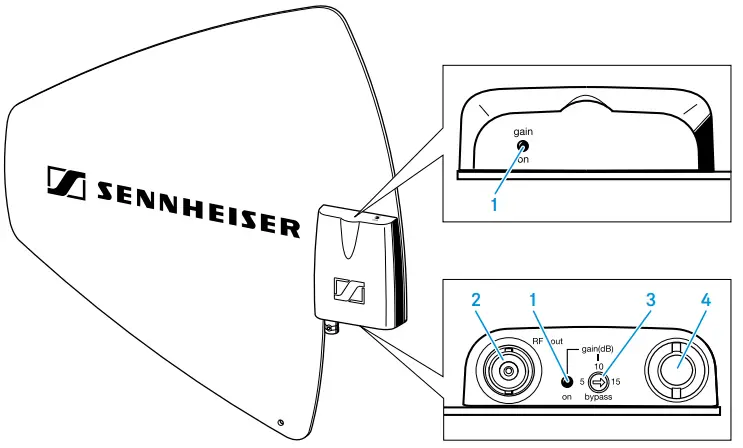

Overview
- LED operation indicator
- BNC socket, RF output (RF out)
- Amplification selector
- Mounting thread (3/8″ or 5/8″)

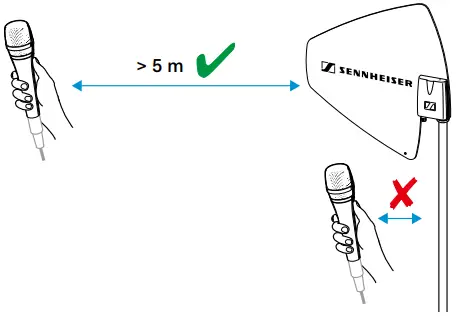

Setup

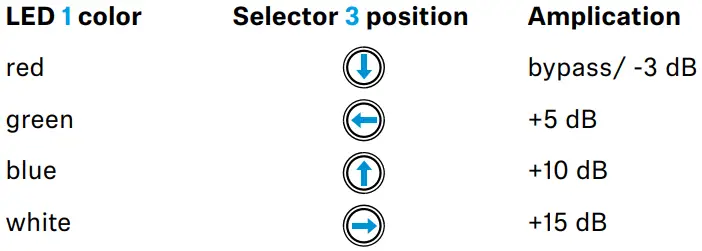

LED operation indication

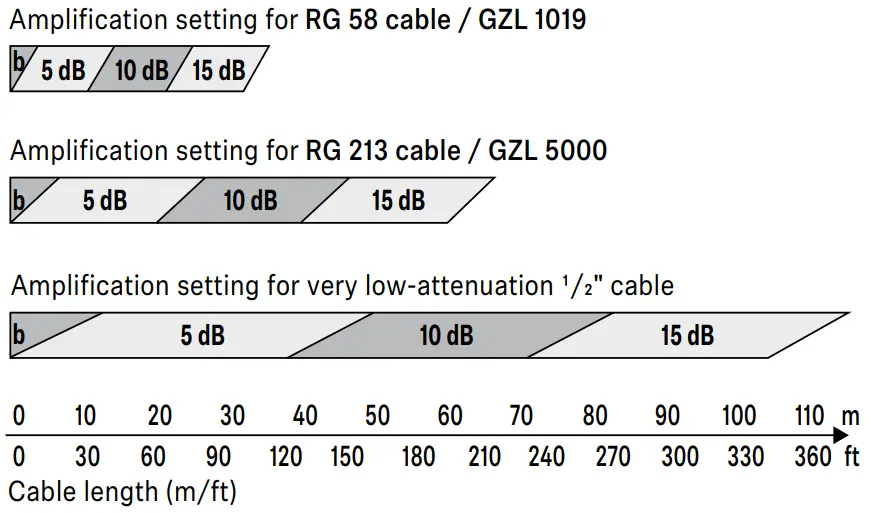

Suitable cable types and corresponding amplification settings
Depending on the cable length, you have to adjust the amplification using the selector
Accessories
| GZL 1019-A1 | BNC/BNC cable, 1 m | Art. no. 002324 |
| GZL 1019-A5 | BNC/BNC cable, 5 m | Art. no. 002325 |
| GZL 1019-A10 | BNC/BNC cable, 10 m | Art. no. 002326 |
| GZG 1029 | Swivel joint | Art. no. 003226 |
| GZP 10 | Mounting plate for GZG 1029 | Art. no. 003193 |
COMPLIANCE
| Europe |  |
| UK |  |
| China |  |
SPECIFICATIONS
| Frequency range | 470 – 866 MHz |
| Apex angle (-3 dB) | approx. 100° |
| Front-to-back ratio | ≥ 14 dB |
| Gain | approx. 3 dB |
| Amplification (booster) typ. | bypass (-3 dB), 5 dB, 10 dB, 15 dB adjustable, without DC feed: -6 dB |
| Impedance | 50 Ω |
| OIP3 | ≥ 32 dBm |
| RF connection | BCN socket |
| Power supply | 9 – 15 V ⎓ / 160 – 100 mA, DC feed via the antenna cable (RF OUT socket) |
| Mounting connection | 3/8″ or 5/8″ thread |
| Dimensions | 329 x 322 x 23 mm |
| Weight incl. booster | 625 g |

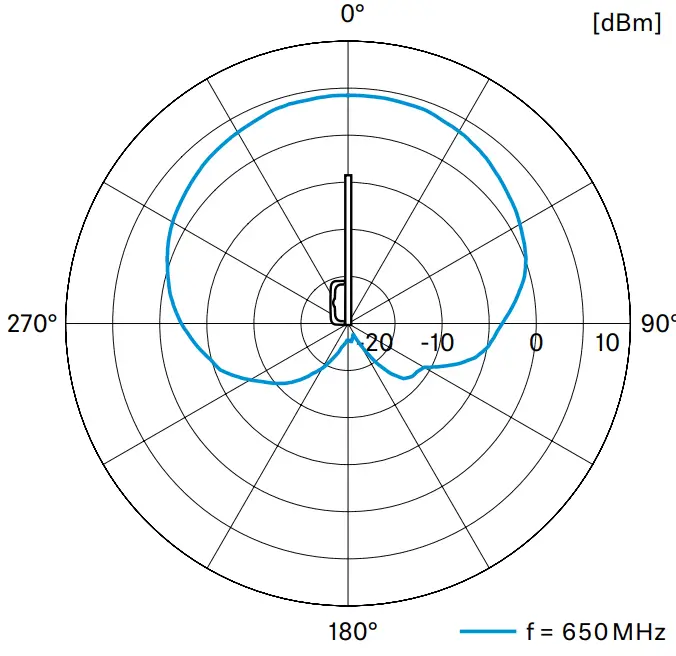

Pick-up pattern
Important safety instructions
- Read these safety instructions and the instruction manual of the product.
- Keep these safety instructions and the instruction manual of the product. Always include all instructions when passing the product on to third parties.
- Always include this instruction manual and the safety guide when passing the product on to third parties.
- Only use attachments, accessories, and spare parts specified by the manufacturer.
- Do not attempt to open the product housing on your own. The warranty is voided for products opened by the customer.
- Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, liquid has been spilled or objects have fallen into the product, when the product has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Use the product only under the conditions of use listed in the specifications.
- Do not operate the product if it was damaged during transportation.
- Always run cables so that no one can trip over them.
- Keep the product and its connections away from liquids and electrically conductive objects that are not necessary for operating the product.
- Do not use any solvents or aggressive cleaning agents to clean the product.
- Caution: Very high signal levels can damage your hearing and your loudspeakers. Reduce the volume on the connected audio devices before switching on the product; this will also help prevent acoustic feedback.
Intended use
The product is designed for indoor and outdoor use.
The product can be used for commercial purposes.
It is considered improper use when the product is used for any application not named in the corresponding instruction manual.
Sennheiser does not accept liability for damage arising from improper use or misuse of this product and its attachments/accessories.
Before putting the products into operation, please observe the respective country-specific regulations!
Safety instructions for antennas
Use safety wires to protect the antennas against tipping/dropping.
The safety wires, rope terminations, and coupling links must comply in their dimensioning and condition with the regulations and standards of the country in which they are used!
Manufacturer declarations
Warranty
Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on these products.
For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.
FOR AUSTRALIA ONLY
Sennheiser goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty is in addition to other rights or remedies under the law. Nothing in this warranty excludes, limits, or modifies any liability of Sennheiser which is imposed by law, or limits or modifies any remedy available to the consumer which is granted by law.
To make a claim under this warranty, contact
Sennheiser Technical Services and Spare Parts Sales
c/o Linfox, Gate 3, 1 Fox Lane,
Erskine Park, 2759, NSW, Australia
Phone: (02) 9910 6700
email: [email protected]
All expenses of claiming the warranty will be borne by the person making the claim.
The Sennheiser International Warranty is provided by Sennheiser
Australia Pty Ltd (ABN 68 165 388 312), The Zenith, Tower A, L14,
821 Pacific Highway Chatswood NSW 2067, Australia.
In compliance with the following requirements
EU: • WEEE Directive (2012/19/EU)
UK: • WEEE Regulations (2013)
Notes on disposal
The symbol of the crossed-out dumpster on the product, the (rechargeable) battery (if applicable), and/or the packaging indicates that these products must not be disposed of with normal household waste, but must be disposed of separately at the end of their service life. For the packaging, follow the regulations in your country for separating waste. Improper disposal of packaging materials can be harmful to your health and the environment.
The separate collection of waste electrical and electronic equipment, (rechargeable) batteries (if applicable), and packaging is intended to promote reuse and recycling and to prevent negative impacts on public health and the environment, for example, due to hazardous substances contained in these products. At the end of their service life, recycle electrical and electronic equipment and (rechargeable) batteries so that their materials can be reused and to prevent environmental pollution.
If (rechargeable) batteries can be removed without destroying them, you are obliged to dispose of them separately (see the product’s operating instructions for information on how to remove the batteries safely). Be especially careful when handling (rechargeable) batteries containing lithium, as these pose special hazards, such as the risk of fire and/or health risks if button cells are swallowed. Reduce battery waste as much as possible by using longer-life batteries or rechargeable batteries.
Further information on the recycling of these products can be obtained from your municipal administration, from the municipal collection points, or from your Sennheiser partner. You may also be able to return electrical or electronic equipment to your distributor if they are legally required to do so. By disposing of your batteries properly, you are helping to protect public health and the environment.
UK Declaration of conformity
- RoHS Regulations (2012)
- Radio Equipment Regulations (2017)
EU Declaration of conformity
- RoHS Directive (2011/65/EU)
Hereby, Sennheiser electronic GmbH & Co. KG declares that the radio equipment type (accessory) AD 3700 is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: www.sennheiser.com/download.
Statements regarding the FCC and Industry Canada rules
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
