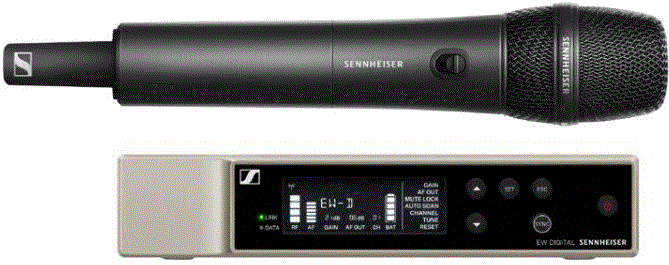

SENNHEISER EW-D 835-S Evolution Wireless Digital
Product Information:
The Evolution Wireless Digital EW-D 835-S SET is a versatile and feature-rich digital wireless system designed for singers, speakers, and instrumentalists. It allows for seamless product pairing and management via the EW-D Smart Assist App. The system features Sennheiser`s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch. The system is available in different variants with different frequency ranges. Additionally, the system is compatible with various microphone modules such as MMD 835-1, MMD 845-1, MME 865-1, MMD 935-1, MMD 945-1, MMK 965-1, MMD 42-1, Neumann KK 204, Neumann KK 205, MM 435, MM 445, ME 9002, ME 9004, and ME 9005.
Product Usage Instructions:
- Locate the Evolution Wireless Digital EW-D 835-S SET package.
- Unpack the package and ensure that all components are included.
- Choose the appropriate variant of the system based on your frequency range requirements.
- Install the microphone module compatible with the EW-D SKM-S handheld transmitter if required.
- Install the battery pack into the handheld transmitter and charge it using the charging set.
- Connect the active antenna splitter or passive directional antenna to the system if required.
- Download and install the EW-D Smart Assist App on your mobile device or tablet.
- Pair and manage the system through the app.
- Turn on the system and test it to ensure it is working correctly.
- Use the system for your singing, speaking, or instrumental performances.
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.
Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.
FEATURES
• Digital wireless eliminates noise, interference and
static bursts
• UHF transmission greatly enhances range, reliability
and scalability
• Mobile App streamlines setup and operation and eliminates
complicated menus
• Automated setup creates reliable connections with
minimal time and effort
• Up to 2,240 selectable frequencies
• Transmission range: up to 100 m in an ideal environment
(without obstacles)
• Lithium Ion battery pack delivers up to 12 hours of operation
(up to 8 hours of operation with AA batteries)
• 56 MHz Bandwidth will allow for up to 90 channels
• Preserves every detail of even the most dynamic performances
with 134 dB transmitter dynamic range
DELIVERY INCLUDES
• EW-D EM rack receiver
• EW-D SKM-S handheld transmitter
• MMD 835 microphone module
• MZQ 1 microphone clamp
• 2 rod antennas
• power supply with country adapters
• rackmount set
• 4 rubber feet
• quick guide
• safety guide
• manufacturer declaration sheet
Evolution Wireless Digital
EW-D 835-S SET | Handheld Set
PRODUCT VARIANTS
| PRODUCT VARIANTS | ||
| EW-D 835-S SET (Q1-6) | 470.2 – 526 MHz | Art. no. 508750 |
| EW-D 835-S SET (R1-6) | 520 – 576 MHz | Art. no. 508751 |
| EW-D 835-S SET (R4-9) | 552 – 607.8 MHz | Art. no. 508752 |
| EW-D 835-S SET (S1-7) | 606.2 – 662 MHz | Art. no. 508753 |
| EW-D 835-S SET (S4-7) | 630 – 662 MHz | Art. no. 508754 |
| EW-D 835-S SET (S7-10) | 662 – 693.8 MHz | Art. no. 508755 |
| EW-D 835-S SET (U1/5) | 823.2 – 831.8 MHz & 863.2 – 864.8 MHz | Art. no. 508756 |
| EW-D 835-S SET (V3-4) | 925.2 – 937.3 MHz | Art. no. 508758 |
| EW-D 835-S SET (Y1-3) | 1785.2 – 1799.8 MHz | Art. no. 508759 |
ACCESSORIES
| ACCESSORIES | |||
| EW-D ASA (Q-R-S) | Active Antenna Splitter | 470 – 694 MHz | Art. no. 508879 |
| EW-D ASA (T-U-V-W) | Active Antenna Splitter | 694 – 1075 MHz | Art. no. 508880 |
| EW-D ASA (X-Y) | Active Antenna Splitter | 1350 – 1805 MHz | Art. no. 508881 |
| EW-D ASA CN/ANZ (Q-R-S) | Active Antenna Splitter | 470 – 694 MHz | Art. no. 508998 |
| EW-D AB (Q) | Antenna Booster | 470 – 550 MHz | Art. no. 508873 |
| EW-D AB (R) | Antenna Booster | 520 – 608 MHz | Art. no. 508874 |
| EW-D AB (S) | Antenna Booster | 606 – 694 MHz | Art. no. 508875 |
| EW-D AB (U) | Antenna Booster | 823 – 865 MHz | Art. no. 508876 |
| EW-D AB (V) | Antenna Booster | 902 – 960 MHz | Art. no. 508877 |
| EW-D AB (Y) | Antenna Booster | 1785 – 1805 MHz | Art. no. 508878 |
| ADP UHF (470 – 1075 MHz) | Passive directional antenna | 470 – 1075 MHz | Art. no. 508863 |
| BA 70 | Rechargeable battery pack for SK and SKM-S | Art. no. 508860 | |
| L 70 USB | Charger for BA 70 rechargeable battery pack | Art. no. 508861 | |
| EW-D CHARGING SET | Set of L 70 USB charger and 2 BA 70 rechargeable battery packs | Art. no. 508862 | |
| EW-D COLOR CODING SET | Colored labels for wireless link identification for EM, SKM-S, SK | Art. no. 508989 | |
| EW-D SK COLOR CODING | Colored labels for wireless link identification for SK | Art. no. 508990 | |
| EW-D SKM COLOR CODING | Colored labels for wireless link identification for SKM-S | Art. no. 508991 | |
| EW-D EM COLOR CODING | Colored labels for wireless link identification for EM | Art. no. 508992 | |

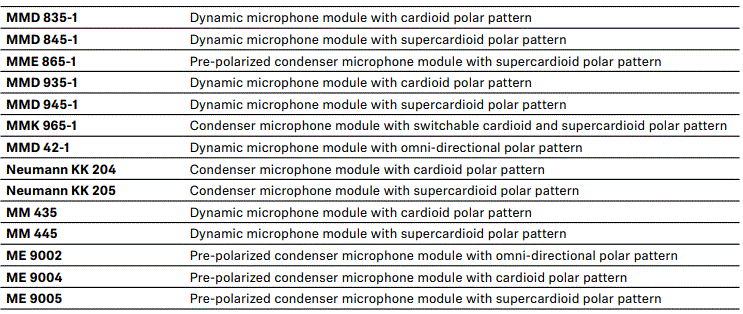

MICROPHONE COMPATIBILITY
Microphone modules compatible with the EW-D SKM-S handheld transmitter

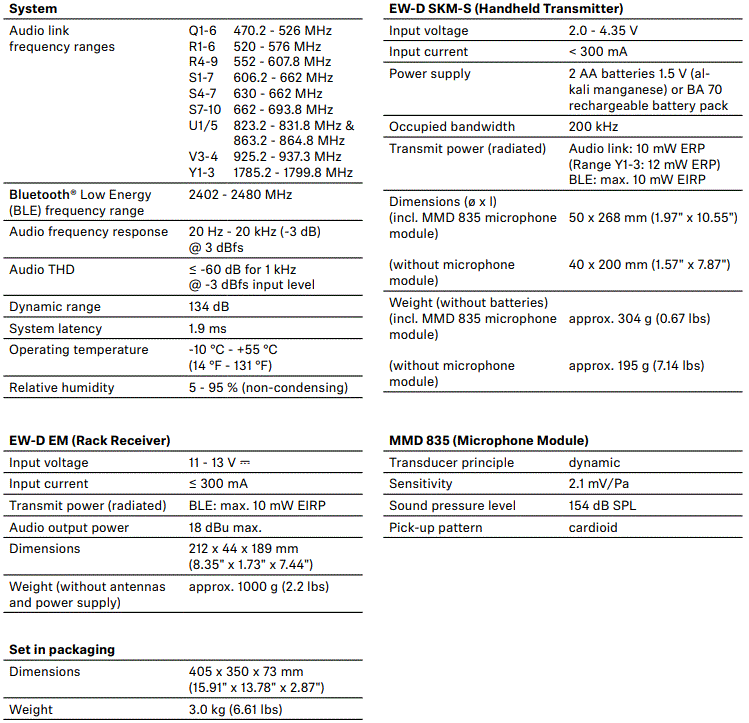

SPECIFICATIONS

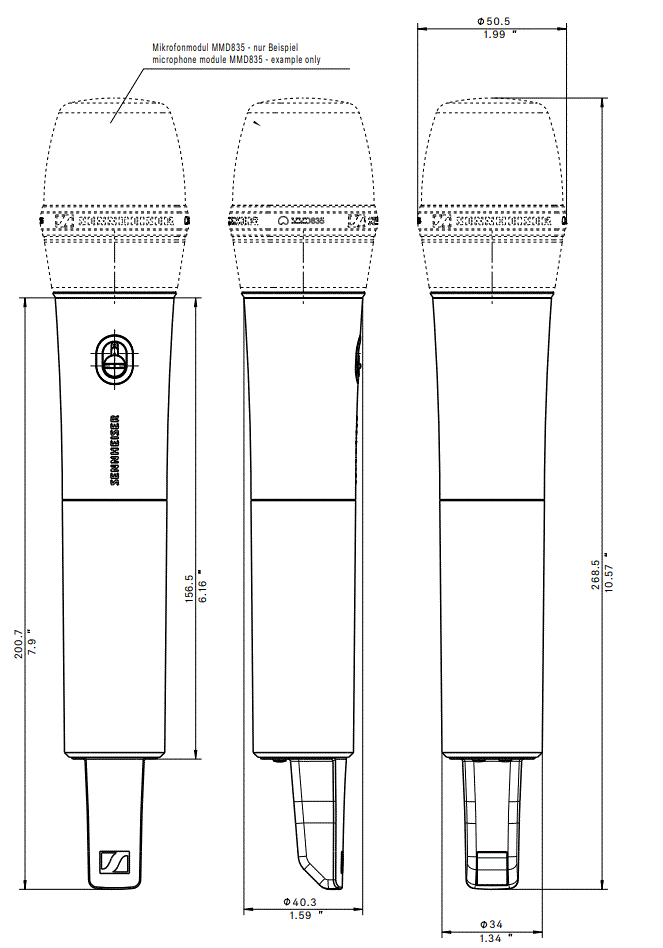

DIMENSIONS
EW-D EM
EW-D SKM-S
ARCHITECT‘S SPECIFICATION
ARCHITECT‘S SPECIFICATIONEW-D EM rack receiver
- The stationary receiver with switching diversity technology shall be for use with a companion transmitter as part of a digital wireless RF transmission system.
- The receiver shall operate within ten UHF frequency ranges, with a switching bandwidth of up to 56 MHz: 470.2 – 526 MHz, 520 – 576 MHz, 552 – 607.8 MHz, 606.2 – 662 MHz, 630 – 662 MHz, 662 – 693.8 MHz, 823.2 –831.8 MHz, 863.2 – 846.8 MHz, 925.2 – 937.3 MHz, 1785.2 –1799.8 MHz; selectable frequencies shall be up to 2,240.
- The receiver shall feature Bluetooth® Low Energy (BLE) at a frequency range between 2402 and 2480 MHz for remote controlling the devices via a control App for iOS and Android.
- The audio frequency response shall be between 20 Hz and 20 kHz (-3 dB) @ 3 dBfs. Audio total harmonic distortion (THD) shall be ≤ -60 dB for 1 kHz @ -3 dBfs input level. The dynamic range shall be 134 dB.
- The receiver shall be menu-driven with a backlit LC display showing the current frequency, channel number, metering of RF level, metering of AF level, lock status, muting function, mute lock status, antenna switching diversity, app connection, gain, audio output level, menu and battery status of the associated transmitter. An auto-lock feature shall be provided to prevent settings from being accidentally altered.
- The receiver shall feature a balanced XLR-3M audio output with a maximum output of +18 dBu along with an unbalanced ¼“ (6.3 mm) audio output with a maximum output of +12 dBu. Two BNC-type input sockets shall be provided for connecting the antennas.
- The receiver shall operate on 12 V power supplied from the power supply unit or from a Sennheiser EW-D ASA antenna splitter. Power consumption shall be ≤ 300 mA. The receiver shall have rugged metal housing; dimensions shall be approximately 212 x 44 x 189 mm (8.35“ x 1.73“ x 7.44“). Weight shall be approximately 1000 grams (2.2 lbs) without antennas and power supply. Operating temperature shall range from −10 °C to +55 °C (+14 °F to +131 °F).
- The receiver shall be the Sennheiser EW-D EM.
EW-D SKM-S handheld transmitter
- The handheld transmitter shall be for use with a companion receiver as part of a digital wireless RF transmission system.
- The handheld transmitter shall operate within ten UHF frequency ranges, with a switching bandwidth of up to 56 MHz: 470.2 – 526 MHz, 520 – 576 MHz, 552 – 607.8 MHz, 606.2 – 662 MHz, 630 – 662 MHz, 662 –693.8 MHz, 823.2 – 831.8 MHz, 863.2 – 846.8 MHz, 925.2 – 937.3 MHz, 1785.2 – 1799.8 MHz; selectable frequencies shall be up to 2,240.
- The audio frequency response shall be between 20 Hz and 20 kHz (-3 dB) @ 3 dBfs. Audio total harmonic distortion (THD) shall be ≤ -60 dB for 1 kHz @ -3 dBfs input level. Dynamic range shall be 134 dB.
- A programmable mute switch shall be provided to mute or unmute the audio signal.
- The handheld transmitter’s parameters shall be configurable in the associated receiver’s menu and synchronized with the handheld transmitter via Bluetooth Low Energy (BLE).
- Power shall be supplied to the handheld transmitter by two 1.5 V AA size batteries or by one Sennheiser BA 70 rechargeable battery pack. Operating time shall be typically 12 hours with a battery pack and up to 8 hours with AA batteries.
- Occupied bandwidth shall be 200 kHz. Transmit power (radiated) shall be 10 mW ERP (1785.2 – 1799.8 MHz Range: 12 mW ERP).
- The handheld transmitter shall have a rugged metal housing; dimensions shall be approximately 50 mm (1.97“) in diameter and 268 mm (10.55“) in length including a Sennheiser MMD 835 microphone module. Weight inclu-ding
- MMD 835 microphone module shall be approximately 304 grams (0.67 lbs). Operating temperature shall range from −10 °C to +55 °C (+14 °F to +131 °F).
- The handheld transmitter shall be the Sennheiser EW-D SKM-S.
- The microphone head suitable for use with the handheld transmitter shall be a dynamic type with a cardioid pick-up pattern and a sensitivity of 2.1 mV/Pa. Maximum sound pressure level shall be 154 dB SPL.
- The microphone head shall be the Sennheiser MMD 835.
