SENNHEISER EW-D ME2 Evolution Wireless Digital Combo Set Instruction Manual
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

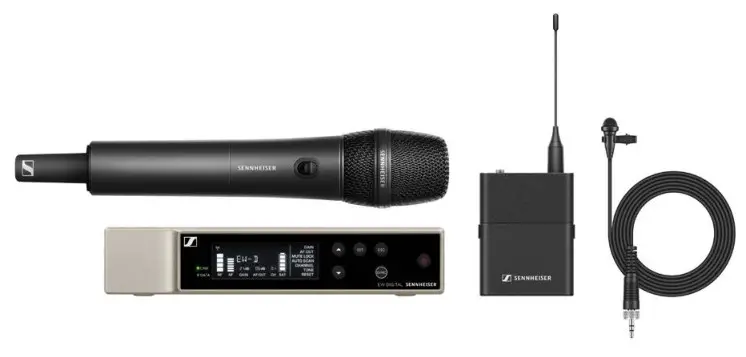

Benefit from our EW-D SKM-S handheld transmitter with the dynamic MMD 835 microphone module in addition to a robust bodypack transmitter with metal housing and unobstrusive clip-on microphone ME 2 (omni-directional) with high speech intelligibility.
FEATURES
- Digital wireless eliminates noise, interference and static bursts
- UHF transmission greatly enhances range, reliability and scalability
- Mobile App streamlines setup and operation and eliminates complicated menus
- Automated setup creates reliable connections with minimal time and effort
- Up to 2,240 selectable frequencies
- Transmission range: up to 100 m in an ideal environment (without obstacles)
- Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
- 56 MHz Bandwidth will allow for up to 90 channels
- Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
DELIVERY INCLUDES
• EW-D EM rack receiver
• EW-D SK bodypack transmitter
• EW-D SKM-S handheld transmitter
• ME 2 lavalier microphone
• MMD 835 microphone module
• MZQ 1 microphone clamp
• 2 rod antennas
• power supply with country adapters
• rackmount set
• 4 rubber feet
• quick guide
• safety guide
• manufacturer declaration sheet

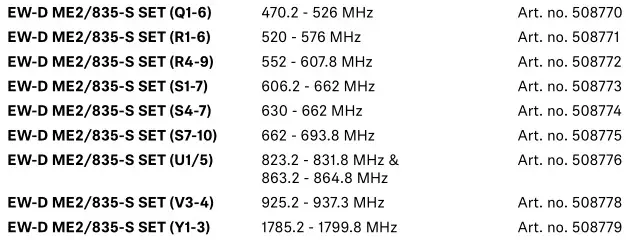

PRODUCT VARIANTS

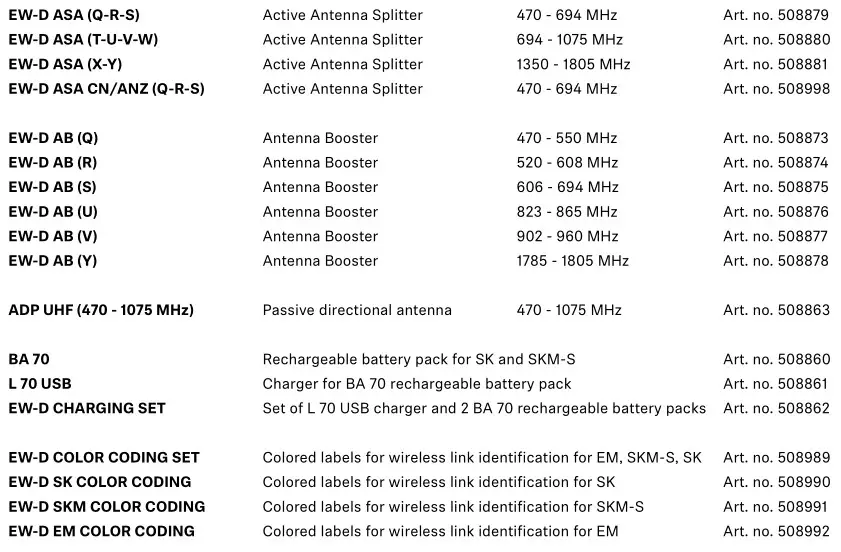

ACCESSORIES

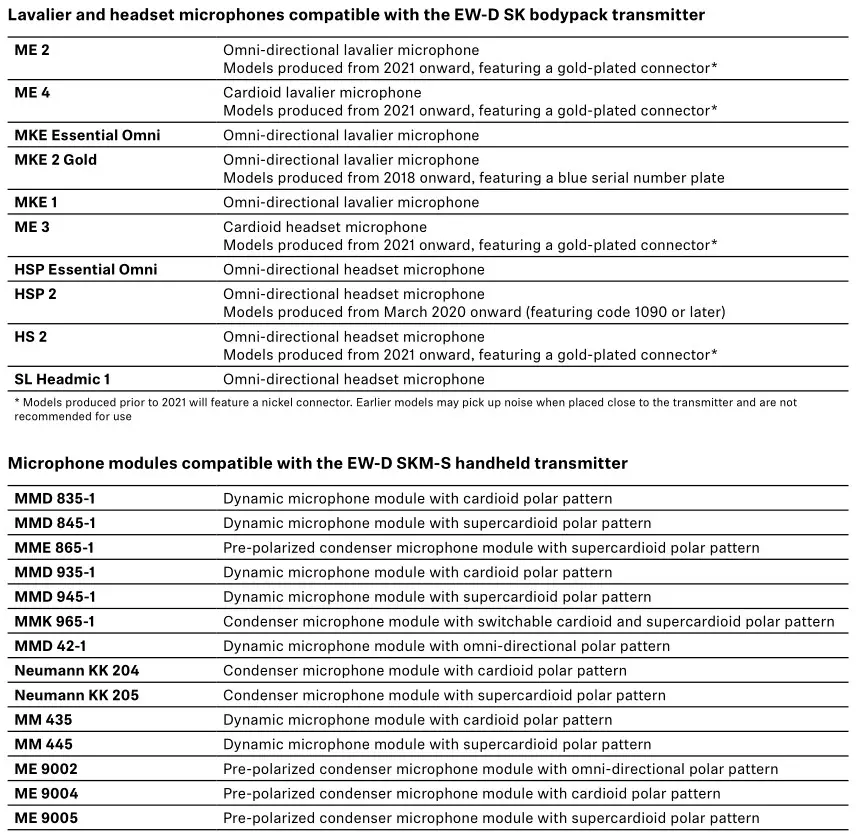

MICROPHONE COMPATIBILITY

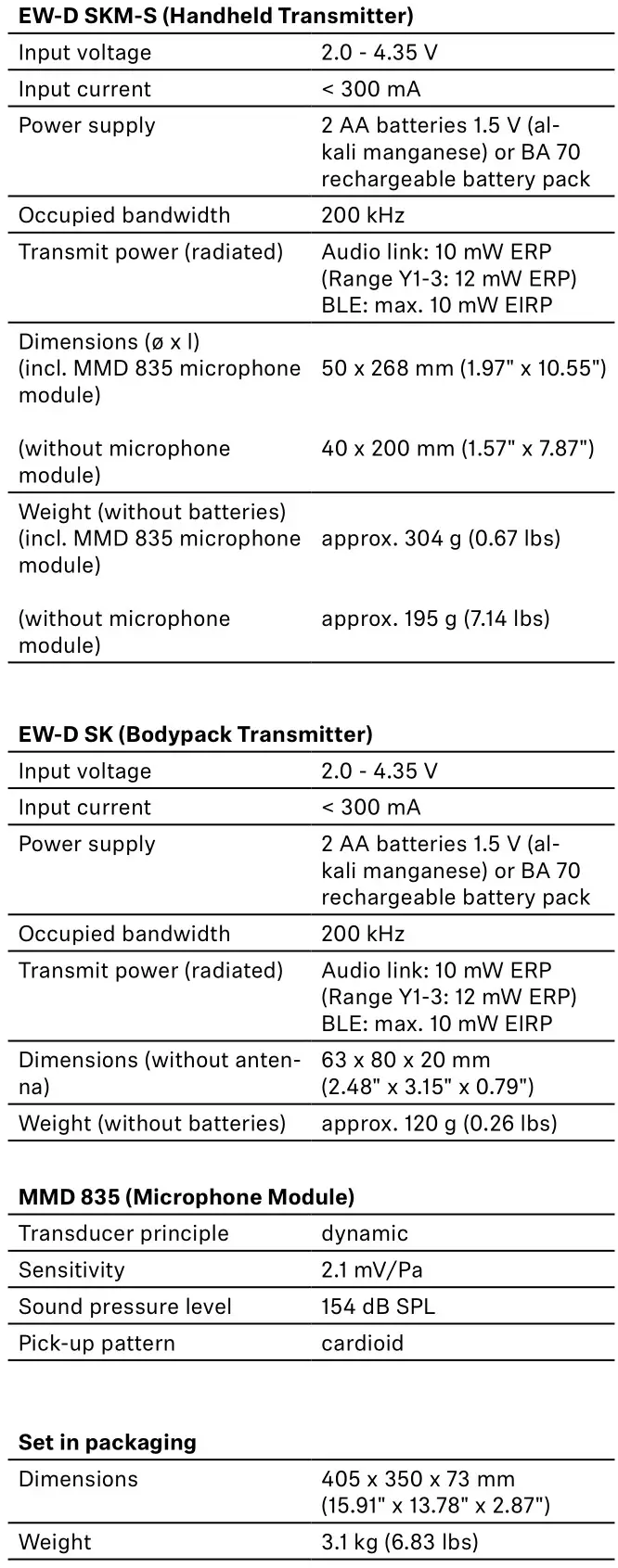

SPECIFICATIONS
DIMENSIONS
ARCHITECT`S SPECIFICATION

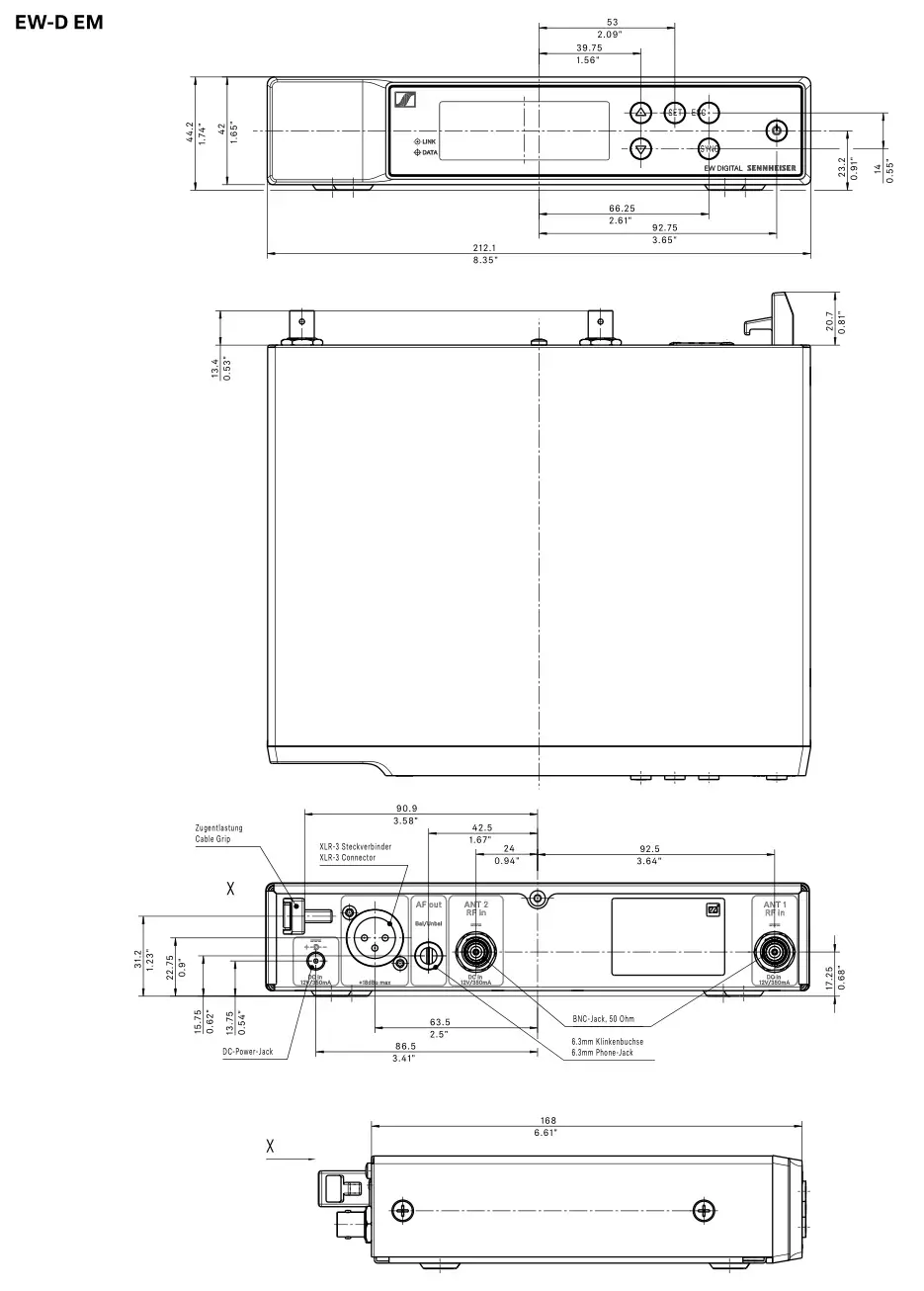

EW-D EM rack receiver
The stationary receiver with switching diversity technology shall be for use with a companion transmitter as part of a digital wireless RF transmission system.
The receiver shall operate within ten UHF frequency ranges, with a switching bandwidth of up to 56 MHz: 470.2 526 MHz, 520 576 MHz, 552 607.8 MHz, 606.2 662 MHz, 630 662 MHz, 662 693.8 MHz, 823.2 831.8 MHz, 863.2 846.8 MHz, 925.2 937.3 MHz, 1785.2 1799.8 MHz; selectable frequencies shall be up to 2,240.
The receiver shall feature Bluetooth® Low Energy (BLE) at a frequency range between 2402 and 2480 MHz for remote controlling the devices via a control App for iOS and Android.
The audio frequency response shall be between 20 Hz and 20 kHz (-3 dB) @ 3 dBfs. Audio total harmonic distortion (THD) shall be -60 dB for 1 kHz @ -3 dBfs input level. Dynamic range shall be 134 dB.
The receiver shall be menu-driven with a backlit LC display showing the current frequency, channel number, metering of RF level, metering of AF level, lock status, muting function, mute lock status, antenna switching diversity, app connection, gain, audio output level, menu and battery status of the associated transmitter. An auto-lock feature shall be provided to prevent settings from being accidentally altered.
The receiver shall feature a balanced XLR-3M audio output with a maximum output of +18 dBu along with an unbalanced ¼” (6.3 mm) audio output with a maximum output of +12 dBu. Two BNC-type input sockets shall be provided for connecting the antennas.
The receiver shall operate on 12 V power supplied from the power supply unit or from a Sennheiser EW-D ASA antenna splitter. Power consumption shall be 300 mA. The receiver shall have a rugged metal housing; dimensions shall be approximately 212 x 44 x 189 mm (8.35″ x 1.73″ x 7.44″). Weight shall be approximately 1000 grams (2.2 lbs) without antennas and power supply. Operating temperature shall range from -10 °C to +55 °C (+14 °F to +131 °F).
The receiver shall be the Sennheiser EW-D EM.

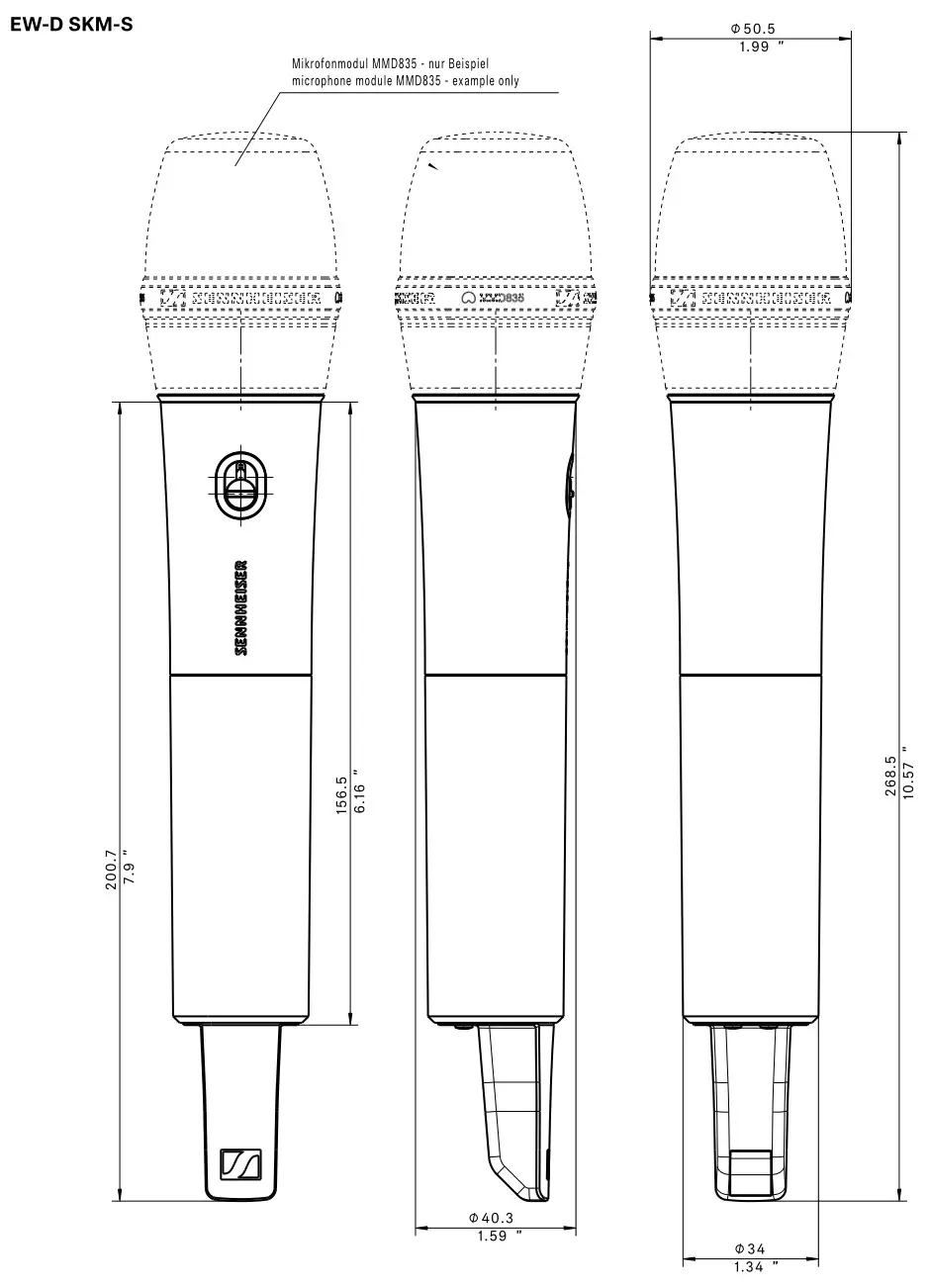

EW-D SKM-S handheld transmitter
The handheld transmitter shall be for use with a companion receiver as part of a digital wireless RF transmission system.
The handheld transmitter shall operate within ten UHF frequency ranges, with a switching bandwidth of up to 56 MHz: 470.2 526 MHz, 520 576 MHz, 552 607.8 MHz, 606.2 662 MHz, 630 662 MHz, 662 693.8 MHz, 823.2 831.8 MHz, 863.2 846.8 MHz, 925.2 937.3 MHz, 1785.2 1799.8 MHz; selectable frequencies shall be up to 2,240.
The audio frequency response shall be between 20 Hz and 20 kHz (-3 dB) @ 3 dBfs. Audio total harmonic distortion (THD) shall be -60 dB for 1 kHz @ -3 dBfs input level. Dynamic range shall be 134 dB.
A programmable mute switch shall be provided to mute or unmute the audio signal.
The handheld transmitter’s parameters shall be configurable in the associated receiver’s menu and synchronized with the handheld transmitter via Bluetooth Low Energy (BLE).
Power shall be supplied to the handheld transmitter by two 1.5 V AA size batteries or by one Sennheiser BA 70 rechargeable battery pack. Operating time shall be typically 12 hours with a battery pack and up to 8 hours with AA batteries.
Occupied bandwidth shall be 200 kHz. Transmit power (radiated) shall be 10 mW ERP (1785.2 1799.8 MHz Range: 12 mW ERP).
The handheld transmitter shall have a rugged metal housing; dimensions shall be approximately 50 mm (1.97″) in diameter and 268 mm (10.55″) in length including a Sennheiser MMD 835 microphone module. Weight including MMD 835 microphone module shall be approximately 304 grams (0.67 lbs). Operating temperature shall range from -10 °C to +55 °C (+14 °F to +131 °F).
The handheld transmitter shall be the Sennheiser EW-D SKM-S.
The microphone head suitable for use with the handheld transmitter shall be a dynamic type with a cardioid pick-up pattern and a sensitivity of 2.1 mV/Pa. Maximum sound pressure level shall be 154 dB SPL.
The microphone head shall be the Sennheiser MMD 835.

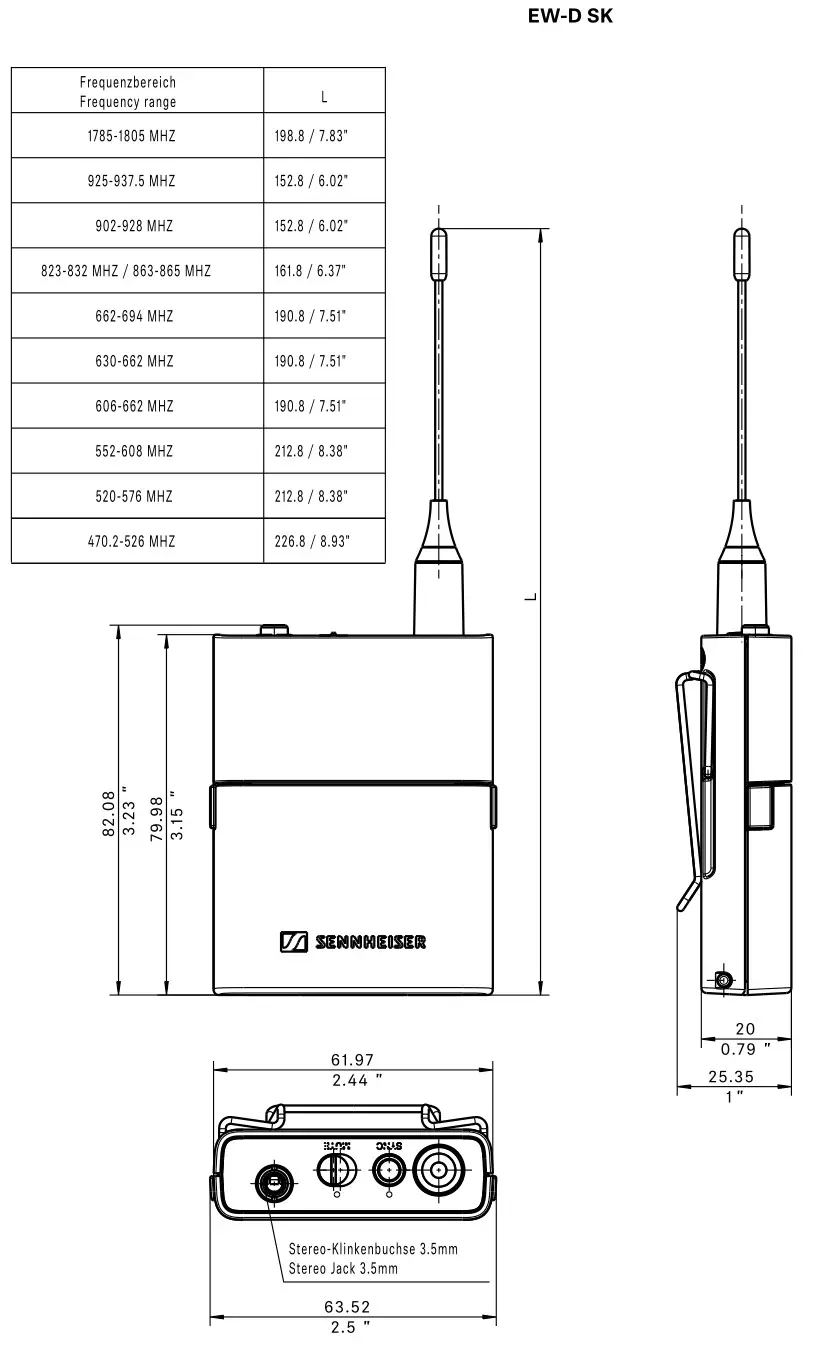

EW-D SK bodypack transmitter
The bodypack transmitter shall be for use with a companion receiver as part of a digital wireless RF transmission system.
The bodypack transmitter shall operate within ten UHF frequency ranges, with a switching bandwidth of up to 56 MHz: 470.2 526 MHz, 520 576 MHz, 552 607.8 MHz, 606.2 662 MHz, 630 662 MHz, 662 693.8 MHz, 823.2 831.8 MHz, 863.2 846.8 MHz, 925.2 937.3 MHz, 1785.2 1799.8 MHz; selectable frequencies shall be up to 2,240.
The audio frequency response shall be between 20 Hz and 20 kHz (-3 dB) @ 3 dBfs. Audio total harmonic distortion (THD) shall be -60 dB for 1 kHz @ -3 dBfs input level. Dynamic range shall be 134 dB.
A programmable mute switch shall be provided to mute or unmute the audio signal.
The bodypack transmitter’s parameters shall be configurable in the associated receiver’s menu and synchronized with the bodypack transmitter via Bluetooth Low Energy (BLE).
Power shall be supplied to the bodypack transmitter by two 1.5 V AA size batteries or by one Sennheiser BA 70 rechargeable battery pack. Operating time shall be typically 12 hours with a battery pack and up to 8 hours with AA batteries.
Occupied bandwidth shall be 200 kHz. Transmit power (radiated) shall be 10 mW ERP (1785.2 1799.8 MHz Range: 12 mW ERP).
The bodypack transmitter shall have a rugged metal housing; dimensions shall be approximately 63 x 80 x 20 mm (2.48″ x 3.15″ x 0.79″) without antenna. Weight without the batteries shall be approximately 120 grams (0.26 lbs). Operating temperature shall range from -10 °C to +55 °C (+14 °F to +131 °F).
The bodypack transmitter shall be compatible with microphones for every application: Sennheiser lavalier microphones ME 2, ME 4, MKE 1, MKE 2 Gold and MKE
Essential Omni, Sennheiser headset microphones HS 2, HSP 2, HSP Essential Omni, ME 3 and SL Headmic 1.
The bodypack transmitter shall be the Sennheiser EW-D SK.
